Introduction — Extended Probe Design for Accurate Machinery Condition Monitoring

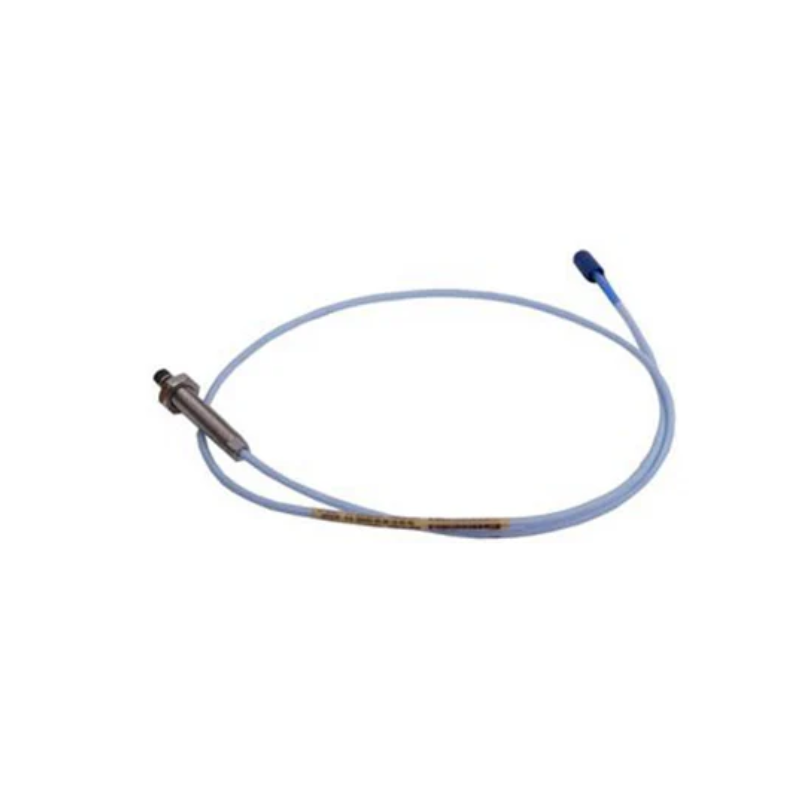

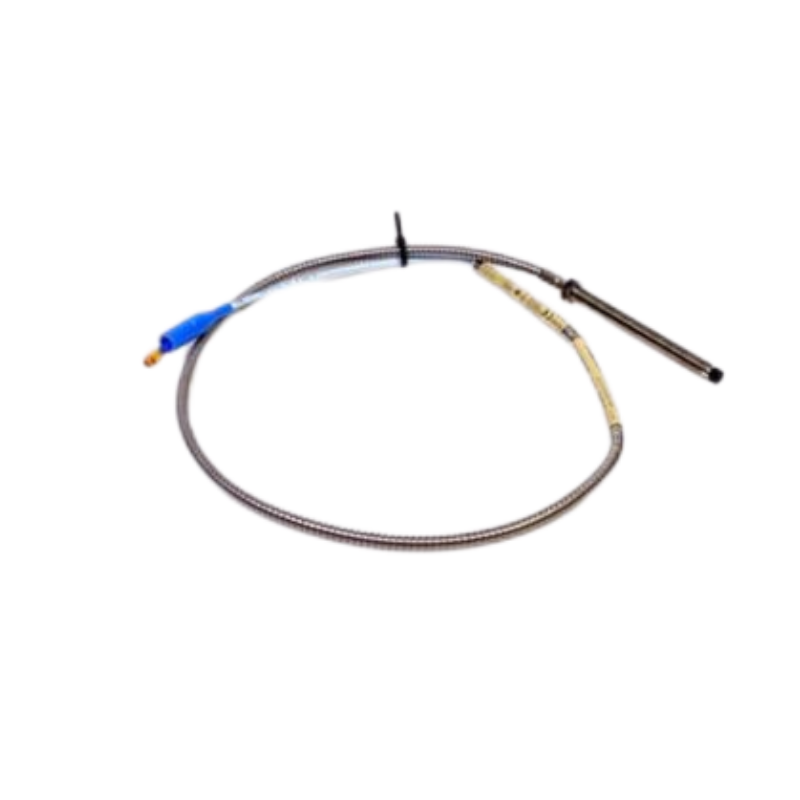

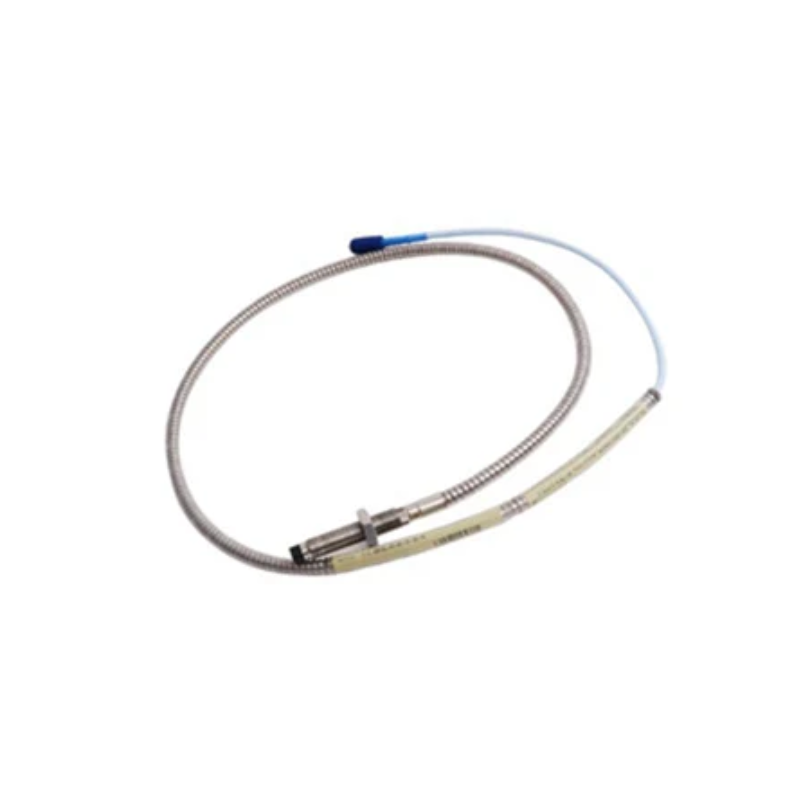

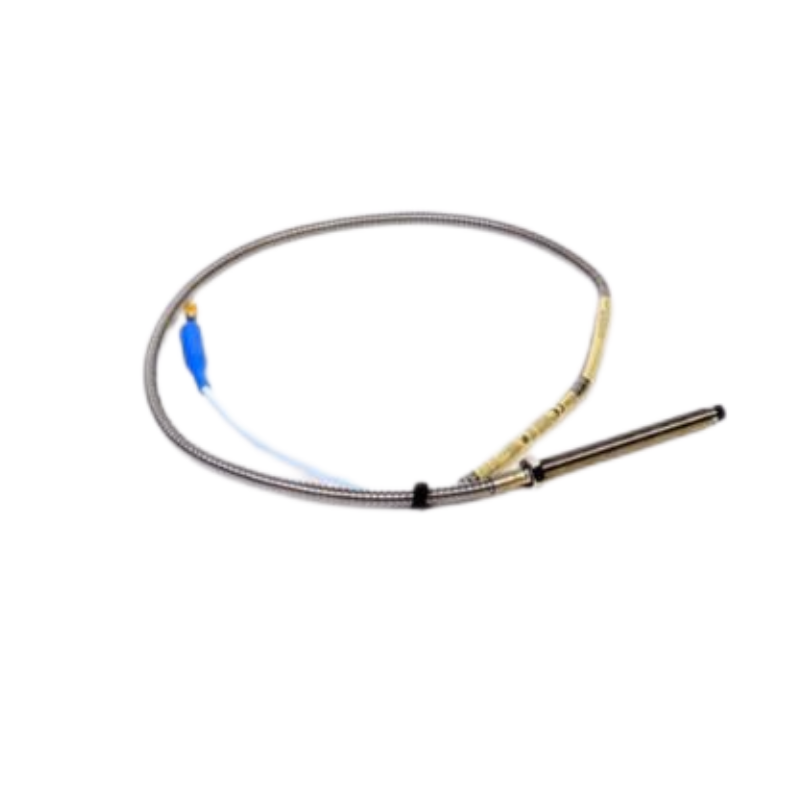

The Bently Nevada 330104-00-20-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor engineered for continuous measurement of shaft vibration, displacement, and position in critical rotating machinery. As a key component of the trusted 3300 XL transducer system, this probe provides exceptional signal stability, excellent linearity, and long-term reliability in demanding industrial environments.
This configuration combines a 200 mm overall case length, 0.5 m lead cable, ClickLoc® connector, and standard industrial approval option, making it ideal for installations that require deeper mounting positions while maintaining compact cable management.
Technical Specifications — Mechanical Configuration & Performance
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330104-00-20-05-02-00 |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy current non-contact sensing |
| Unthreaded Length | 0 mm |
| Overall Case Length | 200 mm |
| Lead Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | Standard 75 Ω cable |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | Bently Nevada 3300 XL system |
| Approval Option | Standard industrial configuration |
| Approximate Weight | 0.2–0.8 kg (packaging dependent) |
