Overview — Extended-Length Probe for Precision Machinery Protection

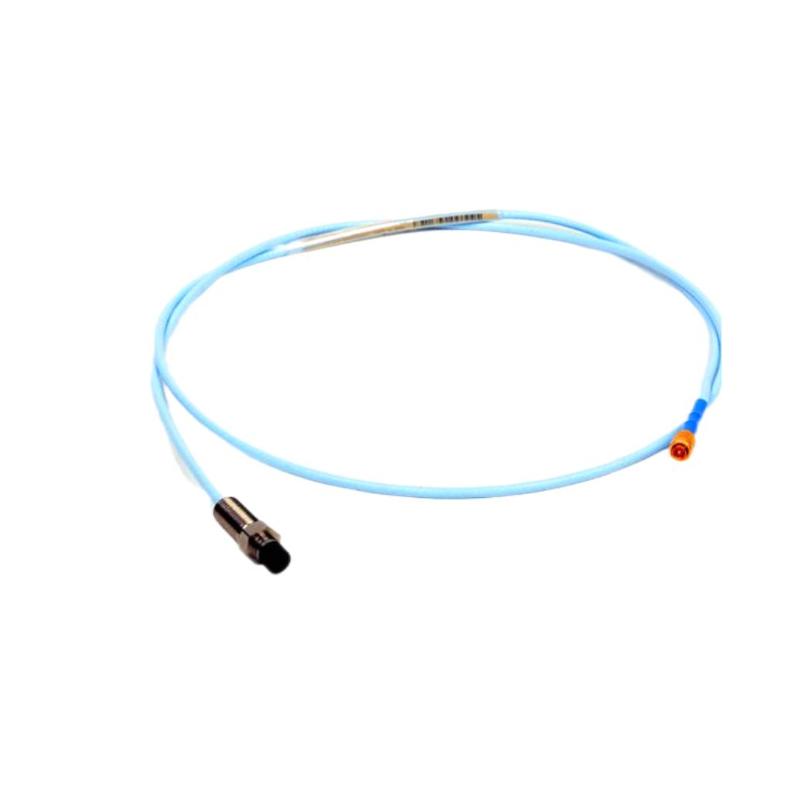

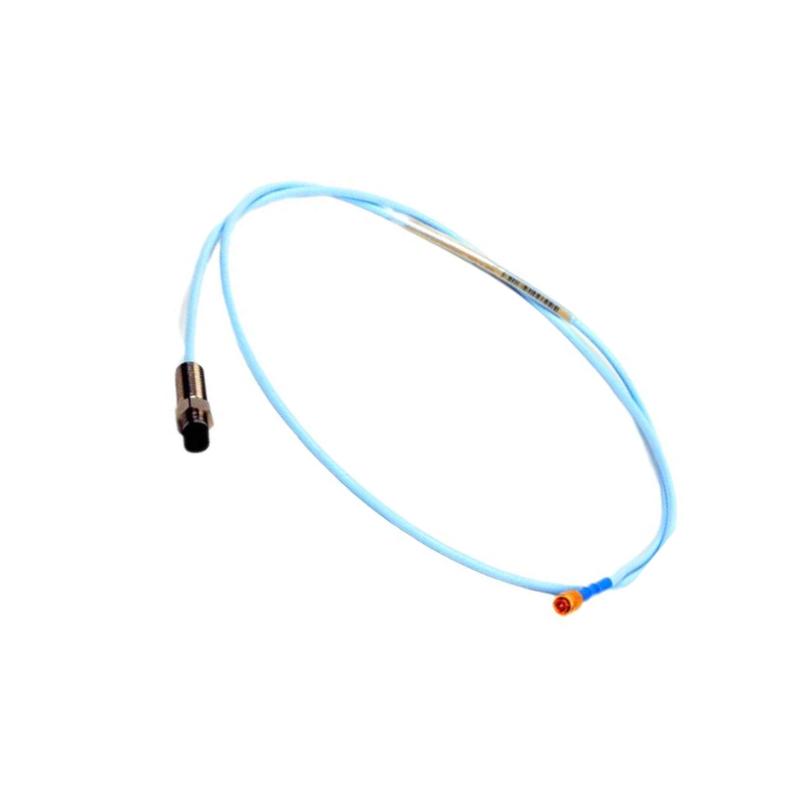

The Bently Nevada 330104-00-19-10-01-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current sensor engineered for continuous vibration, shaft displacement, and position monitoring in critical rotating equipment. As a member of the trusted 3300 XL transducer family, it delivers exceptional measurement stability, robust construction, and reliable long-term operation in demanding industrial environments.

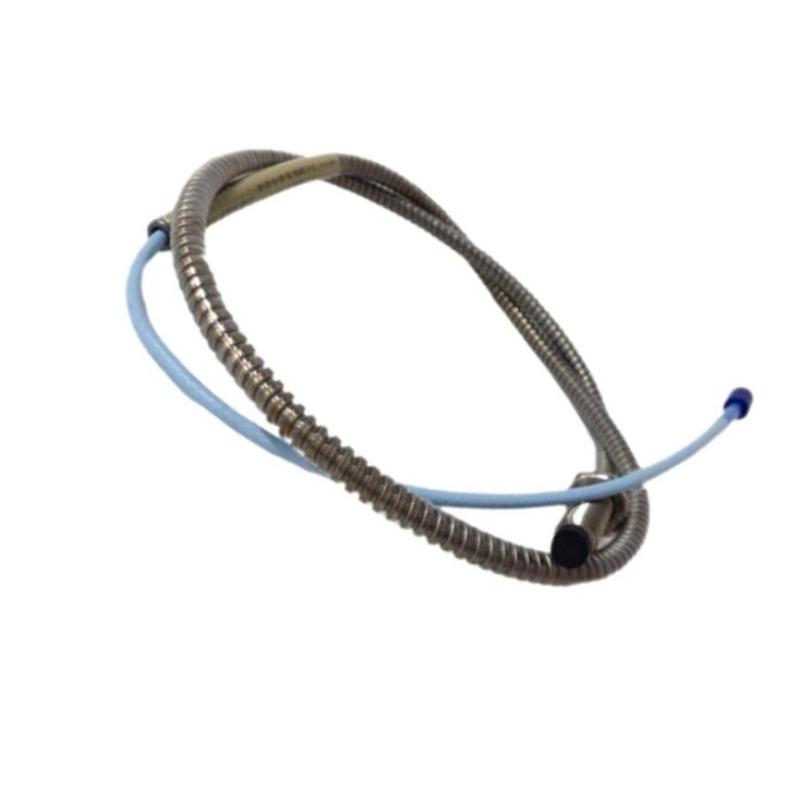

This configuration combines a 190 mm armored probe body, 1.0 m cable assembly, ClickLoc® connector, and certified industrial approvals, making it ideal for turbines, compressors, motors, and other high-value assets that require accurate machinery protection. The 3300 XL platform is designed to comply with API 670 performance requirements while maintaining interchangeability throughout the system.
Technical Specifications — Mechanical Design & Performance Details
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330104-00-19-10-01-05 |
| Probe Diameter | 8 mm |
| Probe Thread | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 190 mm |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc® connector with protector |
| Cable Type | Standard armored 75 Ω cable |
| Measurement Principle | Eddy current non-contact sensing |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | Up to 10 kHz |
| Probe Operating Temperature | -52°C to +177°C |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Certifications | CSA, ATEX, IECEx |
| System Compatibility | Bently Nevada 3300 XL transducer systems |
| Approximate Weight | 0.323 kg |
| Approximate Dimensions | 23 × 23 × 4 cm (shipping dimensions) |
