Advanced Synchronization Control for High-Reliability Power Systems

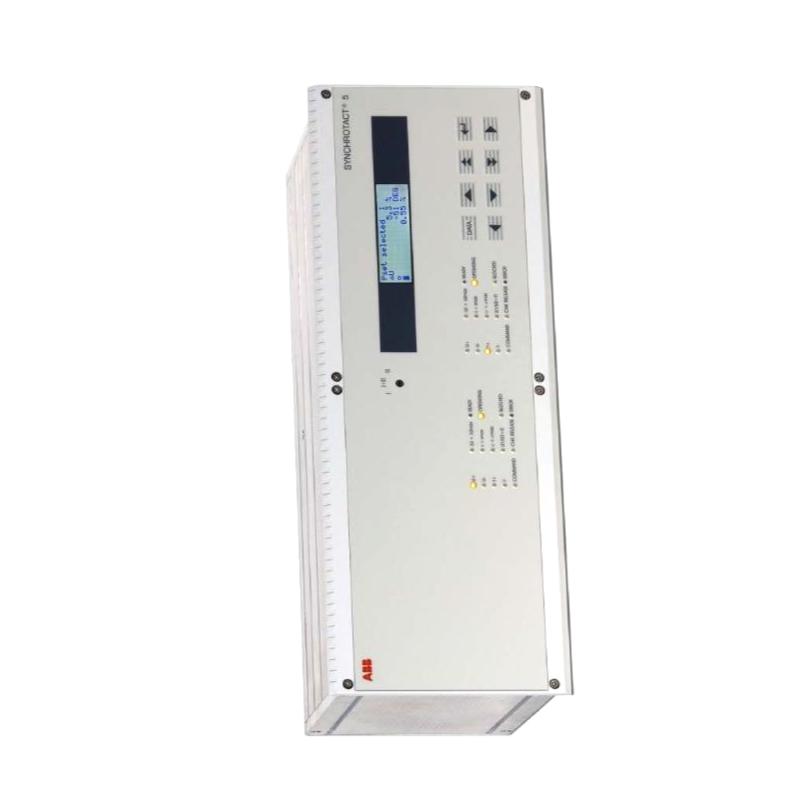

The ABB SYN 5302 3BHB006716R0277 Synchronizing Device is a high-performance industrial synchronization unit designed for precise control of generator and power system paralleling operations. As part of ABB’s SYNCHROTACT 5 platform, it enables accurate matching of voltage, frequency, and phase angle to support stable and coordinated power system integration.
Engineered for mission-critical industrial and utility applications, this device is widely used in environments where controlled synchronization and continuous operational reliability are essential for maintaining smooth power system performance.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SYN 5302 |
| Part Number | 3BHB006716R0277 |
| Product Type | Automatic Synchronizing Device |
| System Series | SYNCHROTACT 5 |
| Function | Synchronization and Paralleling Control |
| System Configuration | Redundant Dual-Channel Architecture |
| Auxiliary Voltage AC | 100–230 V AC |
| Auxiliary Voltage DC | 24–250 V DC |
| Rated Frequency | 50 / 60 Hz |
| Supported Frequency Range | 10–100 Hz |
| Phase Angle Range | -180° to +180° |
| Communication Interfaces | Industrial communication options (system dependent) |
| Operating Temperature | +5°C to +55°C |
| Mounting Type | Panel / Cabinet Integration |
| Approx. Dimensions | 300 × 220 × 120 mm |
| Approx. Weight | 3.5–4.5 kg |
| Country of Origin | Switzerland |
Application Areas
Power Generation Plants
Used for controlled synchronization of generators before grid connection, ensuring stable and smooth system coupling.
Utility and Grid Infrastructure
Supports safe paralleling of busbars, transmission lines, and distribution networks in utility environments.
Industrial Energy Systems
Applied in factories and large industrial facilities requiring stable internal power coordination.
Oil, Gas, and Heavy Industry
Suitable for continuous-process environments where electrical stability is essential for production continuity.
Renewable Energy Integration
Used in hybrid and renewable systems for coordinated synchronization with external grids.
Key Performance Advantages
High-Precision Synchronization
Ensures accurate alignment of voltage, frequency, and phase angle before system connection.
Enhanced System Coordination
Supports stable interaction between multiple power sources within complex electrical networks.
Redundant System Architecture
Dual-channel design improves operational consistency and supports high availability in industrial applications.
Industrial Reliability Design
Built for continuous-duty environments with long-term operational stability.
Flexible Integration Capability
Compatible with a wide range of ABB and industrial automation architectures.
Proven ABB Engineering Standard
Developed according to ABB’s established design principles for power system control equipment.
Technical FAQs
1. What is the main function of the ABB SYN 5302?
It manages automatic synchronization of power systems by aligning voltage, frequency, and phase conditions.
2. Where is this device commonly used?
It is used in power plants, substations, and industrial automation systems.
3. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial and utility applications.
4. What type of system architecture does it use?
It uses a redundant dual-channel synchronization architecture.
5. What power ranges does it support?
It supports standard industrial auxiliary voltage ranges of 100–230 V AC and 24–250 V DC.
6. What frequency systems are compatible?
It supports both 50 Hz and 60 Hz power systems.
7. Does it require programming?
No direct programming is required; it operates within system-level configuration.
8. What industries use this device?
Energy, utilities, manufacturing, mining, and process industries.
9. What role does it play in system stability?
It ensures controlled synchronization to support stable electrical integration.
10. Why is this model widely adopted?
Because of its reliability, redundancy design, and compatibility with ABB SYNCHROTACT systems.
