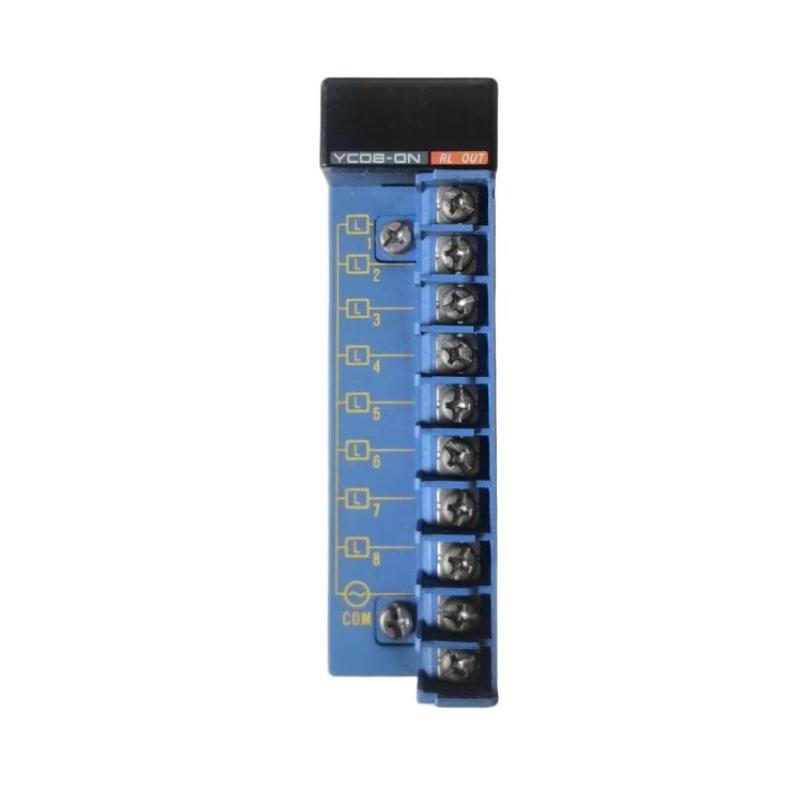

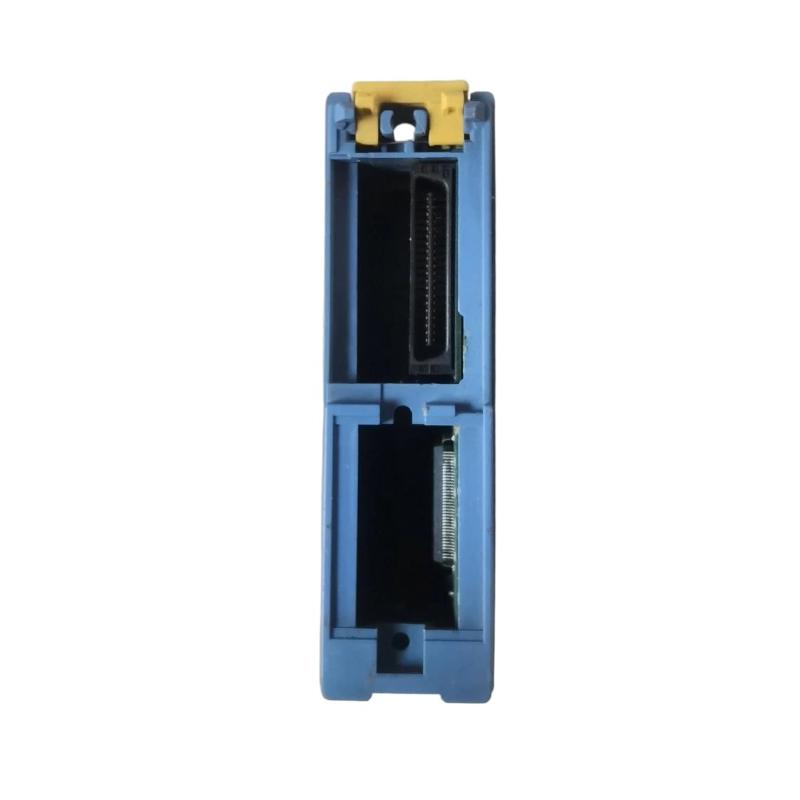

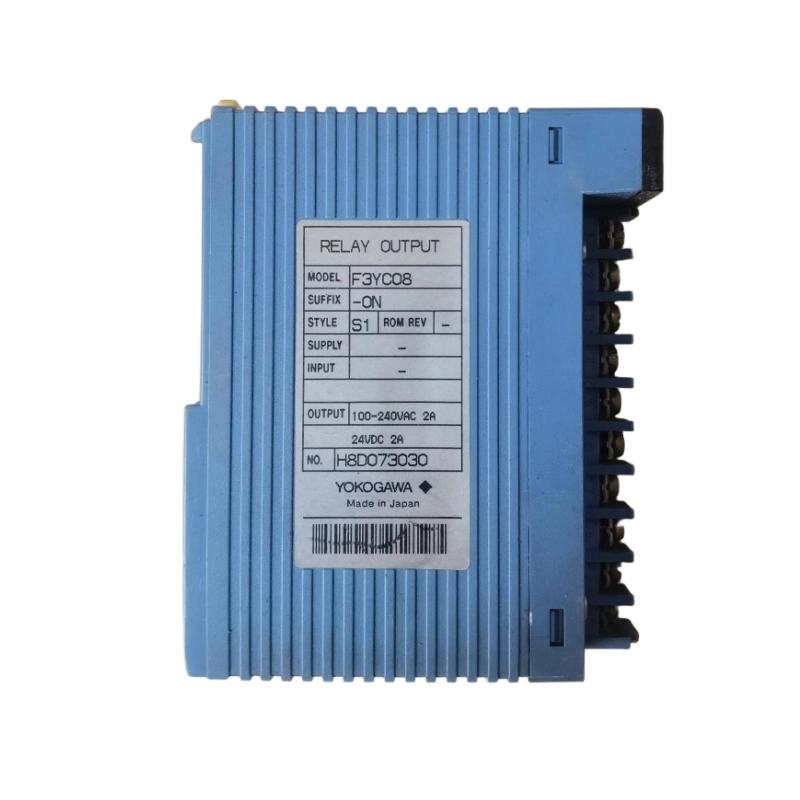

Yokogawa F3YC08-0N Relay Output Module

Name: Yokogawa F3YC08-0N Relay Output Module
Brand: Yokogawa Electric
SKU: 8072
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:F3YC08-0N
Product Origin:Japan
Product Dimensions:100 × 30 × 83 mm
Product Weight:0.16kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Smart Relay Output for Flexible Automation Control

The Yokogawa F3YC08-0N Relay Output Module is designed to deliver dependable switching performance for FA-M3 PLC systems. With its relay-based architecture, it provides versatile control of both AC and DC loads, making it an excellent choice for industrial environments requiring stable output handling and electrical separation. Its balanced design between functionality and efficiency allows engineers to simplify system wiring while maintaining high operational reliability.

Technical Specifications

Parameter	Details
Manufacturer	Yokogawa
Model	F3YC08-0N
Module Type	Relay Output Module
Output Channels	8
Output Type	Relay Contact
Isolation Method	Mechanical Isolation
Rated Load Voltage	5–24 V DC / 100–240 V AC
Maximum Load Current	2 A per channel (8 A per common)
Response Time	≤ 10 ms (ON/OFF)
Contact Life (Mechanical)	≥ 20 million operations
Contact Life (Electrical)	≥ 100,000 operations
Power Consumption	Approx. 380 mA @ 5 V DC
External Power Supply	Not required
Connection Type	10-point terminal block (M3.5 screw)
Operating Temperature	0°C to 55°C
Dimensions (H×W×D)	Approx. 100 × 30 × 83 mm
Weight	Approx. 0.16 kg

Typical Applications

The F3YC08-0N is widely used in industrial automation systems where reliable relay switching is required. It is suitable for controlling solenoids, alarm systems, indicator lamps, and contactors. Its compatibility with both AC and DC loads makes it ideal for hybrid systems that combine different types of field devices.

Key Advantages and Engineering Value

This module stands out for its shared common relay configuration, allowing efficient wiring and reduced installation complexity. The mechanical isolation enhances protection against electrical interference, ensuring stable system performance even in demanding environments.

Its ability to handle relatively higher current loads compared to transistor outputs provides greater flexibility when driving external devices. Additionally, the long relay lifespan supports reduced maintenance frequency and improved lifecycle cost efficiency.

Technical FAQs

How many outputs are available on the module?
It provides 8 relay output channels.
What distinguishes the 0N version from the 0C model?
The 0N version uses shared commons, while the 0C version offers fully independent contacts.
What types of loads can be connected?
Both DC and AC loads within the specified voltage range.
What is the maximum current capacity?
Up to 2 A per output, with a shared common limit.
Is external power required for operation?
No, it is powered via the PLC backplane.
How fast is the switching response?
The module operates within 10 ms for ON/OFF transitions.
Is it suitable for high-frequency switching tasks?
It is optimized for standard switching rather than rapid cycling applications.
What type of isolation is used?
Mechanical relay isolation is applied.
How are field devices connected?
Through a screw-type terminal block.
What maintenance considerations apply?
Periodic inspection and relay lifecycle monitoring are recommended.
