Engineered Output Control for Demanding Systems

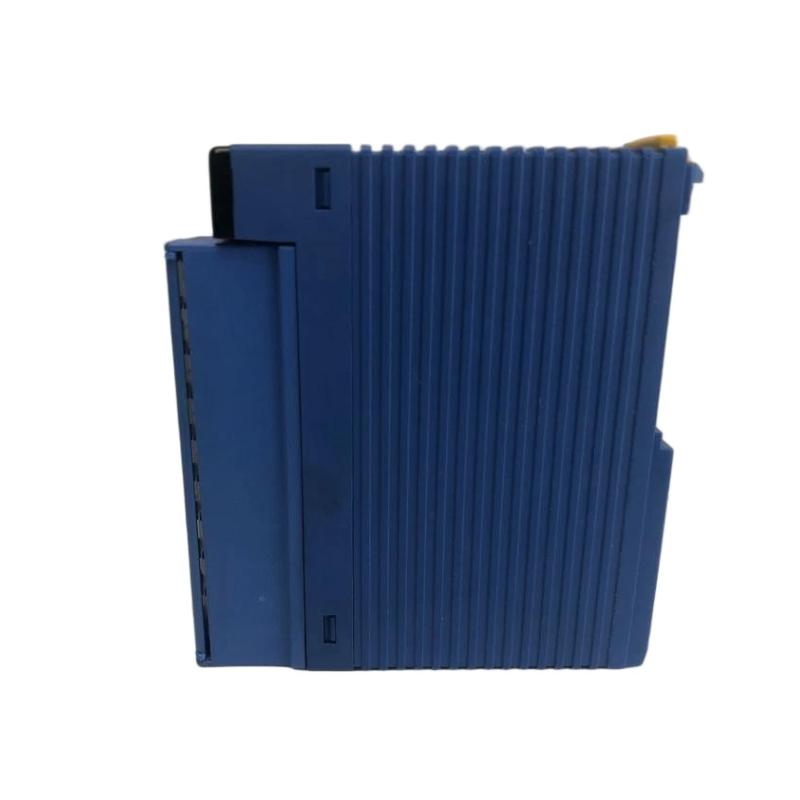

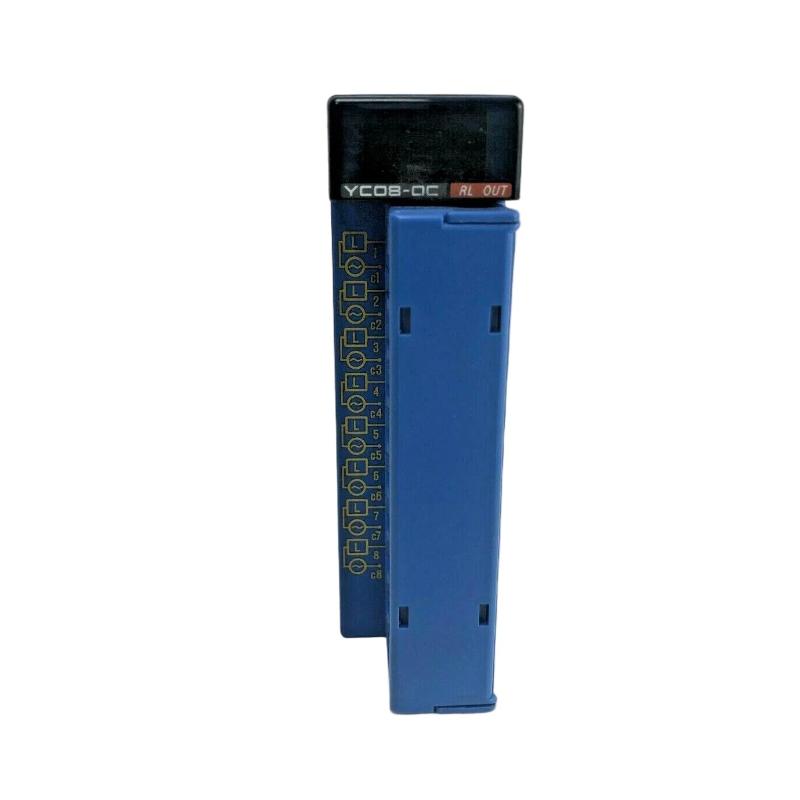

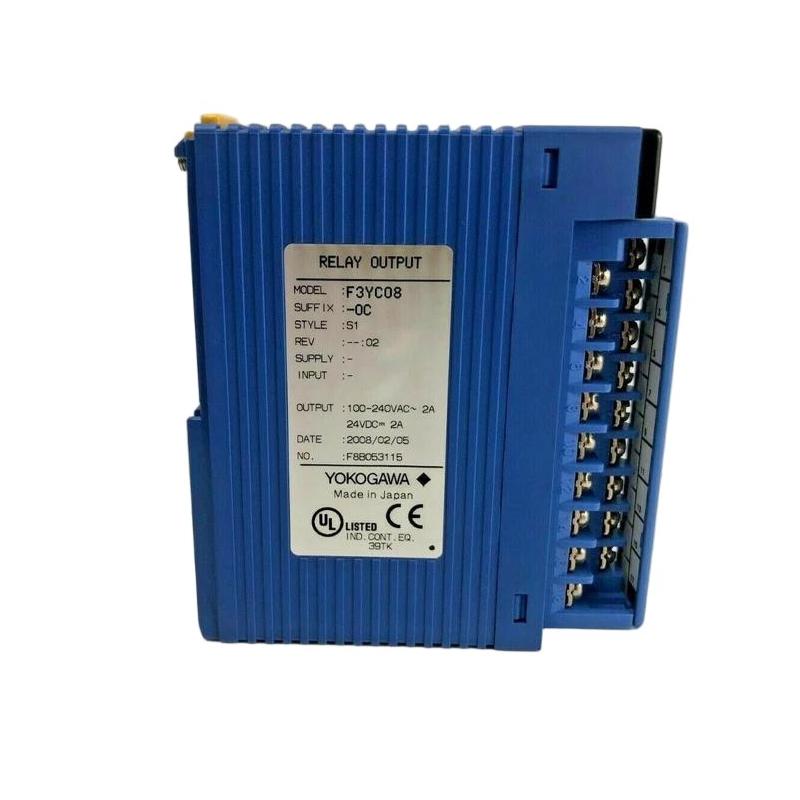

The Yokogawa F3YC08-0C Relay Output Module is a dependable solution designed for precise switching control within the FA-M3 PLC platform. Built with mechanical relay contacts and full channel isolation, it offers exceptional flexibility for both AC and DC load control. This module is particularly valued in industrial environments where reliability, electrical separation, and consistent switching performance are essential for long-term system stability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3YC08-0C |
| Module Type | Relay Output Module |
| Output Channels | 8 |
| Output Type | Relay Contact (SPST) |
| Isolation Method | Mechanical Isolation |
| Rated Load Voltage | 5–24 V DC / 100–240 V AC |
| Maximum Load Current | 2 A per point |
| Response Time | ≤ 10 ms (ON/OFF) |
| Contact Life (Mechanical) | ≥ 20 million operations |
| Contact Life (Electrical) | ≥ 100,000 operations |
| Power Consumption | Approx. 205 mA @ 5 V DC |
| External Power Supply | Not required |
| Connection Type | 18-point terminal block (M3.5 screw) |
| Operating Temperature | 0°C to 55°C |
| Dimensions (H×W×D) | Approx. 100 × 30 × 83 mm |
| Weight | Approx. 0.18 kg |
