Introduction

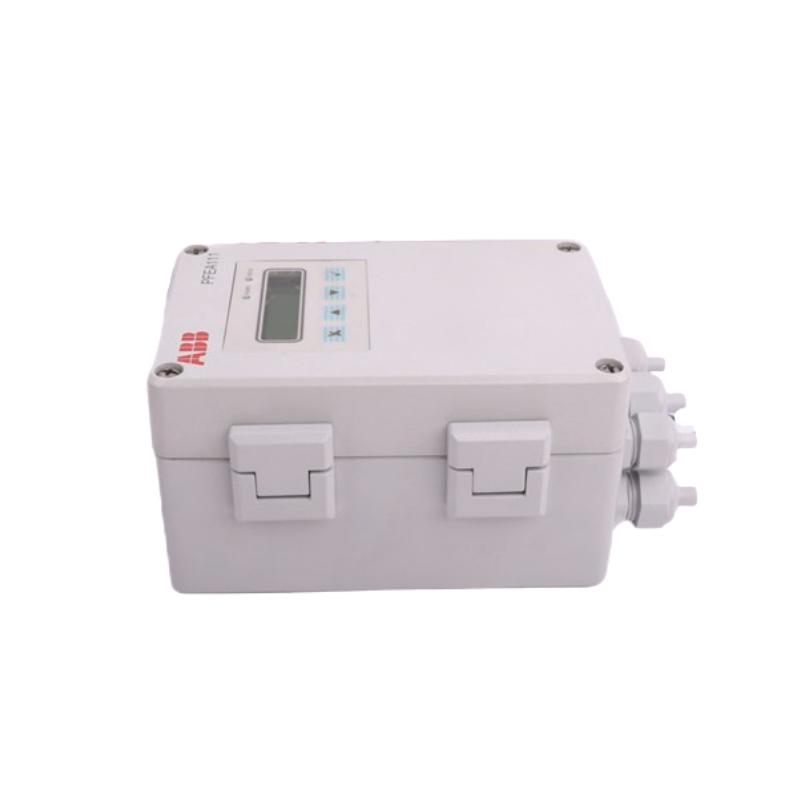

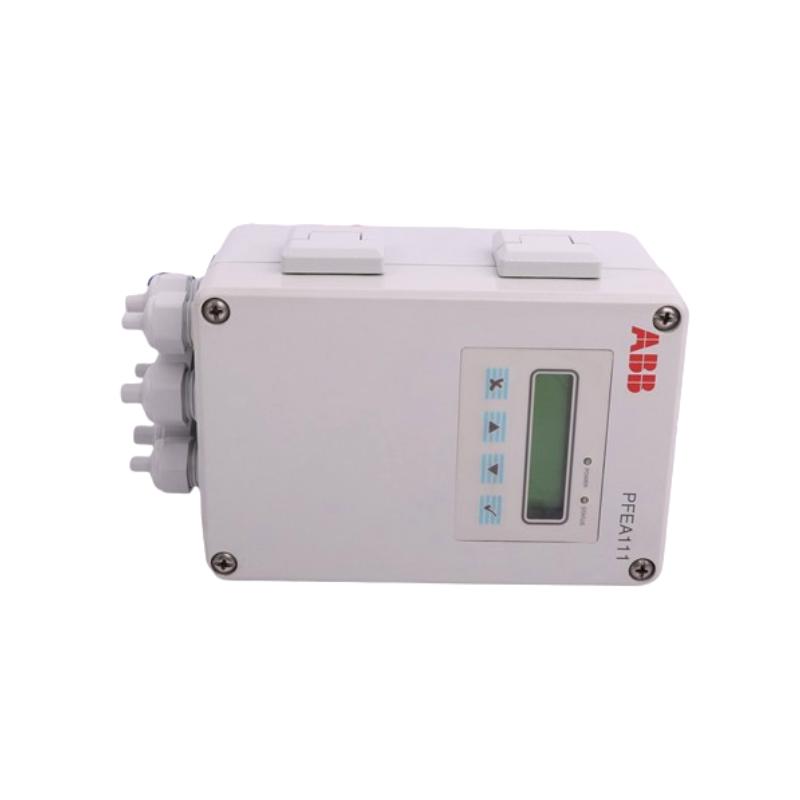

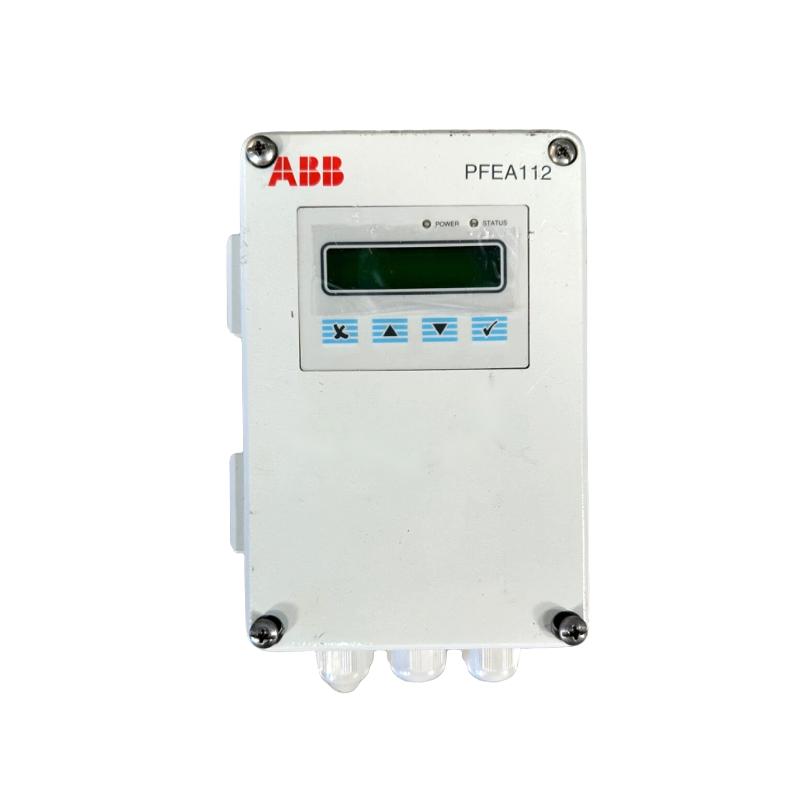

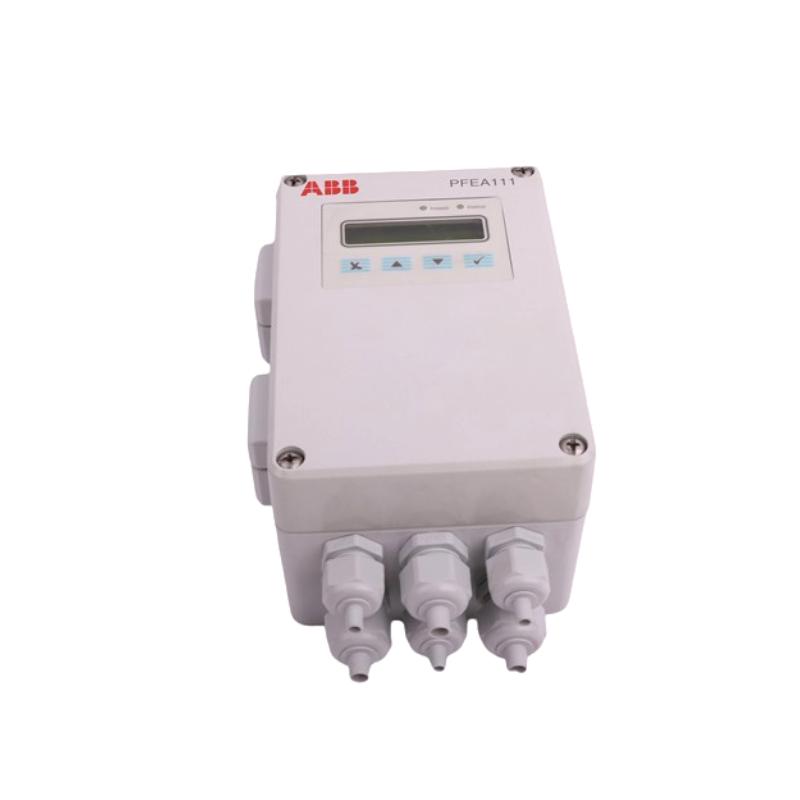

The ABB PFEA112-65 (3BSE030369R65) Tension Electronics Module is a high-reliability industrial control unit designed for advanced web tension measurement and control applications. It is part of ABB’s well-established PFEA tension electronics family, widely used in continuous processing industries where stable material tension is critical for product quality and process efficiency.
This module enhances standard PFEA112 functionality by adding PROFIBUS-DP communication and rugged IP65 protection options, making it suitable for both cabinet and harsh-environment installations. It is commonly deployed in paper, steel, film, and textile production lines where precise tension regulation directly impacts output consistency.
Technical Specifications
| Parameter | Details |
|---|
| Model | PFEA112-65 |
| Part Number | 3BSE030369R65 / 3BSE050091R65 |
| Manufacturer | ABB |
| Product Type | Tension Electronics Module |
| Input Channels | 2 Load Cell Inputs (A & B) |
| Signal Processing | A, B, A+B, A−B calculation |
| Output Signals | Voltage & Current (configurable) |
| Communication | PROFIBUS-DP |
| Filtering | Adjustable digital filtering |
| Operating Voltage | 24 V DC (typical system supply) |
| Protection Rating | IP65 (enclosed version) |
| Display | Integrated multi-line digital interface |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | Approx. 263 × 138 × 88 mm |
| Weight | ~1.0 kg |
Applications
The PFEA112-65 is widely used in industrial web handling and continuous material processing systems, including:
-
Steel strip rolling and finishing lines
-
Paper and pulp production machines
-
Plastic film and foil extrusion systems
-
Textile and fiber processing equipment
-
Printing and packaging machinery
It plays a key role in maintaining consistent tension during winding and unwinding processes, preventing material defects such as wrinkling, stretching, or breakage.
Advantages
The ABB PFEA112-65 stands out for its enhanced communication capability and environmental protection, making it suitable for more demanding industrial setups compared to standard tension electronics modules.
Its dual load cell input architecture allows precise tension calculation using sum and differential signals, improving measurement accuracy in multi-roll systems. The built-in signal processing functions—filtering, amplification, and correction—ensure stable output even under fluctuating mechanical conditions.
A key strength is its PROFIBUS-DP integration, enabling seamless connectivity with PLC and DCS systems. This supports centralized monitoring, remote diagnostics, and improved automation control strategies.
The IP65-rated enclosure option also provides strong protection against dust and moisture, making it suitable for installation in more aggressive industrial environments without compromising performance.
Technical FAQs
1. What is the main function of the PFEA112-65 module?
It measures and controls web tension using load cell signals in industrial systems.
2. How many load cells can it connect to?
It supports two load cell inputs (A and B).
3. What calculations does it perform?
It processes A, B, A+B, and A−B signal values.
4. Does it support industrial communication protocols?
Yes, it supports PROFIBUS-DP for system integration.
5. What is the protection rating?
It is available in IP65 enclosure versions for harsh environments.
6. What industries use this module?
Steel, paper, packaging, textile, and film processing industries.
7. Can it operate in manual and automatic modes?
Yes, it supports both control modes depending on system configuration.
8. What is the weight of the module?
Approximately 1 kg depending on configuration.
9. Does it include a display interface?
Yes, it features a multi-line digital display for configuration and monitoring.
10. Is it suitable for continuous production lines?
Yes, it is designed specifically for continuous web and strip processing systems.
