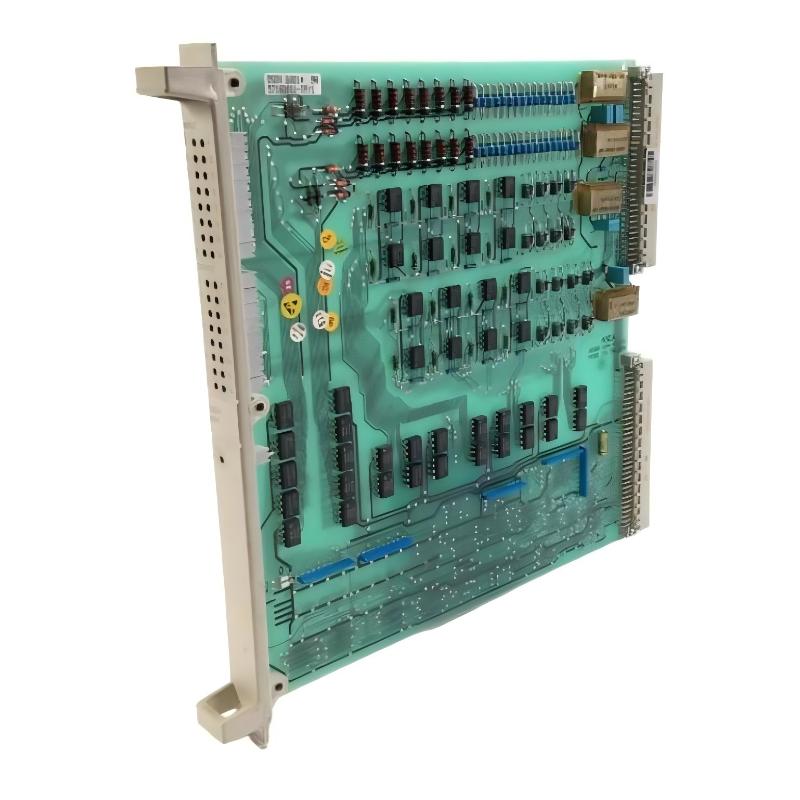

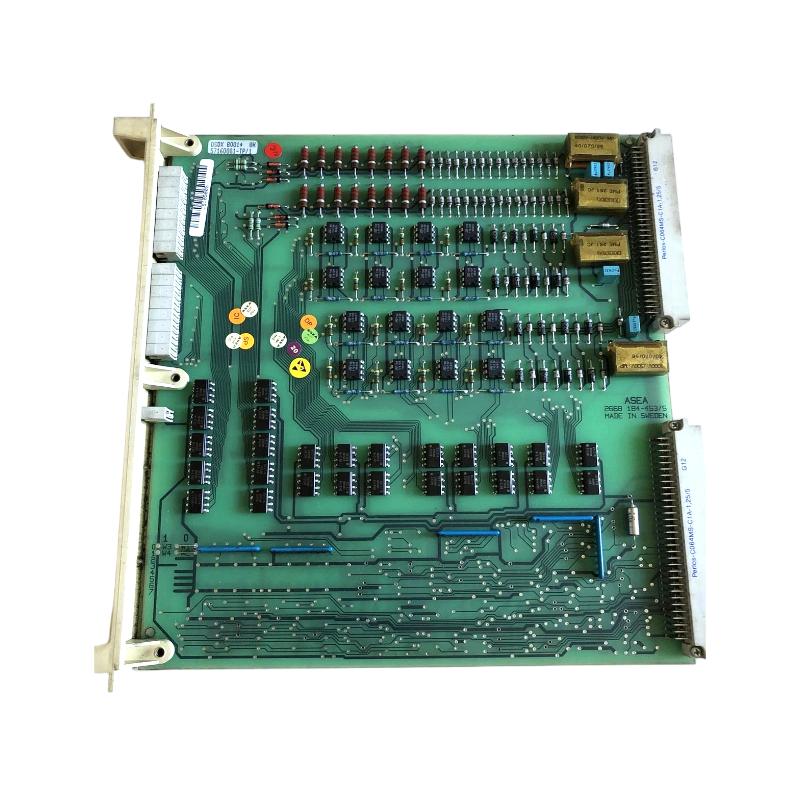

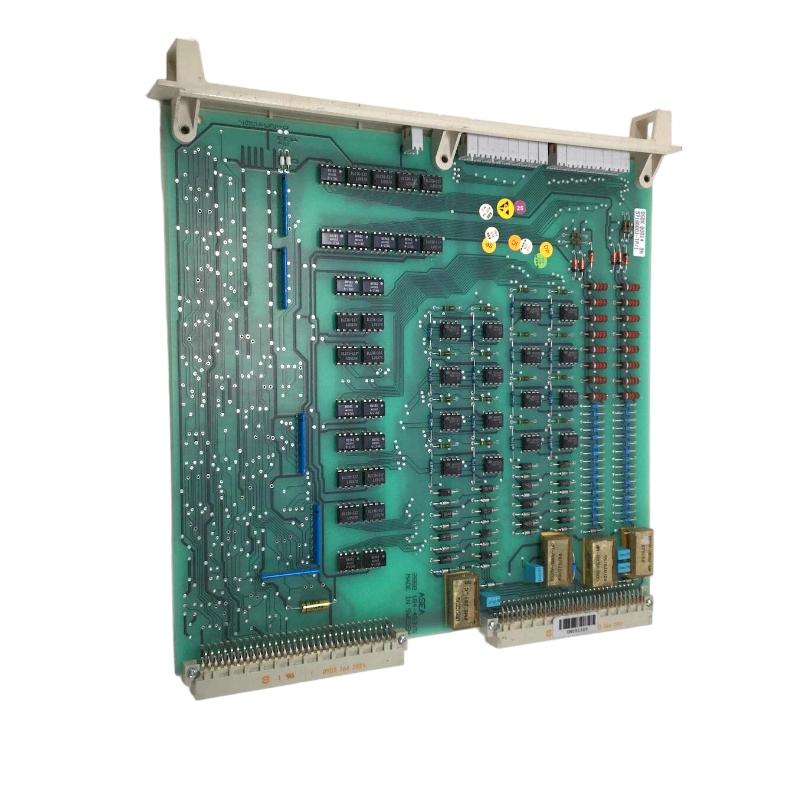

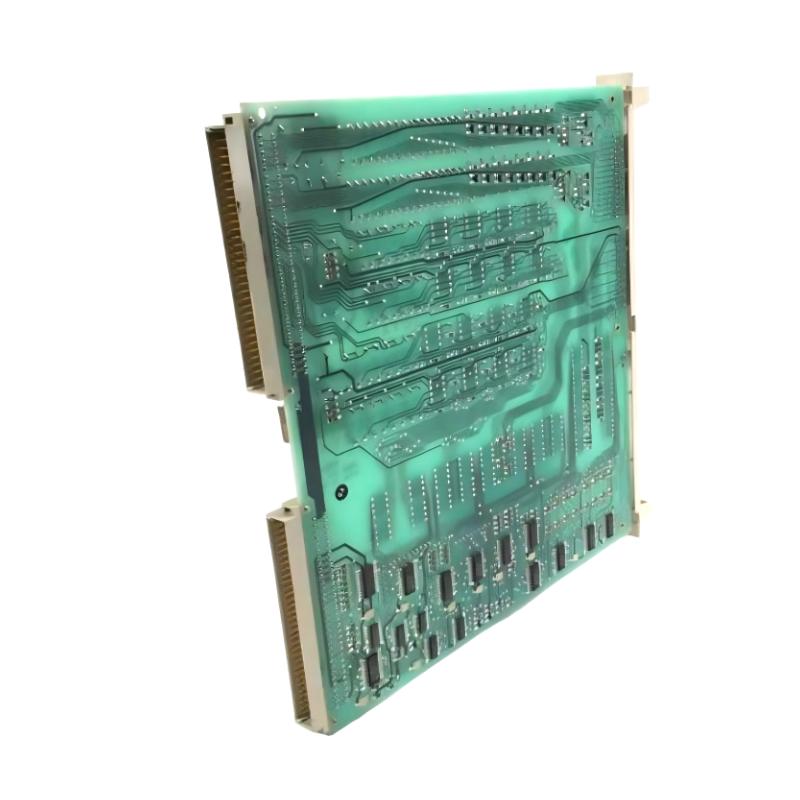

ABB DSDX B001 57160001-TP/1 Digital I/O Board

Brand:ABB PLC
Item No.:DSDX B001
Product Origin:Sweden (SE)
Product Dimensions:220 x 110 x 35 mm
Product Weight:0.17 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The ABB DSDX B001 57160001-TP/1 Digital I/O Board is a versatile and reliable module designed for high-performance digital input and output operations in industrial automation systems. It is widely used in process control, manufacturing, and automation applications that require real-time monitoring and control. This digital I/O board interfaces seamlessly with various ABB control systems and ensures efficient data communication between field devices and the main control unit, enhancing system reliability and operational efficiency.

Technical Specifications

SpecificationDetails
ModelDSDX B001 57160001-TP/1
Dimensions220 x 110 x 35 mm
Weight0.17 kg
Input/Output TypeDigital I/O
Number of Channels16 Inputs, 16 Outputs
Voltage Rating24V DC
Signal TypeDigital (On/Off)
Operating Temperature Range-20°C to 60°C
CertificationCE, UL


Applications

  • Industrial Automation: The ABB DSDX B001 Digital I/O Board is used in automation systems to monitor and control digital signals from field devices, ensuring smooth data flow between the field and control systems.

  • Process Control: It plays a crucial role in process control applications, where real-time monitoring of inputs and outputs is critical for efficient production and system optimization.

  • Machine Control: This board is ideal for controlling and monitoring machines in various industries, offering a reliable solution for digital control of equipment and machinery.


Advantages

  • Efficient Digital I/O Operations: The DSDX B001 offers 16 digital inputs and 16 digital outputs, enabling efficient data communication between field devices and the control system.

  • Wide Operating Range: With an operating temperature range of -20°C to 60°C, this module can function reliably in a variety of industrial environments.

  • Seamless Integration: It integrates easily with other ABB control systems, providing a simple yet effective solution for enhancing system communication and control capabilities.

  • Global Compliance: Certified with CE and UL markings, the DSDX B001 meets international standards for safety and performance, ensuring dependable operation in industrial settings.


Technical FAQs

  1. What is the operating temperature range for the DSDX B001 Digital I/O Board?

    • The DSDX B001 operates efficiently in environments with temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial conditions.

  2. How many input and output channels does the DSDX B001 support?

    • The DSDX B001 supports 16 digital inputs and 16 digital outputs, providing a balanced solution for a wide range of applications.

  3. What voltage rating does the DSDX B001 require?

    • The DSDX B001 operates with a 24V DC voltage rating, which is commonly used in industrial automation systems.

  4. What is the signal type used by the DSDX B001?

    • The module handles digital signals, with On/Off (binary) states for both inputs and outputs.

  5. What certifications does the DSDX B001 Digital I/O Board have?

    • The DSDX B001 is CE and UL certified, ensuring it meets global standards for safety and performance in industrial applications.

  6. Can the DSDX B001 be used in hazardous environments?

    • Yes, the DSDX B001 is designed for use in industrial environments and is capable of operating in a variety of conditions, including hazardous environments, provided the environment is within the specified temperature range.

  7. How does the DSDX B001 improve automation system performance?

    • By enabling fast and reliable communication of digital signals between field devices and control systems, the DSDX B001 enhances the overall performance and reliability of automation systems.

  8. Is the DSDX B001 compatible with other ABB control systems?

    • Yes, the DSDX B001 is designed to seamlessly integrate with other ABB control systems, allowing for easy expansion and enhanced communication between modules.

  9. How does the DSDX B001 help optimize process control?

    • The DSDX B001 ensures real-time, accurate digital monitoring and control, providing critical data to improve process efficiency and reduce downtime in industrial applications.

  10. What is the power requirement for the DSDX B001?

  • The DSDX B001 operates on 24V DC, which is commonly used in most industrial automation systems to ensure consistent power delivery.
