Intelligent Vibration Monitoring for Critical Industrial Assets

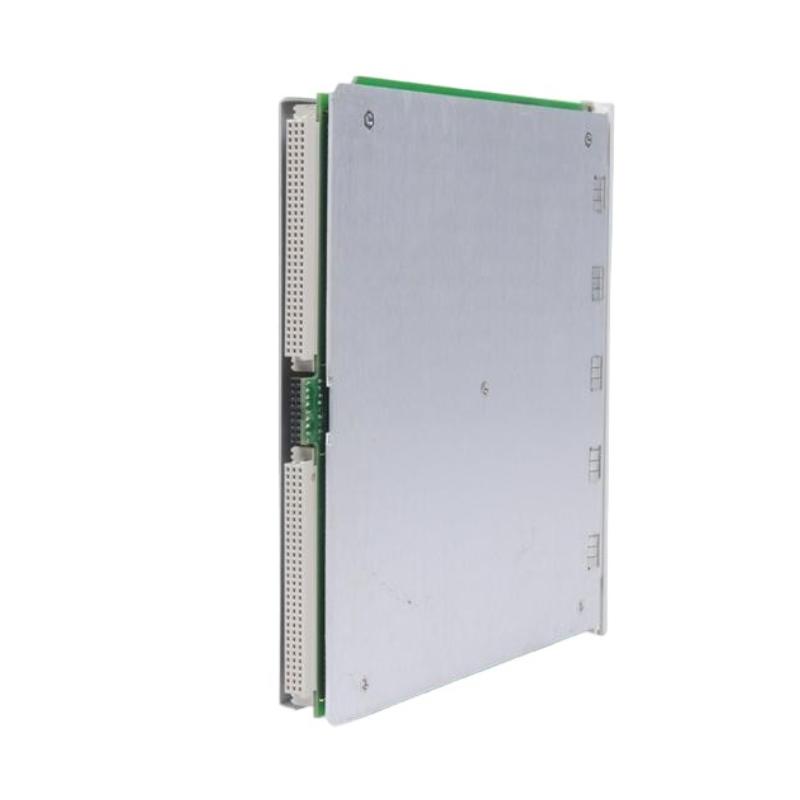

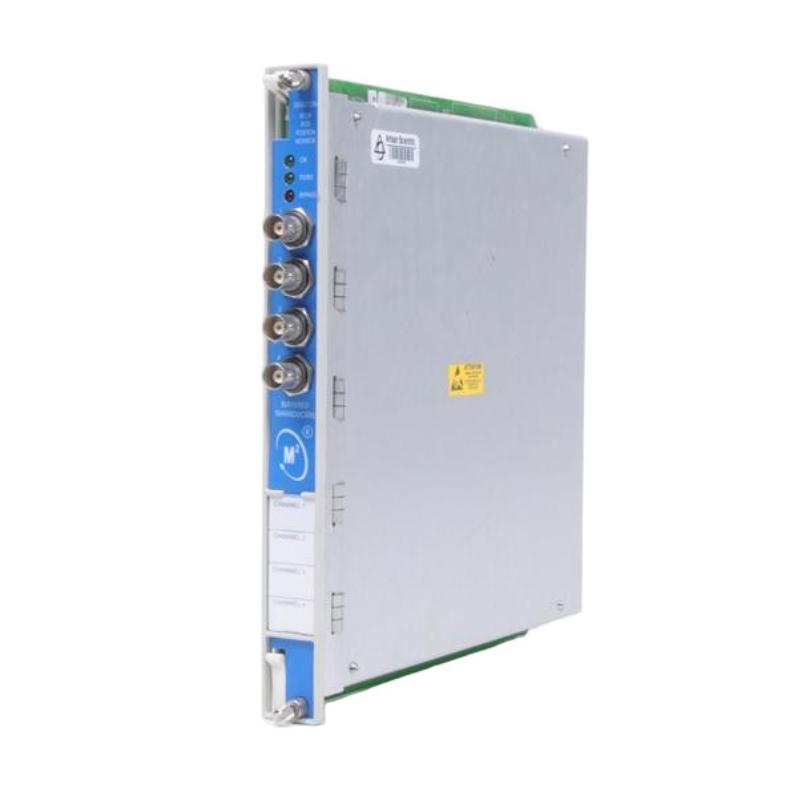

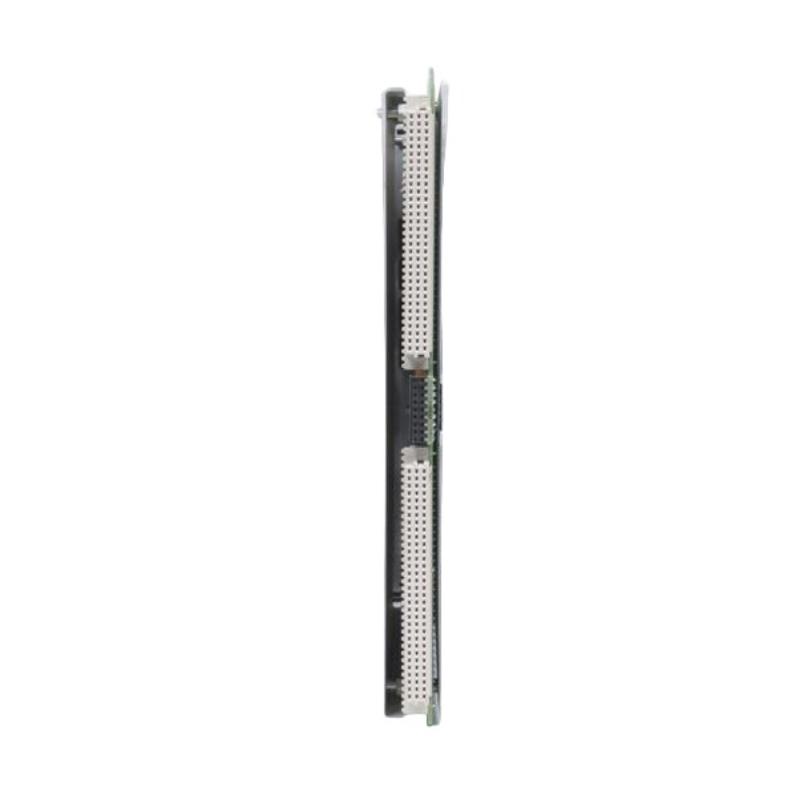

The Bently Nevada 3500/40-03-00 Proximitor Monitor is a premium four-channel machinery protection module engineered to provide continuous vibration and shaft position monitoring for critical rotating equipment. As a key component of the 3500 Machinery Protection System, this monitor receives signals from compatible Bently Nevada proximity transducers, conditions the input, and compares measured values with configurable alarm limits to support real-time machine protection and predictive maintenance.
The 3500/40-03-00 configuration features an Internal Barrier Proximitor I/O Module with Internal Terminations (Option 03) and Agency Approval Option 00 (None), making it suitable for applications requiring intrinsic safety barriers integrated within the I/O assembly.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Model | 3500/40-03-00 |
| Module Type | Proximitor Monitor |
| Product Family | 3500 Machinery Protection System |
| Monitoring Channels | 4 Independent Channels |
| I/O Module Type | Internal Barrier I/O with Internal Terminations (Option 03) |
| Agency Approval | Option 00 – None |
| Compatible Sensors | Bently Nevada Proximity Transducer Systems |
| Measurement Functions | Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, REBAM |
| Transducer Power Supply | -24 VDC |
| Typical Power Consumption | 7 W |
| Input Impedance | 10 kΩ |
| Operating Temperature | 0°C to +65°C (Internal Barrier I/O Configuration) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% Non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in) |
| Weight | Approximately 0.91 kg (2.0 lb) |
Typical Applications
The 3500/40-03-00 is designed for continuous monitoring of machinery operating in demanding industrial environments where equipment reliability is a top priority.
Typical applications include:
-
Steam and gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Process compressors
-
Gearboxes
-
Fans and blowers
-
Petrochemical processing facilities
-
Oil and gas production systems
-
Power generation plants
-
Mining operations
-
Chemical manufacturing facilities
Performance Benefits
The 3500/40-03-00 combines proven monitoring technology with industrial-grade durability to deliver dependable protection for valuable rotating assets.
Key advantages include:
-
Four-channel monitoring for comprehensive machinery protection
-
Supports multiple vibration and shaft position measurement modes
-
Integrated internal barrier I/O simplifies installation in suitable applications
-
Continuous online monitoring with programmable alarm thresholds
-
High-speed signal processing for rapid fault detection
-
Compatible with industry-leading Bently Nevada proximity transducer systems
-
Flexible configuration using 3500 Rack Configuration Software
-
Rugged construction for reliable long-term operation
-
Improves predictive maintenance efficiency
-
Helps reduce unexpected downtime and maintenance expenses.
Technical FAQs
1. What is the primary function of the 3500/40-03-00?
It continuously monitors vibration and shaft position signals to protect rotating machinery and provide early fault detection.
2. How many monitoring channels are available?
The module provides four independent monitoring channels that can be configured in channel pairs.
3. What does the "-03" option indicate?
The "-03" configuration specifies an Internal Barrier Proximitor I/O Module with Internal Terminations, designed for installations requiring integrated intrinsic safety barriers.
4. Which measurement functions are supported?
The monitor supports radial vibration, thrust position, eccentricity, differential expansion, and REBAM monitoring.
5. Which sensors are compatible with this module?
It is designed for use with compatible Bently Nevada proximity probe and Proximitor transducer systems, including the 3300 XL series.
6. Can alarm thresholds be customized?
Yes. Alert and Danger alarm setpoints can be individually configured using the 3500 Rack Configuration Software.
7. What operating temperature does this configuration support?
With the Internal Barrier I/O configuration, the operating temperature range is 0°C to +65°C.
8. What are the module dimensions and weight?
The module measures 241.3 × 24.4 × 241.8 mm and weighs approximately 0.91 kg (2.0 lb).
9. Which industries commonly use this monitor?
It is widely used in power generation, oil and gas, petrochemical processing, mining, marine, and heavy manufacturing industries.
10. Why choose the 3500/40-03-00 for machinery protection?
Its advanced diagnostics, dependable monitoring performance, integrated barrier configuration, and seamless compatibility with the 3500 platform make it an excellent solution for safeguarding mission-critical rotating equipment.
