Built for Precise Vibration Measurement and Reliable Asset Protection

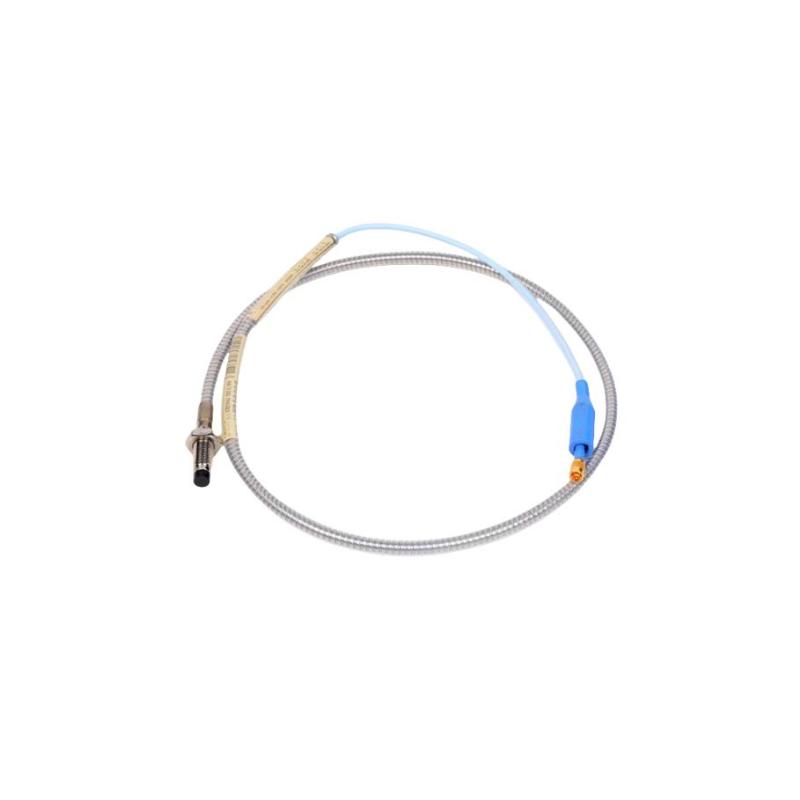

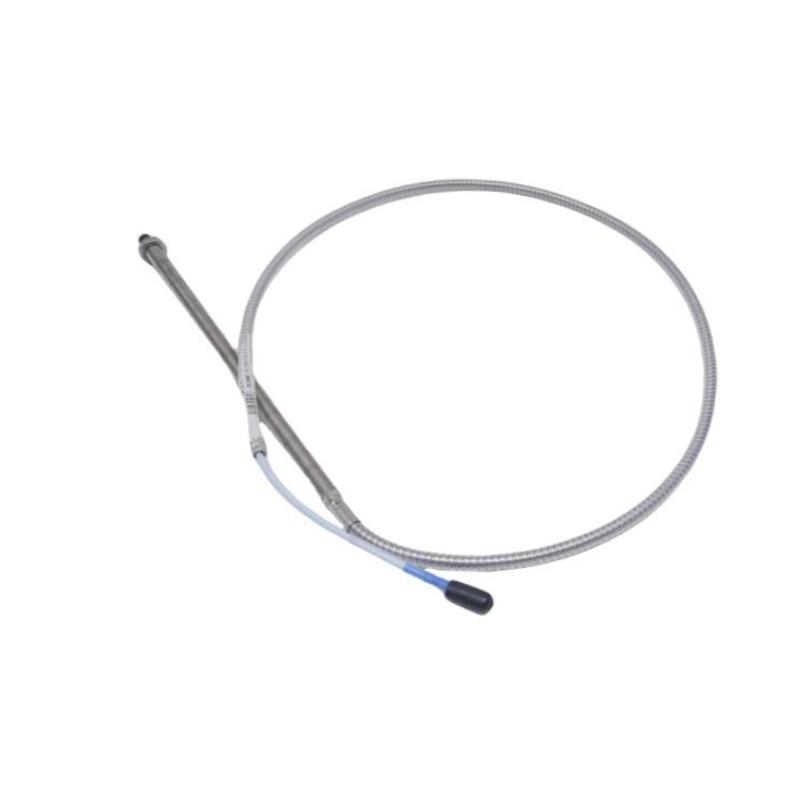

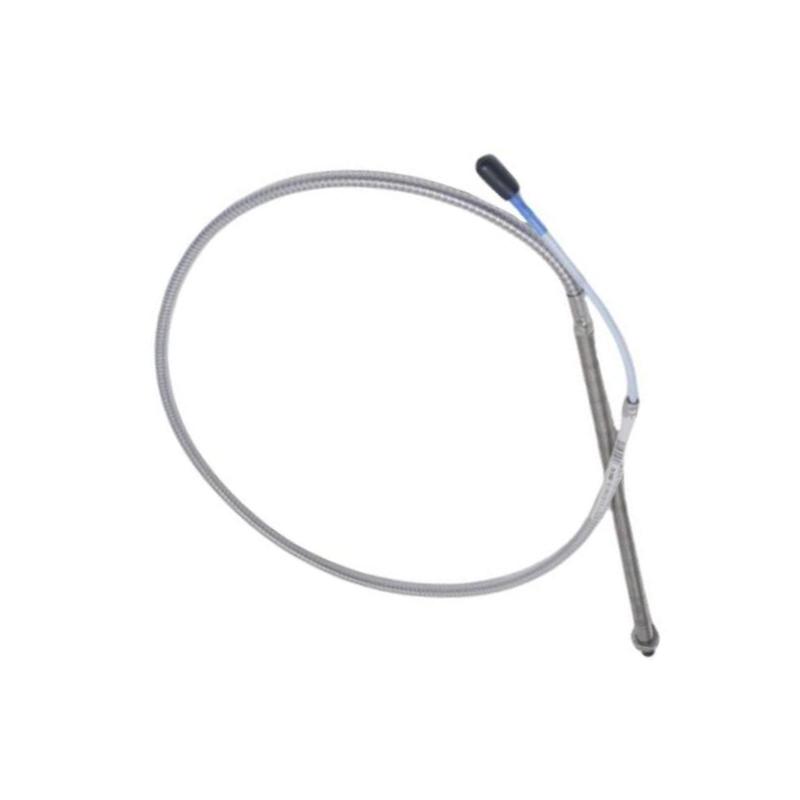

The Bently Nevada 330104-00-19-10-01-CN 3300 XL 8 mm Proximity Probe (Metric) is a premium non-contact eddy current sensor designed to provide continuous measurement of shaft vibration, shaft position, and radial displacement in critical rotating equipment. As part of the industry-leading 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement stability, fast dynamic response, and dependable long-term performance for machinery protection and predictive maintenance programs. The 3300 XL platform is widely used in power generation, oil and gas, petrochemical processing, and other industries where equipment reliability is essential.
This model is configured with an M10 × 1 metric armored probe, 0 mm unthreaded length, 190 mm overall case length, 1.0-meter standard cable, and a Miniature ClickLoc™ coaxial connector with connector protector. The CN approval option is intended for country-specific certification requirements, making this configuration suitable for regional industrial installations requiring certified equipment.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Number | 330104-00-19-10-01-CN |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Construction | Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 190 mm |
| Integrated Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector with Connector Protector |
| Agency Approval | CN – Country-Specific Certification |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | 190 × 10 × 10 mm |
| Approximate Weight | 0.32 kg |
Ideal Industrial Applications
Designed for continuous condition monitoring, the 330104-00-19-10-01-CN helps maintenance teams identify vibration abnormalities before they develop into costly equipment failures. Its extended probe body provides greater installation flexibility in machinery requiring deeper mounting arrangements.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Turbo generators
-
Oil and gas production facilities
-
Petrochemical and refining plants
-
Offshore platforms
-
Mining, steel, cement, and pulp & paper industries
When installed with compatible 3300 XL extension cables and Proximitor® sensors, this probe becomes part of a complete machinery protection solution that improves equipment availability and supports condition-based maintenance strategies.
Performance Benefits
The 330104-00-19-10-01-CN is engineered to deliver dependable monitoring performance throughout the lifecycle of critical rotating assets.
Key advantages include:
-
High-precision non-contact vibration and displacement measurement
-
Extended 190 mm probe body for enhanced installation flexibility
-
Rugged armored construction for demanding industrial environments
-
Stable signal output with excellent repeatability
-
Durable stainless steel housing with excellent corrosion resistance
-
Miniature ClickLoc™ connector simplifies installation and maintenance
-
Country-specific certification for regulated applications
-
Fully compatible with the complete 3300 XL monitoring platform
-
Supports predictive maintenance and equipment reliability initiatives
-
Helps reduce unexpected downtime and maintenance expenses
Technical FAQs
1. What is the primary function of the 330104-00-19-10-01-CN?
It continuously measures shaft vibration, shaft position, and radial displacement without physical contact, providing accurate machine condition monitoring.
2. Which monitoring system is this probe compatible with?
It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor® sensors.
3. What thread specification does this model use?
The probe features an M10 × 1 metric threaded armored body, ensuring secure installation on compatible machinery.
4. What is the overall case length?
This configuration has an overall case length of 190 mm, providing additional reach for applications requiring deeper probe installation.
5. What cable length is supplied?
The probe includes an integrated 1.0-meter (3.3-foot) standard cable.
6. What connector configuration is provided?
It is equipped with a Miniature ClickLoc™ coaxial connector with connector protector, providing secure electrical connections and convenient maintenance.
7. What does the CN approval option indicate?
The CN suffix identifies a country-specific certified configuration intended to satisfy regional regulatory and hazardous-area approval requirements.
8. What materials are used in the probe construction?
The housing is manufactured from AISI 303/304 stainless steel, while the sensing tip uses Polyphenylene Sulfide (PPS) for excellent durability and measurement stability.
9. Which industries commonly use this model?
It is widely used in power generation, oil and gas, petrochemical processing, offshore production, mining, marine, and heavy industrial manufacturing.
10. How can users maximize the service life of this probe?
Proper installation, maintaining the recommended probe gap, protecting the cable from excessive mechanical stress, and performing routine preventive maintenance inspections will help ensure long-term reliability.
