Designed for Accurate Machine Condition Monitoring

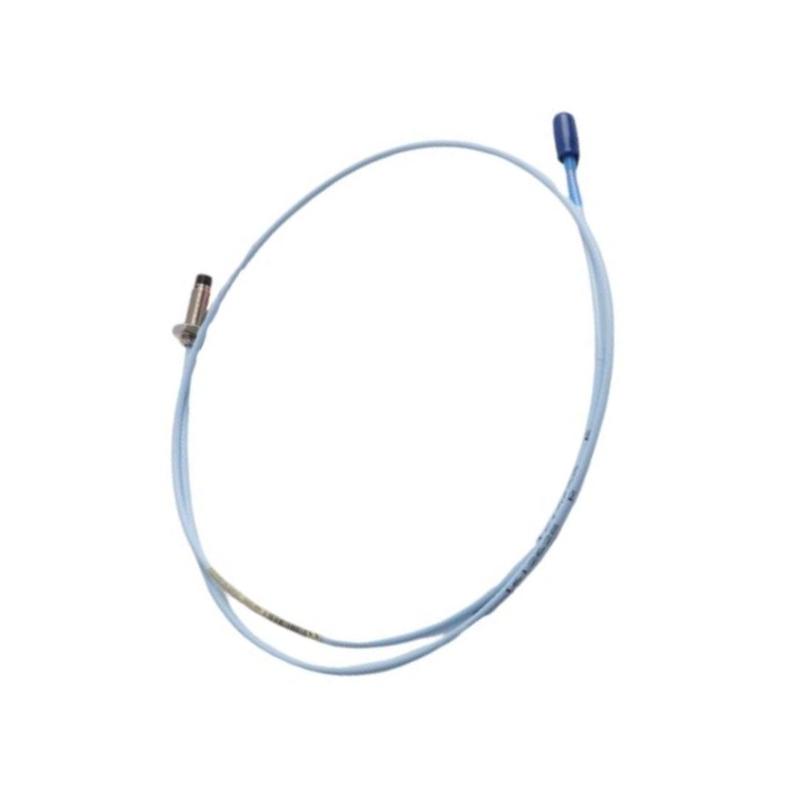

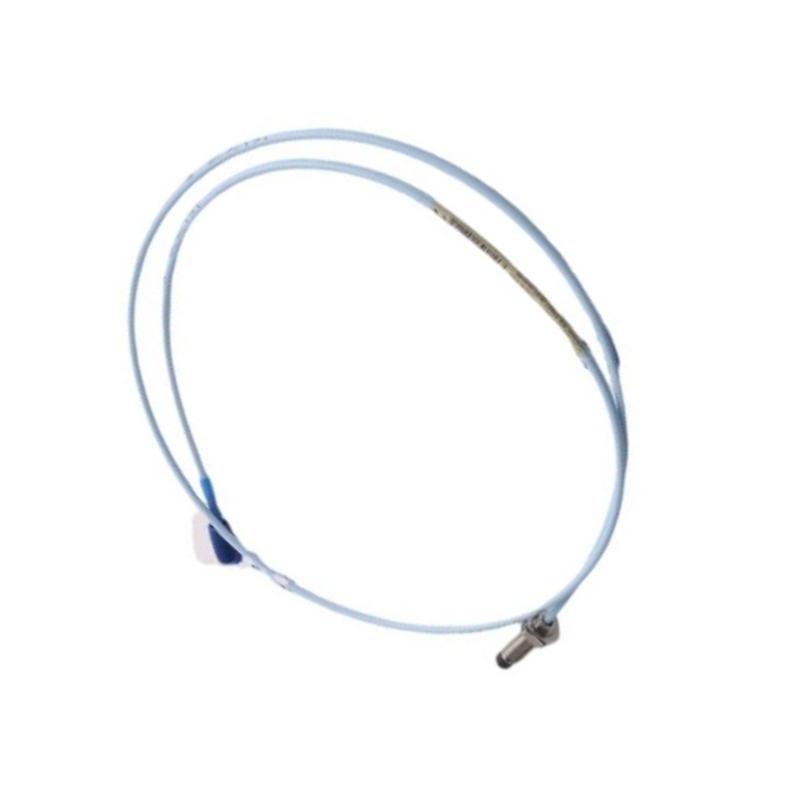

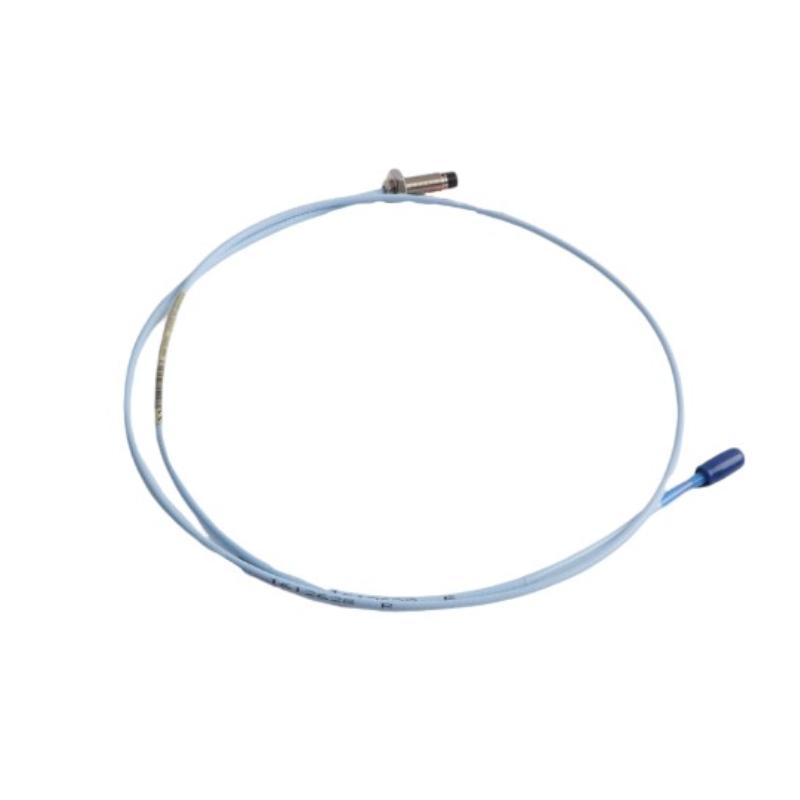

The Bently Nevada 330104-00-15-05-02-CN 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor engineered to deliver precise measurements of shaft vibration, shaft position, and radial displacement in critical rotating equipment. As an integral component of the 3300 XL 8 mm Proximity Transducer System, this probe combines exceptional measurement stability with rugged construction, making it an ideal solution for machinery protection and predictive maintenance in demanding industrial environments.
This configuration incorporates an M10 × 1 metric armored probe, 0 mm unthreaded length, 150 mm overall case length, 0.5-meter standard cable, and a Miniature ClickLoc™ coaxial connector. The CN approval option includes ATEX, IECEx, and Chinese NEPSI hazardous-area markings, allowing deployment in applications that require regional hazardous-area compliance.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Number | 330104-00-15-05-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Sensing Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Construction | Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 150 mm |
| Integrated Cable Length | 0.5 m (1.6 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Agency Approval | CN – ATEX / IECEx / NEPSI |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | 150 × 10 × 10 mm |
| Approximate Weight | 0.33 kg |
Industrial Applications
The 330104-00-15-05-02-CN is developed for continuous machinery protection where accurate shaft movement monitoring is essential for maximizing equipment performance and minimizing maintenance costs. The extended probe body provides additional installation flexibility in equipment with deeper mounting locations.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Turbo generators
-
Oil and gas production facilities
-
Petrochemical processing plants
-
Offshore platforms
-
Mining, steel, cement, and paper manufacturing
When integrated with compatible 3300 XL extension cables and Proximitor sensors, this probe forms a complete condition monitoring solution capable of delivering reliable real-time machine health information.
Performance Advantages
Built for long-term industrial service, the 330104-00-15-05-02-CN delivers reliable sensing performance while simplifying installation and maintenance.
Key benefits include:
-
High-precision non-contact vibration and displacement measurement
-
Extended 150 mm probe body for flexible mounting
-
Rugged armored construction for demanding environments
-
Stable signal output with excellent repeatability
-
Compact 0.5-meter cable for nearby installations
-
Corrosion-resistant stainless steel housing
-
CN hazardous-area certification for regulated industrial sites
-
Fully compatible with the complete 3300 XL transducer platform
-
Supports predictive maintenance and asset reliability initiatives
-
Helps reduce unexpected downtime and maintenance expenses
Technical FAQs
1. What is the primary purpose of this proximity probe?
It continuously measures shaft vibration, shaft position, and radial displacement without contacting rotating components, enabling reliable machinery condition monitoring.
2. Which monitoring system is it compatible with?
The probe is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.
3. What thread specification does this model use?
It features an M10 × 1 metric armored threaded body, providing secure installation for compatible machinery.
4. What is the overall probe length?
The probe has an overall case length of 150 mm, making it suitable for applications requiring additional installation depth.
5. What cable length is supplied?
This configuration includes a 0.5-meter (1.6-foot) standard cable.
6. Which connector does this model use?
The probe is equipped with a Miniature ClickLoc™ coaxial connector, providing secure and dependable electrical connections.
7. What does the CN approval option represent?
The CN suffix indicates compliance with ATEX, IECEx, and Chinese NEPSI hazardous-area certifications, making the probe suitable for applicable certified industrial installations.
8. What materials are used in the probe construction?
The housing is manufactured from AISI 303/304 stainless steel, while the sensing tip is made from Polyphenylene Sulfide (PPS) for durability and long service life.
9. Which industries commonly install this probe?
It is widely used in power generation, oil and gas, petrochemical processing, offshore facilities, mining, and heavy industrial manufacturing.
10. How can the operational life of the probe be extended?
Maintain the recommended probe gap, protect the cable from excessive bending, ensure secure connector installation, and perform routine inspections as part of scheduled preventive maintenance.
