Advanced Monitoring Solution for Critical Rotating Machinery

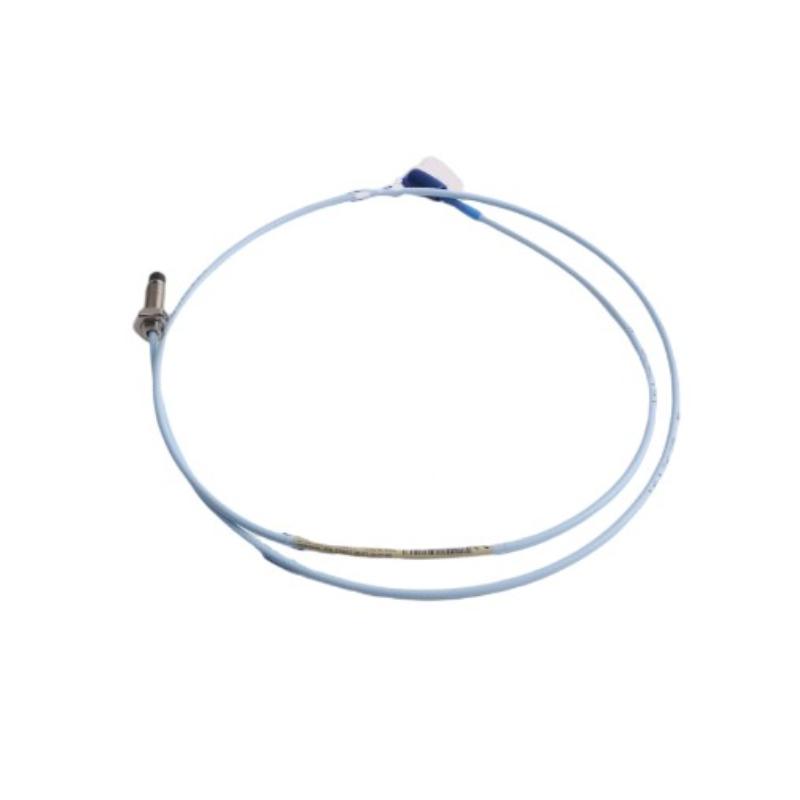

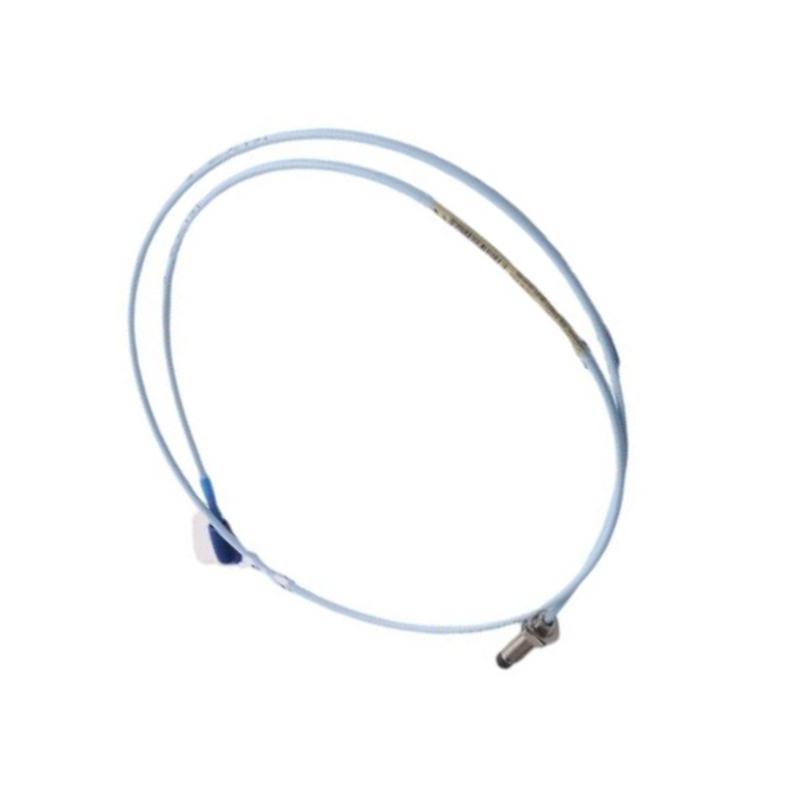

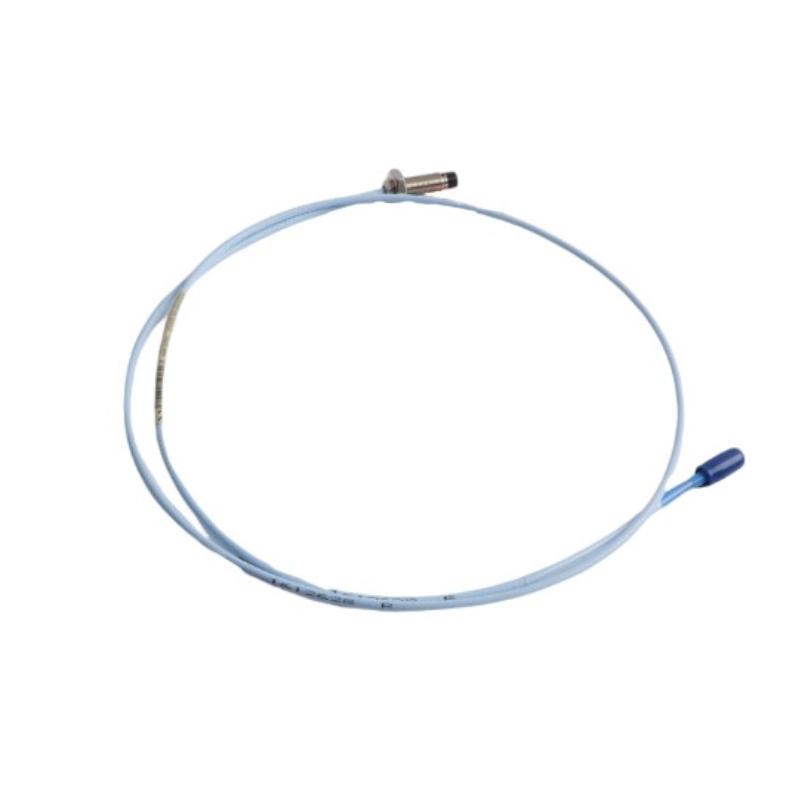

The Bently Nevada 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor engineered for continuous measurement of shaft vibration, shaft position, and radial displacement in high-value rotating equipment. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe delivers outstanding accuracy, exceptional signal stability, and long-term reliability, making it an excellent choice for machinery protection and predictive maintenance programs.

This configuration features an M10 × 1 metric armored probe, 0 mm unthreaded length, 150 mm overall case length, 1.0-meter standard cable, and a Miniature ClickLoc™ coaxial connector with connector protector. The -05 approval option includes internationally recognized hazardous-area certifications, allowing reliable operation in demanding industrial environments.

Technical Specifications

Technical FAQs

1. What is the primary function of this proximity probe?

It continuously measures shaft vibration, shaft position, and radial displacement without contacting rotating components, providing reliable machinery condition monitoring.

2. Which monitoring system is this probe compatible with?

It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.

3. What thread specification does this model use?

The probe features an M10 × 1 metric threaded armored body, ensuring secure installation on compatible equipment.

4. What is the overall probe length?

The overall case length is 150 mm, making it suitable for applications requiring additional installation depth.

5. How long is the integrated cable?

This configuration includes a 1.0-meter (3.3-foot) standard cable.

6. What connector configuration is provided?

The probe uses a Miniature ClickLoc™ connector with connector protector, providing secure electrical connectivity and simplified maintenance.

7. What does the "-05" approval option indicate?

The -05 suffix identifies a configuration with CSA, ATEX, and IECEx hazardous-area approvals for qualified industrial installations.

8. Which industries commonly use this model?

It is widely installed in power generation, petrochemical processing, oil and gas production, mining, marine applications, and other industries operating critical rotating machinery.

9. What materials are used in the probe construction?

The housing is manufactured from AISI 303/304 stainless steel, while the sensing tip uses durable Polyphenylene Sulfide (PPS) for long service life.

10. How can users maximize the probe's operational life?

Maintain the recommended probe gap, avoid excessive cable bending, keep connectors clean, and perform regular inspections as part of preventive maintenance to ensure reliable long-term operation.
