Engineered for Long-Reach Precision Vibration Monitoring

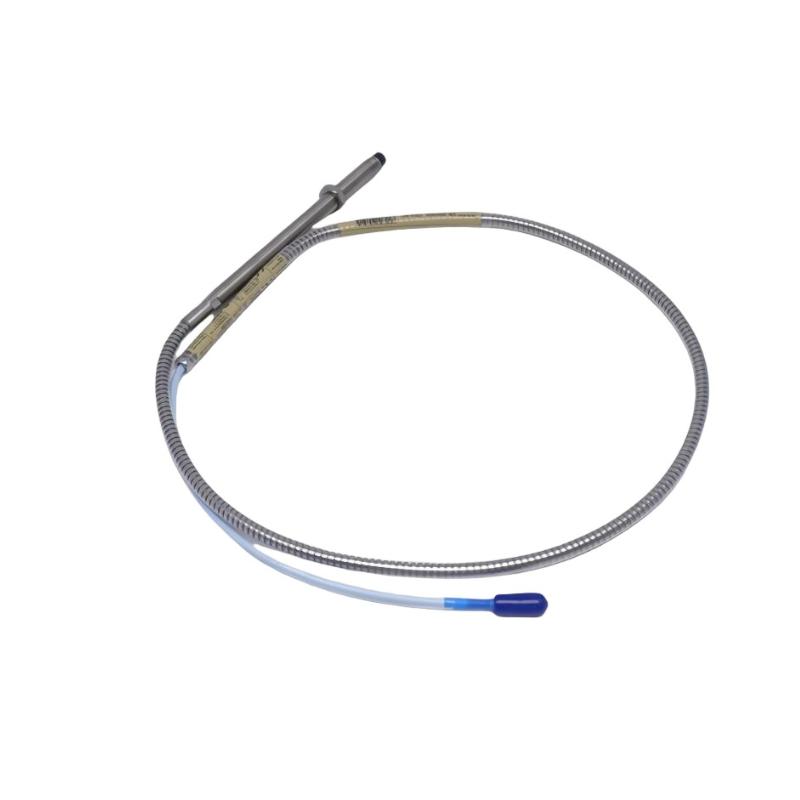

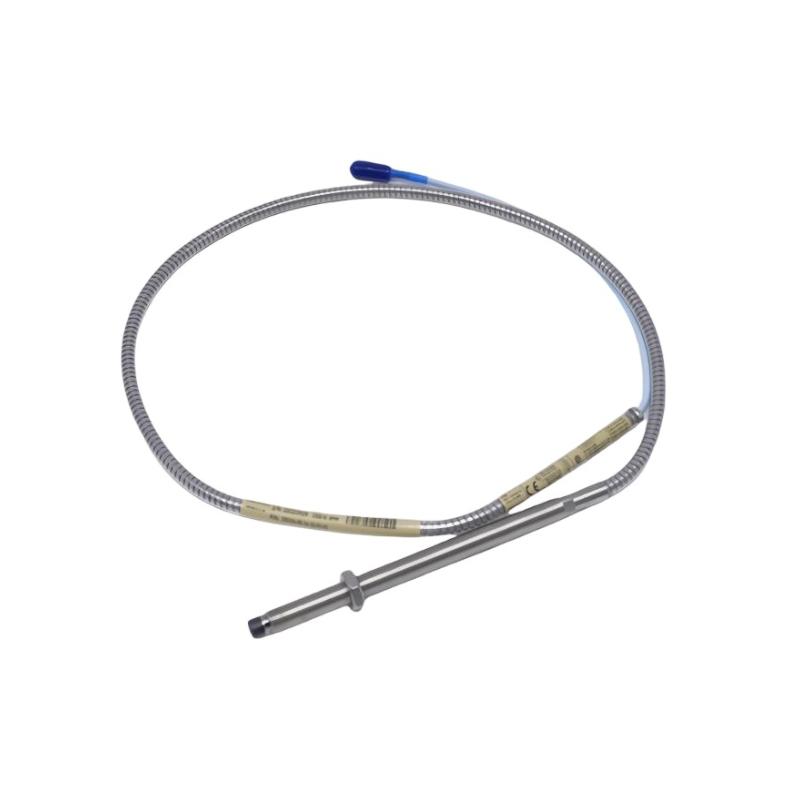

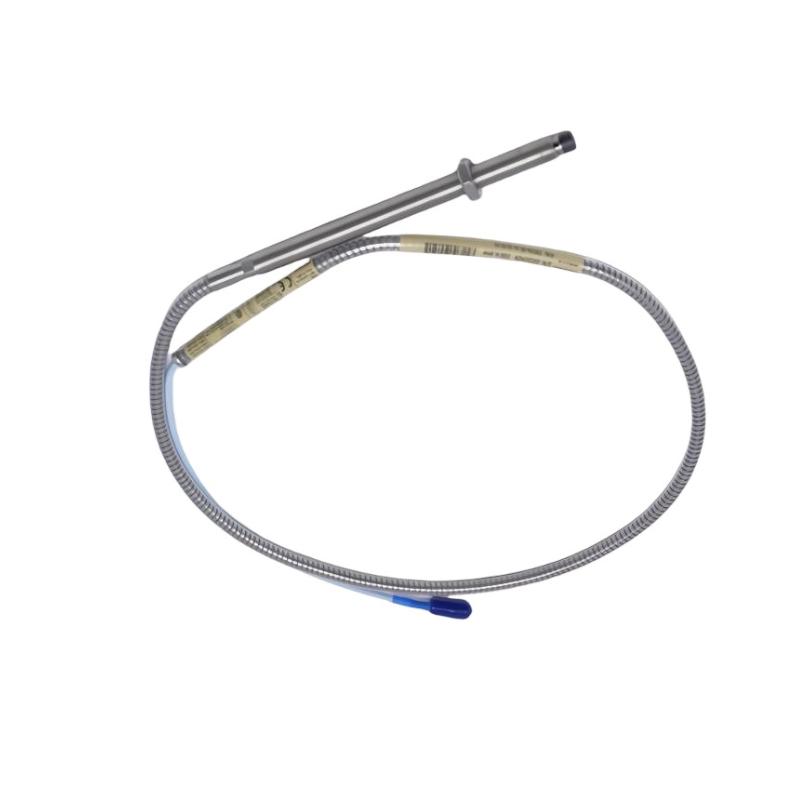

The Bently Nevada 330104-00-14-10-11-00 3300 XL 8 mm Proximity Probe is a high-accuracy non-contact eddy current sensor developed for continuous monitoring of shaft vibration, shaft position, and radial displacement in critical rotating equipment. As part of the renowned 3300 XL 8 mm Proximity Transducer System, this probe provides consistent measurement accuracy, outstanding reliability, and long-term stability for machinery protection and predictive maintenance programs.
This configuration features an M10 × 1 metric armored probe, 0 mm unthreaded length, 140 mm overall case length, 1.0-meter FluidLoc cable, and a Miniature ClickLoc™ coaxial connector with connector protector. Its extended probe body is ideal for installations requiring additional reach while maintaining dependable signal integrity in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Number | 330104-00-14-10-11-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Construction | Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 140 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector with Connector Protector |
| Approval Option | 00 – Standard Configuration |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | 140 × 10 × 10 mm |
| Approximate Weight | 0.38 kg |
Industrial Applications
The 330104-00-14-10-11-00 is designed for continuous machinery condition monitoring where dependable vibration measurement is essential for maximizing equipment availability. Its longer probe body provides additional installation flexibility for machines with deeper mounting requirements.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Turbo generators
-
Oil & gas production facilities
-
Petrochemical processing plants
-
Mining equipment
-
Heavy manufacturing systems
When combined with compatible 3300 XL extension cables and Proximitor sensors, the probe forms a complete machine protection solution capable of delivering accurate real-time machinery health data.
Product Advantages
The 330104-00-14-10-11-00 is engineered to provide reliable performance throughout the operating life of critical rotating assets.
Key benefits include:
-
High-precision non-contact shaft vibration measurement
-
Extended 140 mm probe body for greater installation flexibility
-
FluidLoc cable technology enhances environmental protection
-
Rugged armored construction for improved mechanical durability
-
Stable and repeatable signal output
-
Corrosion-resistant stainless steel housing
-
Compatible with the complete 3300 XL monitoring platform
-
Supports predictive maintenance and condition-based monitoring
-
Helps improve equipment reliability while reducing unplanned downtime
Technical FAQs
1. What is the primary purpose of the 330104-00-14-10-11-00?
It continuously measures shaft vibration, shaft position, and radial displacement without contacting rotating machinery, enabling accurate condition monitoring.
2. Which monitoring system is this probe compatible with?
It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.
3. What thread specification does this model use?
The probe features an M10 × 1 metric threaded armored body, providing secure installation on compatible machinery.
4. What is the overall probe case length?
This model has an overall case length of 140 mm, making it suitable for installations requiring extended probe reach.
5. What cable length is included?
The probe is supplied with an integrated 1.0-meter (3.3-foot) FluidLoc cable.
6. What connector does the probe use?
It is equipped with a Miniature ClickLoc™ coaxial connector with connector protector, ensuring secure and reliable electrical connections.
7. What is the benefit of the FluidLoc cable?
FluidLoc cable technology helps reduce fluid migration through the cable assembly, improving long-term reliability in demanding industrial environments.
8. Which industries commonly use this proximity probe?
It is widely used in power generation, oil and gas, petrochemical processing, mining, marine applications, and other industries operating critical rotating equipment.
9. Can this probe support predictive maintenance programs?
Yes. Continuous monitoring allows maintenance personnel to detect vibration abnormalities, shaft movement changes, and developing mechanical faults before they result in unexpected equipment failures.
10. How can users maximize the service life of this probe?
Install the probe according to manufacturer recommendations, maintain the specified probe gap, avoid excessive cable stress, protect the connector from contamination, and perform regular inspections during preventive maintenance.
