Precision Metric Proximity Probe for Continuous Asset Monitoring

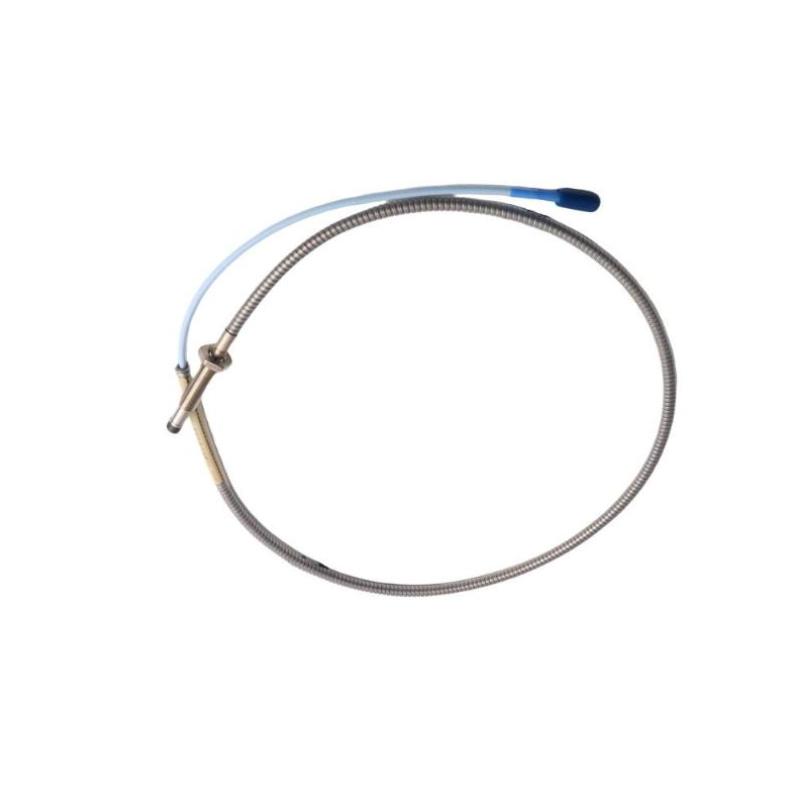

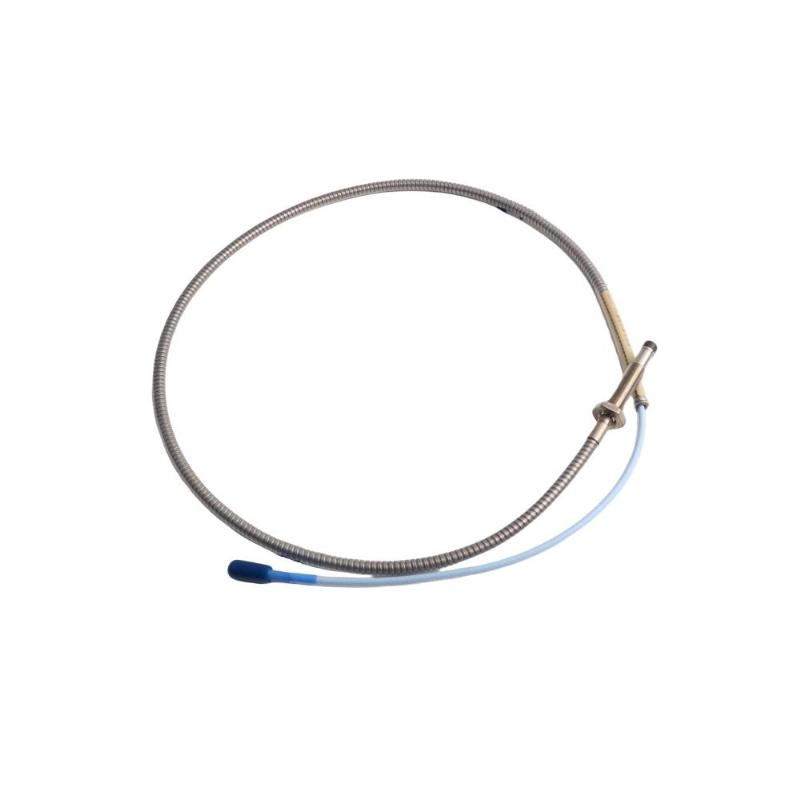

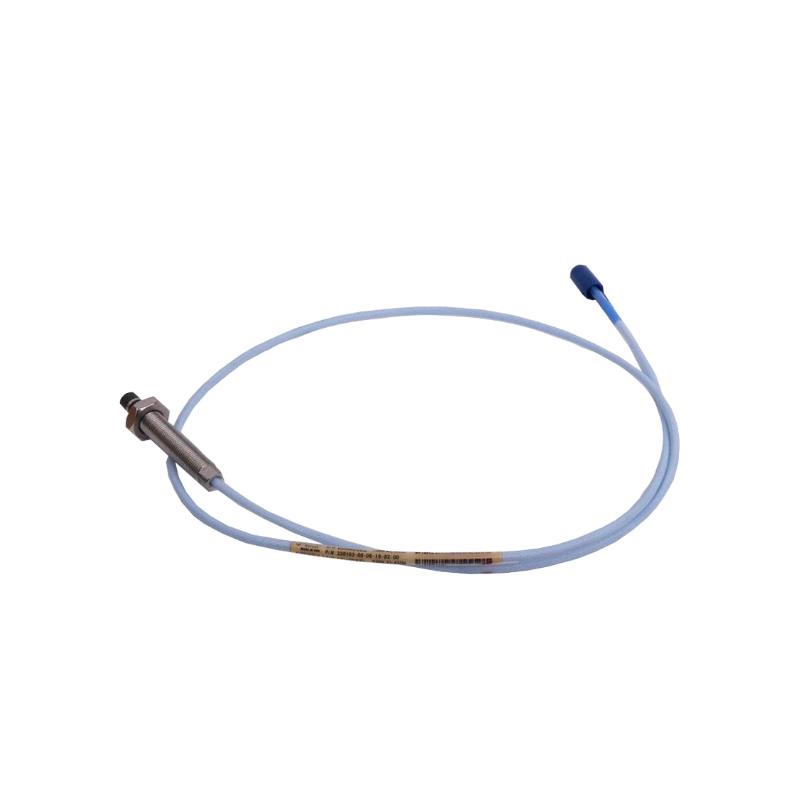

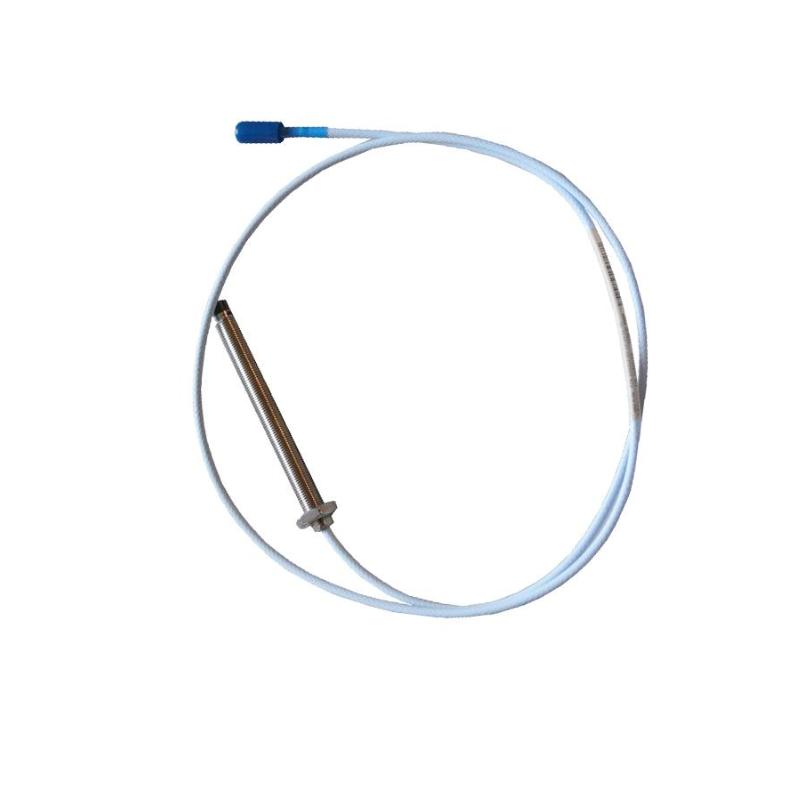

The Bently Nevada 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe Metric is a high-accuracy non-contact eddy current sensor designed for continuous monitoring of shaft vibration, shaft position, and radial displacement in critical rotating machinery. As a member of the trusted 3300 XL 8 mm Proximity Transducer System, this metric-thread probe delivers reliable measurement performance, excellent environmental durability, and long-term operational stability for industrial condition monitoring and machinery protection systems.

Configured with an M10 × 1 armored probe, 0 mm unthreaded length, 130 mm overall case length, 1.0-meter standard cable, and a Miniature ClickLoc™ coaxial connector, this model is optimized for metric installations. The CN approval option is intended for country-specific certification requirements, making it suitable for projects that require regional regulatory compliance.

Mechanical & Electrical Specifications

Technical FAQs

1. What is the primary function of the 330104-00-13-10-02-CN?

It continuously measures shaft vibration, shaft position, and radial displacement without physical contact, providing accurate condition monitoring for rotating machinery.

2. Which monitoring system is this probe designed for?

It is compatible with the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including matching extension cables and Proximitor sensors.

3. What thread specification does this model use?

This model features an M10 × 1 metric threaded armored body, providing secure installation on compatible machinery.

4. What is the overall case length?

The probe has an overall case length of 130 mm.

5. What cable length is supplied?

The integrated cable length is 1.0 meter (3.3 feet).

6. Which connector configuration is included?

The probe uses a Miniature ClickLoc™ coaxial connector with a standard cable configuration for secure and reliable installation.

7. What does the "CN" approval option represent?

The CN suffix identifies a country-specific approval configuration, intended to satisfy applicable regional certification requirements.

8. What materials are used in the probe construction?

The sensing tip is manufactured from Polyphenylene Sulfide (PPS), while the probe housing is constructed from AISI 303/304 stainless steel for excellent corrosion resistance.

9. Which industries commonly use this proximity probe?

It is widely installed in power generation, petrochemical processing, oil and gas, offshore energy, mining, marine, and heavy manufacturing facilities.

10. How can users maximize the service life of this probe?

Proper installation, maintaining the recommended probe gap, avoiding excessive cable bending, protecting electrical connections, and performing routine inspections will help ensure long-term measurement accuracy and operational reliability.
