Optimized for Reliable Rotating Equipment Protection

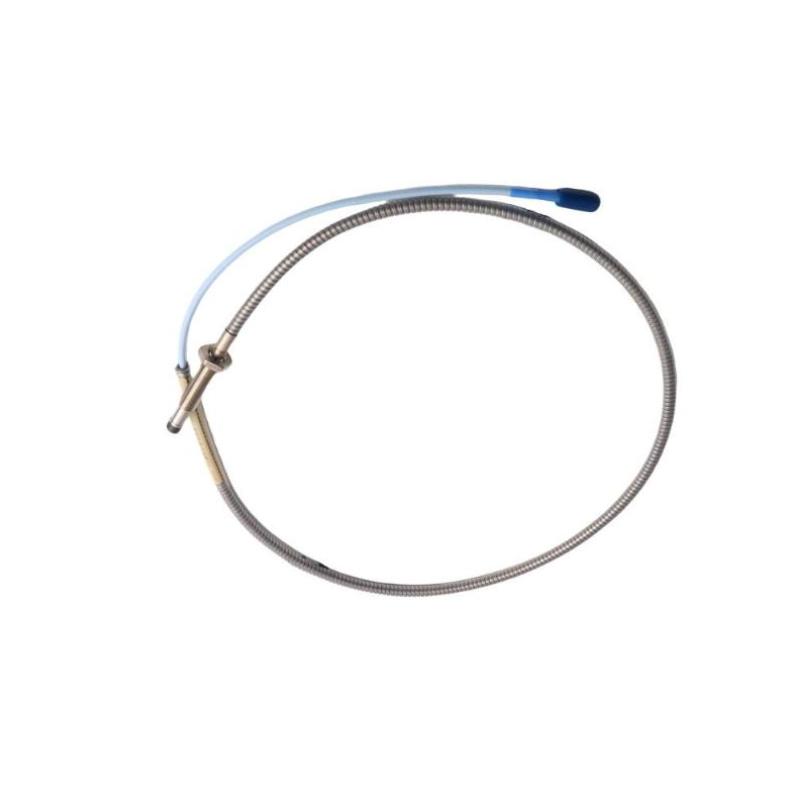

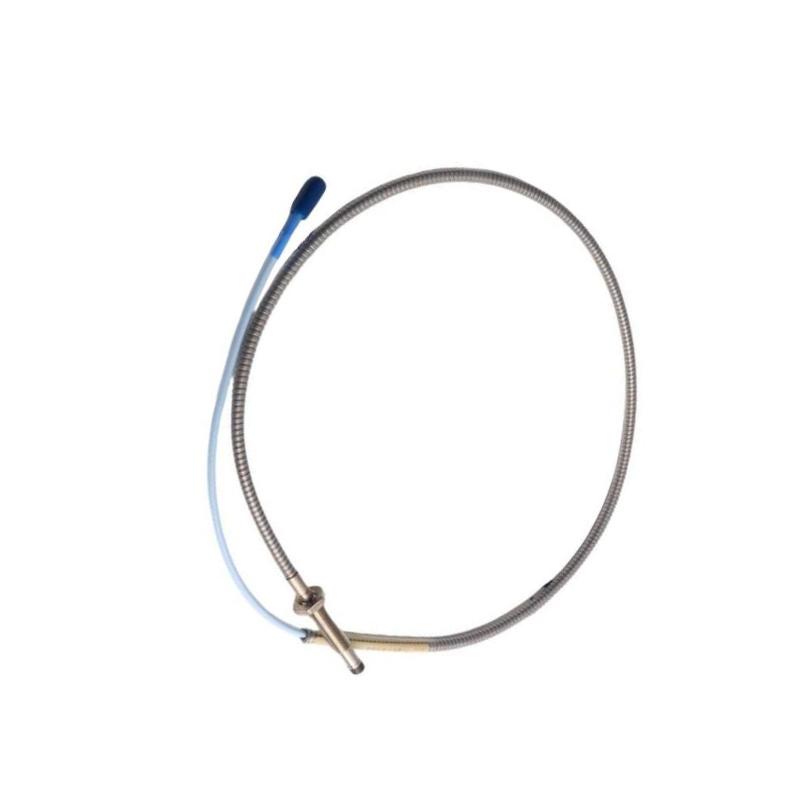

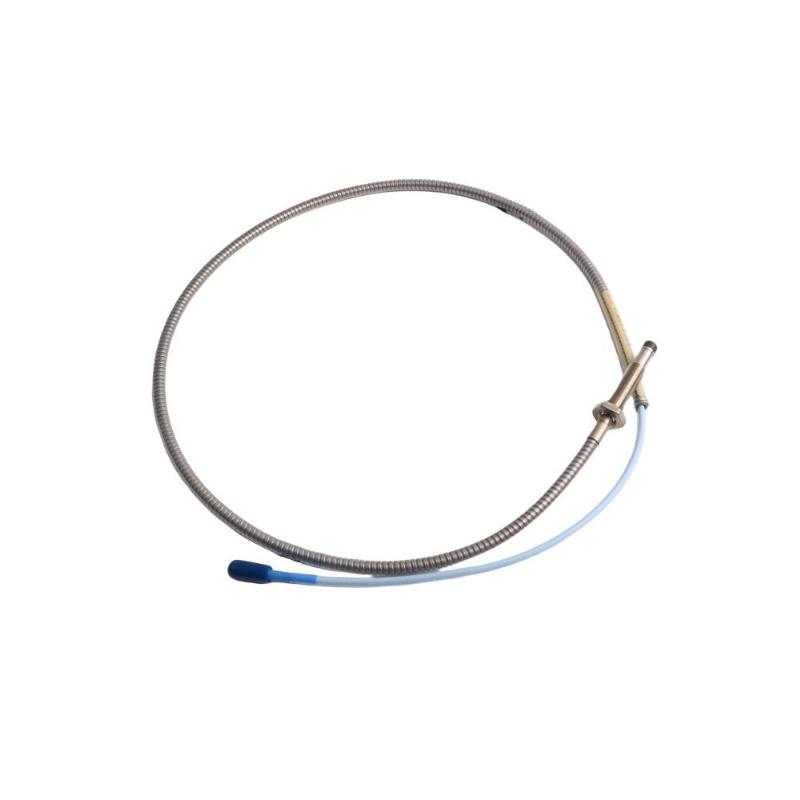

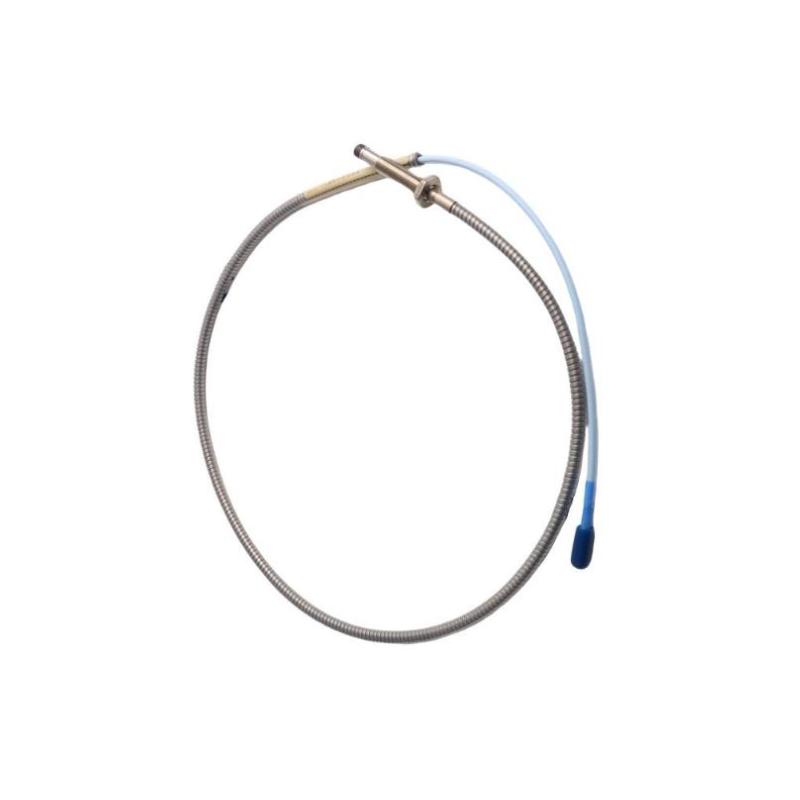

The Bently Nevada 330104-00-13-10-02-05 3300 XL 8 mm Proximity Probe Metric is a precision non-contact eddy current sensor developed for continuous monitoring of shaft vibration, shaft position, and radial displacement in critical rotating machinery. As an integral component of the 3300 XL 8 mm Proximity Transducer System, this probe delivers highly stable measurement performance, exceptional durability, and dependable long-term operation across demanding industrial environments. It is widely used to support predictive maintenance strategies, improve equipment reliability, and reduce costly unplanned shutdowns.
This model features an M10 × 1 metric armored probe, 0 mm unthreaded length, 130 mm overall case length, 1.0-meter standard cable, and a Miniature ClickLoc™ coaxial connector. The -05 approval option includes CSA, ATEX, and IECEx certifications, making it suitable for installations requiring internationally recognized hazardous-area approvals.
Performance Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Number | 330104-00-13-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe Metric |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Principle | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Construction | Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 130 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Cable Configuration | Standard Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Agency Approval | CSA / ATEX / IECEx |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | 130 × 10 × 10 mm |
| Approximate Weight | 0.32 kg |
Typical Industrial Applications
The 330104-00-13-10-02-05 is engineered for continuous machine condition monitoring where precision and reliability are essential. Its rugged armored construction and certified design make it suitable for harsh industrial environments while maintaining excellent measurement consistency.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine control systems
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Turbo generators
-
Oil and gas production facilities
-
Petrochemical processing plants
-
Offshore platforms
-
Mining and heavy manufacturing equipment
Integrated with compatible 3300 XL extension cables and Proximitor sensors, this probe provides a complete machinery protection solution capable of supporting long-term asset management programs.
Product Highlights
The 330104-00-13-10-02-05 combines advanced sensing technology with rugged construction to deliver dependable monitoring performance throughout the equipment lifecycle.
Key benefits include:
-
High-resolution non-contact shaft vibration measurement
-
Extended 130 mm probe body for flexible installation
-
Metric M10 × 1 threaded design for international applications
-
Armored construction enhances mechanical durability
-
Stable signal output under continuous operating conditions
-
Corrosion-resistant stainless steel housing
-
Certified for CSA, ATEX, and IECEx applications
-
Compatible with the complete 3300 XL monitoring platform
-
Supports predictive maintenance and condition-based monitoring
-
Helps improve equipment uptime while reducing maintenance costs
Technical FAQs
1. What is the primary function of the 330104-00-13-10-02-05?
It continuously measures shaft vibration, shaft position, and radial displacement without contacting rotating components, enabling accurate machinery health monitoring.
2. Which monitoring system is this probe compatible with?
It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.
3. What thread specification does this model use?
The probe features an M10 × 1 metric threaded armored body, allowing secure installation on compatible equipment.
4. What is the overall probe case length?
This configuration has an overall case length of 130 mm.
5. What cable length is supplied?
The integrated cable length is 1.0 meter (3.3 feet).
6. Which connector configuration is included?
The probe is equipped with a Miniature ClickLoc™ coaxial connector and standard cable configuration for reliable installation.
7. What does the "-05" approval option indicate?
The -05 suffix signifies CSA, ATEX, and IECEx certifications, allowing use in applicable hazardous industrial environments.
8. What material is used for the probe housing?
The housing is manufactured from AISI 303/304 stainless steel, while the sensing tip is constructed from durable PPS (Polyphenylene Sulfide).
9. Which industries commonly install this probe?
It is widely used in power generation, petrochemical processing, oil and gas, offshore production, mining, marine applications, and other industries operating critical rotating machinery.
10. How can the service life of the probe be extended?
Following recommended installation procedures, maintaining the correct probe gap, protecting the cable from excessive mechanical stress, and performing regular inspections will help maximize operational reliability and service life.
