Dependable Vibration Monitoring for Critical Rotating Assets

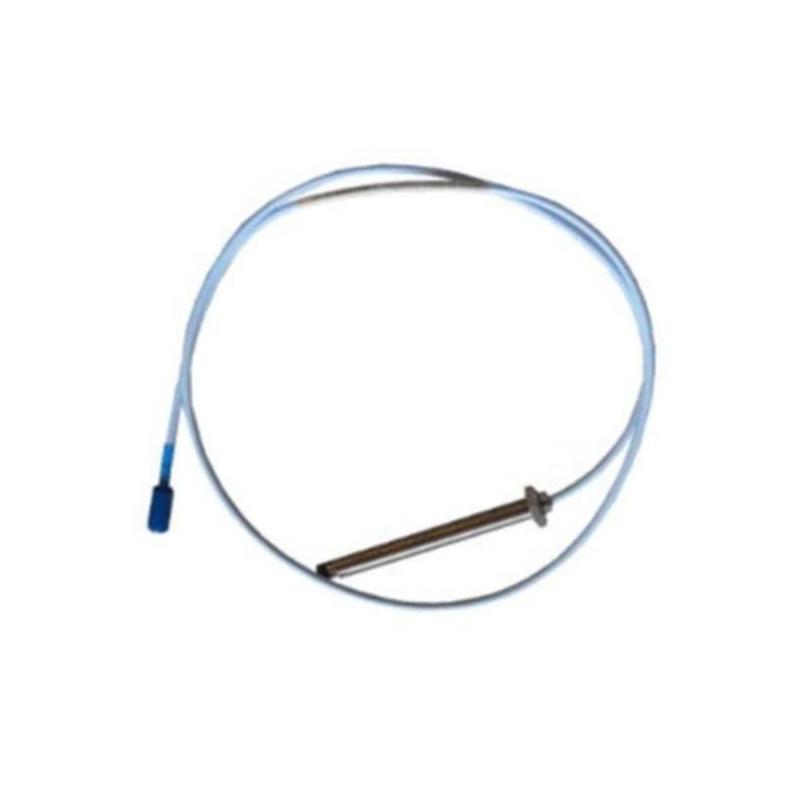

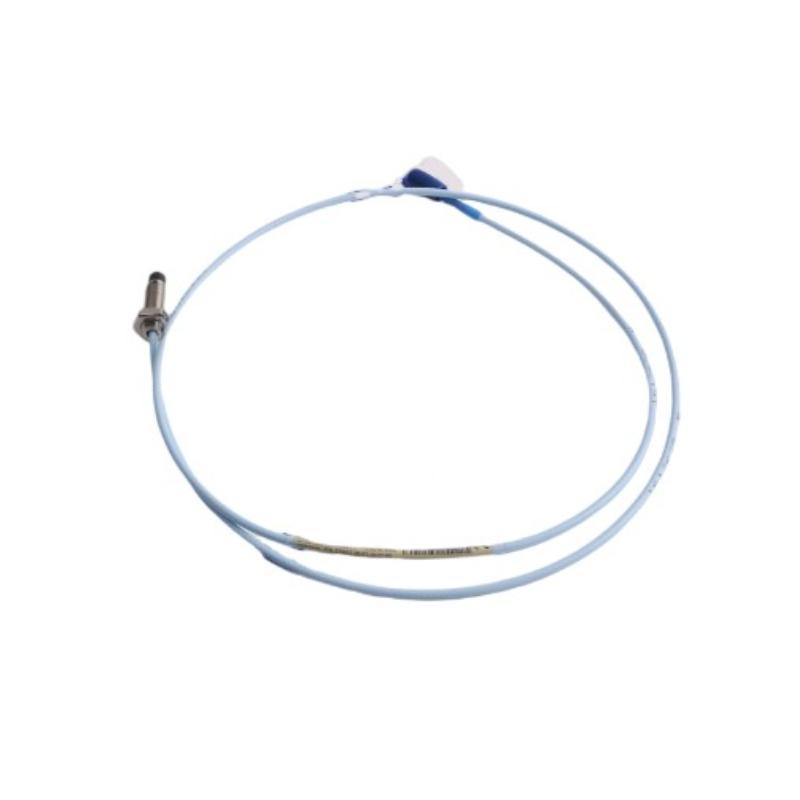

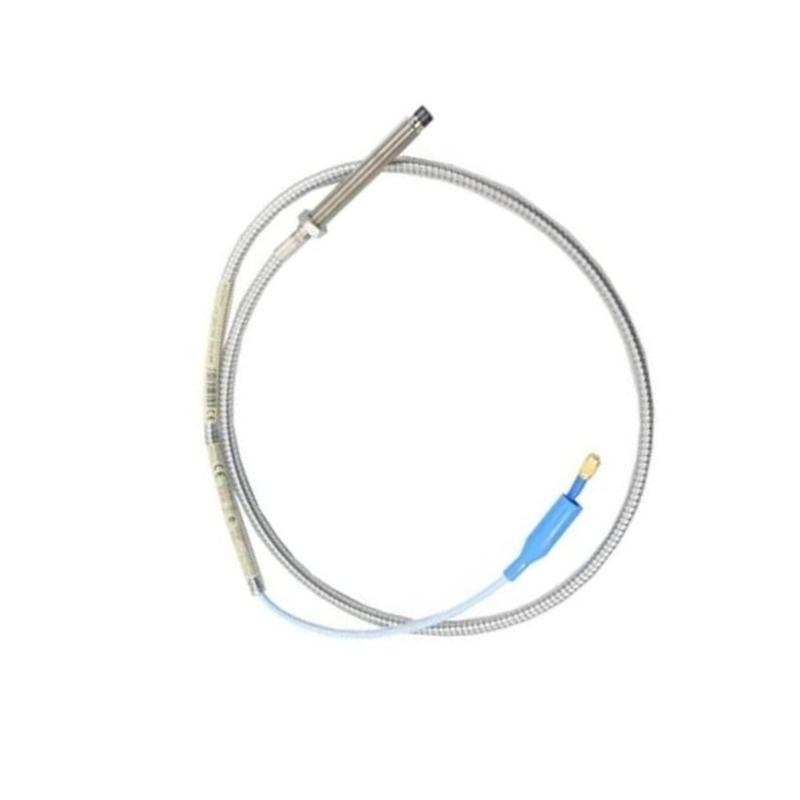

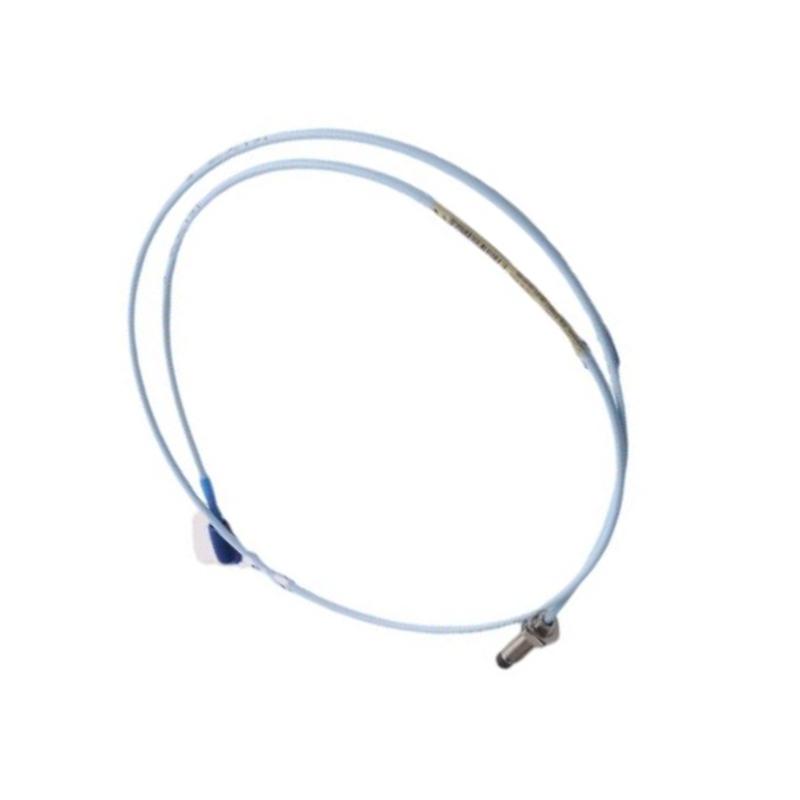

The Bently Nevada 330104-00-13-10-01-05 3300 XL 8 mm Proximity Probe Metric is a high-precision non-contact eddy current sensor designed to monitor shaft vibration, shaft position, and radial displacement in industrial rotating equipment. As part of the proven 3300 XL 8 mm Proximity Transducer System, this metric-thread probe delivers outstanding measurement accuracy, long-term stability, and reliable operation for machinery protection and condition monitoring applications.
This configuration features an M10 × 1 armored threaded probe, 0 mm unthreaded length, 130 mm overall case length, 1.0-meter standard cable, and a Miniature ClickLoc™ coaxial connector with connector protector. The -05 approval option provides CSA, ATEX, and IECEx certifications, making it suitable for installations requiring internationally recognized hazardous-area approvals.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Number | 330104-00-13-10-01-05 |
| Product Type | 3300 XL 8 mm Proximity Probe Metric |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Principle | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Construction | Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 130 mm |
| Integrated Cable Length | 1.0 m (3.3 ft) |
| Cable Configuration | Standard Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector with Connector Protector |
| Agency Approval | CSA / ATEX / IECEx |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Approximate Dimensions | 130 × 10 × 10 mm |
| Approximate Weight | 0.35 kg |
Typical Applications
Designed for continuous machine health monitoring, the 330104-00-13-10-01-05 provides reliable shaft motion measurements that help improve equipment availability and reduce maintenance costs. Its longer probe body and armored construction make it well suited for demanding industrial environments where durability and measurement accuracy are equally important.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection systems
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Generators
-
Oil and gas production facilities
-
Petrochemical processing plants
-
Mining equipment
-
Steel, cement, and paper manufacturing
The probe operates seamlessly with compatible 3300 XL extension cables and Proximitor sensors, providing a complete machinery condition monitoring solution.
Product Advantages
The 330104-00-13-10-01-05 combines advanced sensing technology with rugged mechanical construction to deliver dependable monitoring performance throughout the equipment lifecycle.
Key advantages include:
-
High-resolution non-contact shaft vibration measurement
-
Extended 130 mm probe body for greater installation flexibility
-
Rugged armored cable construction for enhanced durability
-
Stable signal output under continuous operating conditions
-
1.0-meter cable for convenient installation
-
Corrosion-resistant stainless steel housing
-
Hazardous-area certified configuration
-
Fully compatible with the 3300 XL monitoring platform
-
Supports predictive maintenance and asset reliability programs
-
Helps reduce unplanned downtime and maintenance expenses
Technical FAQs
1. What is the primary function of this proximity probe?
It measures shaft vibration, shaft position, and radial displacement without physical contact, enabling continuous monitoring of rotating machinery.
2. Which monitoring system is this model designed for?
It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.
3. What thread type does this probe use?
This model uses an M10 × 1 metric threaded body with armored construction.
4. What is the overall case length?
The probe has an overall case length of 130 mm.
5. What is the cable length?
It is supplied with an integrated 1.0-meter (3.3-foot) standard cable.
6. Which connector is installed?
The probe features a Miniature ClickLoc™ coaxial connector with connector protector, providing secure and reliable connectivity.
7. What does the "-05" approval option represent?
The -05 suffix indicates a version with CSA, ATEX, and IECEx approvals for applicable hazardous-area installations.
8. Which industries commonly use this model?
It is widely applied in power generation, oil and gas, petrochemical processing, mining, marine, and other industries operating critical rotating equipment.
9. Can this probe support predictive maintenance?
Yes. Continuous monitoring helps detect imbalance, shaft misalignment, looseness, and bearing wear before these conditions develop into major failures.
10. How can the probe's service life be extended?
Proper installation, maintaining the specified probe gap, protecting the cable from excessive mechanical stress, and performing regular inspections will help ensure long-term reliable performance.
