Engineered for Accurate Machinery Condition Monitoring

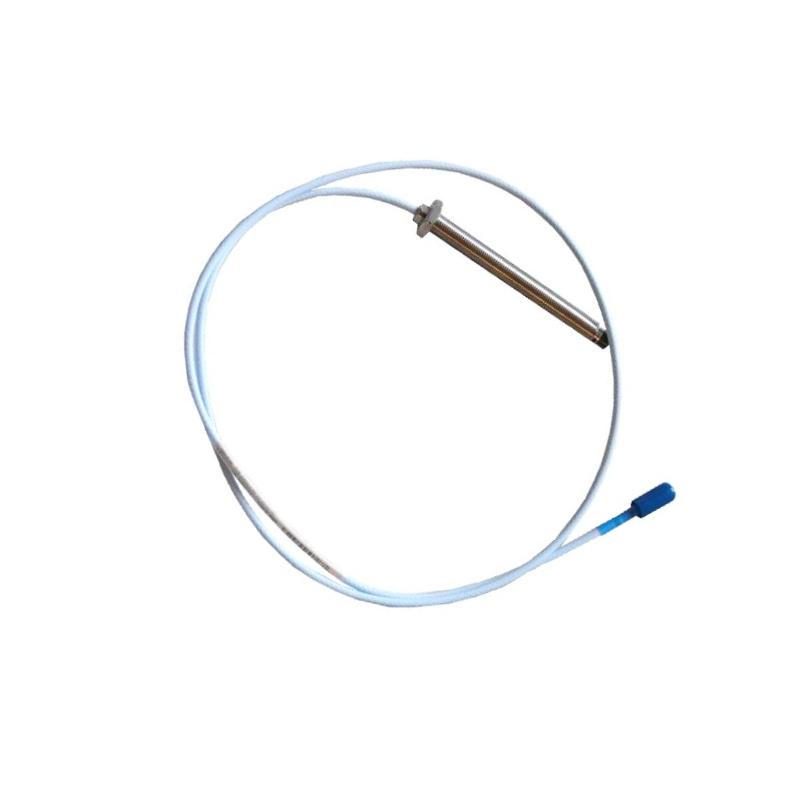

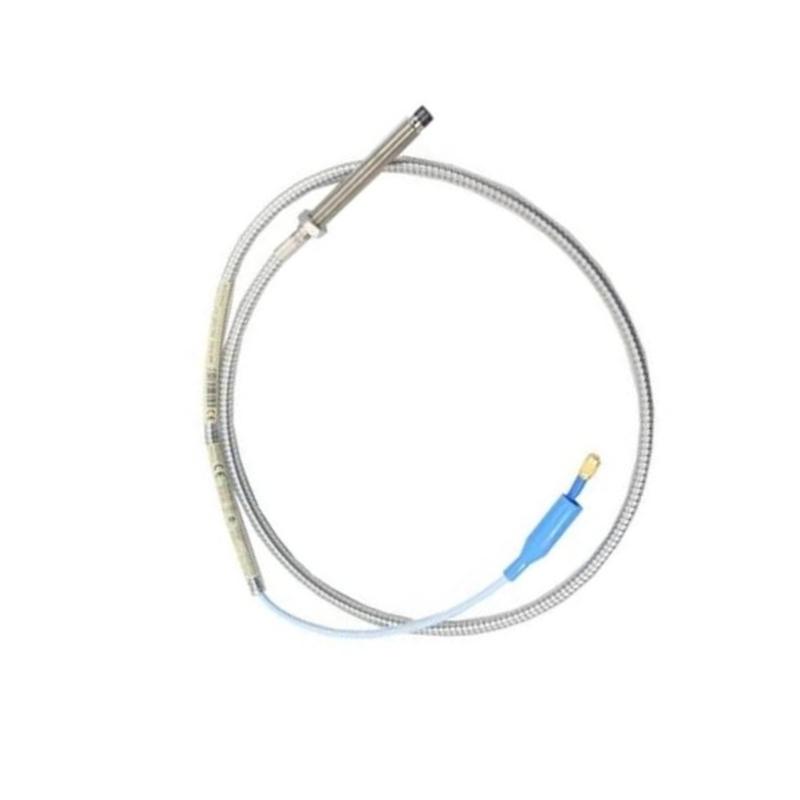

The Bently Nevada 330104-00-09-10-02-00 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor designed to provide precise measurement of shaft vibration, shaft position, and radial displacement in critical rotating machinery. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe delivers outstanding signal stability, measurement accuracy, and long-term reliability, making it an excellent choice for industrial machinery protection and predictive maintenance programs.
This configuration incorporates an M10 × 1 threaded armored probe, 0 mm unthreaded length, 90 mm overall case length, 1.0-meter standard cable, and a Miniature ClickLoc™ coaxial connector. The rugged stainless steel construction and compact connector design allow dependable operation in demanding industrial environments while simplifying installation and maintenance.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Product Number | 330104-00-09-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Sensing Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Probe Construction | Armored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 90 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Agency Approval | 00 – Standard Version |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Dimensions (Approx.) | 90 × 10 × 10 mm |
| Weight (Approx.) | 0.32 kg |
Typical Applications
Designed for continuous monitoring of mission-critical equipment, the 330104-00-09-10-02-00 helps maintenance professionals identify developing mechanical issues before they result in unexpected downtime.
Typical industrial applications include:
-
Steam turbine monitoring
-
Gas turbine protection systems
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
Power generators
-
Oil and gas processing facilities
-
Petrochemical plants
-
Mining equipment
-
Paper, steel, and cement manufacturing
Its compatibility with the complete 3300 XL monitoring platform makes it suitable for both new machinery installations and replacement projects.
Product Advantages
The 330104-00-09-10-02-00 is engineered to provide dependable performance throughout the operating life of critical rotating assets.
Key advantages include:
-
High-precision non-contact shaft vibration measurement
-
Excellent signal stability for continuous monitoring
-
Armored probe construction for enhanced mechanical durability
-
Extended 90 mm case length for flexible installation
-
Compact Miniature ClickLoc™ connector for secure connections
-
Stainless steel housing resists corrosion and industrial wear
-
Fully compatible with 3300 XL extension cables and Proximitor sensors
-
Supports predictive maintenance and asset reliability programs
-
Helps minimize unexpected shutdowns and maintenance costs
Technical FAQs
1. What is the primary function of this proximity probe?
It continuously measures shaft vibration, shaft position, and radial displacement without making physical contact with the rotating shaft.
2. Which monitoring system is this probe designed for?
It is designed for the 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.
3. What thread specification does this model use?
The probe features an M10 × 1 metric threaded body for secure industrial installation.
4. What is the overall case length?
This model has a 90 mm overall case length.
5. How long is the integrated cable?
The probe includes a 1.0-meter (3.3-foot) standard cable.
6. What connector configuration is supplied?
It is equipped with a Miniature ClickLoc™ coaxial connector and standard cable configuration.
7. What does the "-00" approval option indicate?
The 00 option identifies the standard configuration without additional agency approval requirements.
8. Which industries commonly install this model?
It is widely used in power generation, petrochemical processing, oil and gas, mining, marine, and heavy manufacturing industries.
9. Can this probe improve predictive maintenance programs?
Yes. Continuous shaft condition monitoring enables early detection of imbalance, misalignment, looseness, and bearing-related issues, allowing maintenance to be scheduled before failures occur.
10. How can users maximize the probe's service life?
Maintain the correct probe gap, install the probe according to manufacturer recommendations, protect the cable from excessive bending, keep connectors clean, and perform routine inspections during scheduled maintenance.
