Heavy-Duty Armored Proximity Sensor for Advanced Machinery Condition Monitoring

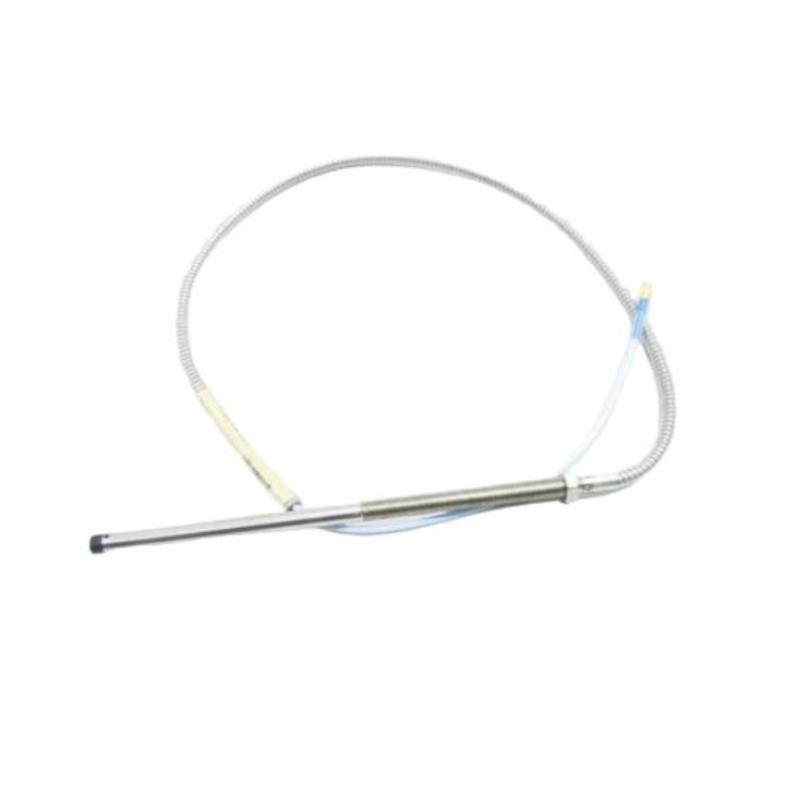

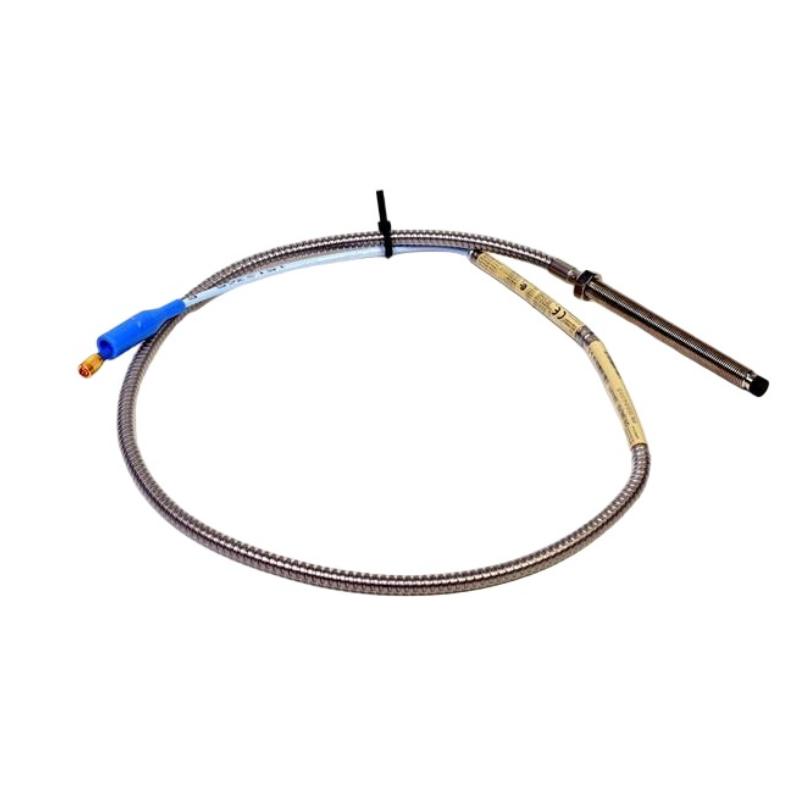

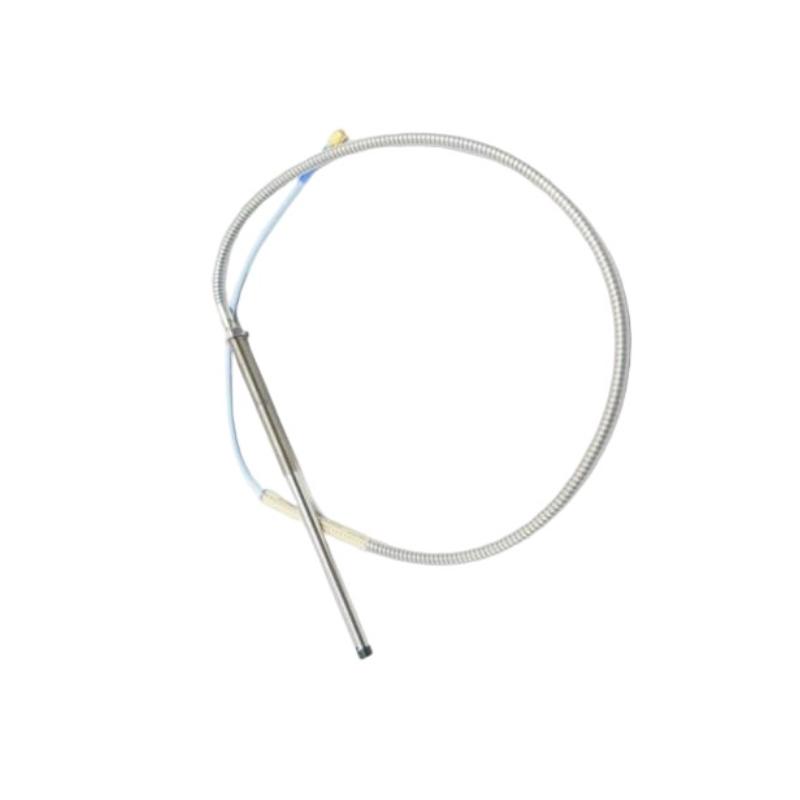

The Bently Nevada 330102-12-60-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current displacement sensor designed for accurate, continuous monitoring of rotating machinery. As part of the proven 3300 XL 8 mm Proximity Transducer System, this probe provides dependable measurement of shaft vibration, radial displacement, and axial position, supporting reliable machinery protection and predictive maintenance programs.
The 330102 series features an armored cable construction based on the standard 3/8-24 UNF threaded 3300 XL 8 mm probe platform, offering additional protection against abrasion, vibration, and mechanical stress. The 330102-12-60-10-02-05 configuration includes a 1.2-inch unthreaded length, 6.0-inch overall case length, 1.0-meter cable, miniature coaxial ClickLoc™ connector with standard cable, and CSA/ATEX/IECEx approvals for suitable hazardous-area applications.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-12-60-10-02-05 |
| Product Type | 3300 XL 8 mm Armored Proximity Probe |
| Measurement Technology | Eddy Current Non-Contact Displacement Sensing |
| Probe Series | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Probe Construction | Armored Standard Mount Probe |
| Unthreaded Length | 1.2 in (30.5 mm) |
| Overall Case Length | 6.0 in (152.4 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Armored Cable |
| Connector Protection | Not included (standard cable configuration) |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Body Material | AISI 303/304 Stainless Steel |
| Armor Material | Stainless Steel Armor |
| Linear Measurement Range | Approx. 2 mm (80 mils) |
| Nominal Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Approximate Probe Weight | 323 g/m |
| Approximate Dimensions | Ø8 mm probe tip × 152.4 mm case length + 1 m armored cable |
Applications
The 330102-12-60-10-02-05 proximity probe is designed for industrial machinery where accurate shaft measurement and long-term sensor durability are essential.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressor monitoring
-
Generator shaft displacement measurement
-
Industrial motor condition monitoring
-
Large pump monitoring
-
Gearbox vibration analysis
-
Refinery rotating equipment
-
Petrochemical processing machinery
-
Oil and gas production systems
The probe is typically installed together with a compatible 3300 XL Extension Cable and 3300 XL Proximitor Sensor to create a complete vibration and position monitoring system. The 3300 XL system provides output proportional to the distance between the probe tip and the conductive shaft surface, allowing measurement of both static position and dynamic vibration signals.
Technical FAQs
1. What is the Bently Nevada 330102-12-60-10-02-05 used for?
It is used for non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery.
2. What technology does this proximity probe use?
The probe uses eddy current sensing technology to measure the distance between the probe tip and a conductive machine shaft.
3. What does the 330102 series indicate?
The 330102 series identifies a 3300 XL 8 mm proximity probe with armored cable construction and 3/8-24 UNF thread.
4. What does the "12" option represent?
The 12 option indicates a 1.2-inch unthreaded length configuration.
5. What does the "60" option specify?
The 60 option indicates a 6.0-inch overall case length configuration.
6. What does the "10" cable option mean?
The 10 option specifies a 1.0-meter (3.3 ft) total probe cable length.
7. What connector type is used on this model?
This probe uses a miniature coaxial ClickLoc™ connector with standard cable configuration.
8. Is this probe suitable for hazardous locations?
Yes. The -05 suffix provides CSA, ATEX, and IECEx approval options for applicable hazardous-area installations.
9. What additional components are required for operation?
A complete monitoring system normally requires a compatible 3300 XL extension cable and a 3300 XL Proximitor Sensor.
10. Why choose an armored 3300 XL proximity probe?
The armored design provides additional cable protection in applications exposed to vibration, abrasion, and mechanical stress.
