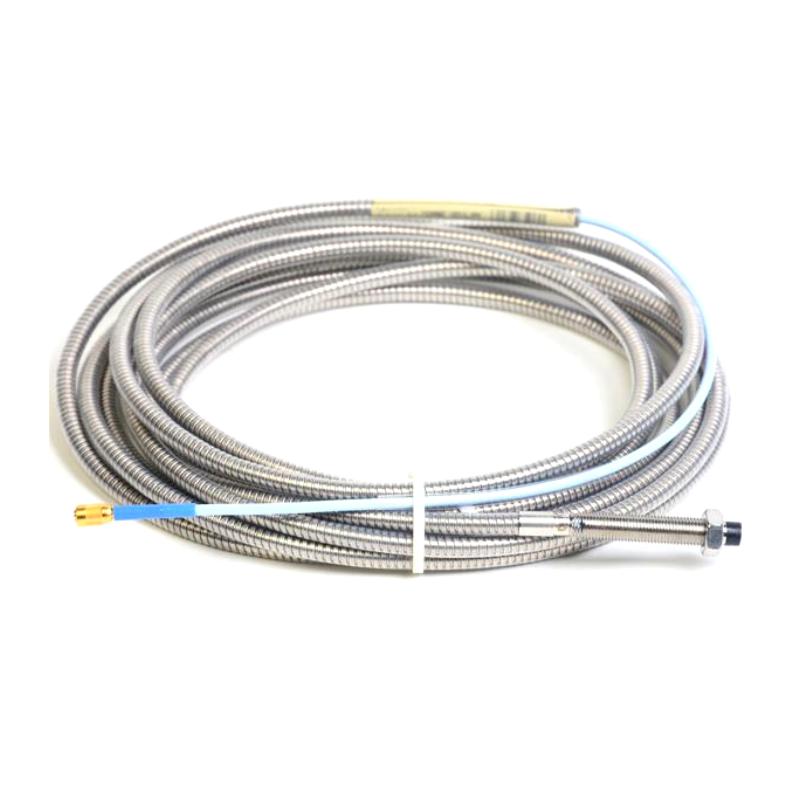

Armored Eddy Current Sensor Built for Dependable Machinery Protection
The Bently Nevada 330102-00-12-05-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact displacement sensor designed for continuous monitoring of shaft vibration, radial movement, and axial position in critical rotating machinery. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe combines accurate eddy current measurement technology with a durable armored cable design to deliver dependable performance in demanding industrial environments.
The 330102 series represents the armored version of the 3300 XL 8 mm proximity probe family, featuring a 3/8-24 UNF thread, 0.0-inch unthreaded length, 1.2-inch overall case length, 0.5-meter integral cable, and a miniature coaxial ClickLoc™ connector with standard cable. The -05 agency approval option provides CSA, ATEX, and IECEx approvals for suitable hazardous-area installations.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-12-05-02-05 |
| Product Type | 3300 XL 8 mm Armored Proximity Probe |
| Measurement Technology | Eddy Current Non-Contact Displacement Sensing |
| Probe Series | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Probe Construction | Standard Mount with Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.2 in (30.5 mm) |
| Total Probe Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Configuration | Armored Cable |
| Connector Style | Standard Cable Connector |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Armor Material | Stainless Steel Armor |
| Linear Measurement Range | Approx. 2 mm (80 mils) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Approximate Probe Weight | 323 g/m |
| Approximate Dimensions | Ø8 mm probe tip × 30.5 mm case length + 0.5 m armored cable |
Applications
The 330102-00-12-05-02-05 proximity probe is designed for machinery protection systems where accurate measurement and enhanced cable durability are required.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Turbo expanders
-
Industrial pumps
-
Electric motors
-
Generators
-
Gearboxes
-
Refinery rotating equipment
-
Petrochemical machinery
-
Oil and gas processing systems
This probe is normally integrated with a 3300 XL Proximitor Sensor and compatible extension cable to create a complete vibration and shaft position monitoring system. The 3300 XL system measures both dynamic vibration signals and static shaft position values for predictive maintenance and equipment protection.
Technical FAQs
1. What is the Bently Nevada 330102-00-12-05-02-05 used for?
It is used to measure shaft vibration, displacement, and position on rotating equipment using non-contact eddy current technology.
2. What is the difference between 330101 and 330102 probes?
The 330101 series uses a non-armored cable design, while the 330102 series includes armored cable protection for improved mechanical durability.
3. What does the 330102 designation indicate?
The 330102 designation identifies a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and armored construction.
4. What does the "12" option specify?
The 12 option indicates the probe case length configuration of approximately 1.2 inches.
5. What does the "05" cable option represent?
The 05 option specifies a 0.5-meter (1.6 ft) total probe cable length.
6. What type of connector is installed?
This model uses a miniature coaxial ClickLoc™ connector with standard cable.
7. Is this probe suitable for hazardous locations?
Yes. The -05 approval option provides CSA, ATEX, and IECEx approvals for compatible hazardous-area installations.
8. Why choose an armored proximity probe?
The armored design protects the cable from abrasion, accidental impact, and mechanical damage, improving reliability in challenging environments.
9. Which components complete the monitoring system?
A complete 3300 XL system typically includes the proximity probe, extension cable, and 3300 XL Proximitor Sensor.
10. What industries use this proximity probe?
It is widely used in power generation, oil and gas, petrochemical, manufacturing, and other industries requiring continuous monitoring of critical rotating equipment.
