Rugged Armored Proximity Sensor for Advanced Rotating Equipment Monitoring

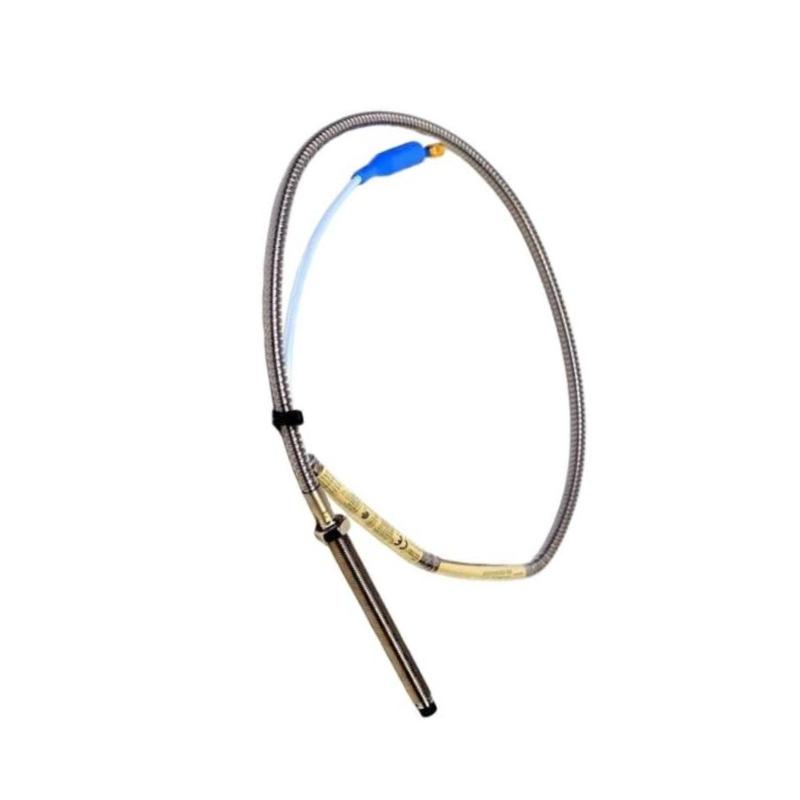

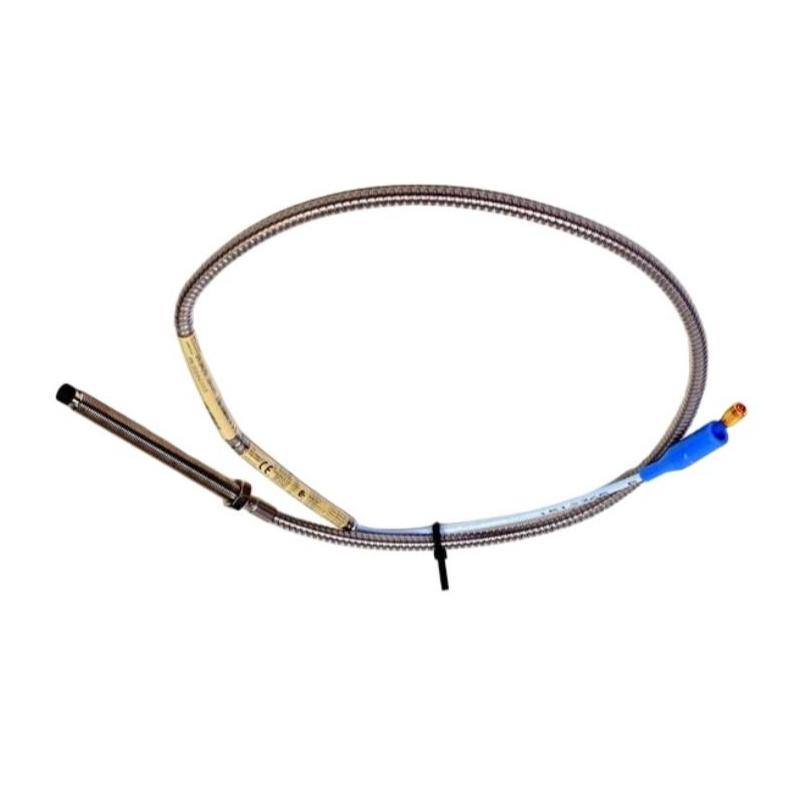

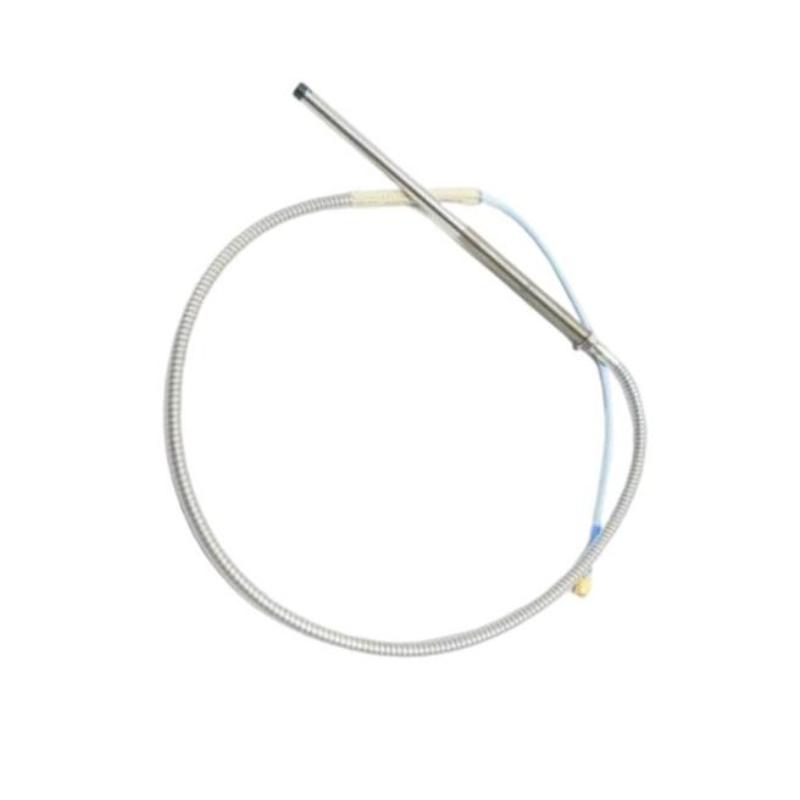

The Bently Nevada 330102-00-80-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current displacement sensor engineered for accurate, continuous monitoring of shaft vibration, radial displacement, and axial position in critical rotating machinery. Designed as part of the industry-proven 3300 XL 8 mm Proximity Transducer System, this probe provides reliable measurement stability for applications requiring precise machinery condition analysis and protection.
Featuring an armored cable construction, the 330102 series is designed for installations where additional mechanical protection is required. This model uses a 3/8-24 UNF threaded configuration, a smooth extended case design, 1.0-meter cable length, and a miniature coaxial ClickLoc™ connector with connector protector. The rugged construction makes it suitable for industrial environments where vibration, abrasion, and challenging installation conditions are common.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-80-10-02-00 |
| Product Type | 3300 XL 8 mm Armored Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Displacement Measurement |
| Probe Series | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Probe Construction | Armored Cable Design |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 8.0 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Connector Protection | Connector Protector Included |
| Cable Type | Standard Armored Cable |
| Agency Approval | Not Required (-00 Option) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Armor Material | Stainless Steel Armor |
| Linear Range | Approximately 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Temperature | -52 °C to +177 °C (-62 °F to +350 °F) |
| Approximate Probe Weight | 323 g/m |
| Approximate Dimensions | Ø8 mm probe tip × 8.0 in case length + 1 m armored cable |
Applications
The 330102-00-80-10-02-00 proximity probe is designed for machinery protection and predictive maintenance systems used in industries where equipment reliability is critical.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection systems
-
Centrifugal compressor vibration monitoring
-
Generator shaft displacement measurement
-
Industrial pump condition monitoring
-
Electric motor monitoring
-
Gearbox vibration analysis
-
Refinery rotating equipment
-
Petrochemical processing machinery
-
Oil and gas production equipment
When combined with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor, the probe forms a complete monitoring chain capable of measuring both dynamic vibration signals and static shaft position values
Technical FAQs
1. What is the Bently Nevada 330102-00-80-10-02-00 used for?
It is used for non-contact measurement of shaft vibration, radial displacement, and axial position on rotating machinery.
2. What type of sensor technology does this probe use?
The probe uses eddy current sensing technology to detect the distance between the probe tip and the conductive machine shaft surface.
3. What does the 330102 series represent?
The 330102 series identifies a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and armored cable construction.
4. What does the "80" option specify?
The 80 option indicates an 8.0-inch overall case length configuration within the 3300 XL probe ordering structure.
5. What does the "10" cable option mean?
The 10 option indicates a 1.0-meter (3.3 ft) total probe cable length.
6. Does this model include armored cable?
Yes. The 330102 family uses armored cable construction to provide additional protection against mechanical damage.
7. What connector is used on this probe?
It uses a miniature coaxial ClickLoc™ connector with connector protection.
8. Does this model include hazardous-area approvals?
The -00 suffix indicates no additional agency approval option selected. Models with -05 are available with CSA, ATEX, and IECEx approvals.
9. What components are required for a complete system?
A complete 3300 XL 8 mm system typically includes the probe, compatible extension cable, and a 3300 XL Proximitor Sensor.
10. Why choose an armored proximity probe?
Armored probes are preferred in applications where cables may experience abrasion, vibration, impact, or difficult installation conditions.
