Armored Eddy Current Probe for Precise Shaft Displacement and Machinery Protection
The Bently Nevada 330102-04-16-10-02-00 3300 XL 8 mm Proximity Probe is a high-reliability non-contact displacement sensor designed for continuous monitoring of rotating equipment. Utilizing advanced eddy current sensing technology, this probe provides accurate measurement of shaft vibration, radial position, and axial displacement for critical machinery protection and predictive maintenance systems.

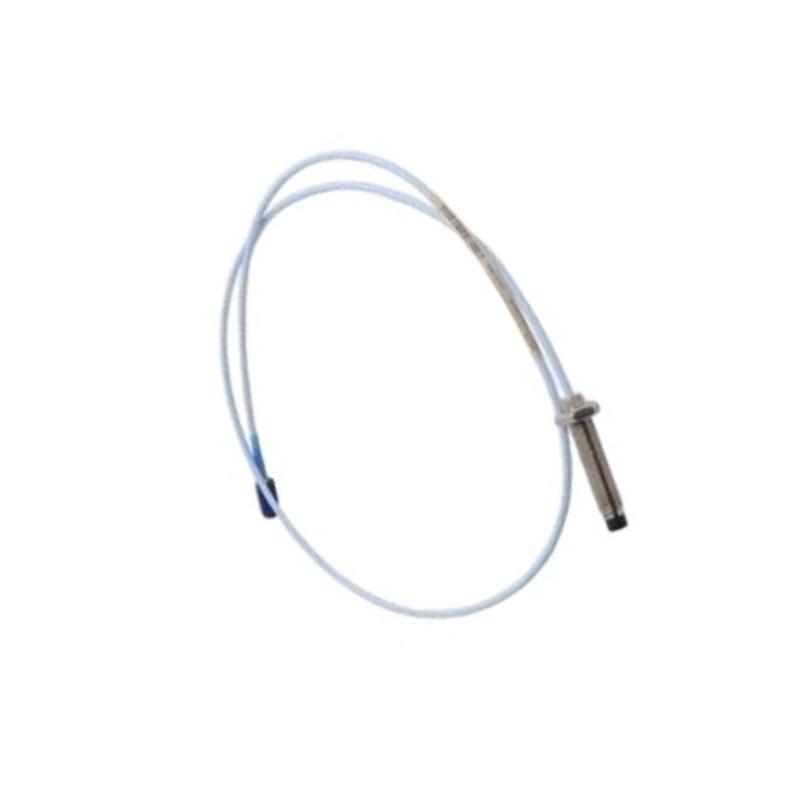

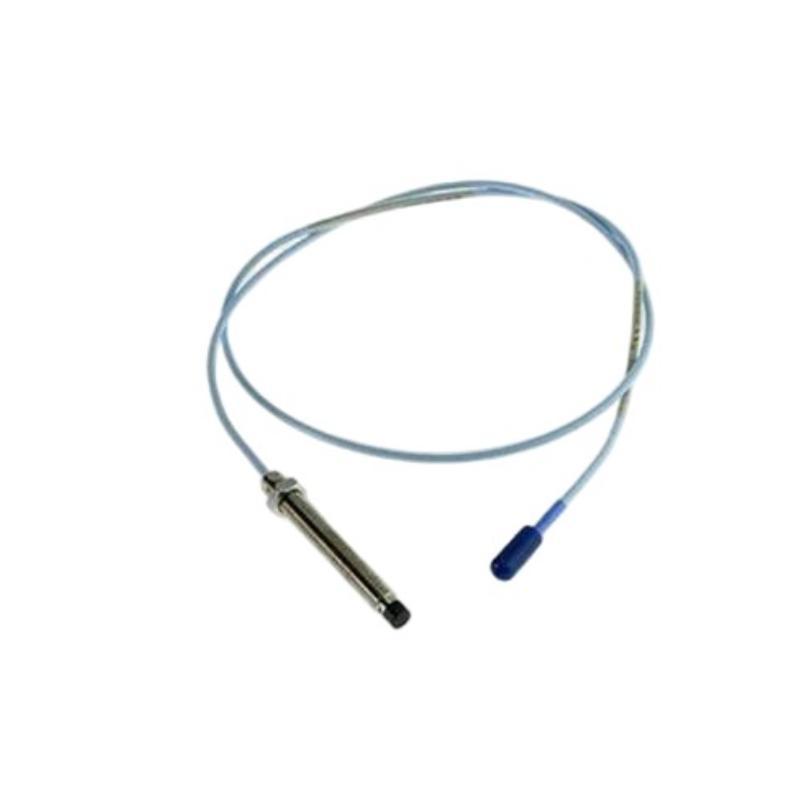

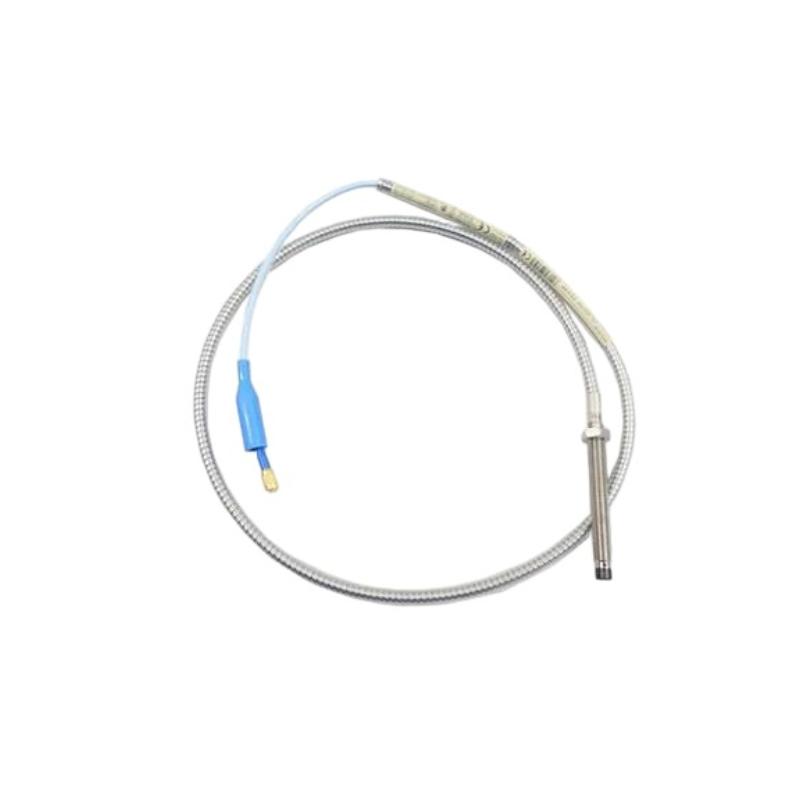

As an armored member of the 3300 XL 8 mm Proximity Probe family, the 330102 series is engineered for installations where additional cable protection is required. The 330102-04-16-10-02-00 configuration features a 3/8-24 UNF threaded probe body, 0.4-inch unthreaded length, 1.6-inch case length, 1.0-meter cable, miniature coaxial ClickLoc™ connector, and connector protector. Its rugged armored construction improves resistance against mechanical stress, vibration, and industrial operating conditions.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-04-16-10-02-00 |
| Product Type | 3300 XL 8 mm Armored Proximity Probe |
| Measurement Principle | Eddy Current Non-Contact Displacement Measurement |
| Probe Series | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Probe Style | Standard Mount with Armor |
| Unthreaded Length | 0.4 in (10.2 mm) |
| Case Length | 1.6 in (40.6 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Connector Protection | Included |
| Cable Construction | Armored Cable |
| Agency Approval | -00 (No additional approval option) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Body Material | Stainless Steel |
| Armor Material | Stainless Steel Armor |
| Sensitivity | Approximately 200 mV/mil (7.87 V/mm) |
| Linear Range | Approximately 2 mm (80 mils) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Probe Weight | Approx. 323 g/m |
| Approximate Dimensions | Ø8 mm tip × 40.6 mm case length + 1 m armored cable |
Applications
The 330102-04-16-10-02-00 proximity probe is widely used in industrial machinery monitoring systems where accurate shaft position measurement and vibration analysis are essential.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressor monitoring
-
Generator shaft displacement measurement
-
Industrial motor monitoring
-
Pump condition monitoring
-
Gearbox vibration analysis
-
Petrochemical rotating equipment
-
Refinery machinery protection
-
Oil and gas production systems
The probe is normally installed as part of a complete 3300 XL Proximity Transducer System, together with an extension cable and Proximitor Sensor. The complete system provides proportional output signals corresponding to shaft position and dynamic vibration movement.
Technical FAQs
1. What is the Bently Nevada 330102-04-16-10-02-00 used for?
It is used for measuring shaft vibration, radial displacement, and axial position on rotating machinery through eddy current sensing technology.
2. What does the 330102 model series represent?
The 330102 series identifies an armored 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded configuration.
3. What is the difference between 330101 and 330102 probes?
The 330101 series uses a standard non-armored cable, while the 330102 series includes armored cable protection for improved mechanical durability.
4. What does the "04" option indicate?
The 04 option represents a 0.4-inch unthreaded length configuration.
5. What does the "16" option specify?
The 16 option indicates a 1.6-inch overall case length.
6. What does the "10" cable code mean?
The 10 option specifies a 1.0-meter (3.3 ft) total probe cable length.
7. What type of connector does this probe use?
It uses a miniature coaxial ClickLoc™ connector with connector protection.
8. Does this model include hazardous-area approvals?
The -00 suffix indicates no additional agency approval option selected. Other configurations are available with CSA, ATEX, and IECEx approvals.
9. What components are required for a complete monitoring system?
A complete system normally includes the proximity probe, compatible extension cable, and a 3300 XL Proximitor Sensor.
10. Why select an armored proximity probe?
Armored probes provide improved resistance against installation damage, vibration exposure, and harsh industrial conditions.
