Armored Proximity Sensing Solution for Reliable Machinery Condition Monitoring

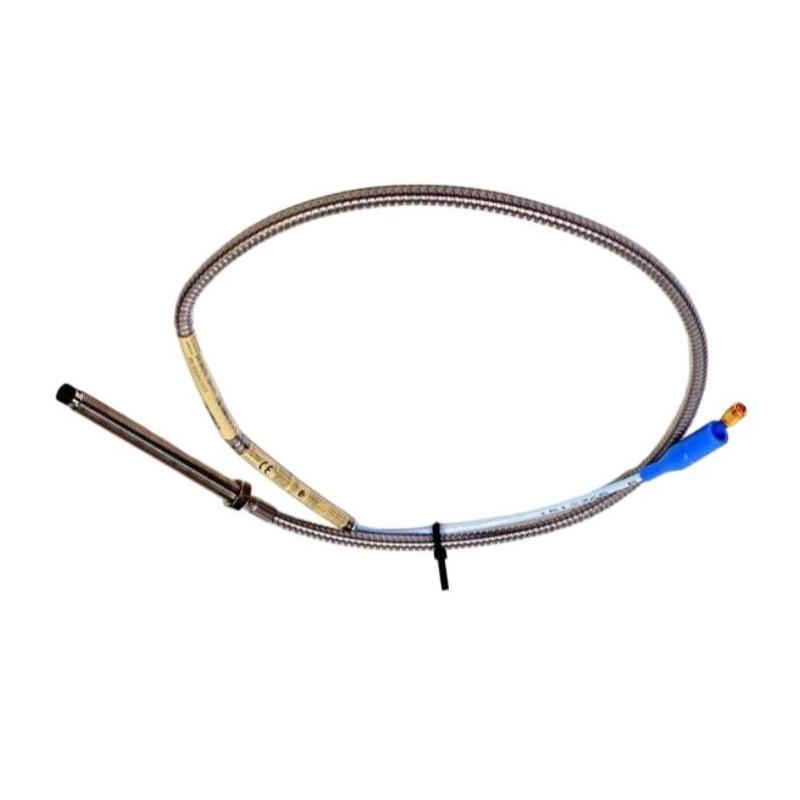

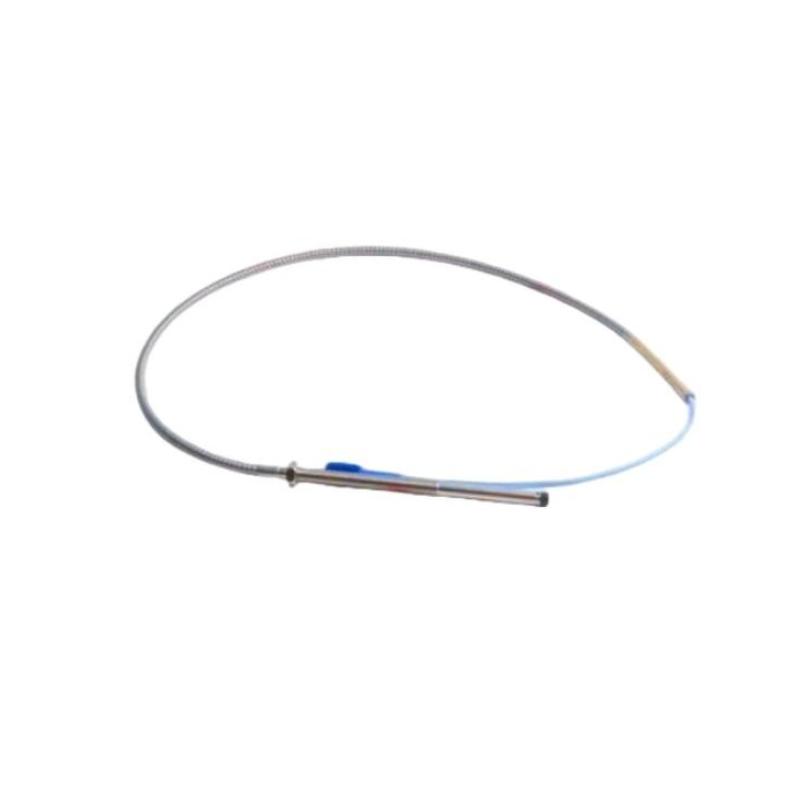

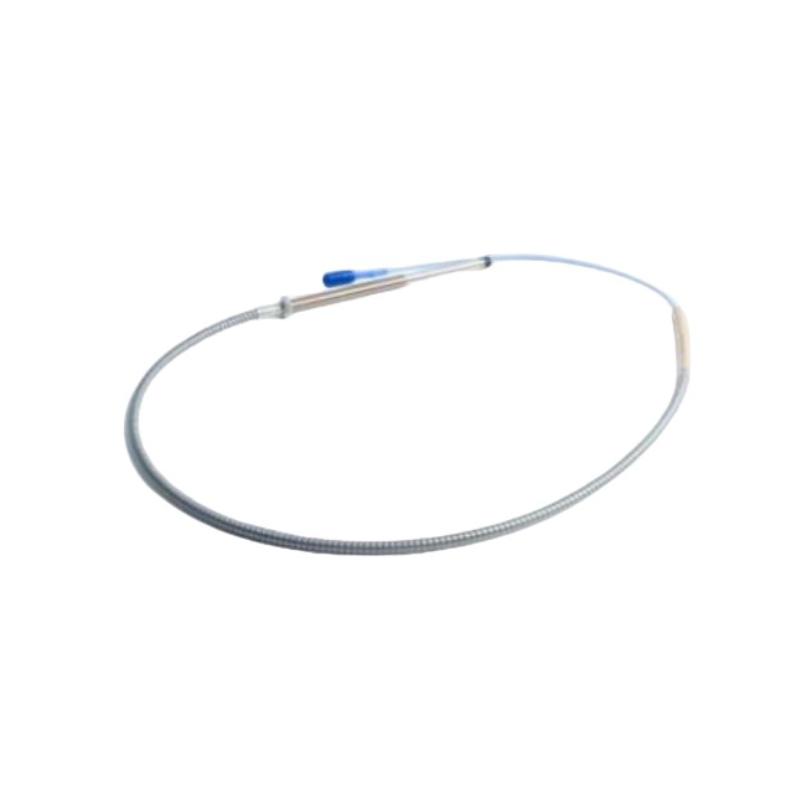

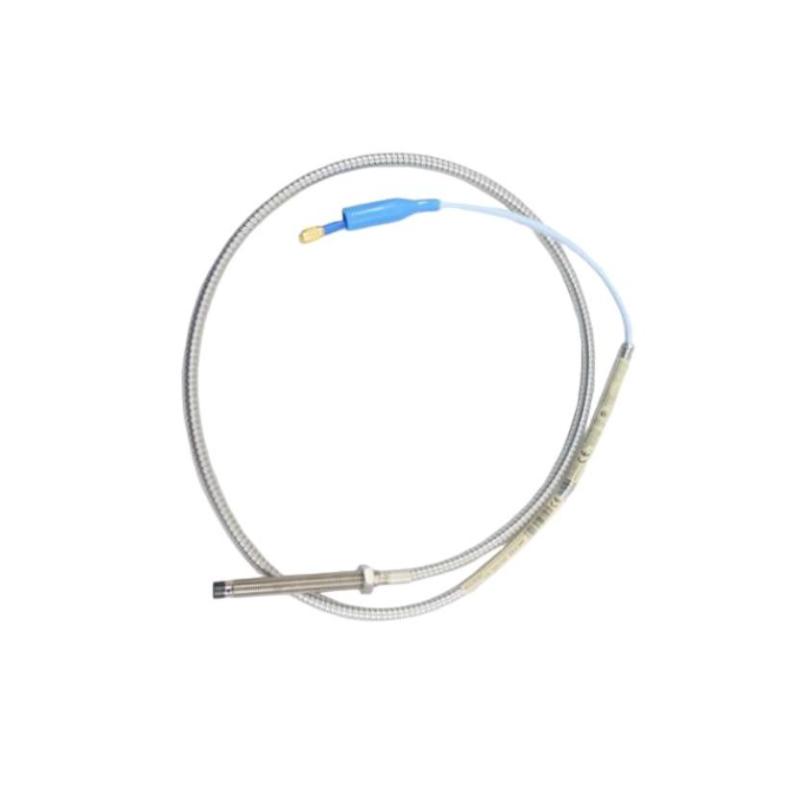

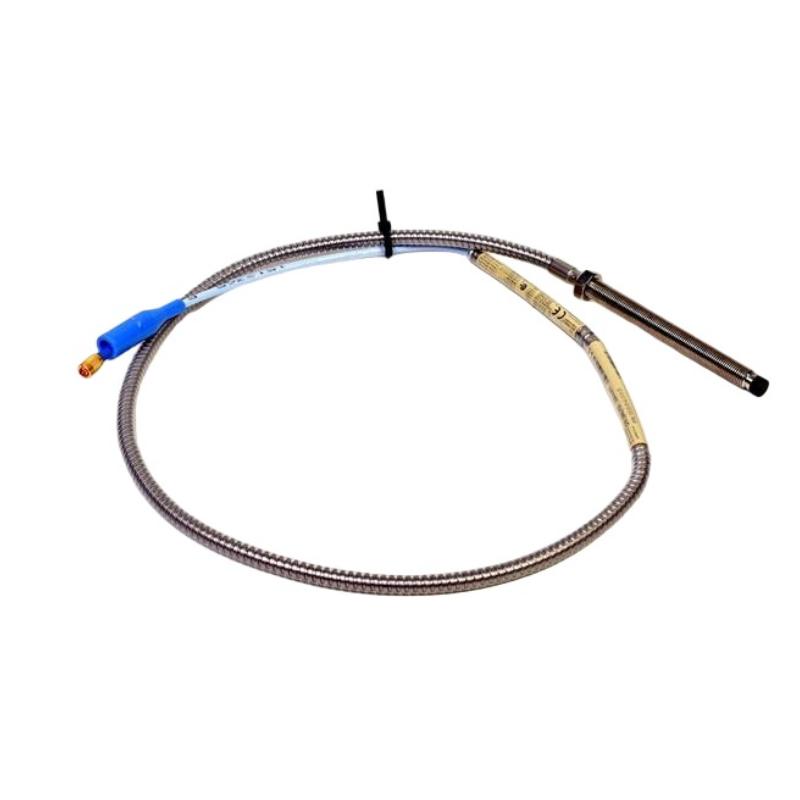

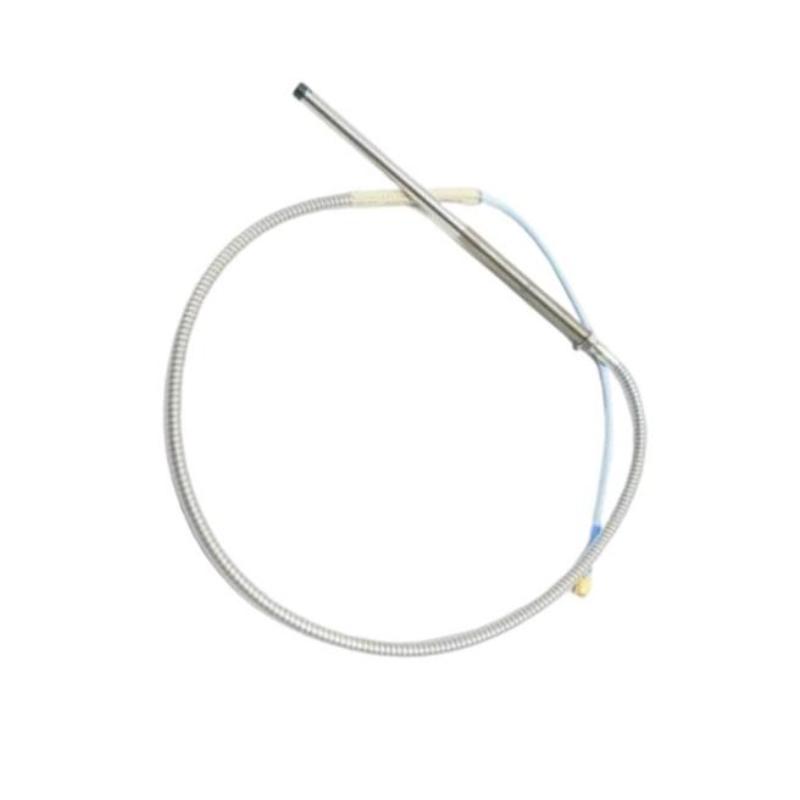

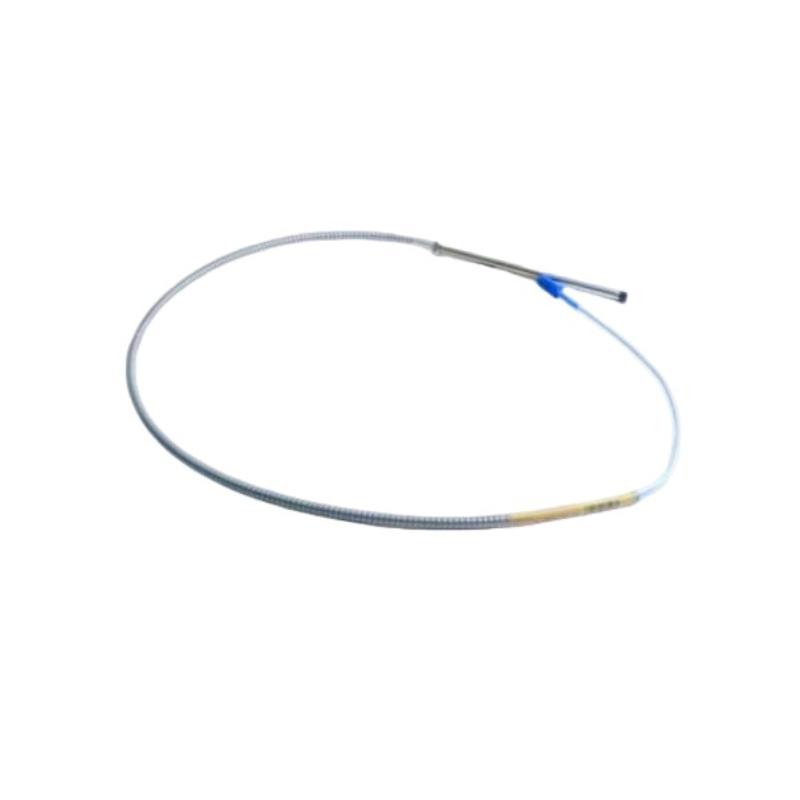

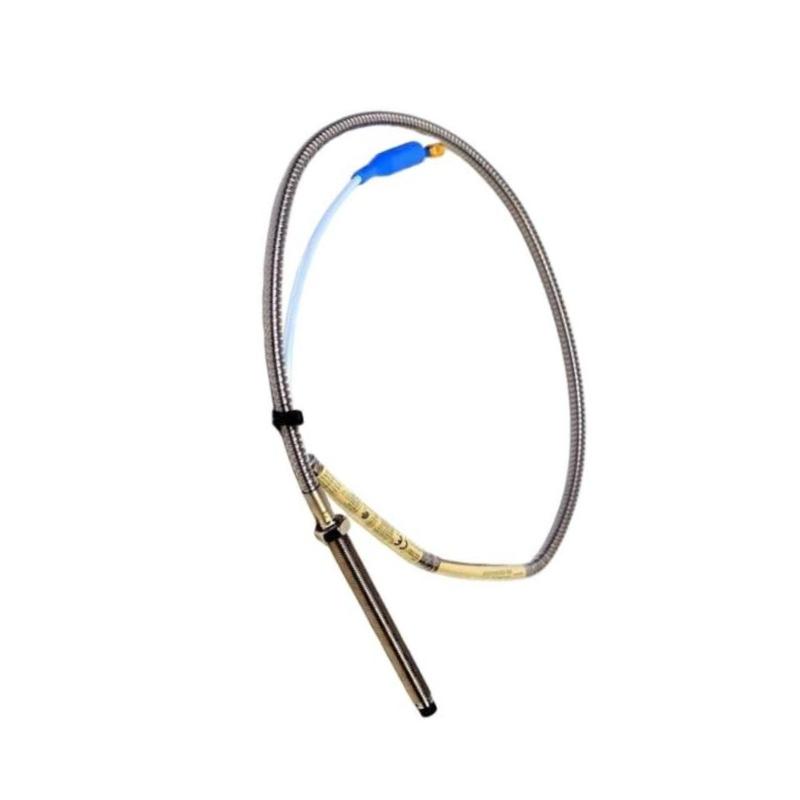

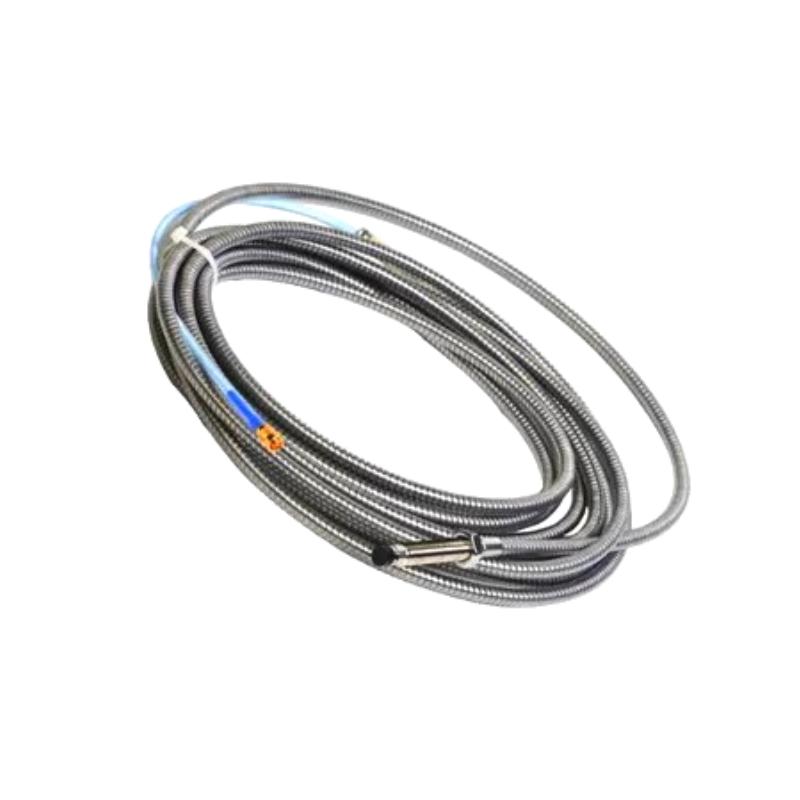

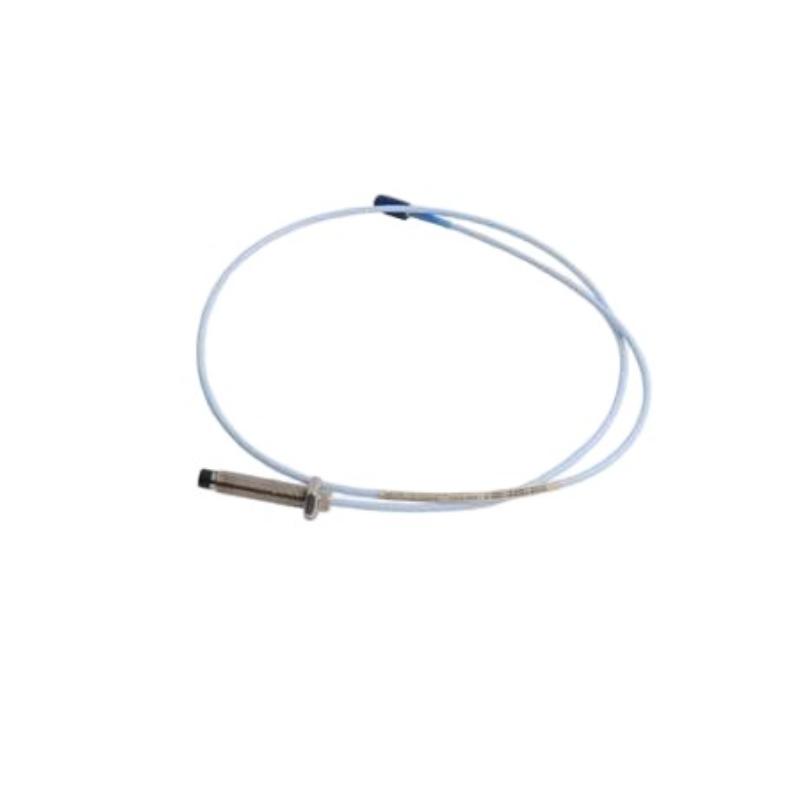

The Bently Nevada 330102-00-10-10-01-05 3300 XL 8 mm Proximity Probe is a rugged, high-precision eddy current sensor designed for continuous monitoring of shaft vibration, radial displacement, and axial position in critical rotating equipment. As part of the proven 3300 XL 8 mm Proximity Transducer System, this probe combines accurate measurement capability with enhanced mechanical protection through its armored cable construction, making it ideal for harsh industrial environments where reliability and long service life are required.
The 330102 series is the armored version of the standard 3300 XL 8 mm proximity probe family, featuring a 3/8-24 UNF thread, 0.0-inch unthreaded length, 1.0-inch case length, 1.0-meter integral cable, miniature coaxial ClickLoc™ connector with connector protector, and CSA, ATEX, IECEx approvals. This configuration provides additional cable protection for installations exposed to vibration, mechanical stress, or difficult maintenance conditions.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-10-10-01-05 |
| Product Type | 3300 XL 8 mm Armored Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Displacement Sensor |
| Probe Series | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Probe Construction | Standard Mount with Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.0 in |
| Total Probe Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Configuration | Armored Cable with Connector Protector |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Armor Material | Stainless Steel Armor |
| Linear Measurement Range | Approximately 2 mm (80 mils) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Approximate Probe Weight | 323 g/m |
| Approximate Dimensions | Ø8 mm probe tip × 25.4 mm case length + 1 m armored cable |
Industrial Applications
The 330102-00-10-10-01-05 proximity probe is engineered for applications where accurate shaft monitoring and additional cable protection are required.
Common applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Turbo expanders
-
Large industrial pumps
-
Electric motors
-
Gearboxes
-
Generators
-
Refinery rotating equipment
-
Petrochemical processing machinery
-
Offshore oil and gas systems
The armored cable design provides improved resistance against accidental impact, abrasion, and mechanical stress, making it suitable for installations where standard unarmored probes may experience premature cable damage.
Technical FAQs
1. What is the Bently Nevada 330102-00-10-10-01-05 used for?
It is used for non-contact measurement of shaft vibration, radial displacement, and axial position on rotating machinery.
2. What is the difference between 330101 and 330102 probes?
The 330101 series is the standard non-armored version, while the 330102 series includes armored cable protection for harsher installation environments.
3. What does the "330102" designation mean?
The 330102 designation identifies a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and armored cable construction.
4. What does the "10" after the first option represent?
The first 10 represents a 1.0-inch overall case length configuration.
5. What does the cable length option "10" indicate?
The second 10 specifies a 1.0-meter (3.3 ft) total probe cable length.
6. What connector is used on this probe?
This model uses a miniature coaxial ClickLoc™ connector with connector protector.
7. Is this probe suitable for hazardous locations?
Yes. The -05 approval option provides CSA, ATEX, and IECEx approvals for applicable installations.
8. What material is the probe tip made from?
The probe tip uses polyphenylene sulfide (PPS), selected for stable electrical characteristics and durability.
9. Which monitoring components are required with this probe?
A complete system typically includes a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor.
10. Why choose an armored proximity probe?
Armored probes provide improved resistance against abrasion, mechanical impact, and installation-related cable damage, making them suitable for demanding machinery environments.
