Precision Eddy Current Sensing Technology for Critical Rotating Machinery

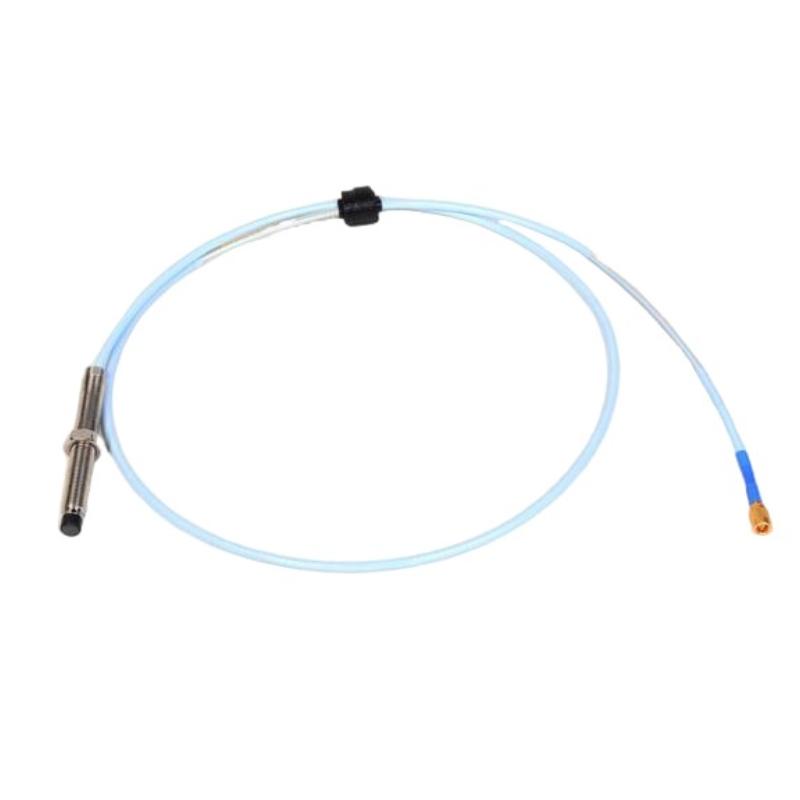

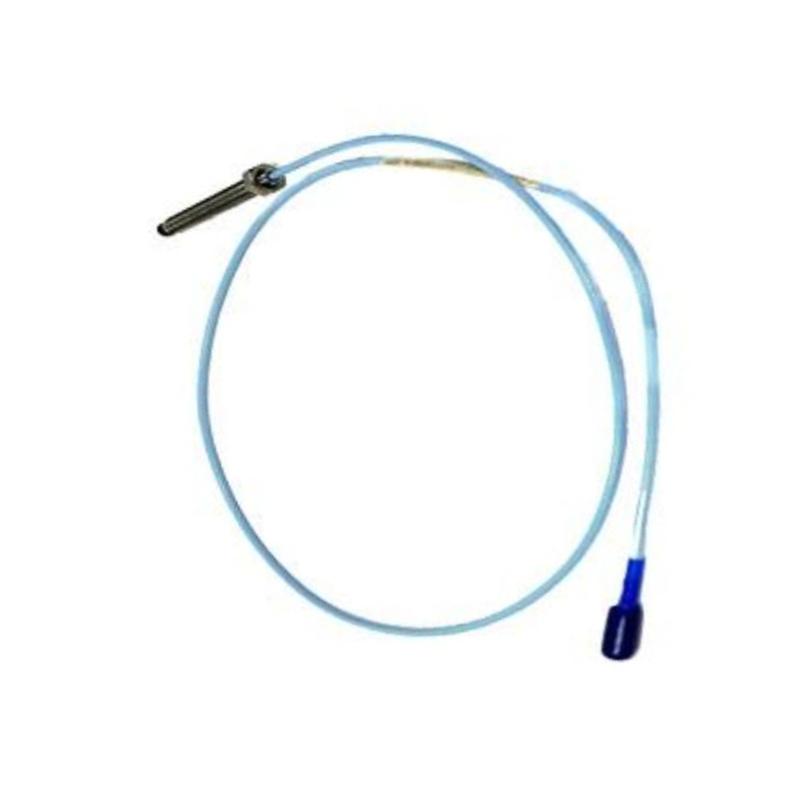

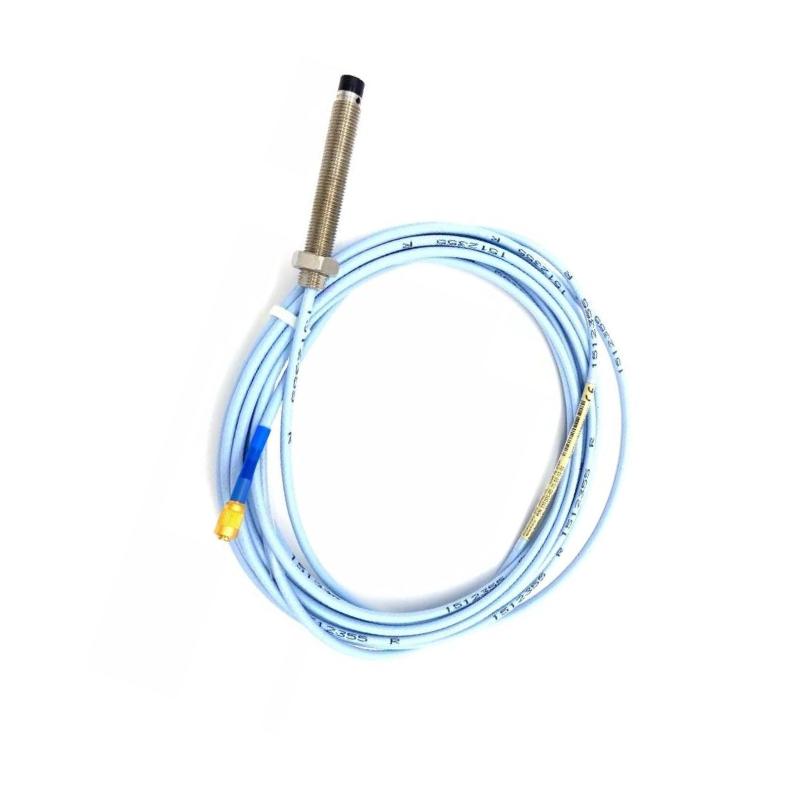

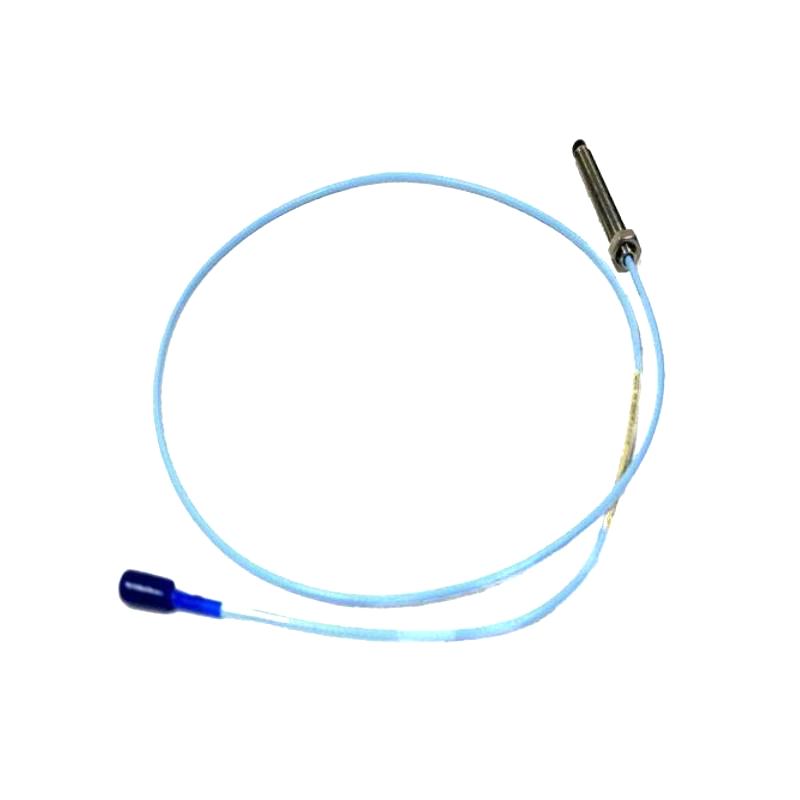

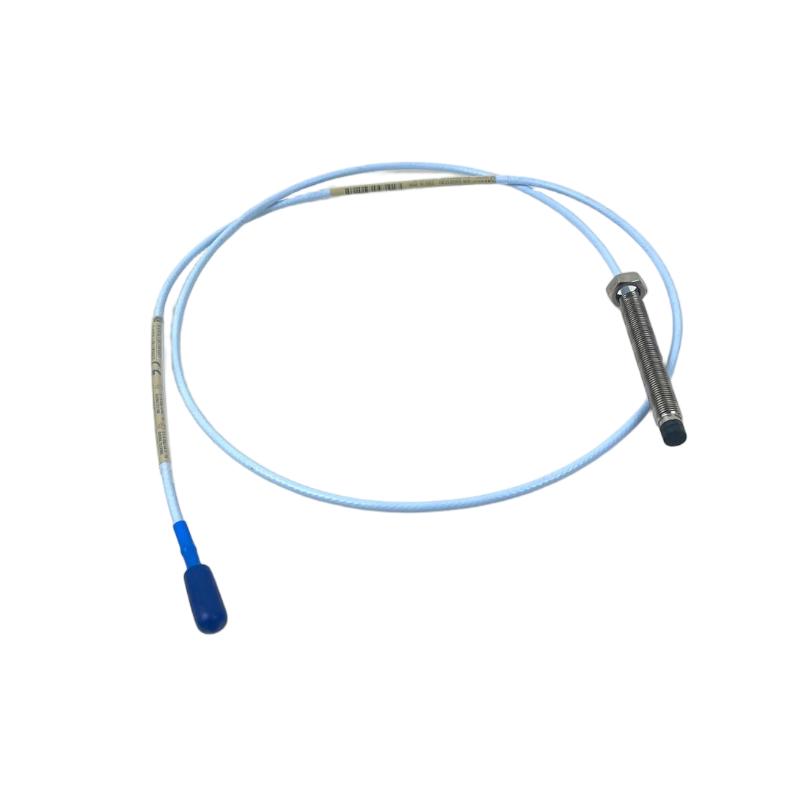

The Bently Nevada 330101-00-36-15-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement sensor designed for accurate shaft vibration, radial position, and axial position monitoring in demanding industrial environments. As a core component of the 3300 XL 8 mm Proximity Transducer System, this probe provides dependable measurement performance for turbines, compressors, pumps, motors, and other rotating assets where early fault detection and machinery protection are essential.
Featuring a 3/8-24 UNF threaded design without armor, this configuration provides a 3.6-inch overall case length, 1.5-meter (4.9 ft) total probe cable length, a miniature coaxial ClickLoc™ connector with standard cable, and CSA, ATEX, and IECEx approvals. The combination of rugged construction, precise eddy-current sensing, and international certification options makes it suitable for reliable condition monitoring in both standard and hazardous industrial areas.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-36-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Measuring Principle | Eddy Current Non-Contact Displacement Measurement |
| Probe Series | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor Type | Without Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 3.6 in |
| Total Probe Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | CSA, ATEX, IECEx Approvals |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Nominal Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Temperature Range | -51 °C to +177 °C (-60 °F to +351 °F) |
| Approximate Probe Weight | 0.323 kg |
| Approximate Shipping Weight | 1.5 kg |
| Approximate Dimensions | Ø8 mm probe tip × 91 mm case length + 1.5 m cable |
