Optimized for Long-Reach Shaft Vibration Measurement

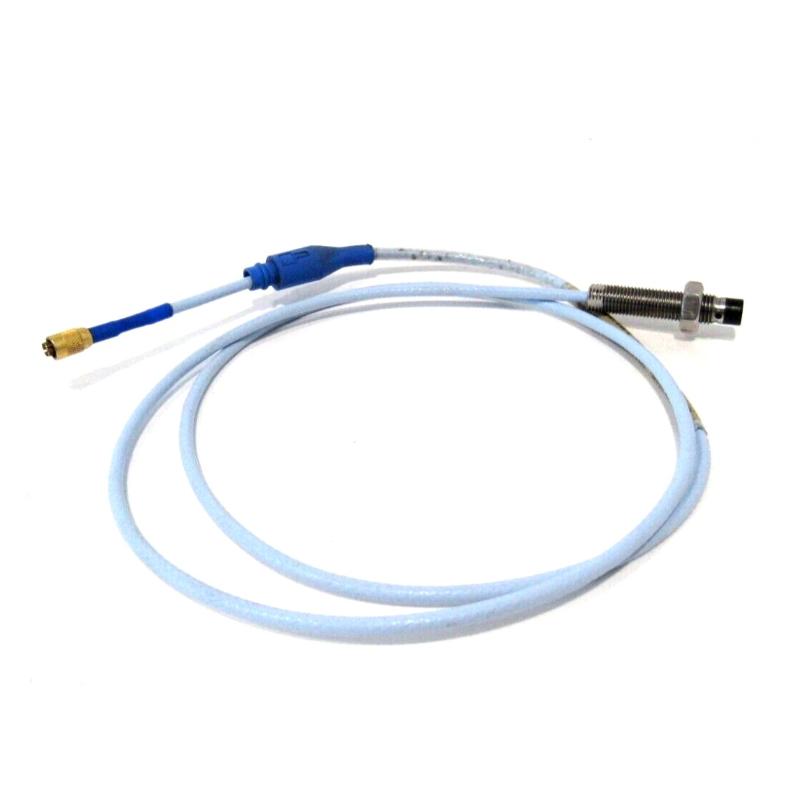

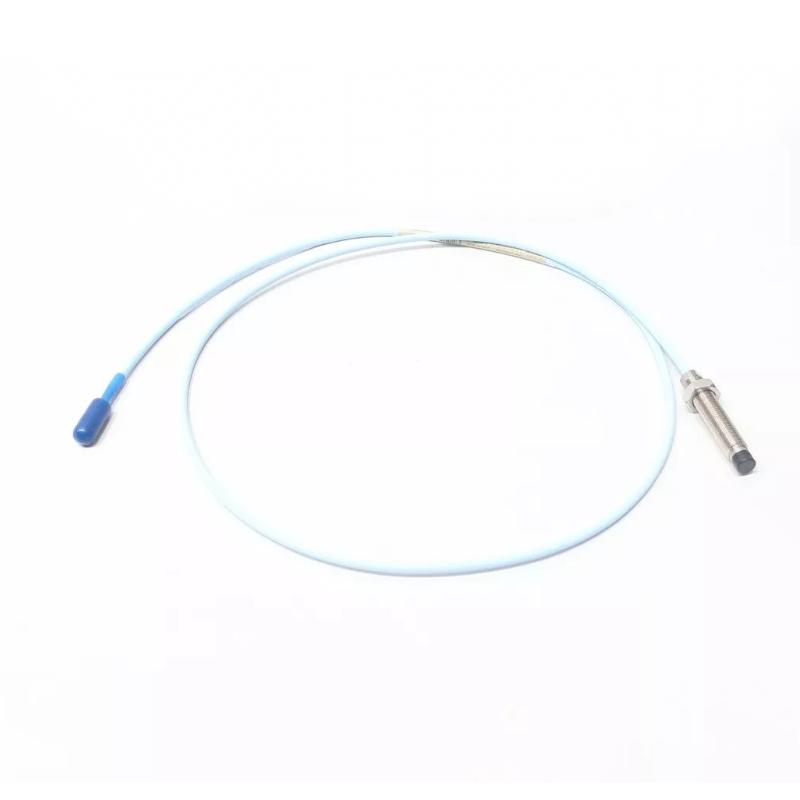

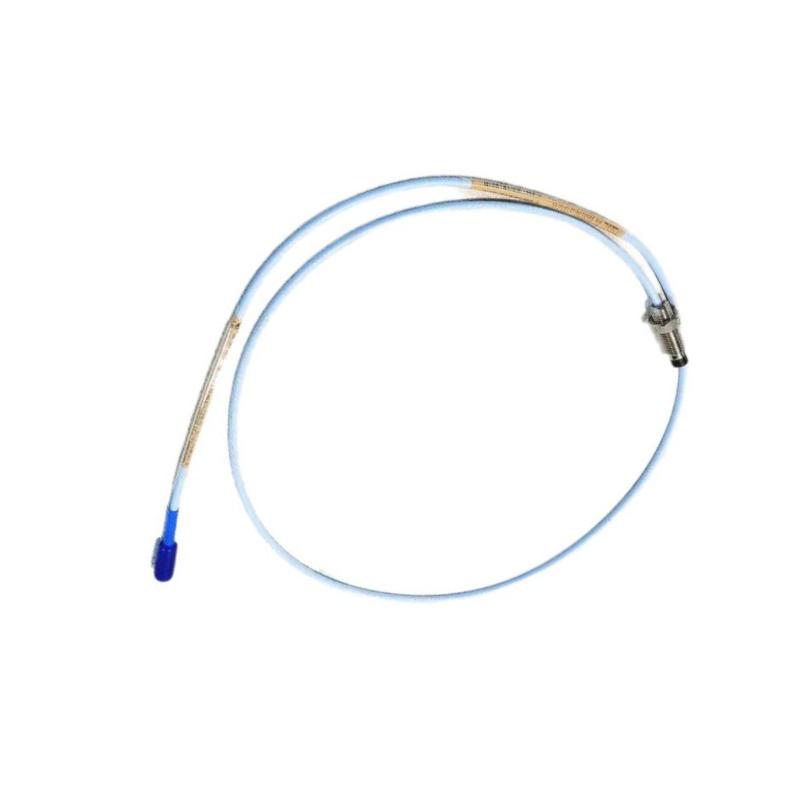

The Bently Nevada 330101-30-63-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision non-contact eddy-current sensor designed to monitor shaft vibration, axial position, and radial displacement in critical rotating machinery. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe provides exceptional measurement accuracy, outstanding environmental stability, and dependable long-term performance for machinery protection and condition monitoring applications. It is widely deployed in industries where equipment reliability and continuous operation are essential.
This configuration features a 3.0 in. (76.2 mm) unthreaded length, a 6.3 in. (160.0 mm) overall case length, a 1.0 m (3.3 ft) integrated standard cable, a Miniature ClickLoc™ coaxial connector, and a standard (non-hazardous approval) configuration (Option 00). The extended probe body is ideal for installations requiring increased insertion depth while maintaining full compatibility with 3300 XL Proximitor Sensors and matching extension cables.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-30-63-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Sensing Technology | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 3.0 in. (76.2 mm) |
| Overall Case Length | 6.3 in. (160.0 mm) |
| Integrated Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Probe Housing Material | Stainless Steel |
| Agency Approval | Standard (Option 00) |
| Dimensions | Approx. Ø8 mm × 160.0 mm |
| Approximate Net Weight | 0.35 kg |
| Approximate Shipping Weight | 0.58 kg |
Typical Applications
The 330101-30-63-10-02-00 is designed for permanent installation in rotating equipment where accurate shaft condition monitoring is critical for operational reliability.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial process pumps
-
Electric motors
-
Power generators
-
High-speed gearboxes
-
Fans and blowers
-
Petrochemical processing plants
-
Mining and heavy industrial equipment
Its extended 6.3-inch probe body is especially suitable for deep-mounted bearing housings and machinery with restricted installation access.
Technical FAQs
1. What is the primary function of this proximity probe?
It measures shaft vibration, shaft position, and shaft displacement using non-contact eddy-current sensing technology.
2. What does the "30" option indicate?
The 30 option specifies a 3.0-inch (76.2 mm) unthreaded probe length.
3. What is the overall case length?
This model has a 6.3-inch (160.0 mm) overall case length, making it suitable for installations requiring additional probe reach.
4. What cable length is included?
The probe is supplied with a 1.0-meter (3.3-foot) integrated standard cable.
5. Which connector is used?
It utilizes a Miniature ClickLoc™ coaxial connector that provides secure electrical connections and simplified installation.
6. What does the "Option 00" approval indicate?
Option 00 indicates the standard configuration without CSA, ATEX, or IECEx hazardous-area approvals. It is intended for general industrial installations.
7. Which equipment commonly uses this probe?
It is commonly installed on turbines, compressors, generators, pumps, motors, and other fluid-film bearing machines requiring continuous shaft monitoring.
8. Can this probe operate independently?
No. It must be paired with a compatible 3300 XL Proximitor Sensor and the appropriate extension cable to form a complete transducer system.
9. Why choose a longer probe body?
A longer probe body provides greater installation flexibility for equipment with thick bearing housings or recessed mounting locations.
10. Is this probe designed for continuous online monitoring?
Yes. It is engineered for permanent installation in machinery protection and condition monitoring systems operating continuously.
