Precision Engineered for Critical Machinery Monitoring

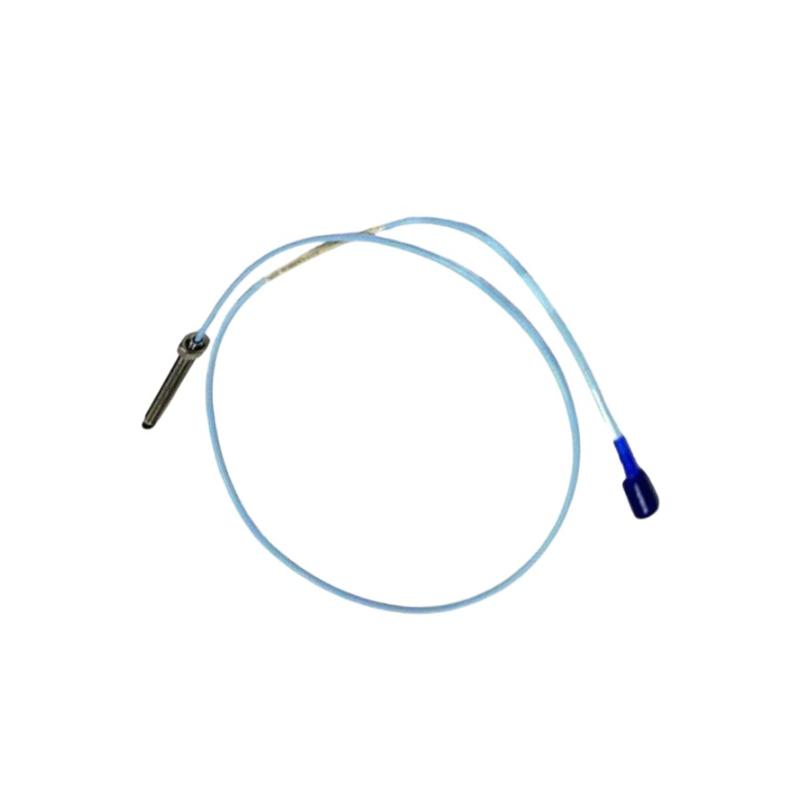

The Bently Nevada 330101-30-60-05-01-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact eddy-current sensor designed to deliver precise shaft vibration, shaft position, and displacement measurements for rotating equipment. As part of the renowned 3300 XL 8 mm Proximity Transducer System, this probe provides excellent linearity, superior environmental stability, and dependable long-term operation, making it an ideal solution for machinery protection and predictive maintenance in demanding industrial applications.
This model features a 3.0 in. (76.2 mm) unthreaded length, a 6.0 in. (152.4 mm) overall case length, a 0.5 m (1.6 ft) integrated standard cable, a Miniature ClickLoc™ coaxial connector, and CSA, ATEX, and IECEx hazardous-area approvals. Its extended body design is well suited for installations requiring deeper probe insertion while maintaining full compatibility with 3300 XL Proximitor Sensors and extension cables.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-30-60-05-01-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Principle | Non-contact Eddy Current |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 3.0 in. (76.2 mm) |
| Overall Case Length | 6.0 in. (152.4 mm) |
| Integrated Cable Length | 0.5 m (1.6 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Probe Housing Material | Stainless Steel |
| Agency Approvals | CSA, ATEX, IECEx |
| Dimensions | Approx. Ø8 mm × 152.4 mm |
| Approximate Net Weight | 0.34 kg |
| Approximate Shipping Weight | 0.56 kg |
Where This Probe Excels
The 330101-30-60-05-01-05 is designed for continuous monitoring of critical rotating assets in industries where equipment reliability and operational safety are priorities.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial process pumps
-
Electric motors
-
Power generators
-
High-speed gearboxes
-
Fans and blowers
-
Petrochemical plants
-
Oil and gas production facilities
Its extended 6.0-inch probe body makes it particularly suitable for equipment with thick bearing housings or installations requiring additional insertion depth.
Technical FAQs
1. What does this proximity probe measure?
It measures shaft vibration, shaft position, and shaft displacement using proven non-contact eddy-current technology.
2. What does the "30" option indicate?
The 30 option specifies a 3.0-inch (76.2 mm) unthreaded probe length.
3. What is the overall case length?
This model features a 6.0-inch (152.4 mm) overall case length, making it suitable for deeper installation requirements.
4. What cable length is supplied?
The probe includes a 0.5-meter (1.6-foot) factory-installed standard cable.
5. Which connector is used?
It uses a Miniature ClickLoc™ coaxial connector, allowing quick installation while maintaining reliable electrical performance.
6. Does this model include hazardous-area certifications?
Yes. The Option 05 configuration includes CSA, ATEX, and IECEx approvals for qualified hazardous-area applications.
7. Which machines commonly use this probe?
It is commonly installed on turbines, compressors, generators, pumps, motors, and other fluid-film bearing machines requiring continuous shaft monitoring.
8. Can it operate independently?
No. It must be paired with a compatible 3300 XL Proximitor Sensor and the appropriate extension cable to complete the transducer system.
9. Why choose the longer probe configuration?
The longer probe body provides greater installation flexibility for machinery with thicker housings or recessed mounting locations.
10. Is it suitable for continuous online monitoring?
Yes. It is specifically engineered for permanent installation in machinery protection and condition monitoring systems operating 24/7.
