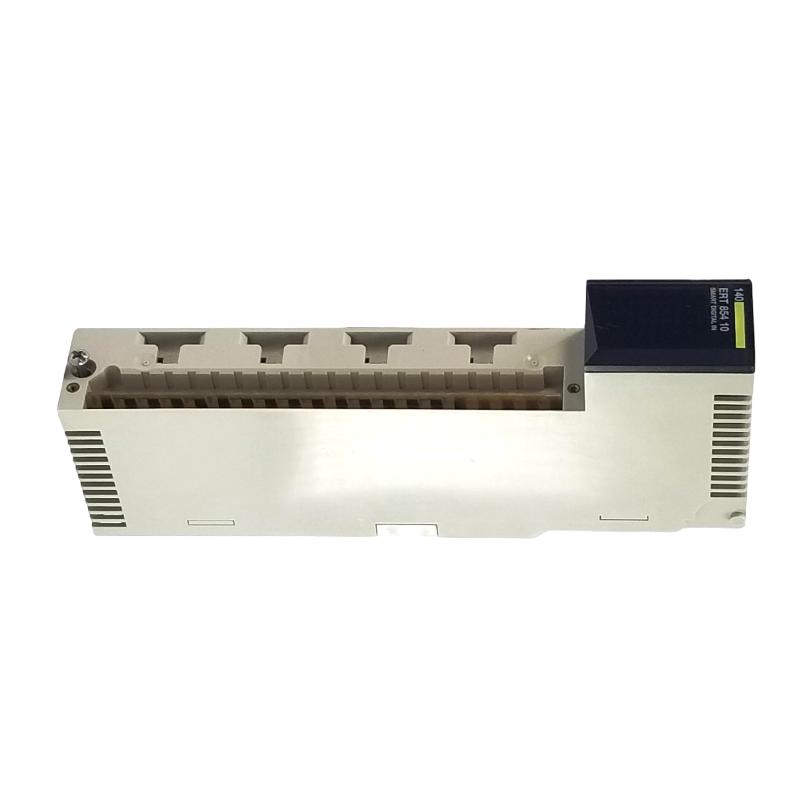

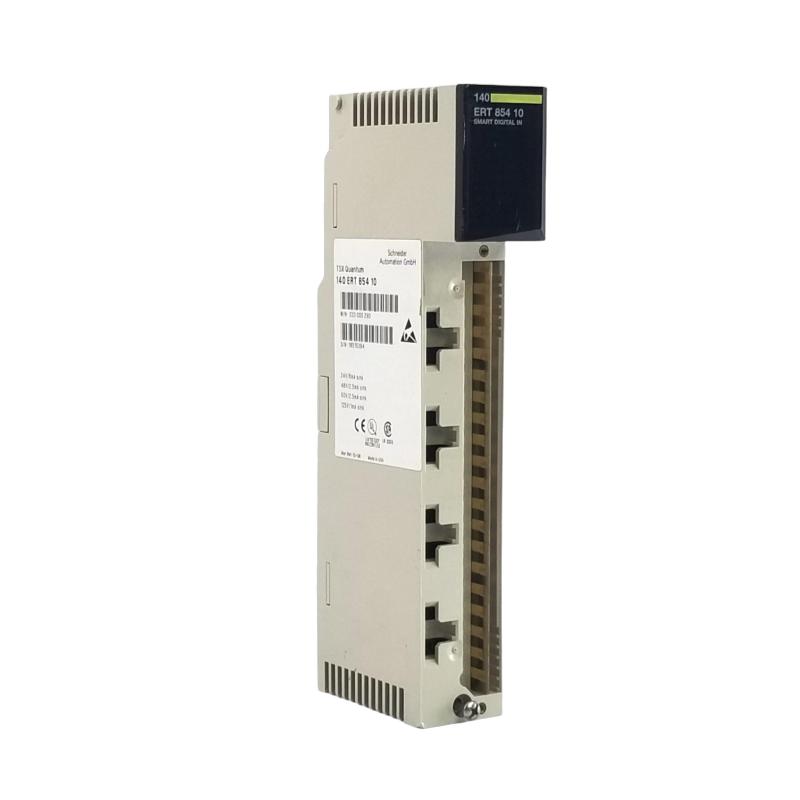

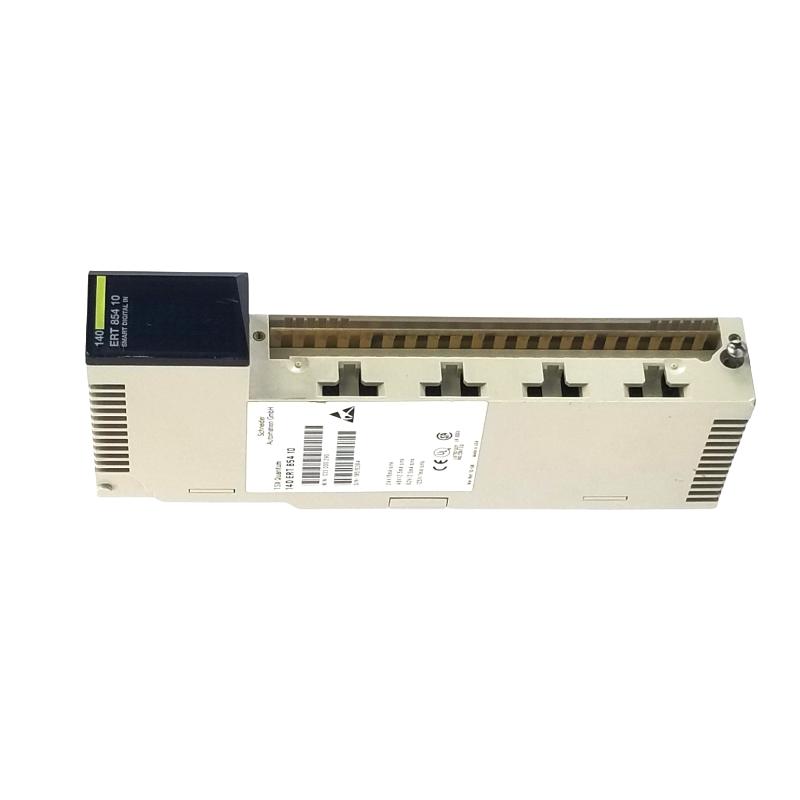

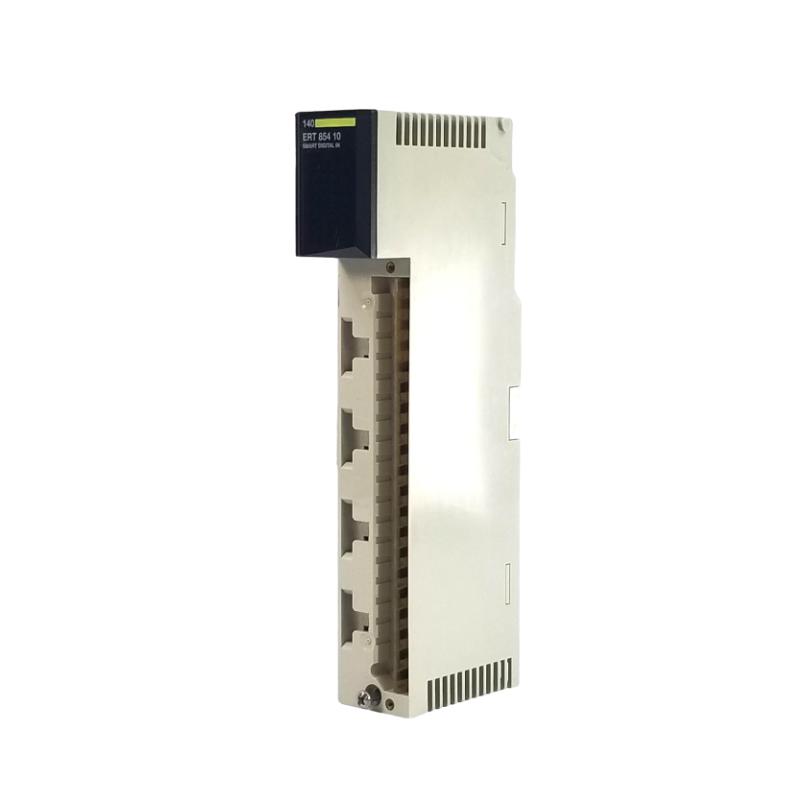

Schneider 140ERT85410 Multifunction Input Module

Brand:Schneider PLC
Item No.:140ERT85410
Product Origin:France
Product Dimensions:103 × 40 × 250 mm
Product Weight:0.45kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

140ERT85410IAT-3140ERT85410IAT-2140ERT85410IAT-1140ERT85410IAT-4

Introduction

The Schneider 140ERT85410 Multifunction Input Module is a high-performance time-tagged input solution designed for the Modicon Quantum automation platform. It is built to capture, synchronize, and log discrete input events with precise time stamping, making it especially valuable in applications where traceability and event accuracy are critical. By combining high-speed signal acquisition with industrial-grade reliability, this module supports advanced monitoring architectures in modern process automation systems.

Technical Specifications

ParameterSpecification
Product TypeMultifunction Input Module
PlatformModicon Quantum
Input Channels32 process inputs
Channel Groups2 groups of 16 inputs
Additional Input1 clock signal input (24 V DC)
Input Voltage Range24–125 V DC
Event LoggingTime & date stamped
Signal Frequency HandlingUp to 500 Hz status logging
Time SynchronizationDCF77 protocol
Input FilteringConfigurable 0–255 ms anti-bounce
IsolationOptocoupler (channel & group separation)
Response Time~1 ms acquisition (clock input)
Power Consumption≤ 7.5 W
Bus Current~300 mA at 5 V DC
External Supply24–125 V DC (process dependent)
Operating Temperature0°C to 60°C
Storage Temperature-40°C to 85°C
HumidityUp to 95% non-condensing


Applications

This module is widely used in automation systems where precise event tracking and synchronization are required. Typical applications include power distribution monitoring, manufacturing line diagnostics, SCADA systems, transportation infrastructure, and process industries such as oil, gas, and water treatment. Its time-stamped input capability makes it especially suitable for fault analysis and historical event reconstruction in complex industrial environments.


Advantages

The 140ERT85410 stands out for its advanced time-tagging capability, allowing every input event to be recorded with accurate timestamps. This feature is essential for systems that require precise sequence-of-events (SOE) analysis.

Its dual-channel group structure improves wiring organization and system scalability, while optocoupler isolation enhances signal integrity and protects against electrical interference. The configurable anti-bounce filtering ensures clean and reliable signal processing even in noisy environments.

With support for DCF77 time synchronization, the module maintains consistent timing across distributed systems, improving coordination between devices. Its diagnostic LEDs provide real-time status visibility, simplifying maintenance and reducing troubleshooting time. Overall, it delivers a strong balance of accuracy, reliability, and industrial durability.


Technical FAQs

1. What is the main function of the 140ERT85410?
It records and monitors discrete input events with time and date stamping.

2. How many inputs does it support?
It supports 32 process inputs plus 1 clock input.

3. What voltage range does it handle?
It supports 24–125 V DC input signals.

4. What is DCF77 used for?
It is used for precise time synchronization across the system.

5. Does it support event logging?
Yes, it logs events with time and date stamps at high resolution.

6. What is the input filtering range?
Configurable anti-bounce filtering from 0 to 255 ms.

7. How fast can it detect input changes?
It supports high-speed status logging up to 500 Hz.

8. Is the module isolated?
Yes, it uses optocoupler isolation between channels and groups.

9. What software is it compatible with?
It works with Concept and Unity Pro environments.

10. What industries commonly use it?
Power systems, manufacturing automation, and process control industries.
