Bently Nevada 21000-16-05-15-062-03-02 Proximity Probe Housing Assemblies

Brand:Bently Nevada PLC
Item No.:21000-16-05-15-062-03-02
Product Origin:USA
Product Dimensions:Standoff Adapter: 38 mm (1.5 in.); Probe Penetration: 157 mm(6.2 in.)
Product Weight:1.1 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

21000-16-05-00-33-04-02 - 221000-16-05-00-33-04-02 - 121000-16-05-00-33-04-02 - 321000-16-05-00-33-04-02 - 4

Product Overview

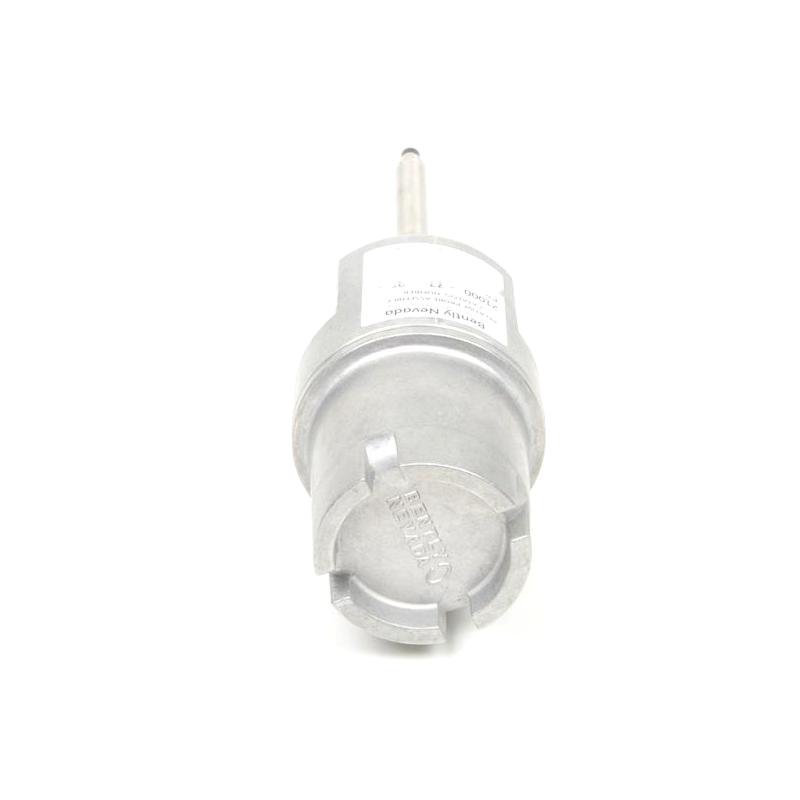

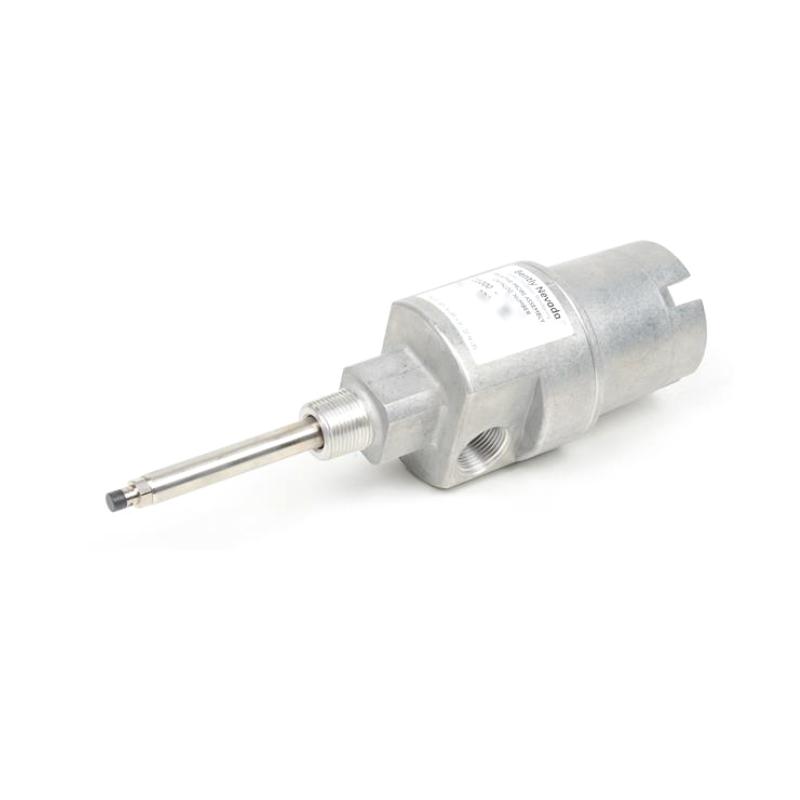

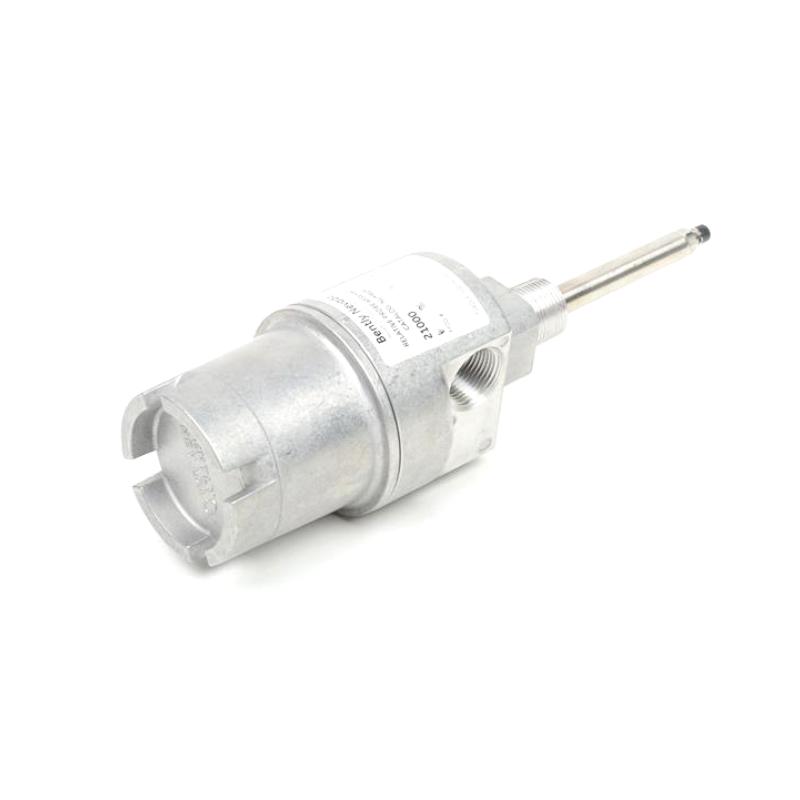

The Bently Nevada 21000-16-05-15-062-03-02 Proximity Probe Housing Assembly is a factory-configured external mounting assembly designed for the installation of a 3300 XL 8 mm reverse-mount proximity probe. Manufactured with a lightweight aluminum housing and a precision 304 stainless steel probe sleeve, it provides dependable mechanical protection while allowing convenient access for inspection, adjustment, and routine maintenance.

This configuration includes a 3300 XL 8 mm reverse-mount proximity probe (Option 16), a 0.5 m (20 in.) probe cable (Option 05), a 1.5 in. (38 mm) standoff adapter (Option 15), a 6.2 in. (157 mm) probe penetration (Option 062), a complete conduit fitting package (Option 03), and a 3/4-14 NPT mounting thread (Option 02). The assembly is well suited for permanent installation on rotating equipment requiring reliable shaft vibration and position measurement.

Technical Specifications

SpecificationDetails
ManufacturerBently Nevada
Model Number21000-16-05-15-062-03-02
Product TypeProximity Probe Housing Assembly
Housing Series21000
Included Probe3300 XL 8 mm Reverse-Mount Proximity Probe
Probe Cable Length0.5 m (20 in.)
Standoff Adapter1.5 in. (38 mm)
Probe Penetration6.2 in. (157 mm)
Housing MaterialAluminum
Probe Sleeve Material304 Stainless Steel
FittingsOne 3/4-14 NPT Plug, One 3/4-14 to 1/2-14 NPT Reducer, One Cable Seal Grip with Grommets
Mounting Thread3/4-14 NPT
Housing CoverThreaded Aluminum Dome
Sealing MethodO-Ring Sealed
Compatible Extension Cable3300 XL Extension Cable
Compatible Proximitor3300 XL Proximitor Sensor
Operating Temperature*-51°C to +177°C (-60°F to +351°F)
DimensionsStandoff Adapter: 38 mm (1.5 in.); Probe Penetration: 157 mm (6.2 in.)
Approximate Product Weight1.1 kg
Approximate Shipping Weight2.0 kg
Country of OriginUSA


Typical Applications

The 21000-16-05-15-062-03-02 is designed for external mounting of proximity probes on rotating machinery where additional installation clearance is required.

Typical applications include:

  • Steam turbines
  • Gas turbines
  • Centrifugal compressors
  • Pumps
  • Gearboxes
  • Electric generators
  • Fans and blowers
  • Rotating machinery maintenance projects

The integrated 1.5-inch standoff adapter and 6.2-inch probe penetration provide additional installation flexibility while maintaining convenient external access for maintenance.


Product Advantages

  • Genuine Bently Nevada 21000 Series housing assembly.
  • Factory-equipped with a 3300 XL 8 mm reverse-mount probe.
  • Includes a 0.5 m integrated probe cable.
  • Built-in 1.5-inch standoff adapter.
  • Aluminum housing with corrosion-resistant stainless steel sleeve.
  • O-ring sealed construction for dependable environmental protection.
  • Complete conduit fitting package included.
  • Standard 3/4-14 NPT threaded mounting.
  • Designed for long-term machinery monitoring applications.


Technical FAQs

1. Which proximity probe is supplied with this assembly?
It includes a 3300 XL 8 mm reverse-mount proximity probe.

2. What probe cable length is included?
The assembly is supplied with a 0.5 m (20 in.) probe cable.

3. Does this model include a standoff adapter?
Yes. Option 15 specifies a 1.5-inch (38 mm) standoff adapter.

4. What is the probe penetration length?
The probe penetration is 6.2 inches (157 mm).

5. Which conduit fittings are included?
The assembly includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with interchangeable grommets.

6. What mounting thread does the housing use?
The housing uses a 3/4-14 NPT mounting thread.

7. What materials are used in the housing?
The housing body is manufactured from aluminum, while the probe sleeve is made from 304 stainless steel.

8. What is the approximate product weight?
The assembly weighs approximately 1.1 kg, with a typical shipping weight of 2.0 kg.

9. Which accessories are compatible?
The assembly is compatible with 3300 XL Extension Cables and 3300 XL Proximitor Sensors.

10. Is this assembly suitable for continuous machinery monitoring?
Yes. It is intended for permanent installation on rotating equipment and provides convenient external access for routine maintenance.
