Product Overview

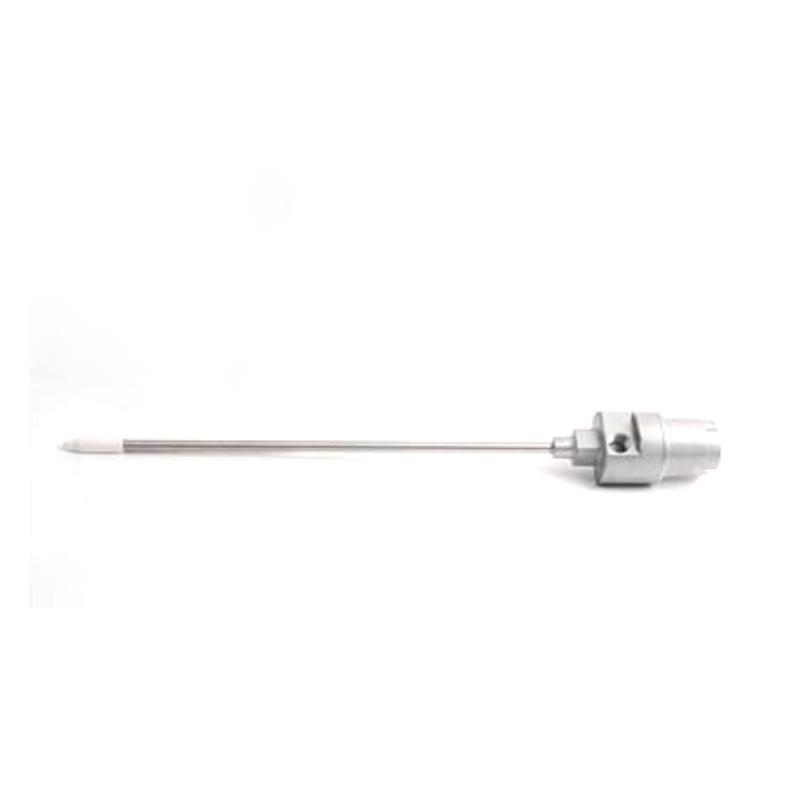

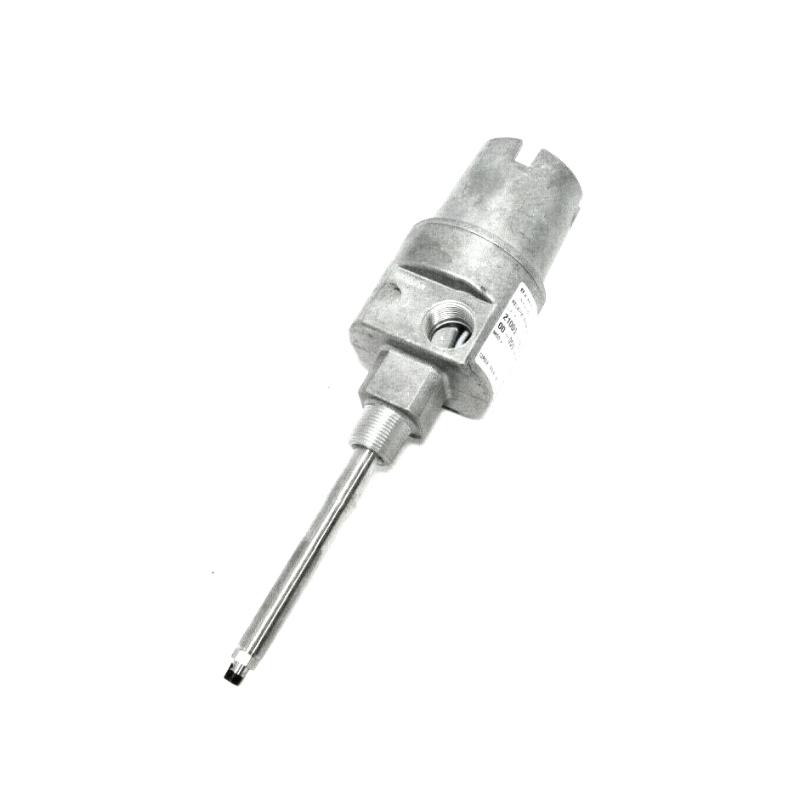

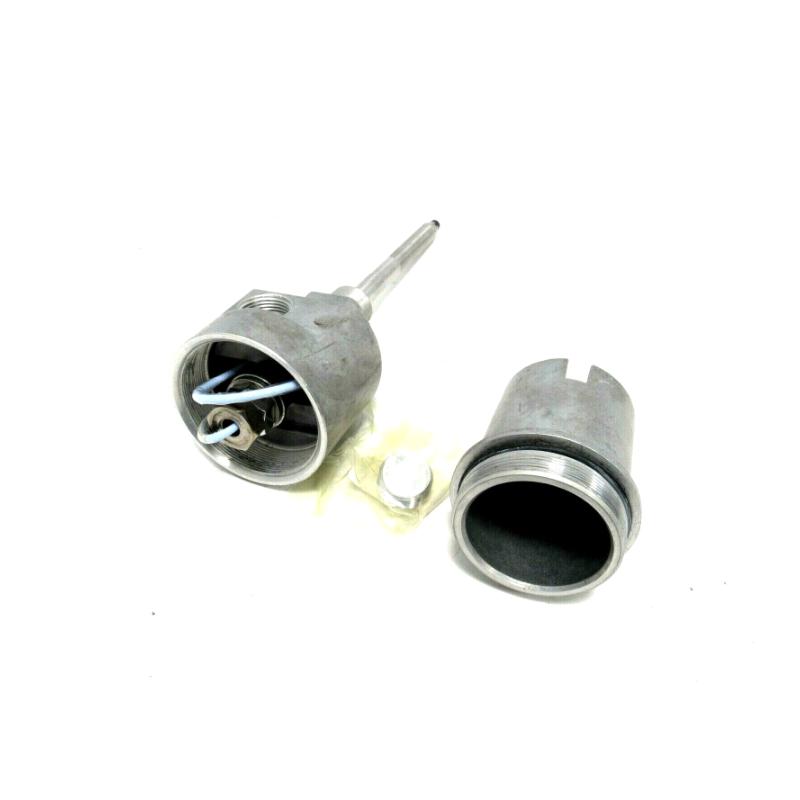

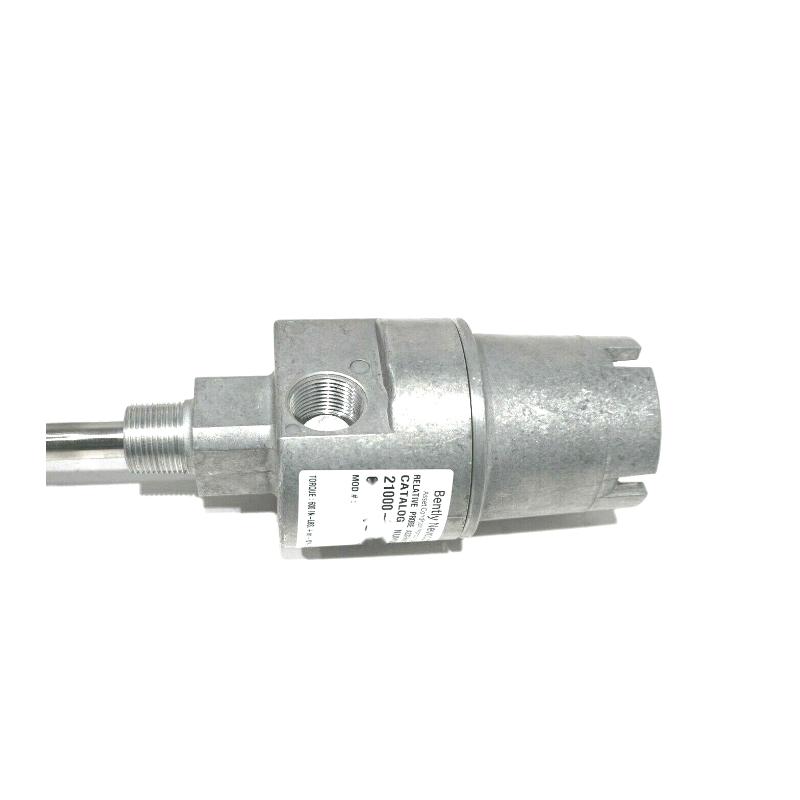

The Bently Nevada 21000-16-05-00-115-03-02 Proximity Probe Housing Assembly is a factory-configured external mounting assembly designed for use with the 3300 XL 8 mm reverse-mount proximity probe. Built with a durable aluminum housing and a precision-machined 304 stainless steel probe sleeve, it provides dependable mechanical protection while allowing quick access for probe inspection, adjustment, and replacement.
This configuration includes a 3300 XL 8 mm reverse-mount probe, a 0.5 m (20 in.) probe cable, no standoff adapter, an 11.5 in. (292 mm) probe penetration, a complete conduit fitting package, and a 3/4-14 NPT mounting thread. It is well suited for continuous machinery monitoring applications requiring reliable external probe installation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-05-00-115-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Included Probe | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Probe Cable Length | 0.5 m (20 in.) |
| Standoff Adapter | None |
| Probe Penetration | 11.5 in. (292 mm) |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Fittings | One 3/4-14 NPT Plug, One 3/4-14 to 1/2-14 NPT Reducer, One Cable Seal Grip with Grommets |
| Mounting Thread | 3/4-14 NPT |
| Housing Cover | Threaded Aluminum Dome |
| Sealing Method | O-Ring Sealed |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Probe Penetration: 292 mm (11.5 in.) |
| Approximate Weight | 1.1 kg |
| Shipping Weight | Approx. 2.5 kg |
| Country of Origin | USA |
