Long-Range Monitoring Solution for Advanced Machinery Condition Management

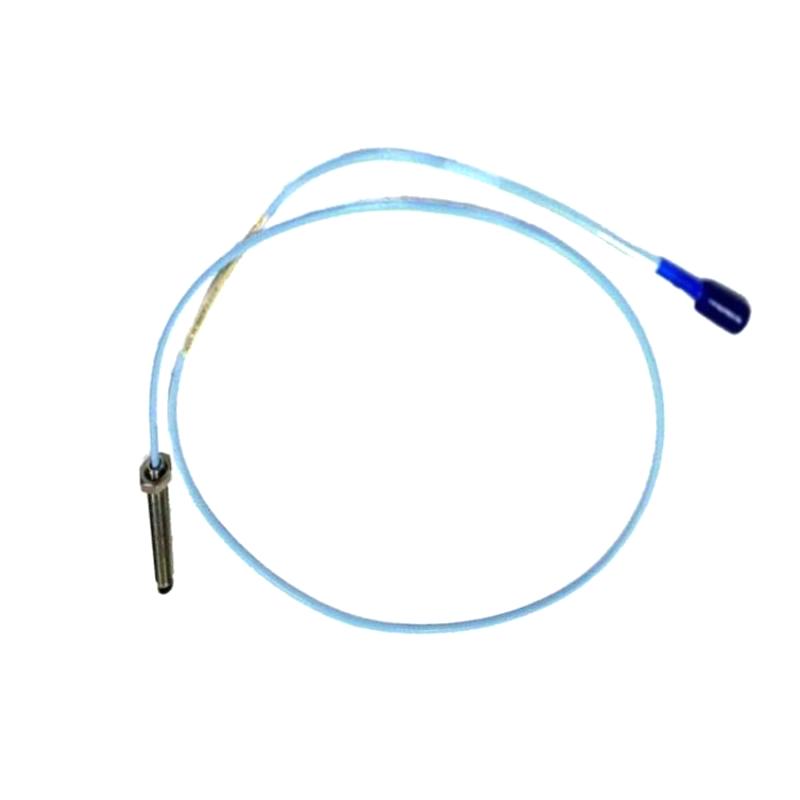

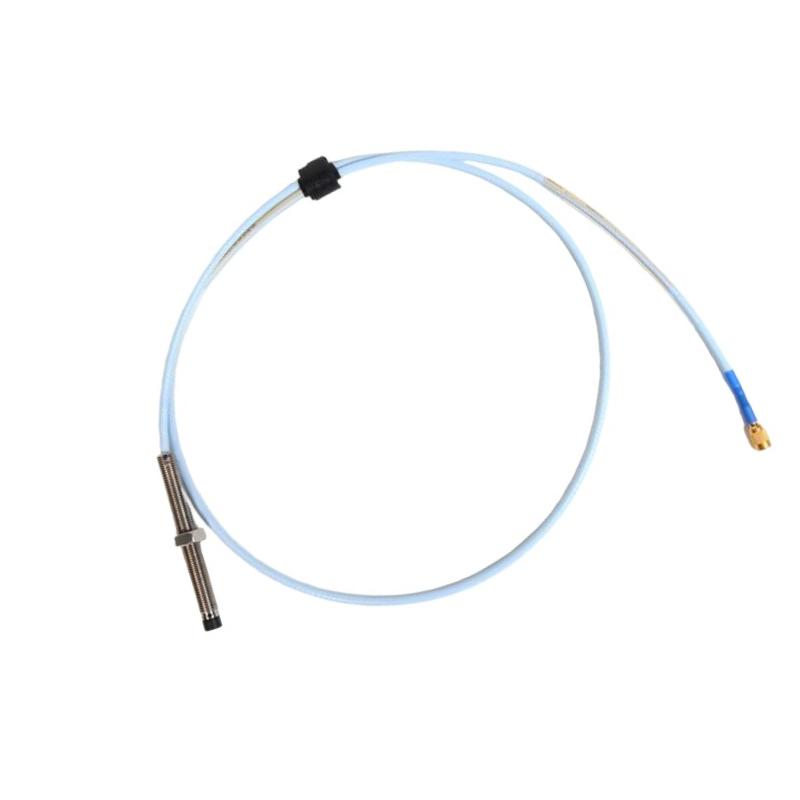

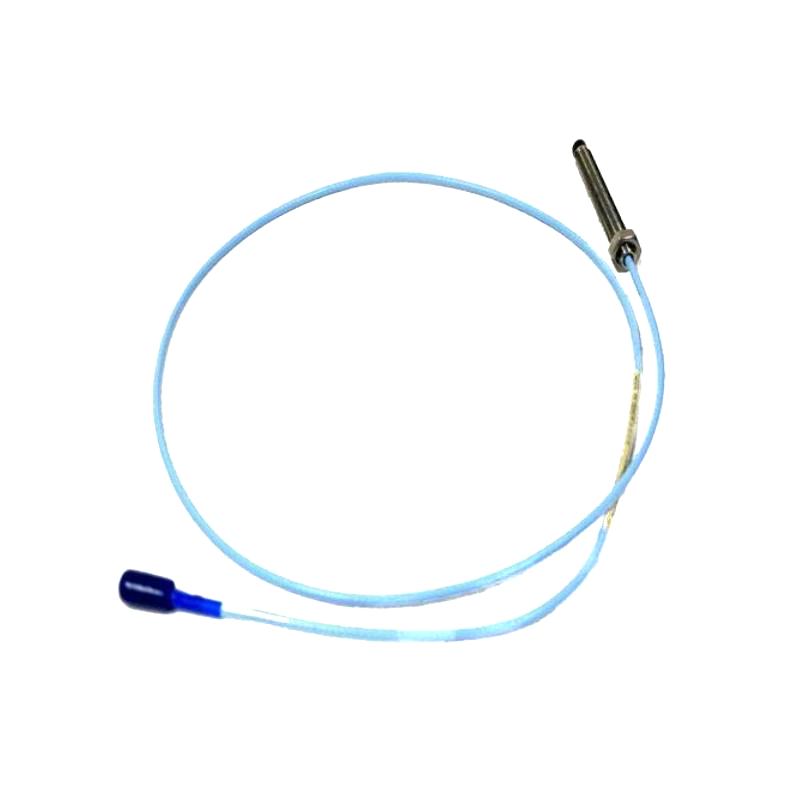

The Bently Nevada 330101-00-20-90-02-CN 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement sensor engineered for precise shaft vibration and position measurement in demanding rotating machinery applications. As part of the 3300 XL 8 mm Proximity Transducer System, this probe uses proven eddy-current sensing technology to deliver stable, repeatable measurement signals for machinery protection, condition monitoring, and reliability improvement programs.
Featuring a 9.0 m (29.5 ft) total length configuration, 2.0-inch overall case length, 0.0-inch unthreaded length, and miniature coaxial ClickLoc™ connector with standard cable, this model is designed for installations where extended distance between the measurement point and monitoring electronics is required. The CN approval option supports applications requiring ATEX/IECEx and Chinese NEPSI hazardous area marking.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-90-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Construction | 3/8-24 UNF Thread, Without Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 2.0 in |
| Total Probe Length | 9.0 m (29.5 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Approval Option | ATEX/IECEx and Chinese NEPSI Hazardous Area Marking |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel |
| Linear Measurement Range | Approximately 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature Range | Approximately -51°C to +177°C |
| Approximate Dimensions | 255 × 8 × 8 mm |
| Approximate Weight | 0.32 kg |
