Introduction

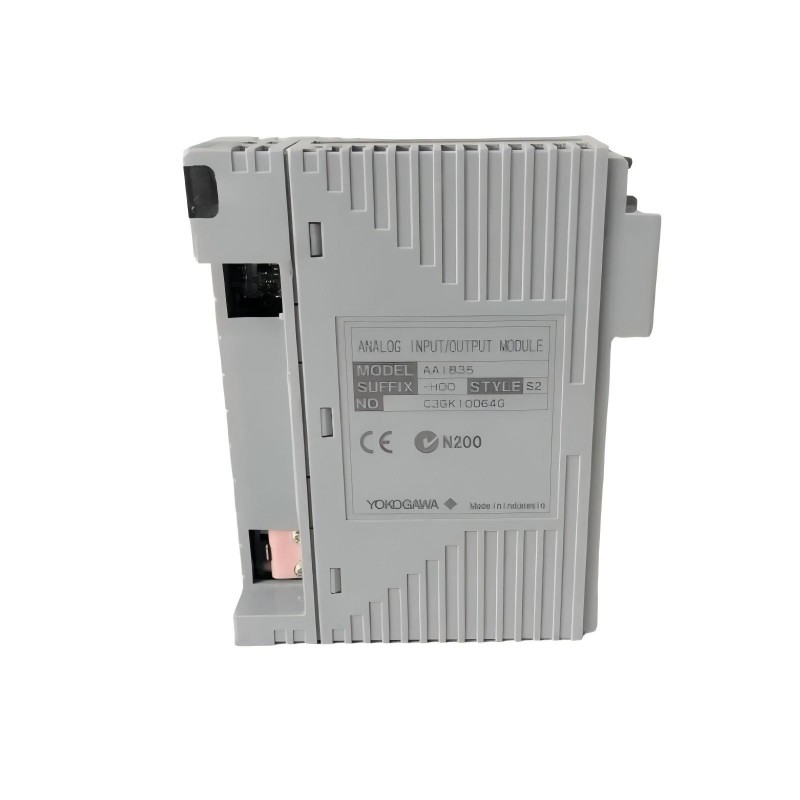

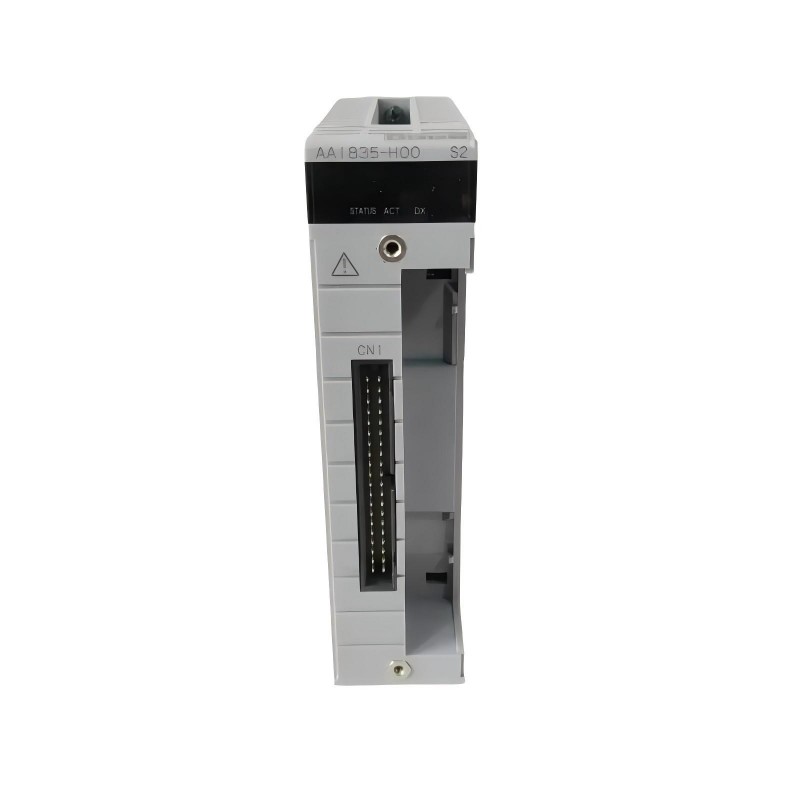

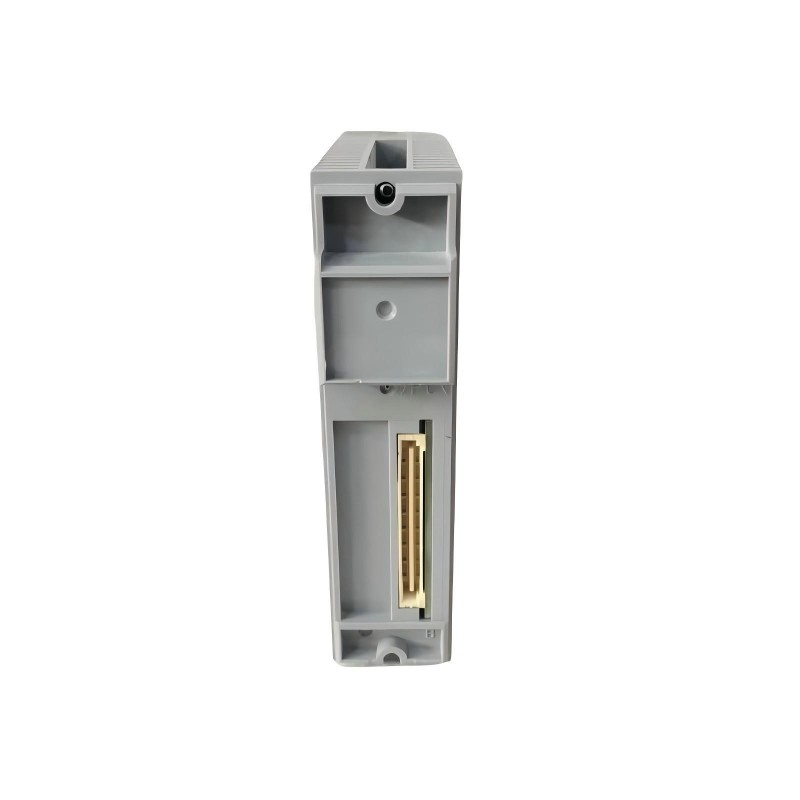

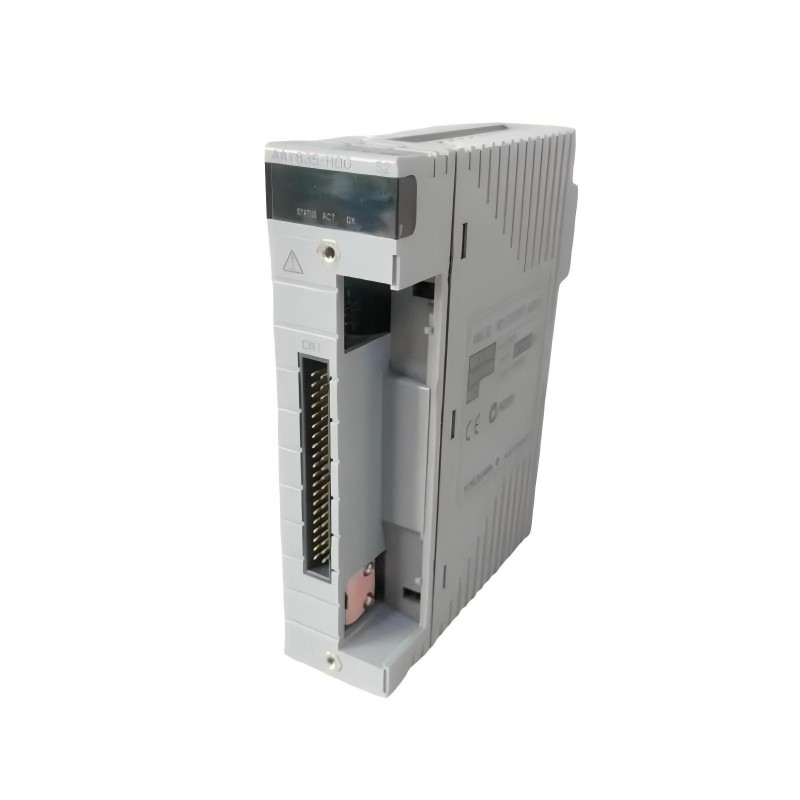

The Yokogawa AAI835-H00-S2 Analog I/O Module is designed for industrial control systems requiring precise and reliable analog input and output capabilities. Serving as a dual-function interface, it captures process signals from field devices while delivering accurate control outputs. Its robust design ensures operational stability and seamless integration with Yokogawa DCS platforms, making it suitable for continuous industrial operations.
The S2 variant emphasizes improved performance consistency and compatibility with standard Yokogawa I/O configurations, supporting scalable and flexible system architectures.
Technical Specifications
| Item | Description |
|---|
| Module Type | Analog I/O Module |
| Function | Multi-channel analog input and output |
| Channel Design | Configured for combined input/output operation |
| Electrical Isolation | Field-to-system isolation |
| Installation | Rack-mounted I/O module |
| Dimensions | 107.5 × 32.8 × 130 mm (H x W × D) |
| Weight | 0.3 kg |
Technical FAQs
1. What is the primary function of this module?
It simultaneously acquires analog input signals and provides accurate analog outputs for field devices.
2. Which devices are commonly connected?
Control valves, actuators, sensors, and other analog instruments.
3. Is the module suitable for 24/7 industrial operation?
Yes, it is designed for continuous operation in demanding environments.
4. How does it maintain signal accuracy and stability?
Stable internal reference circuits and field-to-system isolation ensure consistent performance.
5. Can it operate reliably in electrically noisy conditions?
Yes, noise suppression and isolation measures maintain signal integrity.
6. Does it require frequent calibration?
Routine recalibration is generally not necessary under normal operating conditions.
7. How is configuration handled?
Configuration is performed through Yokogawa’s host engineering and control tools.
8. Is it suitable for critical control loops?
Yes, it provides precise input and output signals required for accurate loop control.
9. Can it be integrated into system expansions?
Yes, its standardized design allows straightforward integration into larger control systems.
10. What does the S2 designation signify?
It indicates a specific hardware variant optimized for consistent performance within the AAI835-H00 series.
