Extended Cable Configuration for Reliable Rotating Machinery Monitoring

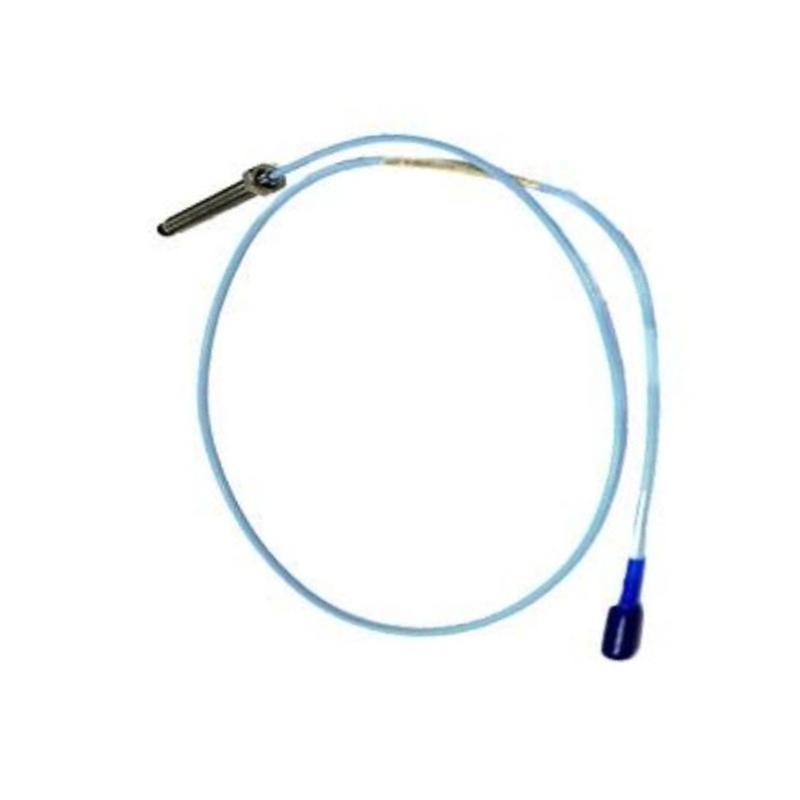

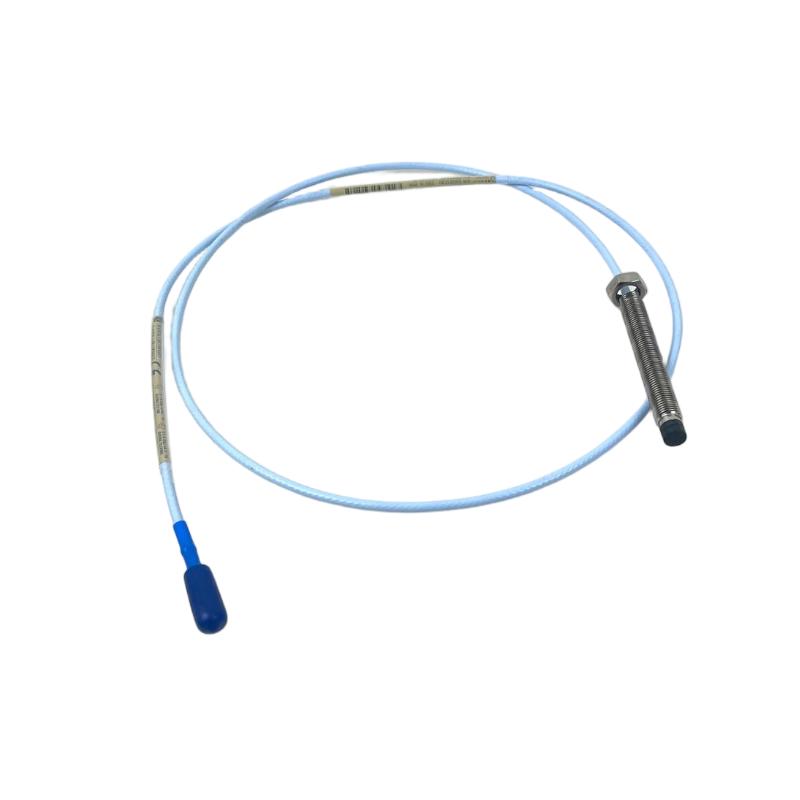

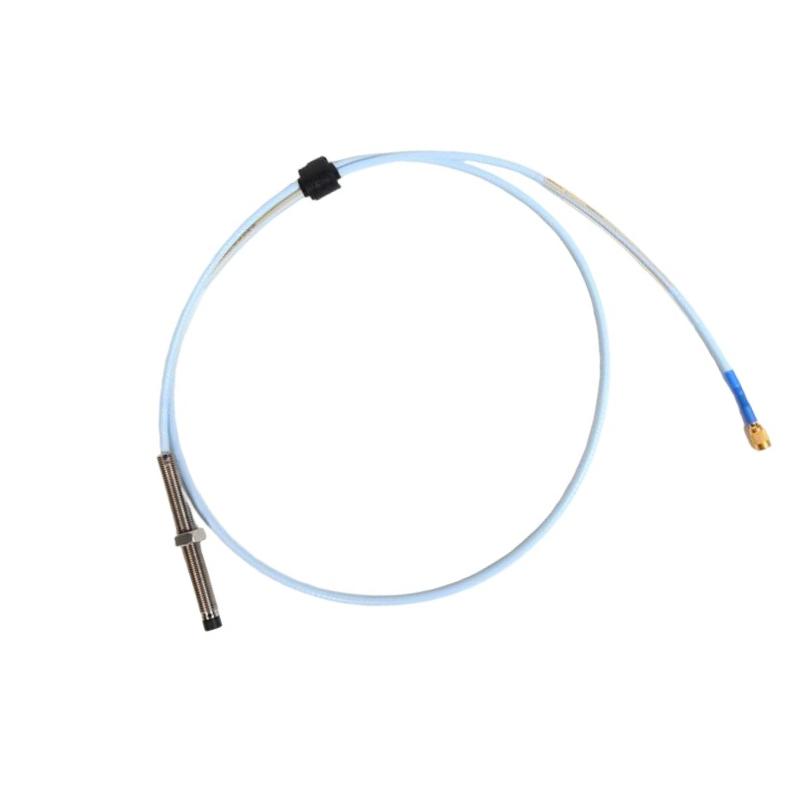

The Bently Nevada 330101-00-20-50-02-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact displacement sensor developed for continuous monitoring of shaft vibration, radial movement, axial position, and dynamic operating conditions in critical rotating equipment. As part of the proven 3300 XL 8 mm Proximity Transducer System, this probe combines accurate eddy-current sensing technology with rugged industrial construction to support reliable machinery protection and predictive maintenance programs.
This configuration includes an 8 mm sensing tip, 0.0-inch unthreaded length, 2.0-inch overall case length, 5.0 m (16.4 ft) total cable length, miniature coaxial ClickLoc™ connector, and CSA, ATEX, IECEx approval option. The extended cable design provides additional installation flexibility for equipment where monitoring electronics are positioned away from the measurement point. The probe is designed to operate with compatible 3300 XL extension cables and Proximitor® sensors as part of a complete measurement system.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-20-50-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Probe Design | 3/8-24 UNF Thread, Without Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 2.0 in |
| Cable Length | 5.0 m (16.4 ft) |
| Cable Type | Standard Cable |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Approval Option | CSA, ATEX, IECEx |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Principle | Eddy Current Non-Contact Sensing |
| Linear Measurement Range | Approximately 2.0 mm (80 mils) |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature Range | -51°C to +177°C |
| Approximate Dimensions | 255 × 8 × 8 mm |
| Approximate Weight | 0.323 kg |
