Reliable Power Management Board for Medium-Voltage Control Systems

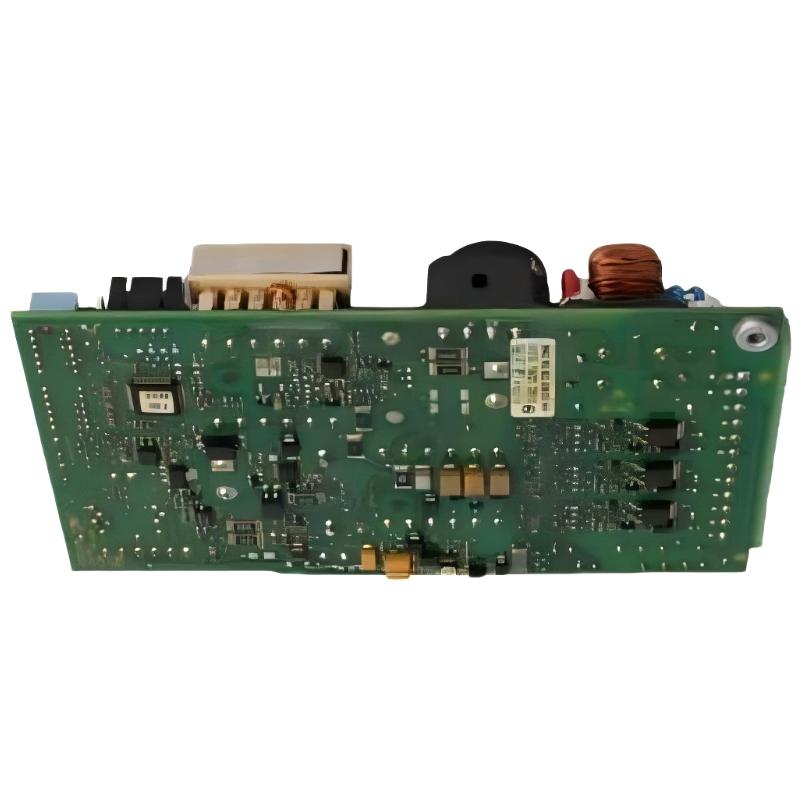

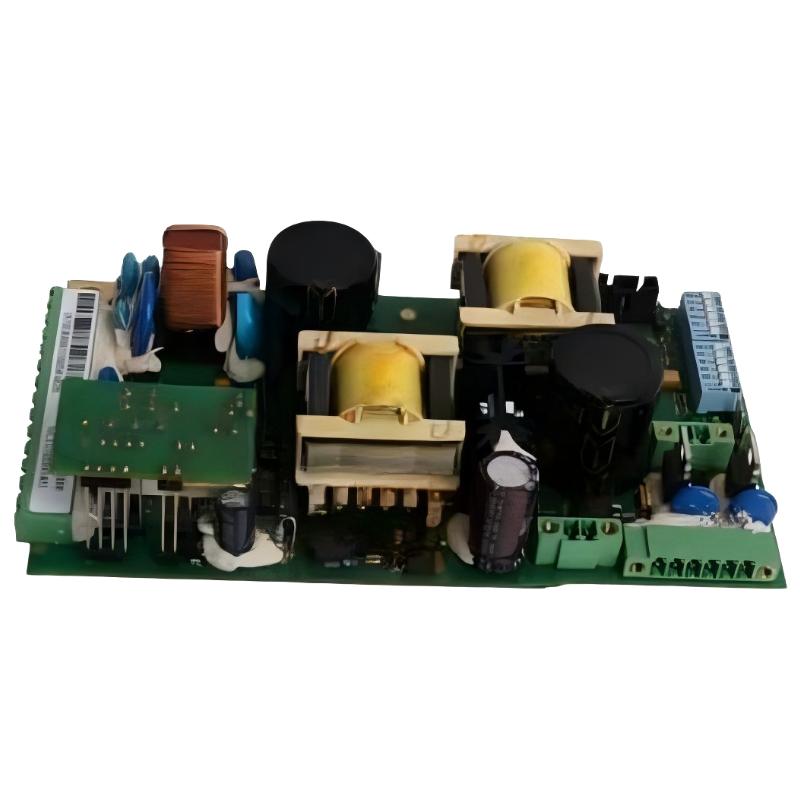

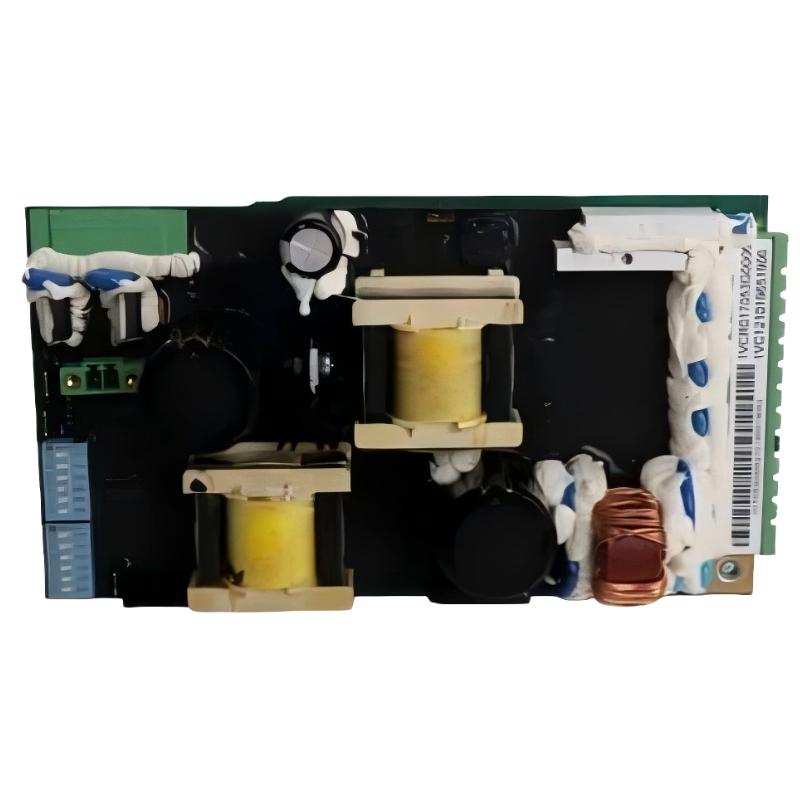

The ABB 1VCR017053G0006 Power Supply Board is an industrial-grade power and control module developed for ABB V-Contact VSC medium-voltage vacuum contactor systems. It is designed to provide stable operating power and support control signal management for switching applications within industrial power distribution and automation environments. Its compact design and dependable performance make it a valuable component in systems requiring precise control and continuous operational reliability.
Engineered for demanding electrical applications, this board is commonly used in motor control, transformer switching, and capacitor bank management systems where stable power delivery and coordinated control functions are essential.
Technical Specifications & Product Overview
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | 1VCR017053G0006 |
| Product Type | Power Supply Board |
| Series Compatibility | ABB V-Contact VSC |
| Primary Function | Power supply and control signal management |
| Application Area | Medium-voltage switching systems |
| Mounting Type | Panel-mounted industrial module |
| System Integration | Vacuum contactor control systems |
| Operating Role | Power regulation and control support |
| Construction | Industrial electronic assembly |
| Operating Environment | Industrial automation and power distribution |
| Rated Voltage | Up to 12 kV system application |
| Rated Current | Up to 400 A system application |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approx. 178 × 51 × 305 mm |
| Weight | Approx. 0.5 kg |
Typical Application Areas
The ABB 1VCR017053G0006 Power Supply Board is widely deployed in industrial systems requiring reliable switching control and power management.
Common applications include:
-
Medium-voltage vacuum contactor systems
-
Industrial motor control installations
-
Transformer switching systems
-
Capacitor bank control systems
-
Power distribution networks
-
Industrial automation platforms
-
Utility infrastructure equipment
-
Electrical control cabinets
-
Energy management systems
-
Industrial modernization and retrofit projects
Performance Benefits & Engineering Advantages
Stable Power Delivery
Provides reliable operating power for critical control and switching functions.
Integrated Control Support
Assists with coordinated signal management within medium-voltage systems.
Industrial-Grade Reliability
Designed for continuous operation in demanding electrical environments.
Compact Installation Design
Optimized for integration into control panels and switchgear assemblies.
Long Service Life
Built using robust industrial components for dependable long-term operation.
Efficient System Compatibility
Designed to operate seamlessly with ABB V-Contact VSC platforms.
Reduced Maintenance Requirements
Supports consistent performance with minimal routine service needs.
Technical FAQs
1. What is the primary function of the ABB 1VCR017053G0006?
It provides power regulation and control support for ABB V-Contact VSC systems.
2. Which ABB systems use this board?
It is commonly used in ABB V-Contact VSC medium-voltage vacuum contactor applications.
3. Is this a standalone power supply?
It functions as an integrated power supply and control board within a larger system architecture.
4. What applications commonly use this board?
Motor control, transformer switching, and capacitor bank management systems.
5. Is it suitable for continuous industrial operation?
Yes, it is designed for long-term industrial-duty performance.
6. What type of installation does it require?
It is typically installed within electrical panels or switchgear assemblies.
7. Can it be used in system upgrades?
Yes, it is frequently used in maintenance, replacement, and modernization projects.
8. Does it support control signal processing?
Yes, it supports coordinated control signal management within compatible systems.
9. What industries commonly use this board?
Power generation, utilities, manufacturing, and industrial automation sectors.
10. Why is this board widely used?
Because it combines reliable power management with dependable control system support in medium-voltage applications.
