Product Overview

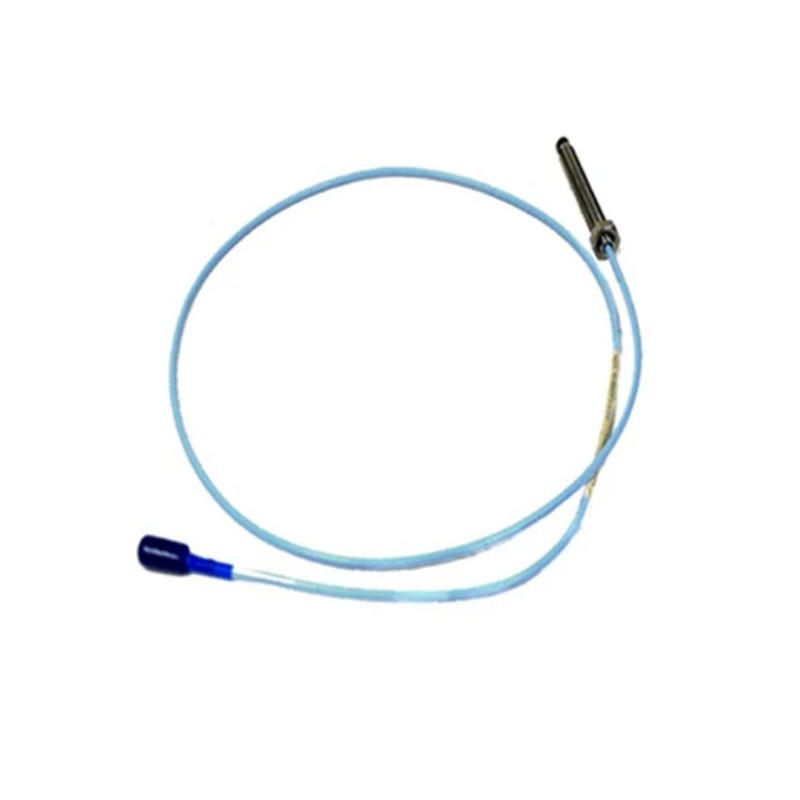

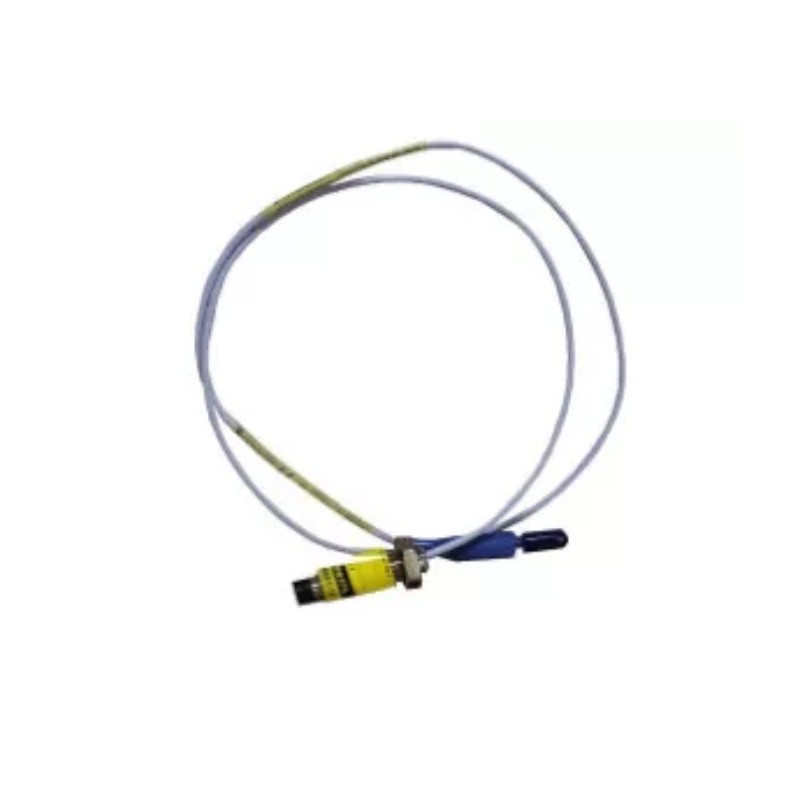

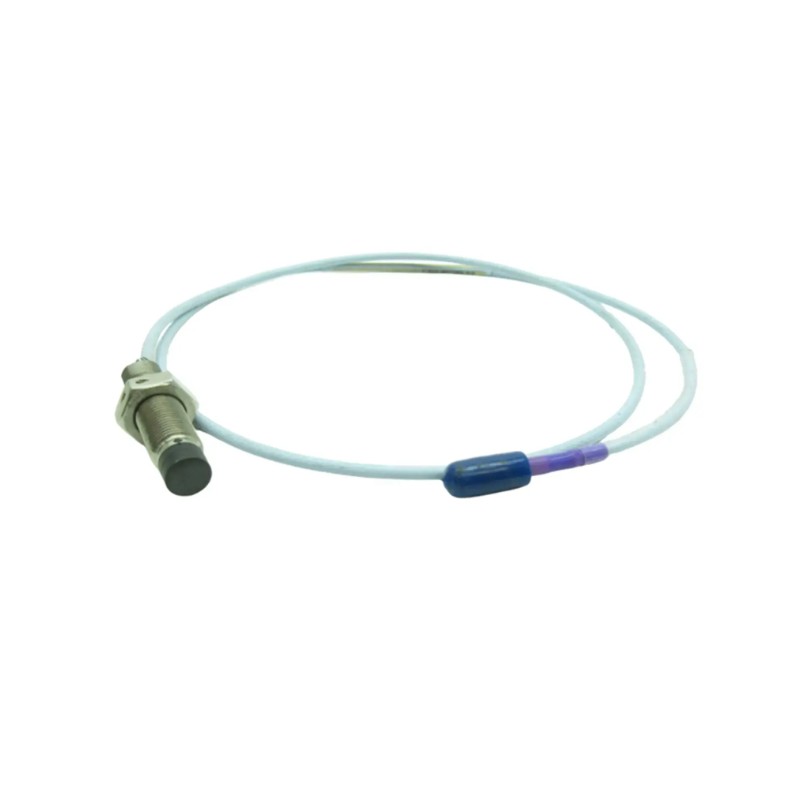

The Bently Nevada 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe is a precision non-contact sensor designed for continuous machinery condition monitoring in industrial automation systems. As part of the 3300 XL 11 mm Proximity Transducer System, this probe delivers highly stable shaft vibration and displacement measurements for critical rotating equipment.
This configuration features an M14 × 1.5 metric threaded probe, 70 mm case length, 1.0 m standard cable, and a Miniature Coaxial ClickLoc® connector. Manufactured with a corrosion-resistant stainless steel housing and a durable PPS sensing tip, it provides reliable long-term performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-070-10-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Series | 3300 XL 11 mm |
| Measurement Principle | Eddy Current Non-Contact Measurement |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 |
| Armor Option | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 70 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc® Connector |
| Cable Type | Standard Cable |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 11 mm Proximity Transducer System |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Agency Approval | Standard (Option 00) |
