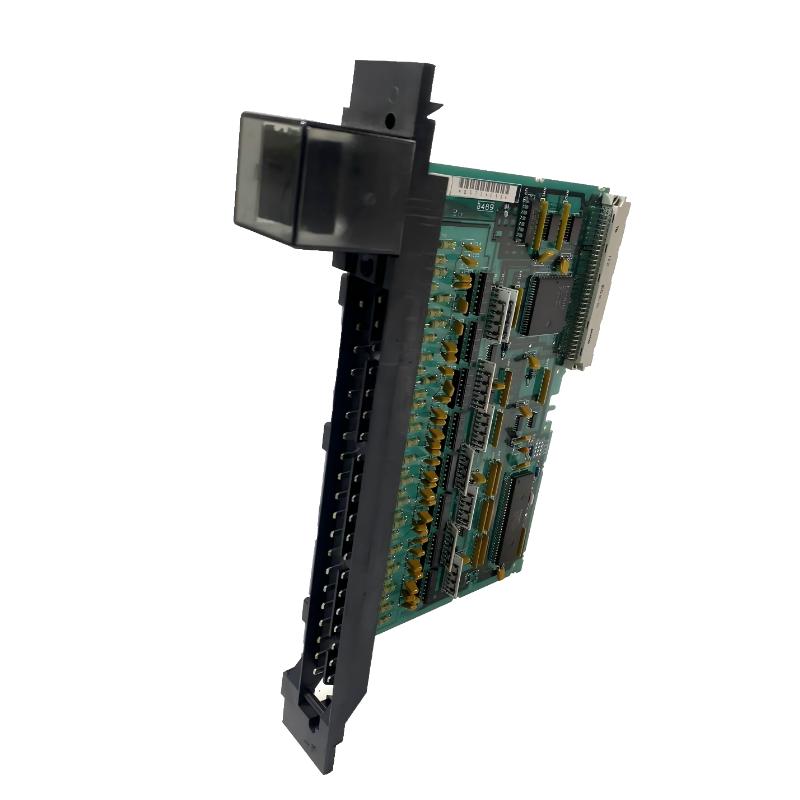

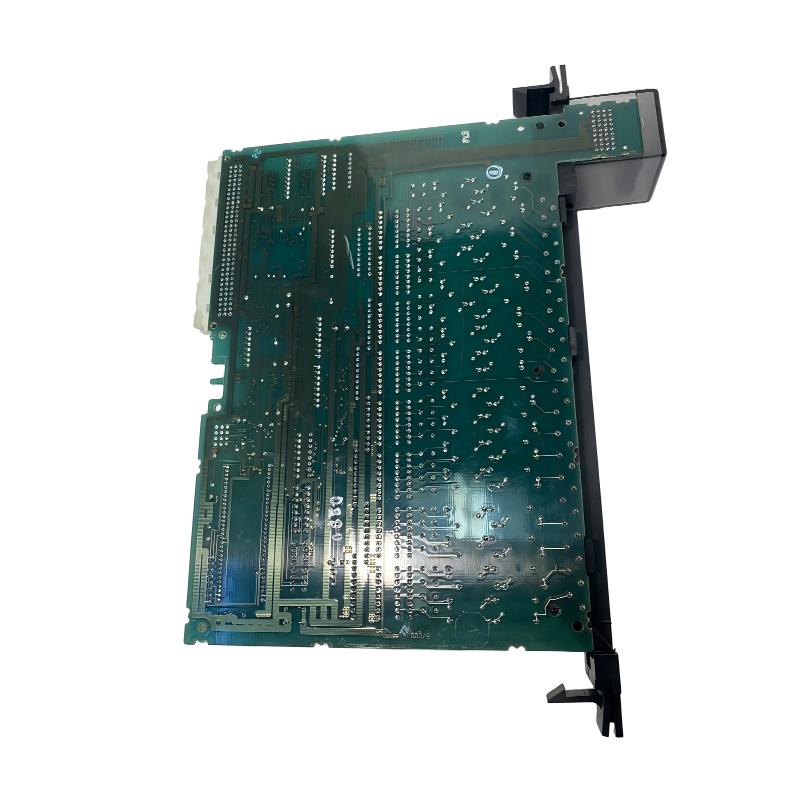

GE IC697MDL650 Discrete Input Module

Name: GE IC697MDL650 Discrete Input Module
Brand: GE Fanuc PLC
SKU: 7944
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:GE Fanuc PLC
Item No.:IC697MDL650
Product Origin:USA
Product Dimensions:200 × 45 × 145 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — High-Density DC Input Interface for Reliable Industrial Automation

The GE IC697MDL650 Discrete Input Module is a 32-point DC input module designed for GE Fanuc Series 90-70 PLC systems. It is engineered to collect and process field digital signals from devices such as switches, sensors, and control contacts, converting them into stable PLC logic signals.

This module is widely applied in industrial environments where signal integrity, electrical isolation, and high channel density are essential for stable and continuous automation performance.

Technical Specifications — Electrical & Mechanical Overview

Specification	Details
Module Type	Discrete Input Module
Model / Part Number	IC697MDL650
PLC Series Compatibility	GE Fanuc Series 90-70
Input Points	32 points
Input Structure	4 isolated groups × 8 points each
Logic Type	Positive logic
Input Filtering	Selectable (1 ms / 10 ms)
Isolation	Field-to-backplane isolation
Backplane Power	5 V DC
LED Indicators	Yes (per-point status)
Configuration Method	Software-based
Installation Type	Rack-mounted (Series 90-70 slot)
Operating Temperature	Industrial-grade range
Weight	Approx. 0.3–0.6 kg

Applications — Stable Signal Processing in Industrial Systems

The IC697MDL650 module is used in a wide range of industrial automation applications:

GE Series 90-70 PLC control systems
Oil & gas production and pipeline monitoring
Petrochemical and refinery automation systems
Power generation and turbine auxiliary control
Manufacturing and assembly line automation
Conveyor and material handling systems
Industrial safety and interlock systems

Advantages — Dense Input Capacity and Industrial Reliability

32-point high-density input design improves system efficiency
Electrically isolated groups enhance noise immunity
Compatible with standard DC field devices
Selectable input filtering improves signal stability
LED indicators simplify maintenance and troubleshooting
Software-based configuration improves flexibility
Strong isolation protects PLC backplane integrity
Proven long-term reliability in industrial environments

Technical FAQs — Engineering-Level Insights

What is the function of the IC697MDL650?
It converts DC field signals into PLC input signals.
How many input channels does it provide?
It provides 32 discrete input points.
What type of logic does it use?
It uses positive logic design.
Is the module isolated?
Yes, it provides electrical isolation between groups and backplane.
What devices can it connect to?
Sensors, switches, and industrial control contacts.
Does it support filtering?
Yes, selectable filtering improves signal stability.
Is hardware configuration required?
No, it is software-configured.
How is it installed?
It is installed in a GE Series 90-70 PLC rack slot.
Does it provide diagnostics?
Yes, LED indicators show real-time status.
Is it still used today?
Yes, mainly in existing GE 90-70 industrial systems.
