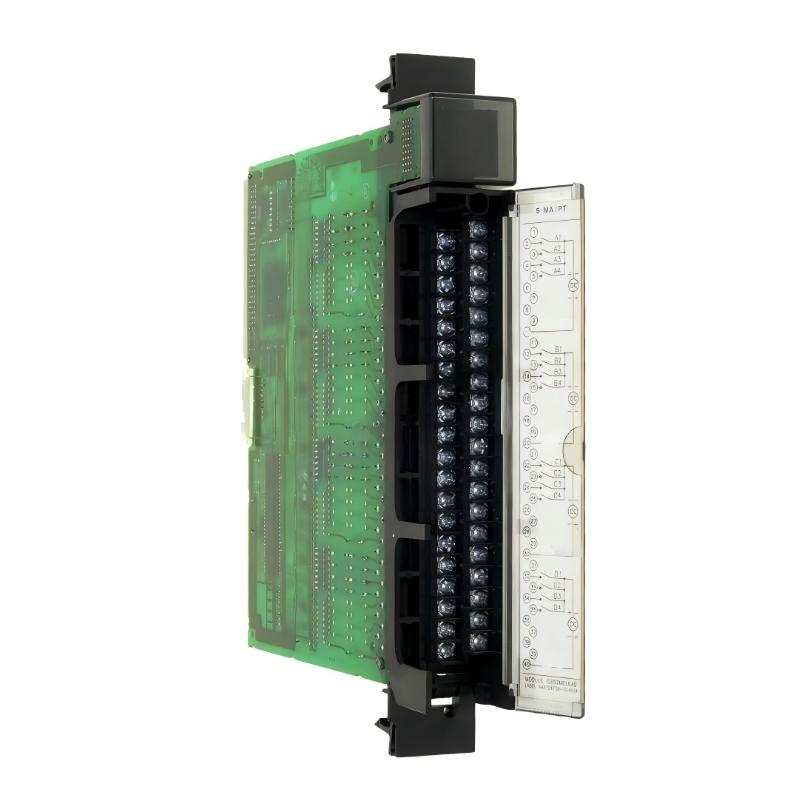

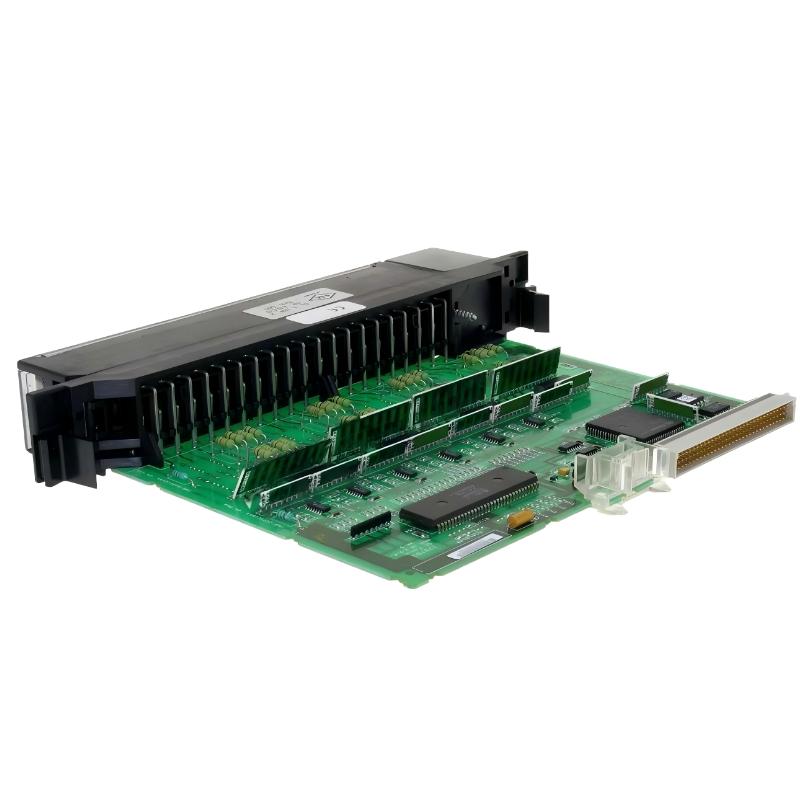

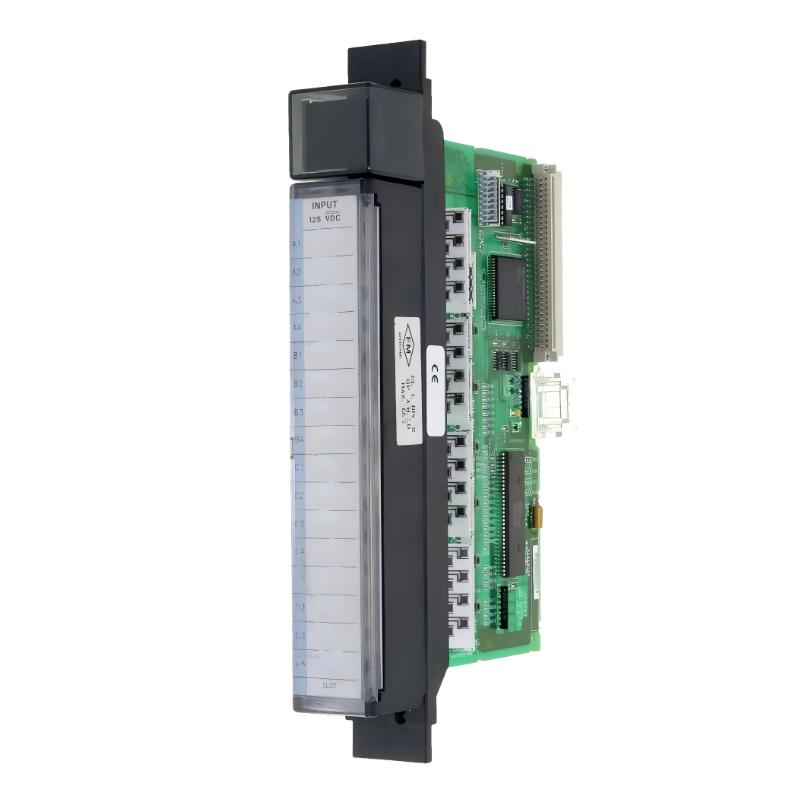

GE IC697MDL640 Discrete Input Module

Name: GE IC697MDL640 Discrete Input Module
Brand: GE Fanuc PLC
SKU: 7943
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:GE Fanuc PLC
Item No.:IC697MDL640
Product Origin:USA
Product Dimensions:200 × 45 × 145 mm
Product Weight:0.6kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — High-Performance 125VDC Input Interface for Series 90-70 PLC Systems

The GE IC697MDL640 Discrete Input Module is a high-density 16-point DC input module designed for GE Fanuc Series 90-70 PLC platforms. It is engineered to interface field devices such as switches, sensors, and control contacts with industrial automation systems, converting external voltage signals into reliable PLC logic inputs.

This module is widely used in demanding process industries where electrical noise immunity, flexible logic configuration, and stable signal acquisition are essential for continuous operation.

Technical Specifications — Electrical & Mechanical Overview

Specification	Details
Module Type	Discrete Input Module
Model / Part Number	IC697MDL640
PLC Series Compatibility	GE Fanuc Series 90-70
Input Voltage Range	0 to 145 V DC
Nominal Voltage	125 V DC
Input Points	16 points
Input Structure	4 isolated groups × 4 points each
Logic Type	Positive / Negative logic selectable
Input Current	~5 mA per point @ rated voltage
Filter Time	1 ms or 10 ms selectable
Isolation	1500 V RMS (field to backplane)
Backplane Power	5 V DC
Backplane Current	~0.3 A
LED Indicators	Yes (per-point status LEDs)
Configuration Method	Software-based (no DIP switches)
Installation Type	Rack-mounted (Series 90-70 slot)
Operating Temperature	0°C to +60°C
Weight	~0.34 kg (approx.)

Applications — Reliable Signal Acquisition in Industrial Control Systems

The IC697MDL640 module is commonly deployed in mission-critical automation environments:

GE Series 90-70 PLC control systems
Oil & gas production and pipeline monitoring
Petrochemical refining and process automation
Power generation and turbine auxiliary control
Manufacturing and assembly line automation
Material handling and conveyor systems
Industrial safety and interlock logic systems

Advantages — Flexible Logic, High Isolation, and Industrial Stability

Wide 125VDC Input Range supports industrial field wiring standards
Selectable Positive/Negative Logic increases application flexibility
High Electrical Isolation (1500V RMS) improves system safety
Selectable Input Filtering (1 ms / 10 ms) enhances signal stability
16 High-Density Input Points optimize rack space usage
LED Diagnostics per Channel simplify troubleshooting
Software Configuration Only eliminates hardware jumpers
Proven Reliability in Continuous Industrial Operation

Technical FAQs — Engineering-Level Insights

What is the main function of the IC697MDL640?
It converts 125 VDC field signals into PLC-compatible digital inputs.
How many input channels does it have?
It provides 16 discrete input points.
What voltage range does it support?
0 to 145 V DC, with a nominal rating of 125 V DC.
Does it support different logic types?
Yes, it supports both positive and negative logic configurations.
How are inputs grouped?
They are arranged in 4 isolated groups of 4 points each.
What is the purpose of input filtering?
It reduces electrical noise and signal bouncing.
Is the module isolated?
Yes, it provides 1500 V RMS isolation between field and backplane.
Does it require hardware configuration switches?
No, configuration is fully software-based.
What type of devices can it interface with?
Sensors, switches, relays, and industrial control contacts.
Is it still used in modern systems?
It is primarily used in legacy GE Series 90-70 systems but remains widely installed in industrial facilities.
