Introduction — High-Reliability AC Output Control for Industrial Automation

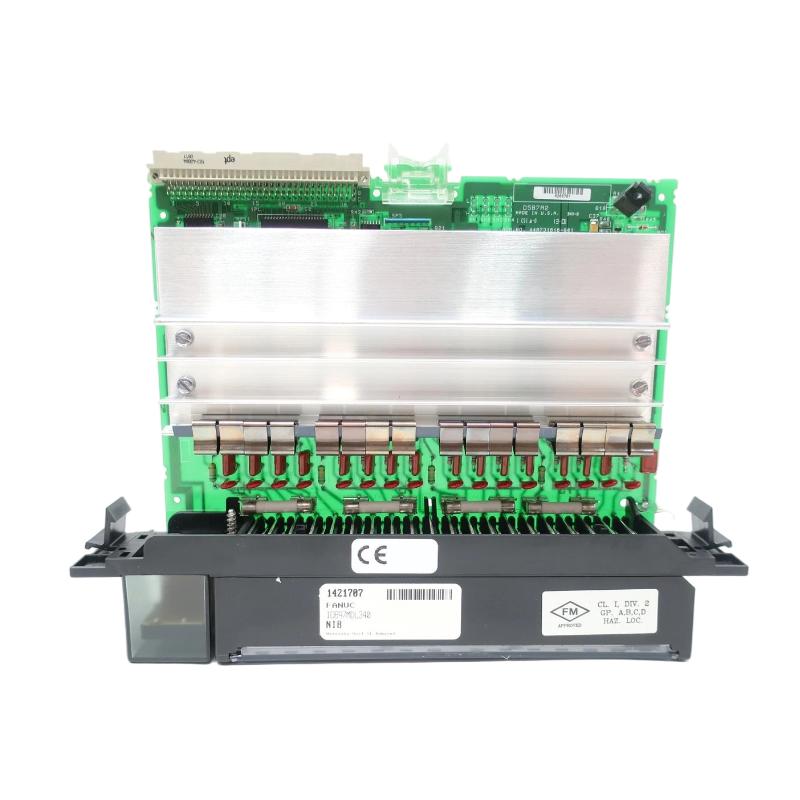

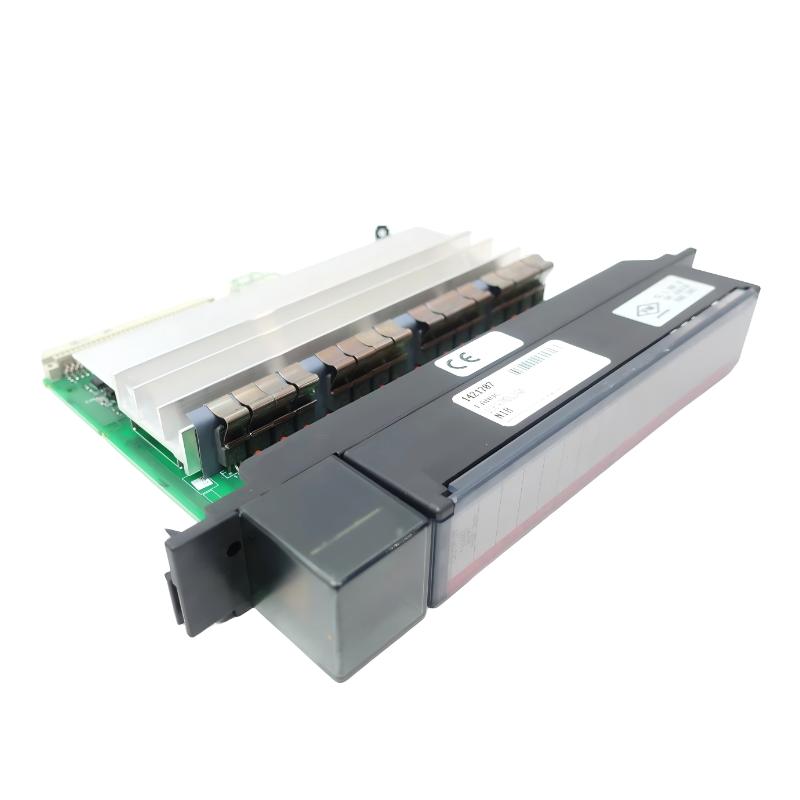

The GE IC697MDL340 Discrete Output Module is a 16-point AC output module designed for GE Fanuc Series 90-70 PLC systems. It provides reliable switching of field devices such as relays, solenoids, motor starters, and indicator lamps in demanding industrial environments.
Engineered for high inrush current handling and electrical isolation, this module is widely used in legacy but mission-critical automation systems where stable output performance and rugged durability are essential for continuous operation.
Technical Specifications — Electrical & Mechanical Overview
| Specification | Details |
|---|---|
| Module Type | Discrete Output Module |
| Model / Part Number | IC697MDL340 |
| PLC Series Compatibility | GE Fanuc Series 90-70 |
| Output Type | 120 V AC |
| Output Points | 16 points |
| Grouping | 4 isolated groups × 4 points each |
| Output Current | 2 A per point |
| Group Current Limit | ~4 A per group |
| Inrush Capability | Up to 10× rated current |
| Fusing | 10 A slow-blow fuse per group |
| Load Types Supported | Solenoids, relays, motor starters, lamps |
| Backplane Power | 5 V DC |
| Backplane Current | ~0.3–0.4 A |
| Isolation | Group-to-group and field-to-logic isolation |
| LED Indicators | Yes (per-point + fuse status) |
| Installation Type | Rack-mounted (Series 90-70 slot) |
| Operating Temperature | 0°C to +60°C |
| Dimensions (H × W × D) | ~263 mm × 58 mm × 28 mm |
| Weight | ~0.4–2.0 kg (variant dependent) |
