Introduction — Core Communication Backbone for Series 90-70 PLC Systems

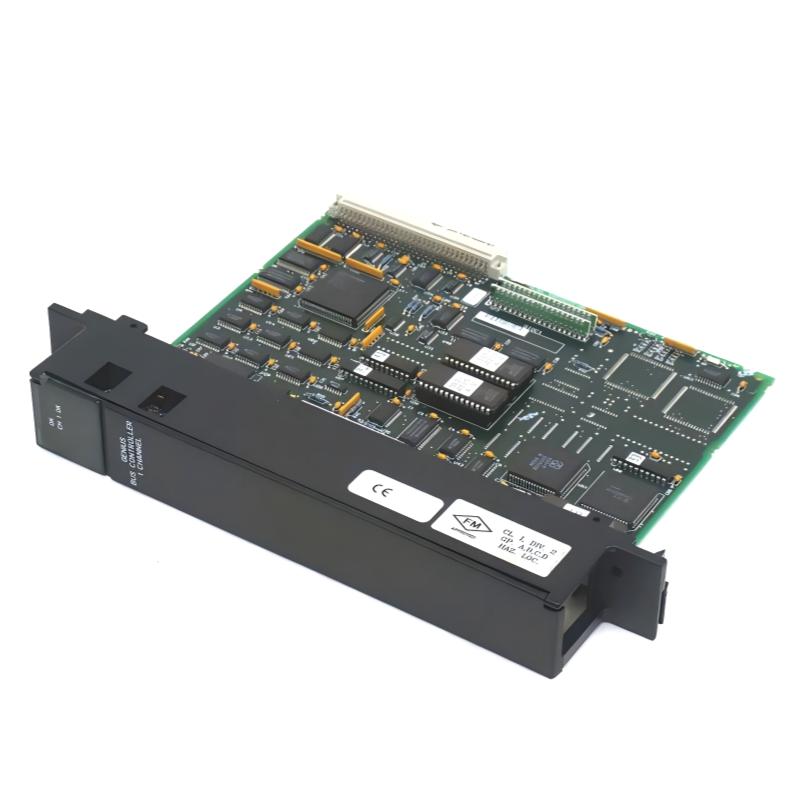

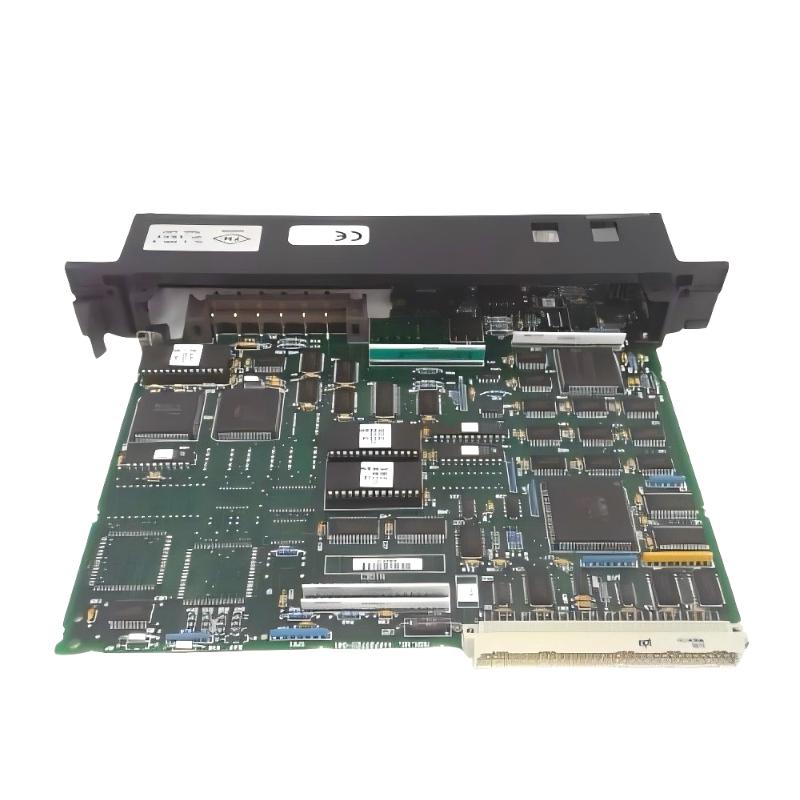

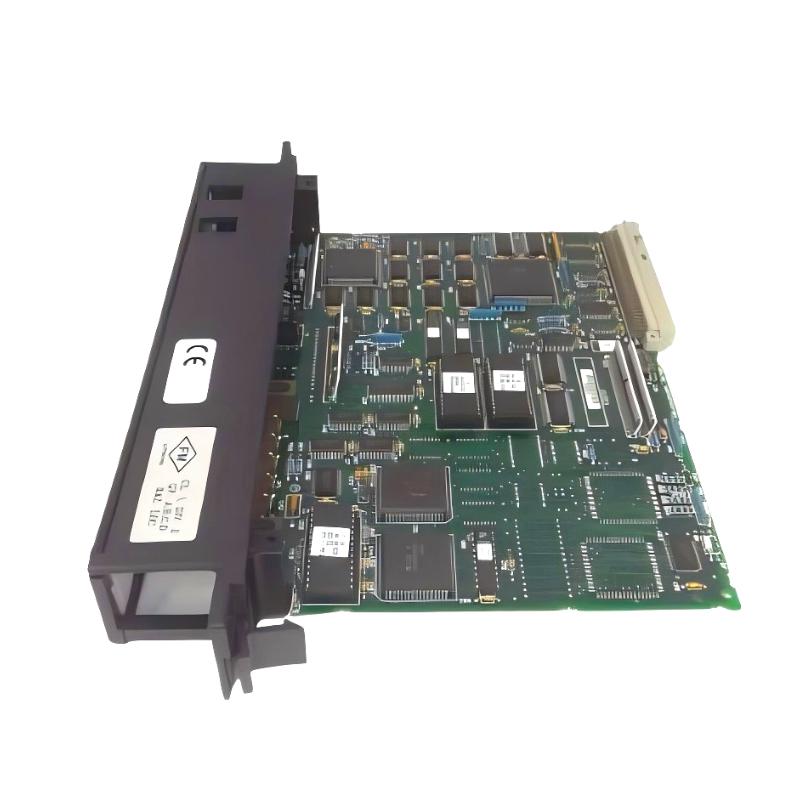

The GE IC697BEM771 Bus Controller Module is a dedicated industrial communication module designed for GE Fanuc Series 90-70 PLC architectures. It functions as a key interface between the PLC CPU and the Genius I/O network, enabling high-speed, deterministic data exchange across distributed automation systems.
This module is widely deployed in large-scale industrial environments where reliable fieldbus communication is essential for coordinating remote I/O devices, controllers, and process equipment within a unified control system.
Technical Specifications — System & Electrical Data
| Specification | Details |
|---|---|
| Module Type | Bus Controller Module |
| Model / Part Number | IC697BEM771 |
| PLC Series Compatibility | GE Fanuc Series 90-70 |
| Communication Network | Genius I/O Bus |
| Function | PLC-to-I/O network communication |
| Bus Capacity | Multiple remote I/O drops supported |
| Data Exchange | Cyclic and directed communication |
| Backplane Power | 5 V DC (via rack backplane) |
| Power Consumption | Low-power industrial design |
| Installation Slot | Single slot in IC697 rack |
| Operating Temperature | 0°C to +60°C |
| Dimensions (H × W × D) | Approx. 263 mm × 58 mm × 28 mm |
| Weight | ~0.5–1.0 kg (variant dependent) |
