Introduction — Dedicated Drive Communication Interface for Series 90-70 Systems

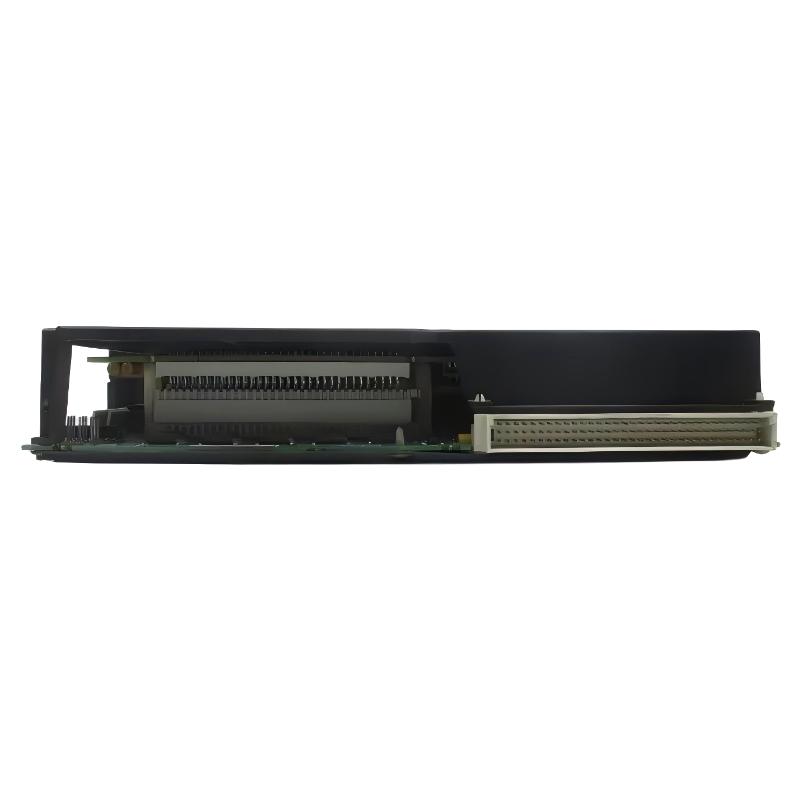

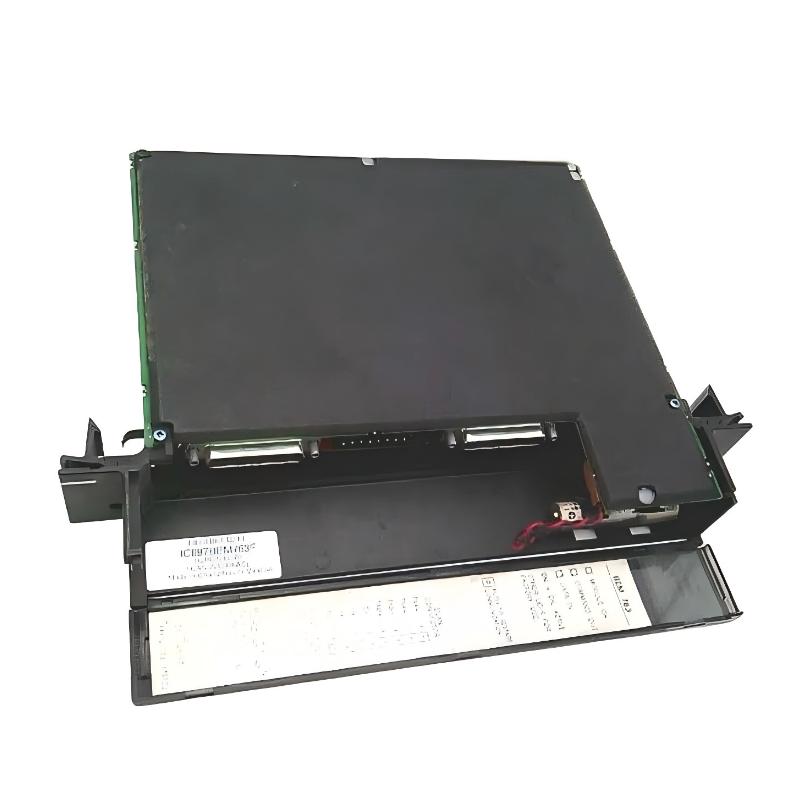

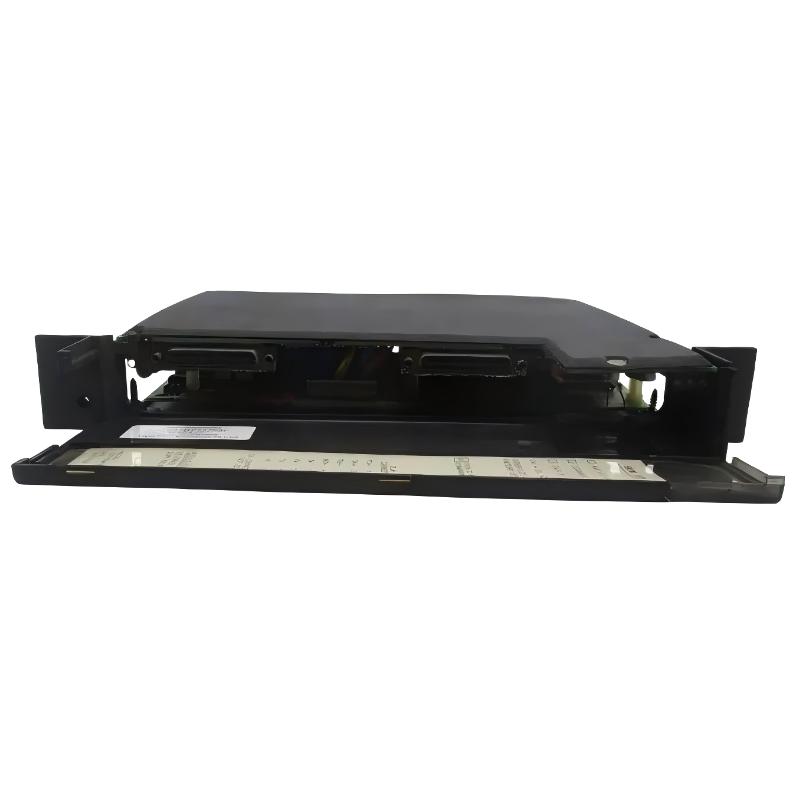

The GE IC697BEM763 Drive Interface Module is a high-performance communication interface designed for GE Fanuc Series 90-70 PLC systems. It enables direct integration between PLC controllers and industrial drive systems using GE’s proprietary DLAN / DLAN+ network architecture.
This module is commonly used in motor control and drive automation environments, where it provides deterministic, high-speed communication between the PLC and variable-speed drives such as DC and AC drive systems. Its role is critical in ensuring synchronized control, stable torque management, and reliable industrial motion performance.
Technical Specifications — Electrical & System Data
| Specification | Details |
|---|---|
| Module Type | Drive Interface Module |
| Model / Part Number | IC697BEM763 |
| PLC Series Compatibility | GE Fanuc Series 90-70 |
| Function | Drive communication via DLAN / DLAN+ |
| Processor | 80C186 microprocessor (12 MHz) |
| Communication Protocol | DLAN / DLAN+ LAN-based control network |
| Drive Compatibility | AC/DC industrial drive systems (e.g., DC300, AC2000) |
| Redundancy Support | Network-level configuration dependent |
| Backplane Power | 5 V DC via rack backplane |
| Power Consumption | Approx. 5 W |
| Installation Slot | VME-based Series 90-70 rack slot |
| Operating Temperature | 0°C to +60°C |
| Dimensions (H × W × D) | Approx. 263 mm × 58 mm × 28 mm |
| Weight | ~0.4–0.8 kg (variant dependent) |
