Introduction — Legacy High-Capacity Interface for Distributed PLC Architectures

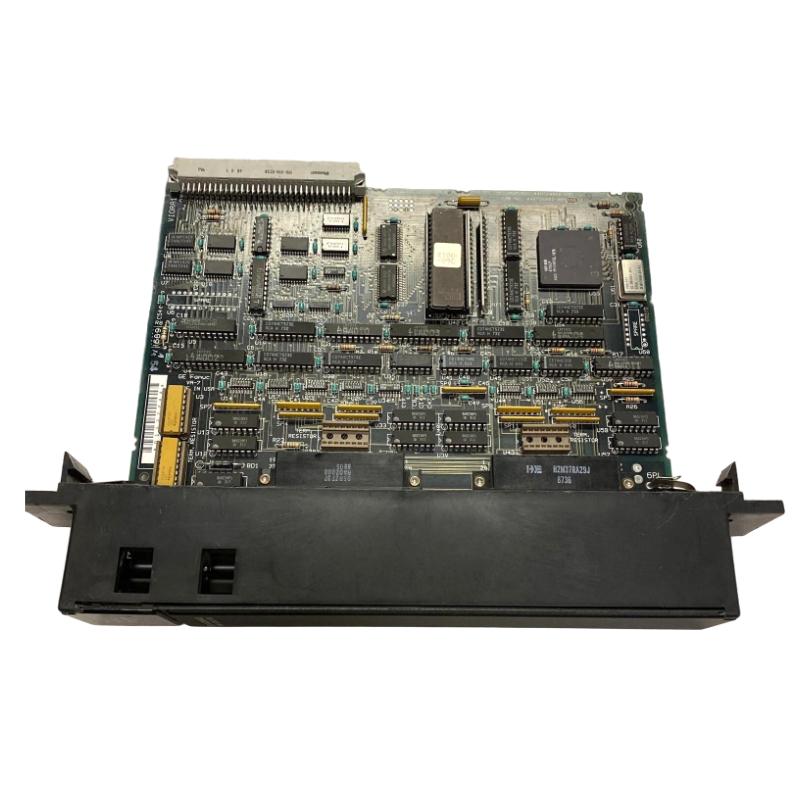

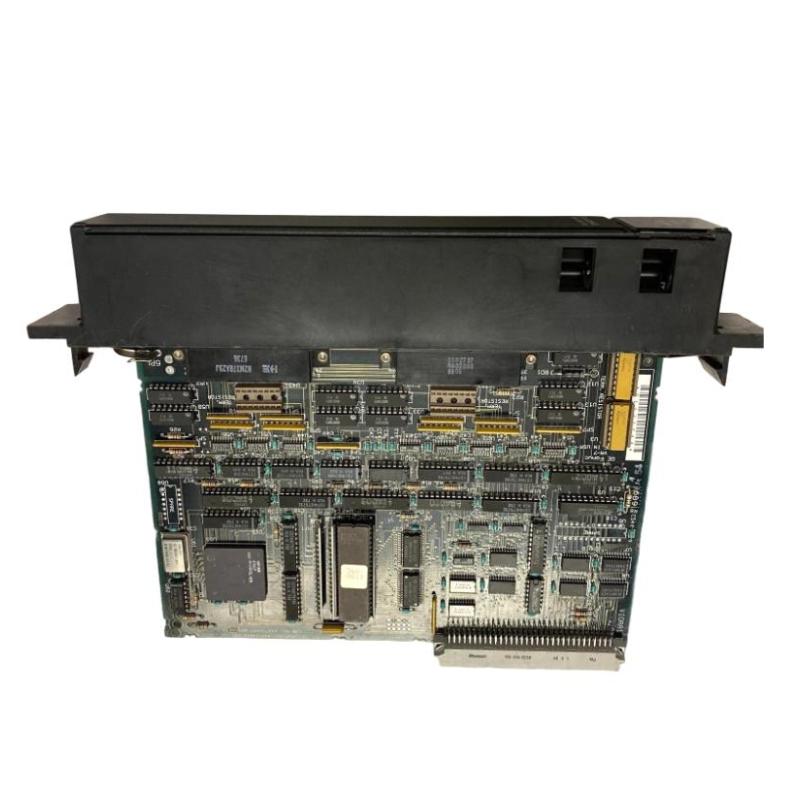

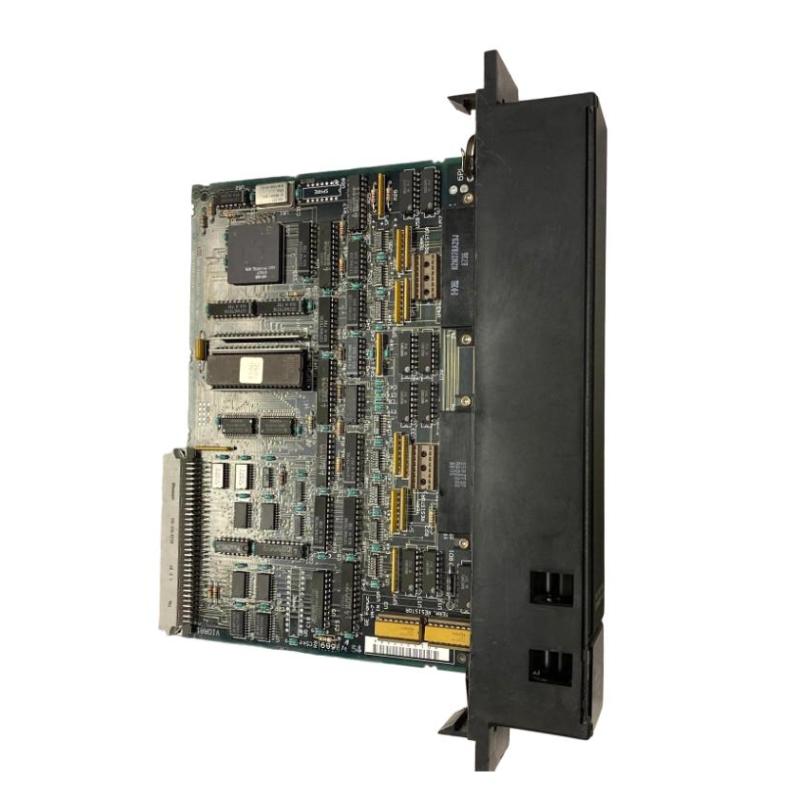

The GE IC697BEM761 I/O Interface Module is a communication and expansion module designed for the GE Fanuc Series 90-70 PLC platform. Its primary role is to bridge the IC600 PLC I/O bus with IC697 I/O racks, enabling large-scale distributed I/O integration within complex industrial automation systems.
This module is widely used in legacy but still mission-critical installations where extended I/O capacity, system scalability, and reliable rack-to-rack communication are required. It acts as a central interface that allows multiple I/O racks to operate under a unified PLC control structure.
Technical Specifications — Electrical & System Architecture
| Specification | Details |
|---|---|
| Module Type | I/O Interface Module |
| Model / Part Number | IC697BEM761 |
| PLC Series Compatibility | GE Fanuc Series 90-70 / IC600 interface |
| Function | IC600–IC697 I/O system bridging |
| I/O Capacity per Rack | 128 (5-slot) / 256 (9-slot) references |
| Max Supported Racks | Up to 8 racks per system |
| Total I/O Capacity | Up to ~2000 addressable points |
| Backplane Power | 5 V DC (via rack backplane) |
| Current Consumption | Approx. 1.3 A |
| Communication Interface | Dual 37-pin connectors |
| Installation Slot | Slot 1 (IC697 rack only) |
| Operating Temperature | 0°C to +60°C |
| Dimensions (H × W × D) | Approx. 263 mm × 58 mm × 28 mm |
| Weight | ~0.4 to 1.2 kg (variant dependent) |
