Introduction — High-Performance Fieldbus Interface for GE Series 90-70 PLC Systems

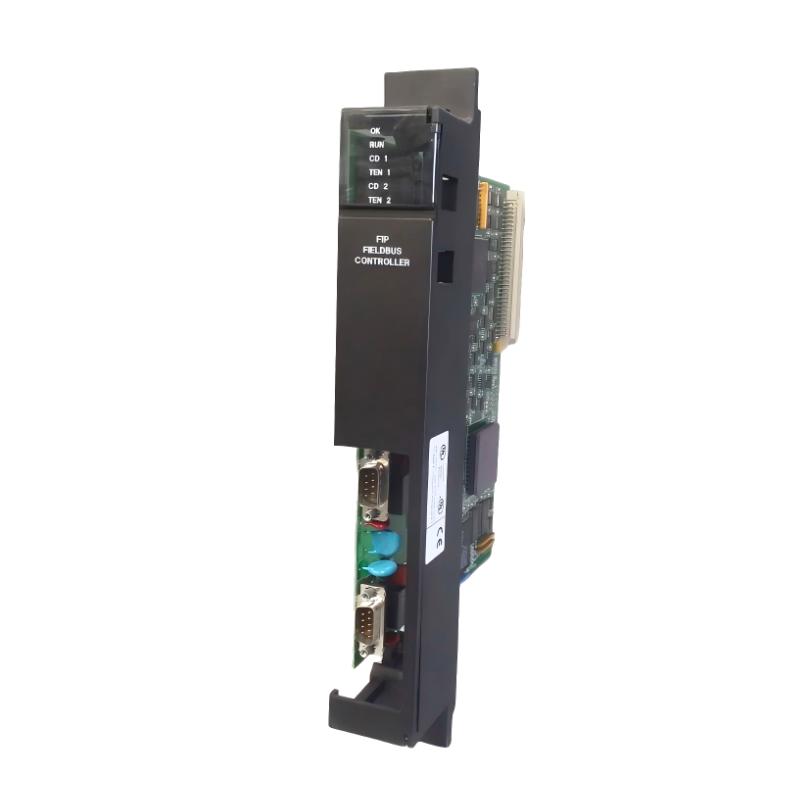

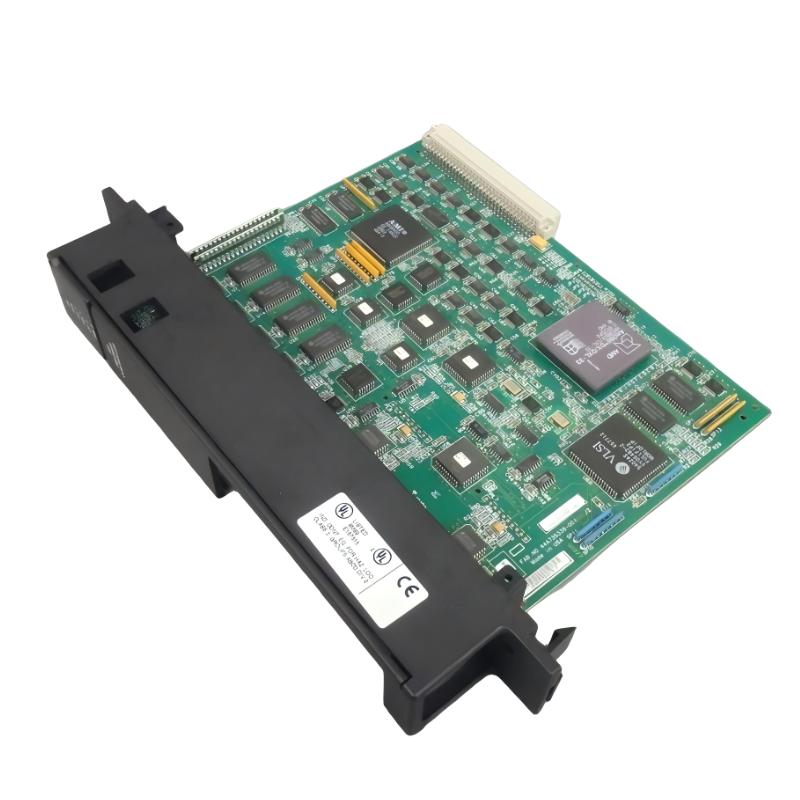

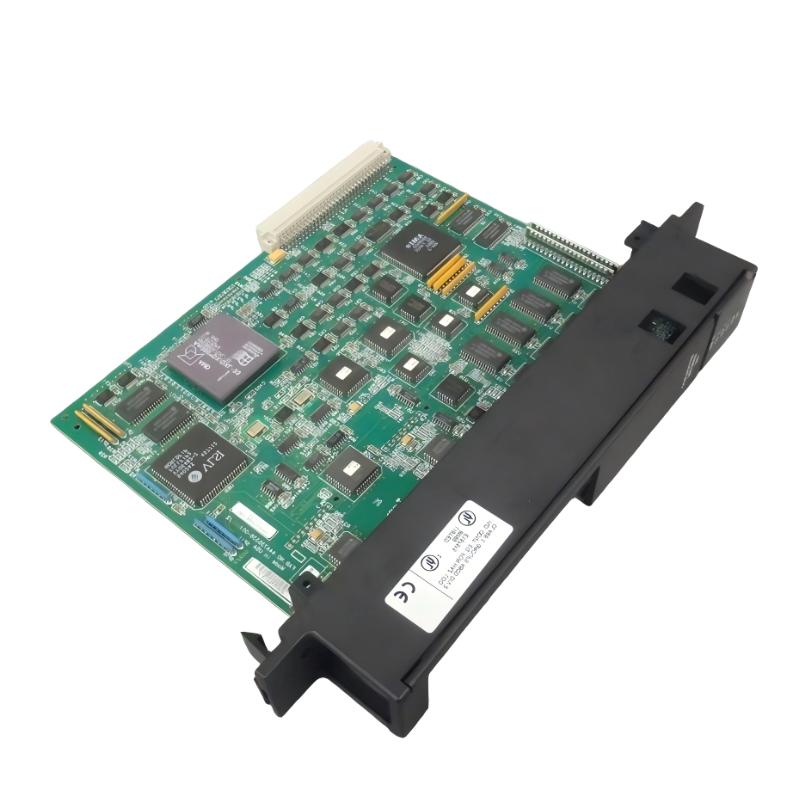

The GE IC697BEM742 FIP Bus Controller is a communication module designed for the GE Fanuc Series 90-70 PLC platform. It provides a dedicated interface between the PLC system and FIP (Factory Instrumentation Protocol) or World FIP fieldbus networks, enabling high-speed, deterministic data exchange in industrial automation environments.
Built for complex distributed control architectures, this module plays a critical role in connecting remote I/O systems, field control stations, and intelligent devices into a unified automation network, ensuring reliable and synchronized process control.
Technical Specifications — Electrical & Physical Data
| Specification | Details |
|---|---|
| Module Type | FIP Bus Controller Module |
| Model / Part Number | IC697BEM742 |
| PLC Series Compatibility | GE Fanuc Series 90-70 |
| Bus Type | FIP / World FIP Fieldbus |
| Power Supply | +5 V DC (backplane powered) |
| Backplane Current | Approx. 1.3 A |
| Memory | 2 MB RAM + 2 MB Flash |
| Communication Channels | Dual-channel FIP bus |
| Redundancy Support | Yes (dual bus redundancy capability) |
| Installation Slot | VME Integrator rack (single slot) |
| Operating Temperature | 0°C to +60°C |
| Dimensions (H × W × D) | Approx. 263 mm × 58 mm × 28 mm |
| Weight | ~0.4–1.2 kg (variant dependent) |
