Introduction — High-Capacity Power Stability for Demanding Control Systems

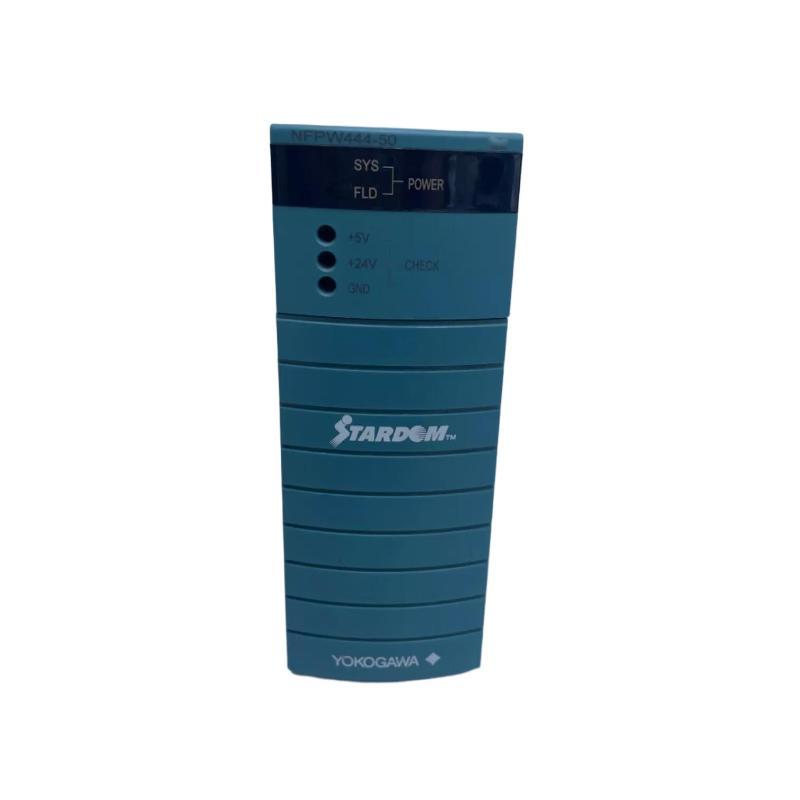

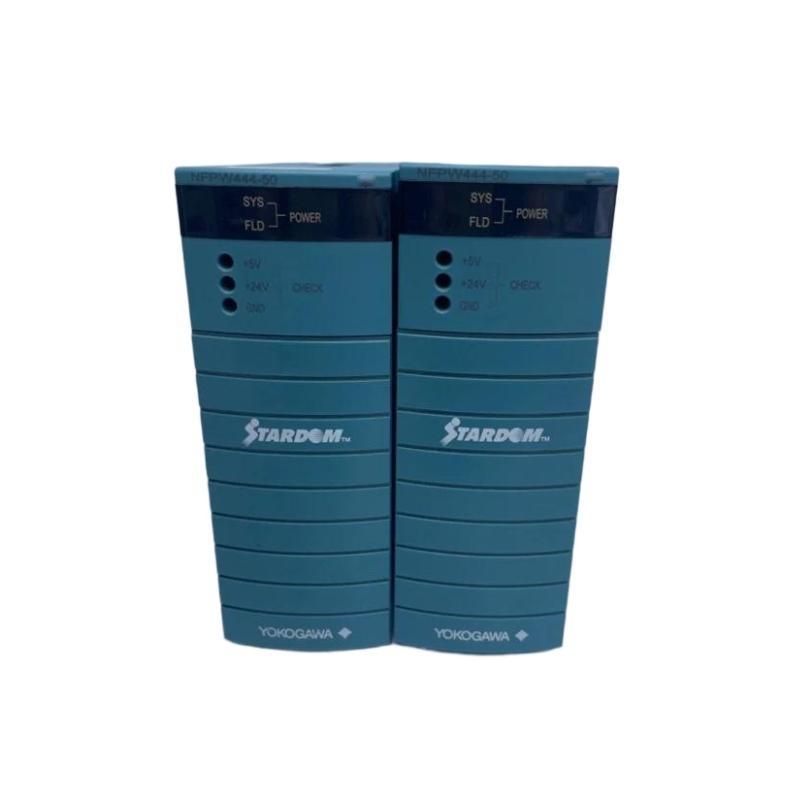

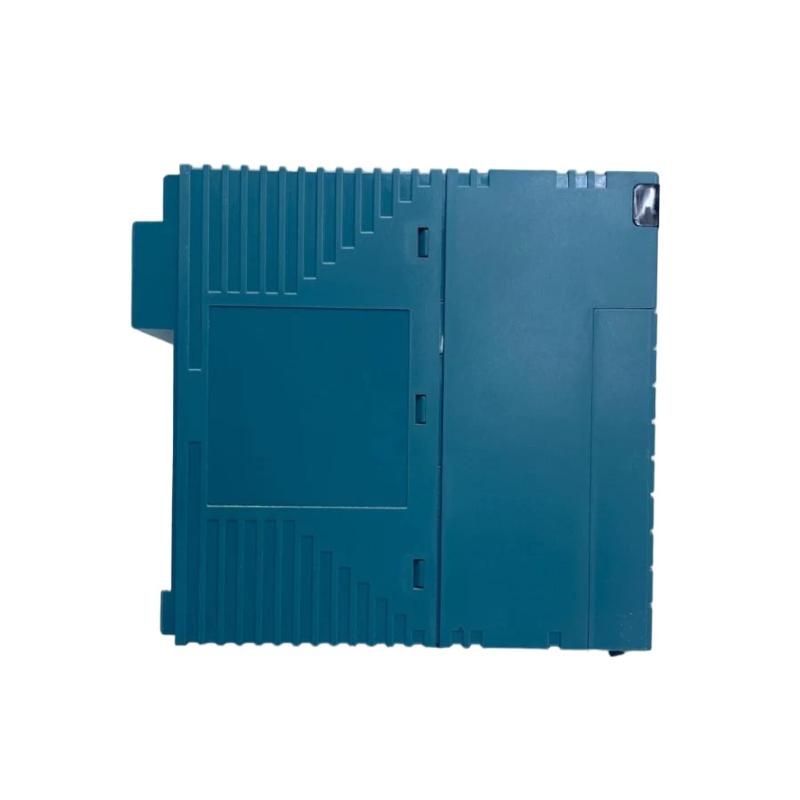

The Yokogawa NFPW444-50 Power Supply Module is a high-capacity industrial power unit designed to deliver stable and efficient DC power for advanced automation environments. Engineered for systems that require stronger current handling and enhanced power resilience, it ensures uninterrupted energy distribution to controllers, I/O modules, and communication networks.
With its reinforced electrical design, the NFPW444-50 is especially suited for large-scale process industries where power consistency directly impacts operational safety, system reliability, and production efficiency.
Technical Specifications — Electrical & Mechanical Overview
| Specification | Details |
|---|---|
| Module Type | Power Supply Module |
| Model / Part Number | NFPW444-50 |
| Input Voltage | 100–240 V AC |
| Output Voltage | 24 V DC |
| Output Current | 15 A |
| Efficiency | High-efficiency industrial design |
| Protection Features | Overvoltage, overload, short-circuit protection |
| Cooling Method | Natural convection |
| Operating Temperature | –20°C to +60°C |
| Installation Type | Rack-mounted / panel-mounted |
| Dimensions (H × W × D) | 140 mm × 90 mm × 125 mm |
| Weight | 1.15 kg |
