Optimized for Low-Speed Rotating Machinery Monitoring

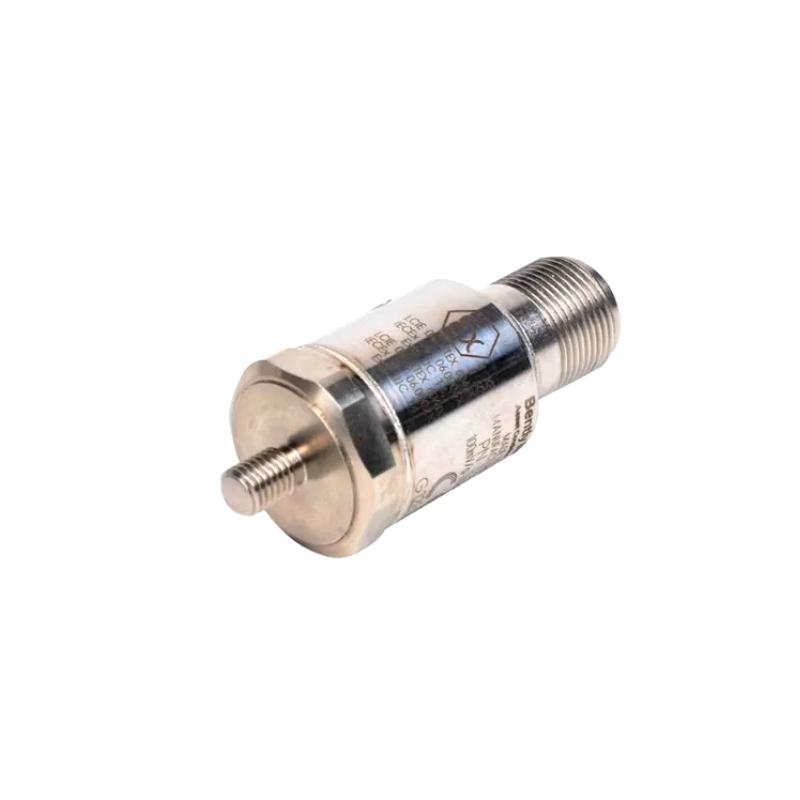

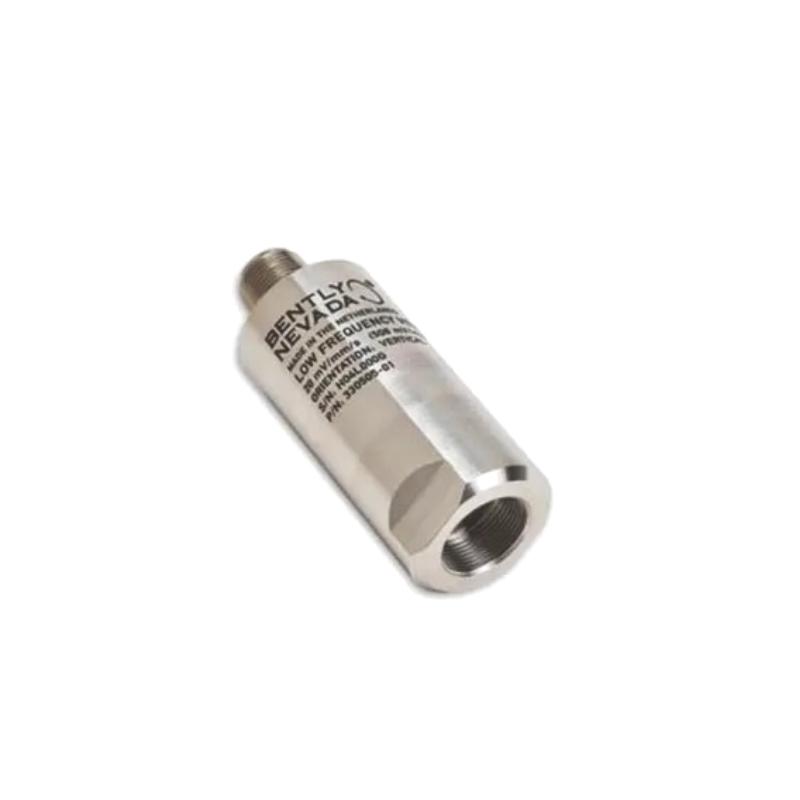

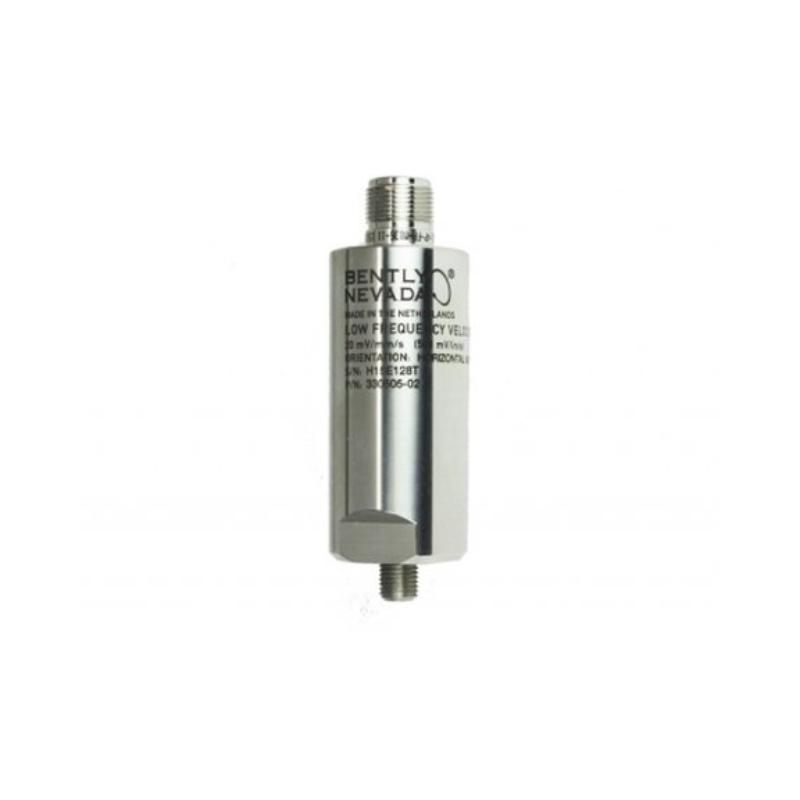

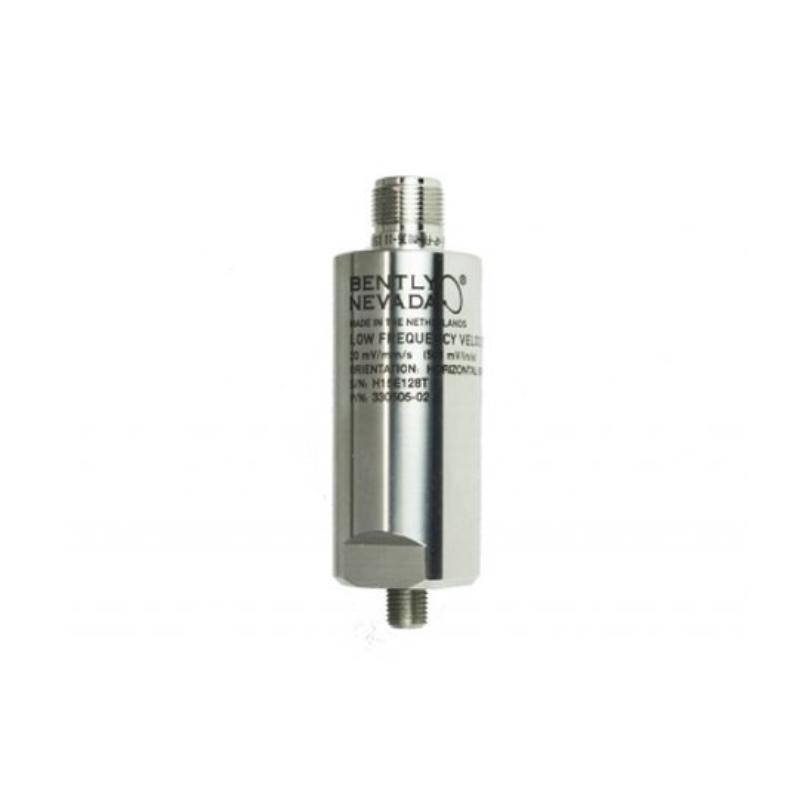

The Bently Nevada 330505-02 Low Frequency Velocity Sensor is a specialized vibration transducer engineered for low-frequency, low-amplitude vibration measurement in slow-speed rotating equipment. Unlike conventional velocity sensors designed for higher-speed machinery, the 330505 Series is optimized to detect subtle vibration signals generated by hydroelectric turbines, generator stator structures, and bearing housings operating at low rotational speeds.
The 330505-02 configuration is designed for permanent installation in critical asset monitoring systems, providing highly accurate absolute vibration measurements that support early fault detection and condition-based maintenance. Utilizing moving-coil sensing technology with integrated signal conditioning, the sensor delivers a voltage output directly proportional to vibration velocity, making it an excellent solution for hydroelectric power plants and other industrial applications where low-frequency vibration analysis is essential.
Its rugged industrial construction, stable measurement performance, and compatibility with the Bently Nevada 3500/46M Hydro Monitor make the 330505-02 a trusted choice for improving machinery reliability and reducing unexpected downtime.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330505-02 |
| Product Type | Low Frequency Velocity Sensor |
| Series | 330505 Low Frequency Velocity Sensor |
| Sensor Technology | Moving-Coil Velocity Transducer with Integrated Signal Conditioning |
| Output Signal | Voltage Proportional to Vibration Velocity |
| Measurement Type | Absolute Velocity |
| Frequency Response | 0.5 Hz to 1.0 kHz |
| Wiring | Two-Wire System |
| Compatible Monitor | Bently Nevada 3500/46M Hydro Monitor |
| Recommended Applications | Low-Speed Rotating Machinery |
| Hazardous Area Approval | Not Approved for Hazardous Locations |
| Housing Material | Stainless Steel |
| Mounting Configuration | Model 330505-02 Configuration |
| Operating Environment | Industrial Indoor/Outdoor Installations |
| Dimensions | Approximately 80 × 60 × 62 mm |
| Weight | Approximately 0.22 kg |
Typical Applications
The 330505-02 is specifically developed for machinery operating at low rotational speeds where standard vibration sensors may not provide sufficient sensitivity.
Typical applications include:
-
Hydroelectric turbines
-
Water turbines
-
Generator stator core monitoring
-
Generator stator frame vibration measurement
-
Bearing housing vibration monitoring
-
Pumping stations
-
Hydropower generation facilities
-
Dam infrastructure equipment
-
Large vertical pumps
-
Low-speed rotating machinery
-
Industrial condition monitoring systems
-
Predictive maintenance programs
Its exceptional low-frequency response enables maintenance personnel to detect structural vibration, bearing support movement, looseness, and developing mechanical faults long before they become critical, helping extend equipment life and improve plant availability.
Product Advantages
The 330505-02 is purpose-built for applications where conventional velocity sensors cannot effectively capture very low-frequency vibration signals.
Key benefits include:
-
Optimized for low-speed machinery operating below conventional vibration ranges
-
Wide low-frequency response from 0.5 Hz to 1.0 kHz
-
High sensitivity to subtle structural vibration
-
Two-wire design simplifies installation and wiring
-
Integrated signal conditioning provides stable and reliable output
-
Rugged industrial construction for long-term service
-
Ideal for hydroelectric turbine monitoring applications
-
Compatible with Bently Nevada 3500/46M Hydro Monitor
-
Supports predictive maintenance and condition-based monitoring
-
Helps reduce maintenance costs while improving equipment reliability
Technical FAQs
1. What is the primary purpose of the 330505-02?
It measures low-frequency absolute vibration velocity on slow-speed rotating machinery, particularly hydroelectric turbines and generator structures.
2. What sensing technology does this sensor use?
The 330505 Series utilizes moving-coil technology with integrated signal conditioning electronics to provide a voltage output proportional to vibration velocity.
3. What frequency range can the sensor measure?
It is designed to measure vibration from 0.5 Hz to 1.0 kHz, making it ideal for slow-speed applications.
4. Which monitoring system is compatible with this sensor?
The sensor is designed to operate with the Bently Nevada 3500/46M Hydro Monitor.
5. Is the 330505-02 suitable for high-speed machinery?
It is specifically optimized for low-speed rotating equipment. For higher-speed machinery, other Bently Nevada velocity or accelerometer products are generally more appropriate.
6. Can this sensor be installed in hazardous areas?
No. Due to capacitance limitations, the 330505 Series is not approved for hazardous-area installations.
7. What types of faults can it detect?
The sensor helps identify stator frame vibration, bearing support movement, looseness, structural resonance, and other low-frequency mechanical abnormalities.
8. Is the sensor suitable for continuous online monitoring?
Yes. It is designed for permanent installation in continuous machinery condition monitoring systems.
9. What are the dimensions and weight?
The sensor measures approximately 80 × 60 × 62 mm and weighs about 0.22 kg.
10. Why is the 330505-02 widely used in hydroelectric facilities?
Its outstanding low-frequency sensitivity, dependable measurement performance, and compatibility with dedicated hydro monitoring systems make it an ideal solution for protecting critical hydroelectric assets.
