Overview

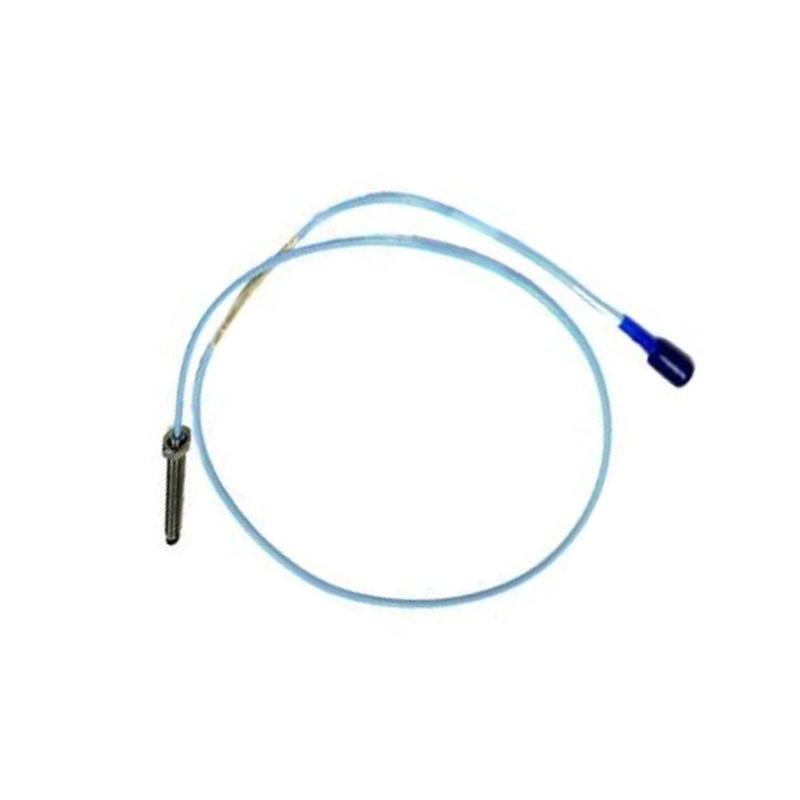

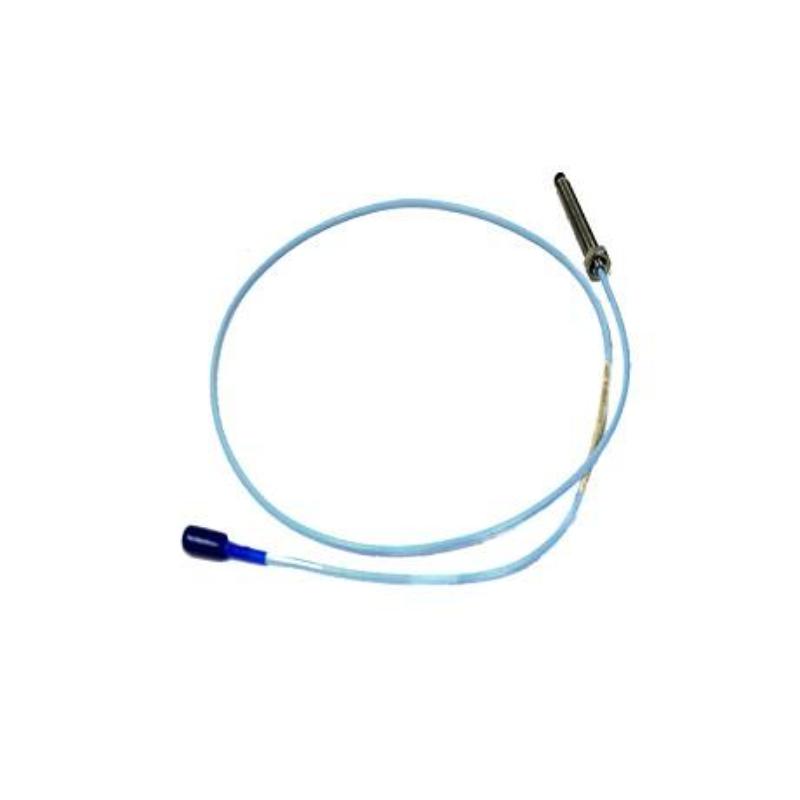

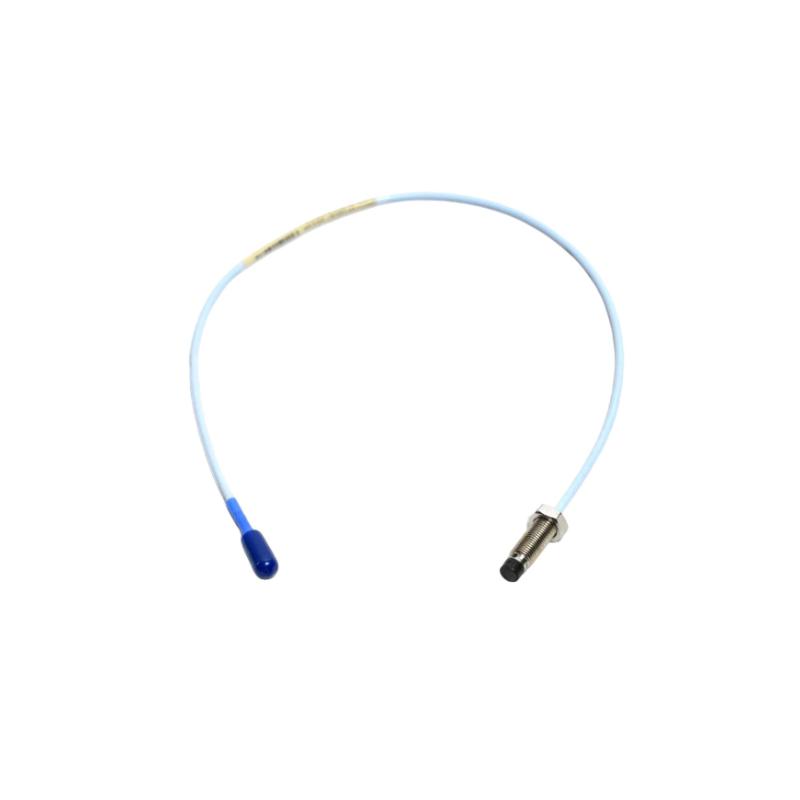

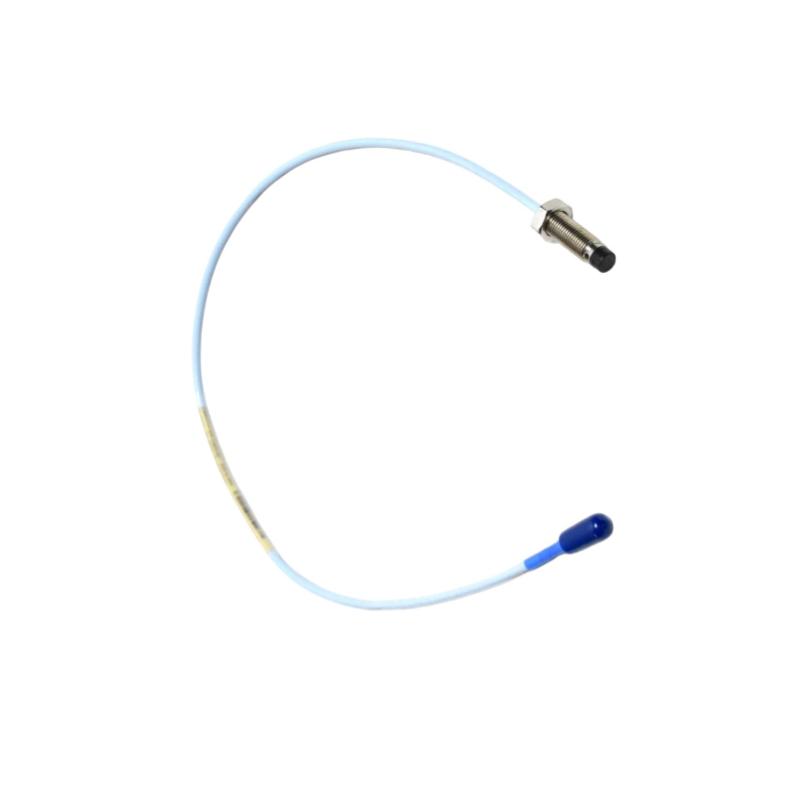

The Bently Nevada 330101-00-14-10-02-00 is a 3300 XL 8 mm Proximity Probe that uses eddy-current sensing technology for non-contact measurement of shaft vibration, shaft position, axial displacement, and Keyphasor®/speed reference applications on fluid-film bearing machinery. It is designed for use as part of the 3300 XL 8 mm Proximity Transducer System, together with a compatible 330130 extension cable and 330180 Proximitor® Sensor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-14-10-02-00 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Armor | Non-armored |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.4 in (approximately 35.6 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 00 – No approvals required |
| Compatible Proximitor® | 3300 XL Proximitor® Sensor |
| Compatible Extension Cable | 330130 Series |
