Introduction

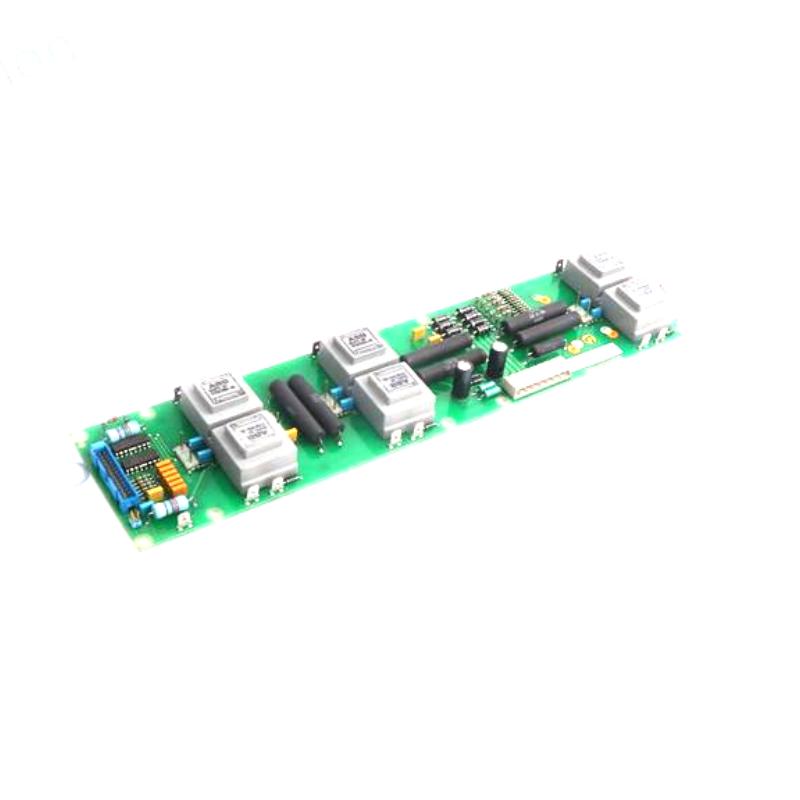

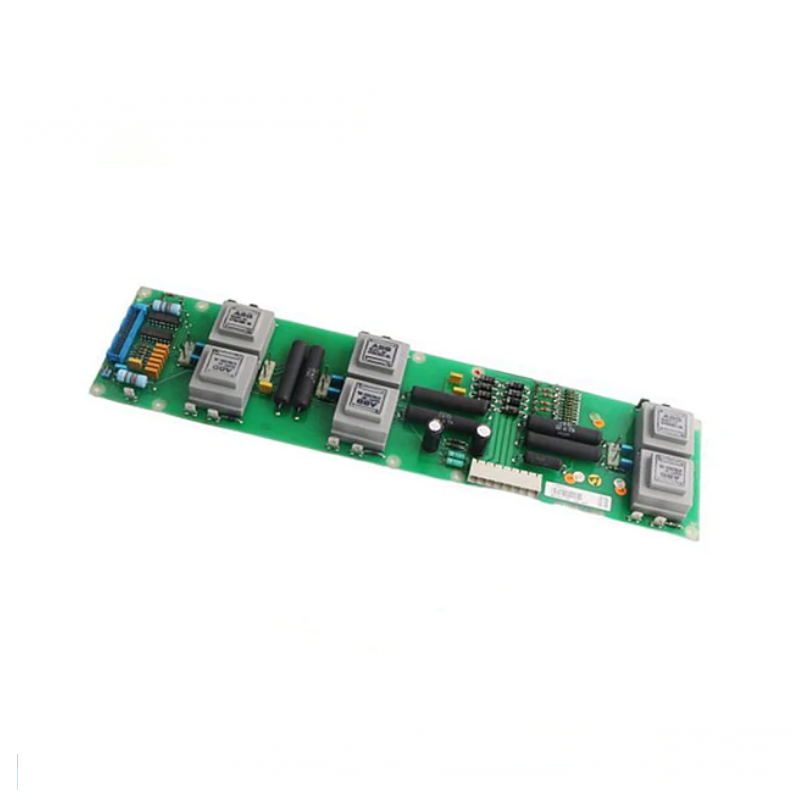

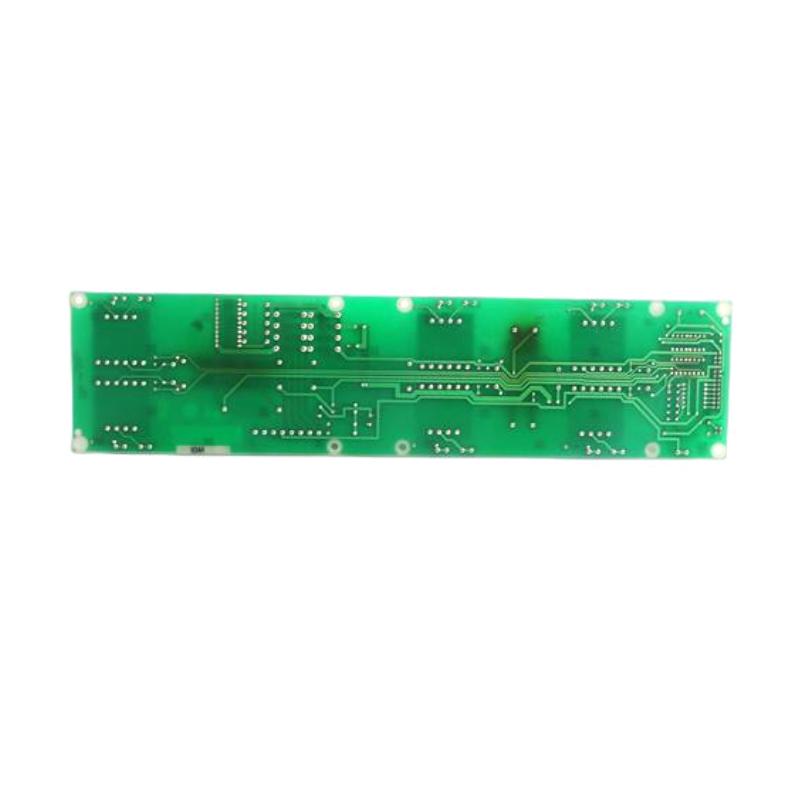

The ABB YXU169F (YT204001-JT) is a high-reliability trigger pulse board used in ABB industrial excitation and power converter systems. It is designed to generate, shape, and distribute precise firing pulses for power semiconductor devices such as thyristors in controlled rectifier or excitation bridges.
This module plays a critical role in synchronous generator excitation systems, medium-voltage drive systems, and industrial power conversion cabinets, where accurate pulse timing directly affects voltage regulation, system stability, and power quality.
Built for demanding electrical environments, it ensures stable triggering performance even under high electromagnetic interference and continuous-duty operation.
Technical Specifications
The YXU169F YT204001-JT functions as a pulse generation and signal conditioning interface within ABB power electronics systems.
| Parameter | Specification |
|---|
| Model | YXU169F |
| Spare / Order Code | YT204001-JT |
| Type | Trigger Pulse / Pulse Transformer Board |
| System Platform | ABB excitation & converter systems |
| Function | Thyristor gate pulse generation and distribution |
| Input Signals | Control logic / synchronization signals |
| Output Signals | Isolated firing pulses for power semiconductors |
| Pulse Type | High-precision synchronized triggering pulses |
| Isolation | Electrical isolation via pulse transformer stage |
| Installation | Rack-mounted PCB module in control cabinet |
Applications
The ABB YXU169F trigger pulse board is widely used in high-power industrial systems, including:
-
ABB UNITROL excitation systems for synchronous generators
-
Power plant rectifier and inverter bridge control
-
Industrial motor drive converter systems
-
Hydro, thermal, and nuclear generation facilities
-
Metallurgy and heavy industrial power systems
-
High-power thyristor-based conversion equipment
Its main function is ensuring precise and synchronized firing of power semiconductor devices, which is essential for stable voltage regulation and controlled energy conversion.
Technical FAQs
1. What is the main function of the YXU169F YT204001-JT board?
It generates and distributes trigger pulses for thyristor-based power converters.
2. Is it a controller or a signal board?
It is a signal interface and pulse generation board, not a controller.
3. Where is it commonly used?
In ABB excitation systems and industrial power conversion cabinets.
4. What devices does it control?
It controls firing signals for thyristors or similar power semiconductor devices.
5. Is it used in power plants?
Yes, especially in generator excitation systems.
6. What is its approximate weight?
Typically between 0.45 kg and 2.39 kg depending on variant.
7. Does it provide electrical isolation?
Yes, pulse transformers are used for isolation and signal integrity.
8. Is it still widely used today?
Yes, mainly in installed ABB excitation and converter systems.
9. Can it be replaced with newer modules?
Yes, but only within compatible ABB system architectures.
10. Is it responsible for voltage regulation?
Indirectly—by controlling firing pulses that affect excitation output.
