Industrial Piezoelectric Accelerometer for Machinery Vibration Monitoring

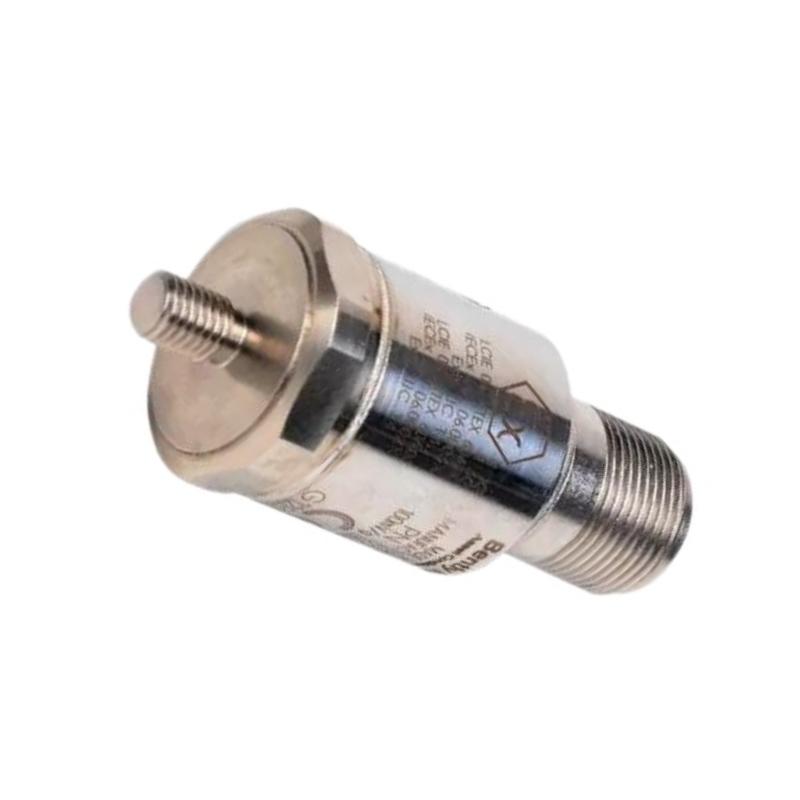

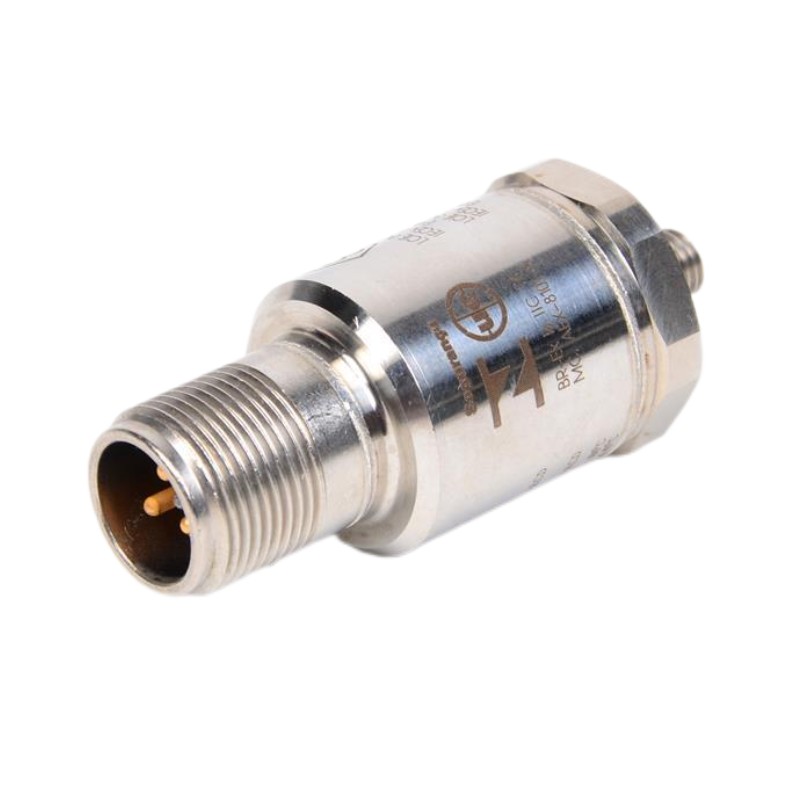

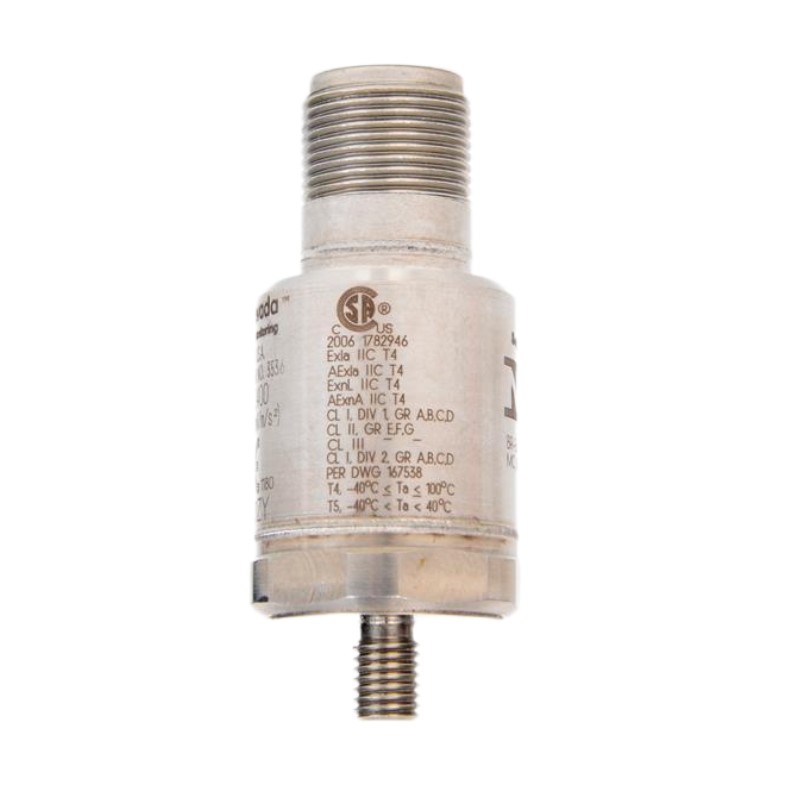

The Bently Nevada 330400-00-00 Accelerometer is a three-wire piezoelectric acceleration transducer designed for continuous monitoring of casing vibration on critical rotating machinery. It is part of the 330400/330425 Accelerometer Series and is commonly used in applications where housing acceleration measurements are required, including gear mesh monitoring, bearing condition assessment, and machinery protection systems. The 330400 meets the requirements of API Standard 670 for accelerometers and provides a 100 mV/g sensitivity with a 50 g peak measurement range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330400-00-00 |
| Product Type | Accelerometer (Acceleration Transducer) |
| Series | 330400 Accelerometer |
| Sensor Technology | Three-wire piezoelectric |
| Sensitivity | 100 mV/g (±5%) |
| Measurement Range | 50 g peak |
| Frequency Response | 10 Hz to 15 kHz |
| Power Supply | -24 VDC nominal |
| Output Type | Voltage output |
| Mounting Thread | 1/4-28 UNF integral stud |
| Agency Approval | 00 = None |
| Housing Material | Stainless steel |
| Environmental Protection | Suitable for industrial environments |
| Compatible Mounting Kits | 43217 (standard), 37442 (high-temperature) |
| Compatible Interconnect Cables | 130539, 16925 series |
