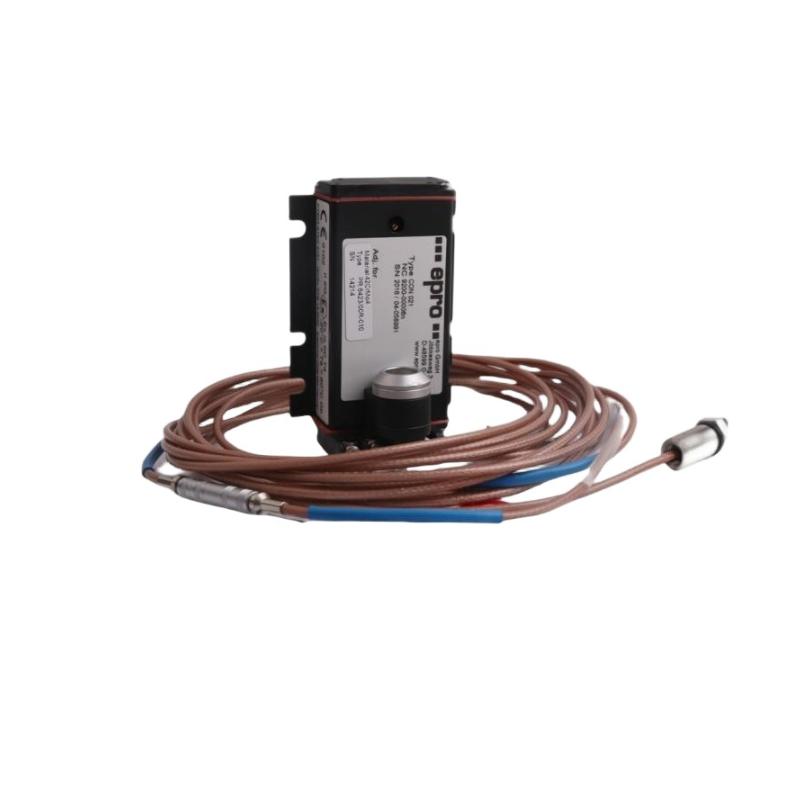

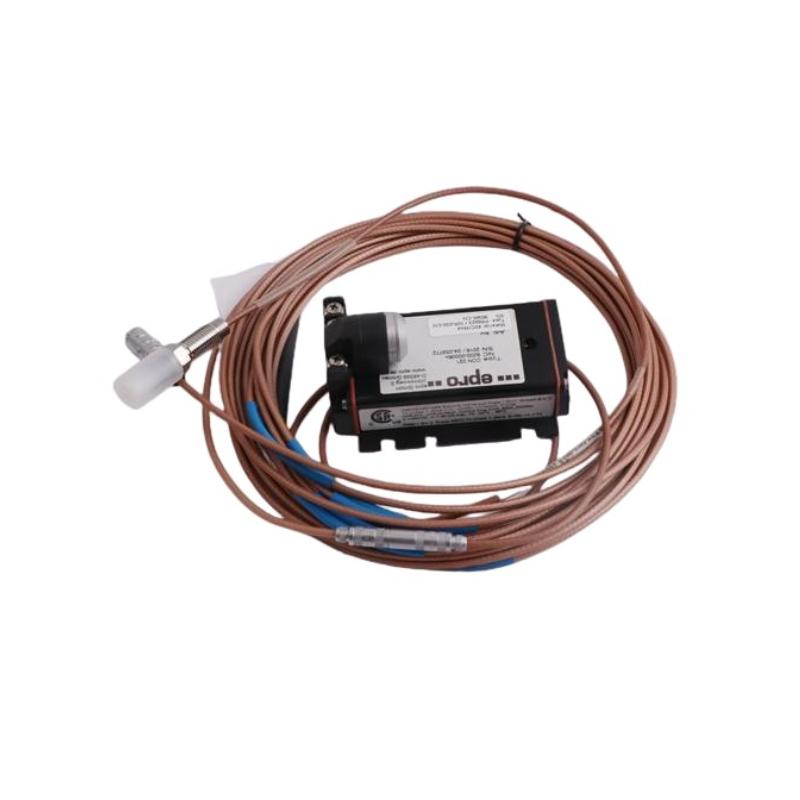

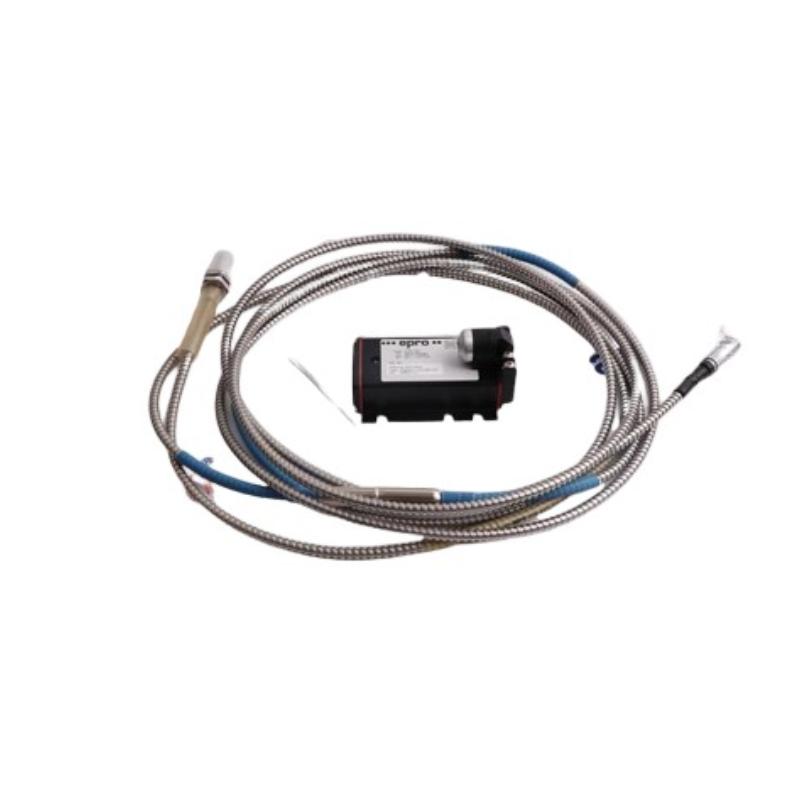

Epro CON021+PR6423/010-040-CN 8mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON021+PR6423/010-040-CN
Product Origin:Germany
Product Dimensions:8 mm
Product Weight:0.22 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON021+PR6423/010-040-CN 8mm Eddy Current Sensor is a high-precision, non-contact displacement, vibration, and position measurement solution designed for demanding industrial applications. With its compact 8mm sensing head, this sensor is ideal for measuring small displacements and is particularly suited for use in applications where space is constrained but high accuracy is still required. By leveraging advanced eddy current technology, the sensor offers reliable performance without direct contact, minimizing wear and tear on both the sensor and the monitored components. This sensor is commonly used in machinery monitoring, condition monitoring systems, and other applications where real-time measurement and feedback are crucial for preventing failures and optimizing system performance.

Technical Specifications

Parameter Specification
Model CON021 + PR6423/010-040-CN
Sensor Type Eddy Current Sensor
Sensing Head Diameter 8 mm
Weight 0.22 kg (0.49 lbs)
Measurement Range ±2 mm to ±5 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON021+PR6423/010-040-CN 8mm Eddy Current Sensor is designed for precise, non-contact measurement of displacement, vibration, and position in various industrial environments:

  • Rotating Equipment Monitoring: Ideal for measuring the displacement and vibration of small rotating components such as shafts, motors, and pumps, this sensor provides real-time feedback to ensure optimal performance and prevent mechanical failures.

  • Condition Monitoring Systems: Used in predictive maintenance applications, the sensor helps detect early signs of wear or misalignment in machinery, enabling proactive maintenance and reducing the risk of unplanned downtime.

  • Precision Machine Monitoring: This sensor is well-suited for precision measurement in machine tools, where it tracks small displacements, tool deflection, and spindle positioning to ensure high-quality manufacturing processes.

  • Vibration Analysis: Used to measure vibrations in sensitive equipment, the sensor helps detect abnormal operating conditions and ensures that machinery runs within safe vibration limits.

  • Automated Systems: Perfect for robotics, conveyors, and other automated processes, the sensor helps ensure accurate positioning and movement tracking in dynamic systems.


Advantages

  • High Precision and Accuracy: With a resolution of 1 µm and an accuracy of ±1 µm, the sensor provides highly accurate measurements, ideal for applications requiring fine displacement or vibration detection.

  • Non-Contact Measurement: The sensor’s eddy current technology allows for non-contact measurement, reducing mechanical wear and contamination risks, which enhances the longevity and reliability of both the sensor and the equipment it monitors.

  • Compact Size for Space-Constrained Applications: The 8mm sensing head is designed for installations where space is limited, making it an ideal choice for applications with small or confined spaces.

  • Fast Response Time: With a response time of ≤ 1 ms, the sensor provides real-time feedback, ensuring dynamic systems receive immediate data for monitoring and adjustment.

  • Wide Operating Temperature Range: The sensor operates in environments ranging from -40°C to 85°C, ensuring reliable performance in both cold and high-temperature conditions.

  • Durable and Rugged Design: The IP67 protection rating ensures that the sensor is dust-tight and waterproof, providing reliable operation in harsh industrial environments exposed to contaminants such as moisture and dirt.

  • Flexible Output Options: The sensor supports both 4-20 mA and 0-10V analog outputs, providing flexibility for integration into various control systems and measurement setups.

  • Low Maintenance Requirements: Due to its non-contact nature and durable design, the sensor requires minimal maintenance, reducing downtime and operating costs in the long run.


Technical FAQs

  1. What is the function of the Epro CON021+PR6423/010-040-CN Eddy Current Sensor?
    This sensor is designed to measure the displacement, vibration, and position of metallic components using non-contact eddy current technology, ensuring high-precision measurements for industrial applications.

  2. What is the measurement range of the sensor?
    The sensor offers a measurement range of ±2 mm to ±5 mm, making it suitable for applications where small to medium displacements need to be measured accurately.

  3. What output signal does the sensor provide?
    The sensor provides an analog output, which can be configured as either 4-20 mA or 0-10V, depending on the requirements of the control and monitoring systems.

  4. What is the accuracy and resolution of the sensor?
    The sensor offers a resolution of 1 µm and an accuracy of ±1 µm, ensuring precise measurements even in applications with stringent accuracy requirements.

  5. How large is the sensor’s sensing head?
    The sensor’s sensing head has a diameter of 8 mm, making it suitable for applications with space constraints and where smaller displacements need to be measured.

  6. What is the operating temperature range of the sensor?
    The sensor is designed to operate in temperatures ranging from -40°C to 85°C, ensuring reliability in both low-temperature and high-temperature environments.

  7. How fast is the sensor's response time?
    The Epro CON021+PR6423/010-040-CN has a response time of ≤ 1 ms, providing real-time data for dynamic monitoring and immediate system adjustments.

  8. Can this sensor be used in harsh environments?
    Yes, with an IP67 rating, the sensor is dust-tight and waterproof, making it ideal for use in harsh industrial environments exposed to contaminants like dirt, dust, or moisture.

  9. In which industries is this sensor commonly used?
    The Epro CON021+PR6423/010-040-CN sensor is ideal for industries such as automotive, aerospace, manufacturing, energy, and robotics, where high-precision measurements of displacement and vibration are critical.

  10. What certifications does the Epro CON021+PR6423/010-040-CN comply with?
    The sensor complies with CE and RoHS standards, ensuring it meets the necessary safety, environmental, and quality requirements for industrial applications.
