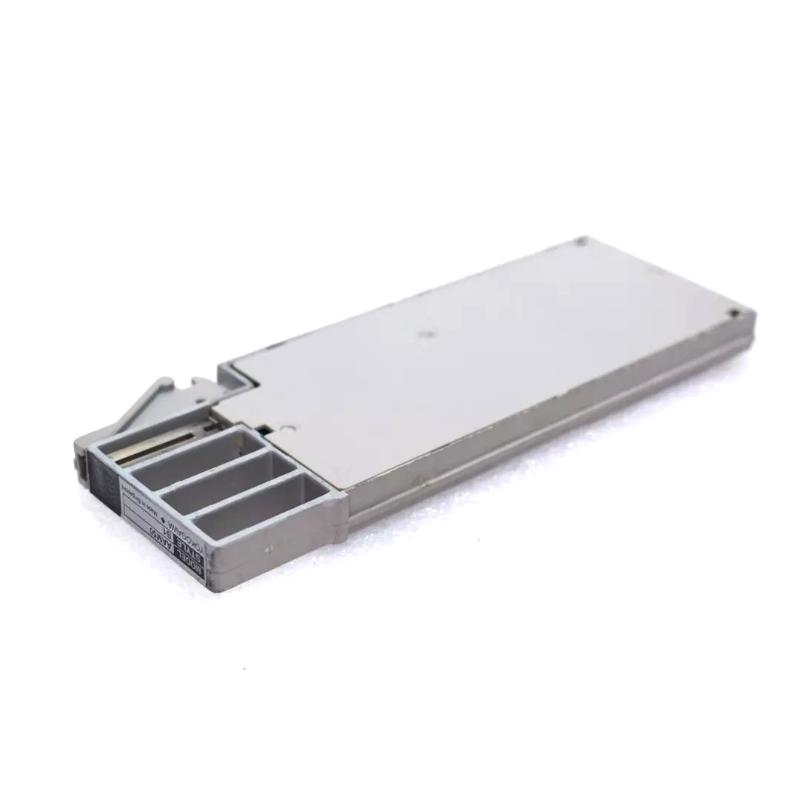

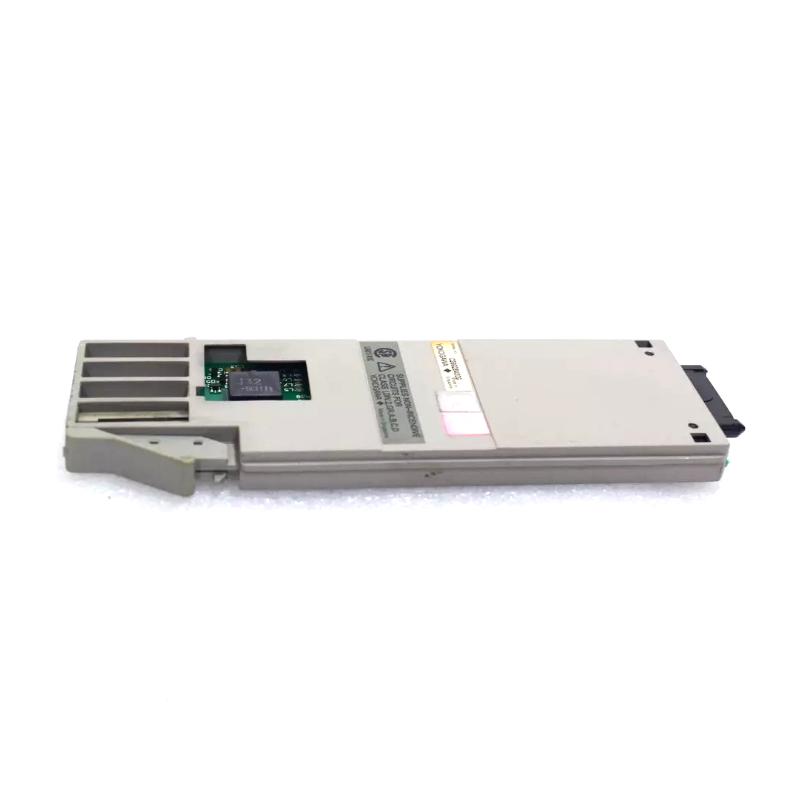

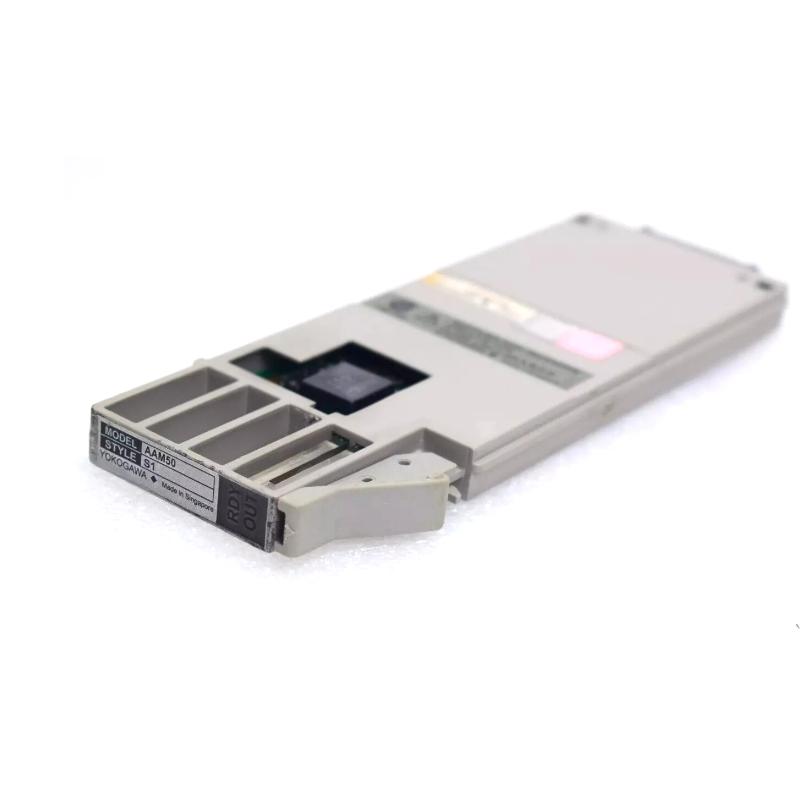

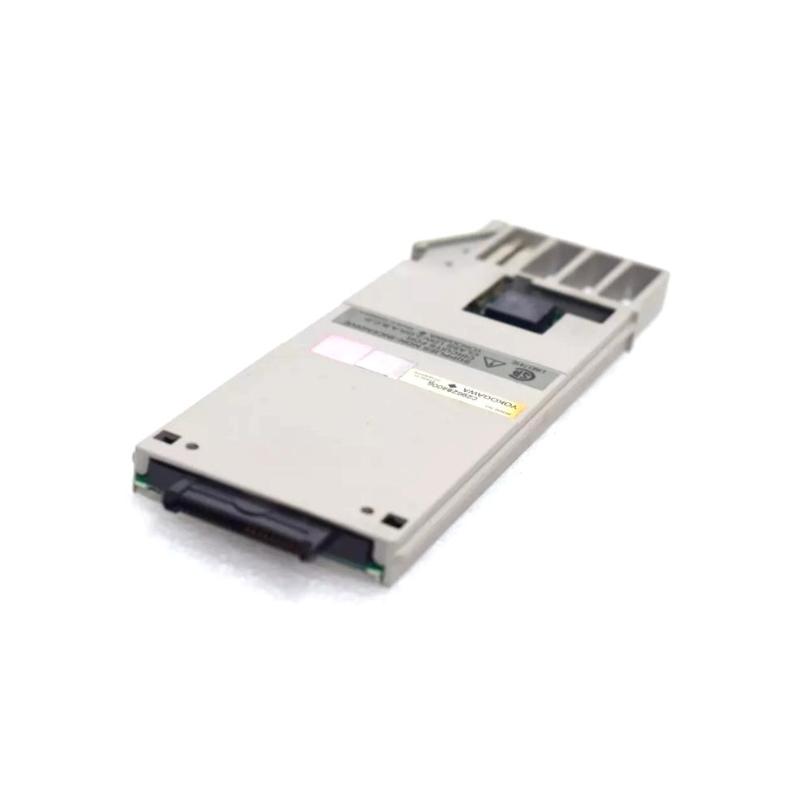

Yokogawa AAM50‑S1 Current/Voltage Output Module

Name: Yokogawa AAM50‑S1 Current/Voltage Output Module
Brand: Yokogawa Electric
SKU: 746
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAM50‑S1
Product Origin:Japan
Product Dimensions:105 mm × 90 mm × 30 mm
Product Weight:0.25kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAM50‑S1 is a precision analog output module designed for industrial DCS and PLC systems. It provides reliable current (4–20 mA / 0–20 mA) or voltage (0–10 V / 1–5 V) outputs, allowing control of field devices such as valves, actuators, and transducers. With robust isolation, high accuracy, and rapid response, the AAM50‑S1 ensures stable process control and precise signal transmission in demanding industrial environments, making it a dependable choice for chemical plants, utilities, energy systems, and manufacturing automation.

Technical Specifications

Parameter	Details
Output Channels	8 analog output channels
Supported Signal Types	DC Current (0–20 mA, 4–20 mA) / DC Voltage (0–10 V, 1–5 V)
Output Resolution	16-bit DAC for precise signal control
Load Resistance (Current Mode)	0–600 Ω typical
Load Resistance (Voltage Mode)	≥ 2 kΩ
Accuracy	±0.1% of full scale
Response Time	< 50 ms per channel
Isolation	Galvanic isolation between outputs and system; withstand voltage 1500 V AC for 1 min
Power Supply / Consumption	Powered via I/O module nest; low current draw per module
Mounting / Compatibility	Standard Yokogawa analog I/O rack / module nest
Dimensions (H × W × D)	105 mm × 90 mm × 30 mm
Weight	Approx. 0.25 kg

Applications

Controlling valves, actuators, and other analog field devices.
Sending precision analog control signals to instruments and transmitters.
Process automation in chemical, water, energy, and manufacturing plants.
Expansion of DCS/PLC systems requiring additional analog outputs.
Machine automation requiring accurate and fast analog signal control.

Advantages

Multi-signal support — current or voltage output selectable per channel.
High precision — 16-bit DAC and ±0.1% full-scale accuracy ensure reliable control.
Fast response — <50 ms update time per channel supports real-time control loops.
Galvanic isolation — protects system from interference and ground loops.
Compact design — fits standard Yokogawa I/O nests, saving panel space.
Versatile control — suitable for a wide range of industrial process applications.

Technical FAQs (10)

Q: How many analog outputs does the AAM50‑S1 support?
A: 8 output channels.
Q: What types of signals can it generate?
A: DC current (0–20 mA, 4–20 mA) and DC voltage (0–10 V, 1–5 V).
Q: What is the output resolution?
A: 16-bit DAC.
Q: What is the accuracy of the outputs?
A: ±0.1% of full scale.
Q: What is the typical response time per channel?
A: Less than 50 ms.
Q: Are the outputs isolated from the system?
A: Yes, galvanic isolation with withstand voltage of 1500 V AC for 1 minute.
Q: What load resistance is supported in current mode?
A: 0–600 Ω typical.
Q: What load resistance is supported in voltage mode?
A: ≥ 2 kΩ.
Q: What are the physical dimensions and weight of the module?
A: 105 mm × 90 mm × 30 mm; weight approx. 0.25 kg.
Q: Which applications are ideal for this module?
A: Controlling field devices, process automation, DCS/PLC system expansion, and machine control.
