Advanced Axial Position Monitoring for Rotating Equipment

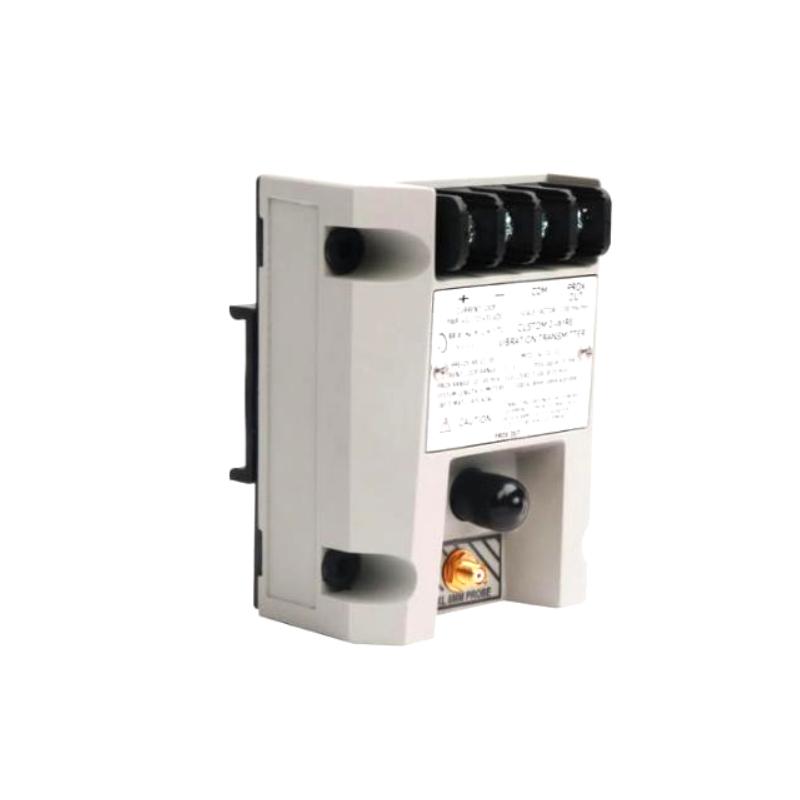

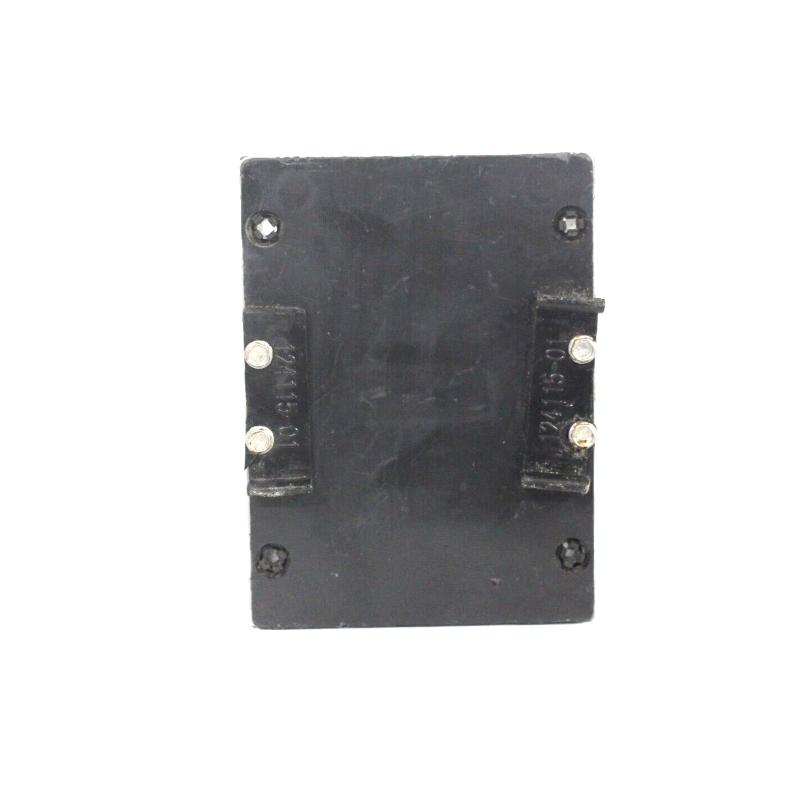

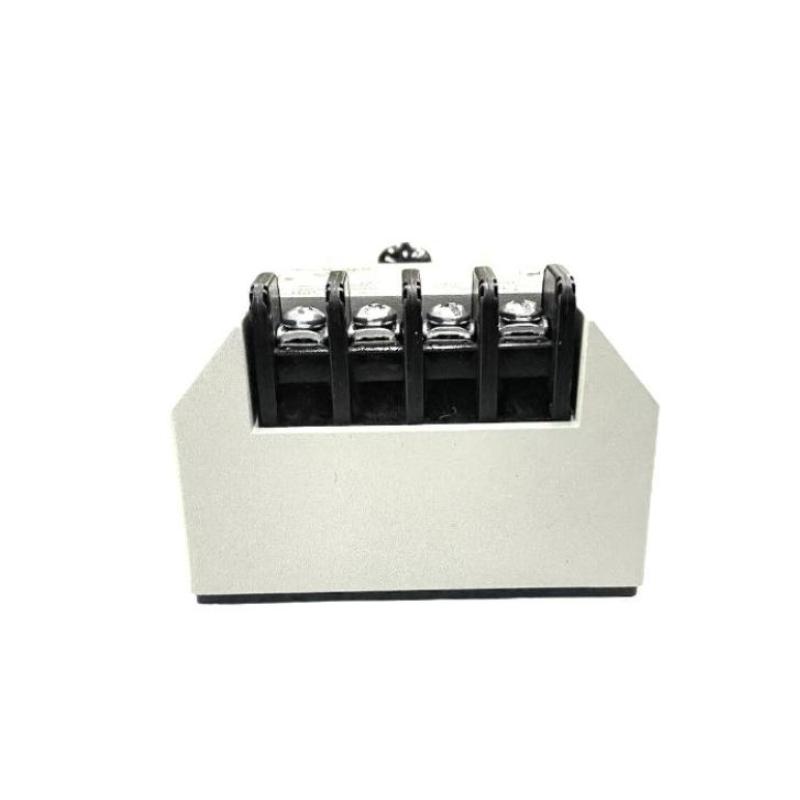

The Bently Nevada 991-06-XX-01-01 991 Thrust Sensor is a compact, two-wire, loop-powered thrust transmitter engineered to provide continuous and accurate shaft axial displacement (thrust position) monitoring for critical rotating machinery. Designed primarily for OEM equipment manufacturers and industrial process applications, the 991 series accepts input from a compatible 3300 NSv proximity probe system and converts the measured shaft position into a standard 4–20 mA analog output for direct integration with PLC, DCS, SCADA, and machinery protection systems. It combines dependable performance with simplified installation by incorporating Proximitor® signal conditioning electronics into a single housing.
The 991-06-XX-01-01 configuration features a 0.6 mm (24 mil) full-scale axial displacement range, a configurable transducer system length (XX), 35 mm DIN-rail mounting, and the 01 approval configuration, making it an excellent choice for compressors, turbines, pumps, motors, and other rotating assets that require continuous thrust bearing protection.
Engineering Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 991-06-XX-01-01 |
| Product Type | 991 Thrust Sensor / Thrust Transmitter |
| Measurement Type | Shaft Axial Displacement (Thrust Position) |
| Full Scale Range | 0–0.6 mm (24 mils) |
| Compatible Probe | 3300 NSv Proximity Probe |
| System Length | XX (Configurable 5 m or 7 m system) |
| Output Signal | 4–20 mA proportional output |
| Power Supply | 12–35 VDC |
| Loop Configuration | Two-wire loop powered |
| Mounting Method | 35 mm DIN-rail mounting |
| Signal Conditioning | Integrated Proximitor® electronics |
| Diagnostic Outputs | PROX OUT and COM terminals |
| Maximum Loop Resistance | 1000 Ω at 35 VDC |
| Accuracy | ±1.5% of full scale |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +100°C |
| Construction | Fully potted industrial enclosure |
| Dimensions | Approx. 100 × 74 × 53 mm |
| Weight | Approx. 0.45 kg |
Typical Industrial Applications
The 991-06-XX-01-01 is developed for continuous monitoring of shaft axial movement on equipment equipped with thrust bearings.
| Industry | Typical Equipment |
|---|
| Oil & Gas | Centrifugal compressors, pipeline pumps |
| Petrochemical | Process compressors and expanders |
| Power Generation | Steam turbines, generators |
| Chemical Processing | High-speed rotating machinery |
| Manufacturing | Industrial motors, blowers, fans |
| OEM Machinery | Compressor and pump skids |
Typical applications include:
-
Axial shaft displacement monitoring
-
Thrust bearing protection
-
Machinery condition monitoring
-
Predictive maintenance programs
-
Process automation integration
-
Continuous equipment health monitoring
Product Benefits
Optimized for Thrust Position Measurement
The 991 series is specifically designed for monitoring shaft axial displacement, providing early indication of thrust bearing wear and abnormal shaft movement that can lead to costly machinery failures.
Integrated Proximitor® Technology
Signal conditioning electronics are built directly into the transmitter housing, reducing wiring complexity, saving panel space, and eliminating the need for an external Proximitor module.
Configurable Transducer System
The XX designation allows users to select the appropriate 5-meter or 7-meter transducer system, providing installation flexibility for different machinery layouts.
Convenient DIN-Rail Installation
The 01 mounting configuration supports 35 mm DIN-rail installation, enabling fast integration into industrial control panels and OEM machinery cabinets.
Standard 4–20 mA Process Output
The transmitter delivers a linear 4–20 mA signal that integrates directly with modern PLC, DCS, and SCADA systems without requiring additional interface hardware.
Rugged Industrial Reliability
Designed for continuous operation in demanding environments, the transmitter features a sealed, fully potted construction that offers dependable performance under vibration, humidity, and temperature fluctuations.
Technical FAQs
1. What is the Bently Nevada 991-06-XX-01-01 used for?
It continuously measures shaft axial displacement (thrust position) and transmits the measurement as a standard 4–20 mA analog signal.
2. Which probe is compatible with this transmitter?
It is designed for use with a Bently Nevada 3300 NSv proximity probe and its matching extension cable system.
3. What does the "06" option indicate?
The 06 configuration specifies a 0.6 mm (24 mil) full-scale axial displacement measurement range.
4. What does the "XX" designation mean?
It indicates a configurable transducer system length, typically available in 5-meter or 7-meter configurations depending on application requirements.
5. What does the "01" mounting option represent?
It specifies 35 mm DIN-rail mounting for installation inside industrial control panels.
6. What does the final "01" code indicate?
The final 01 represents a specific factory ordering and approval configuration defined in the manufacturer's ordering guide.
7. What output signal does this model provide?
It provides a 4–20 mA proportional output corresponding to measured shaft axial position.
8. Does this model require an external Proximitor?
No. The transmitter includes integrated Proximitor® electronics, eliminating the need for a separate signal conditioning module.
9. What supply voltage is required?
The transmitter operates from a 12–35 VDC loop-powered supply.
10. Which machinery commonly uses the 991-06-XX-01-01?
It is commonly installed on centrifugal compressors, steam turbines, pumps, industrial motors, and other rotating equipment requiring continuous thrust position monitoring.
