Premium Integrated Vibration Monitoring for Deep-Reach Industrial Applications

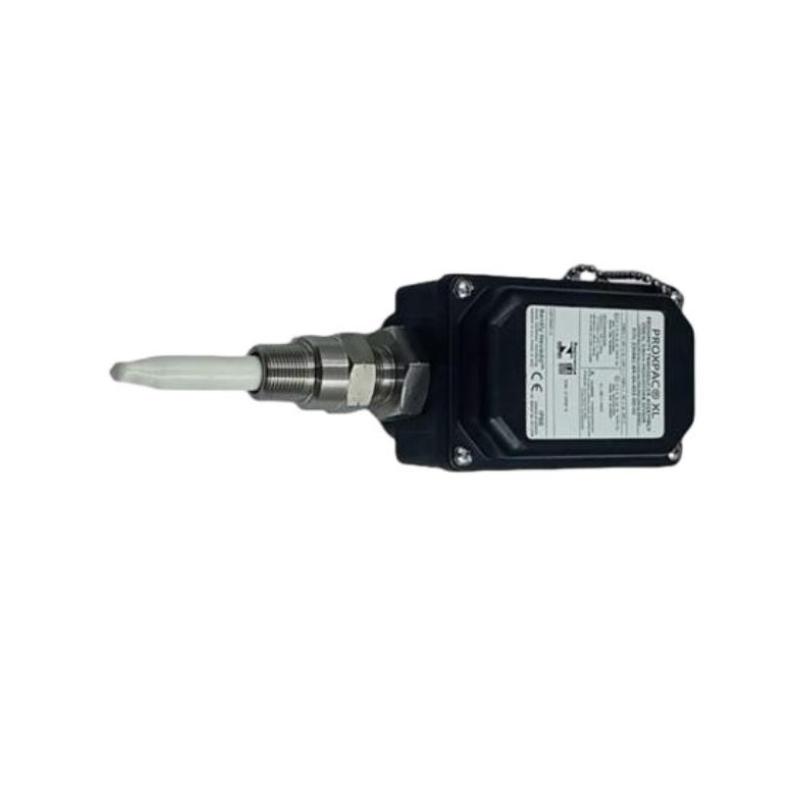

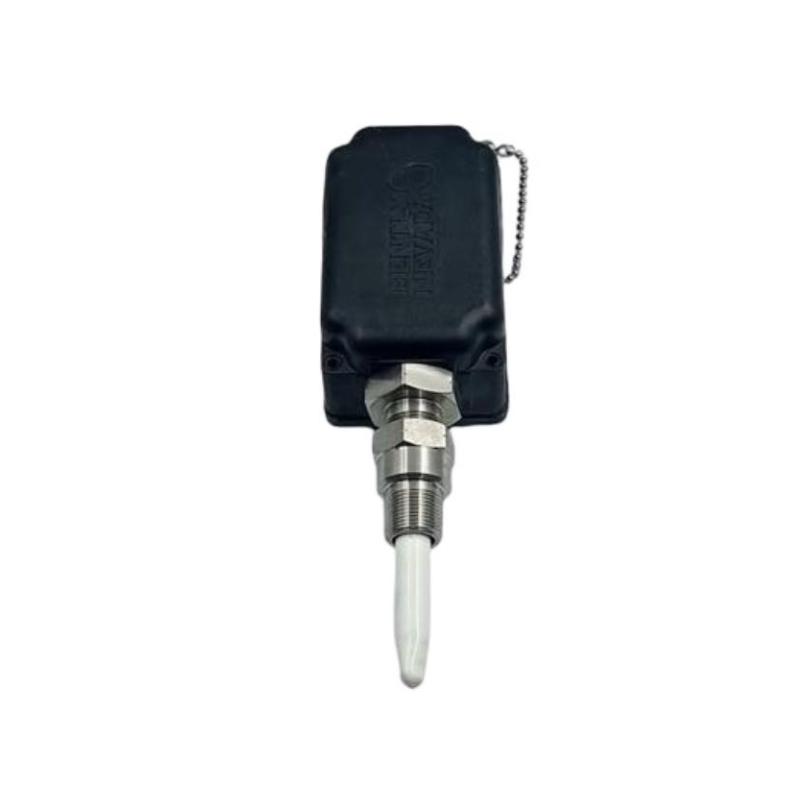

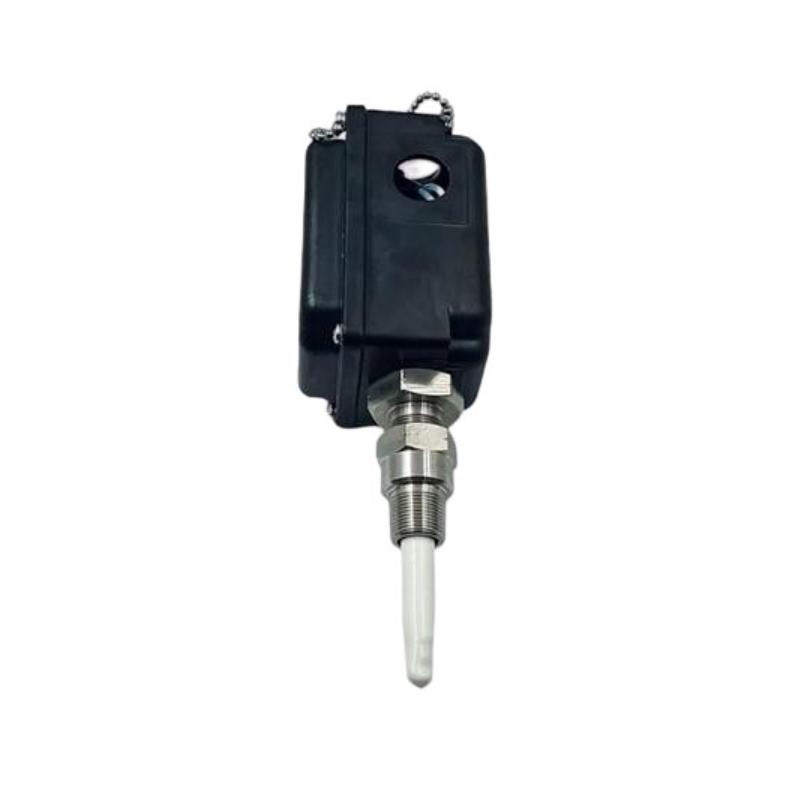

The Bently Nevada 330881-28-10-148-03-02 PROXPAC XL Proximity Sensors is a high-performance, factory-assembled proximity transducer system engineered for accurate measurement of shaft vibration, radial displacement, and position in critical rotating machinery.
This configuration belongs to the PROXPAC XL integrated monitoring family, which combines a 3300 XL 8 mm proximity probe and built-in Proximitor® sensor inside a single rugged PPS housing. The result is a compact, self-contained solution that eliminates the need for separate Proximitor housings and extension cables, significantly improving installation efficiency and system reliability.
With its extended probe penetration configuration (148 mm), this model is particularly suited for deep-access turbine and compressor applications where standard probe reach is insufficient.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | PROXPAC XL Proximity Transducer Assembly |
| Model Number | 330881-28-10-148-03-02 |
| Product Series | PROXPAC XL |
| Measurement Technology | Eddy-current non-contact sensing |
| Sensor System | Integrated probe + Proximitor® electronics |
| Probe Type | 3300 XL 8 mm proximity probe |
| Primary Functions | Shaft vibration, displacement, radial position |
| Probe Approval Option | 28 = Multiple approvals |
| Standoff Adapter | 10 = 100 mm configuration |
| Probe Penetration | 148 mm |
| Fittings Option | 03 = One M20 fitting + two plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Reinforced Polyphenylene Sulfide (PPS) |
| Environmental Protection | IP66 / Type 4X equivalent |
| Operating Temperature | -35°C to +85°C (electronics section) |
| Frequency Response | 0 – 10 kHz |
| Signal Output | Conditioned proximity signal |
| Approximate Dimensions | 92 × 91 × 91 mm (housing section) |
| Approximate Weight | ~1.5–2.0 kg |
