Precision Axial Position Monitoring for Critical Rotating Equipment

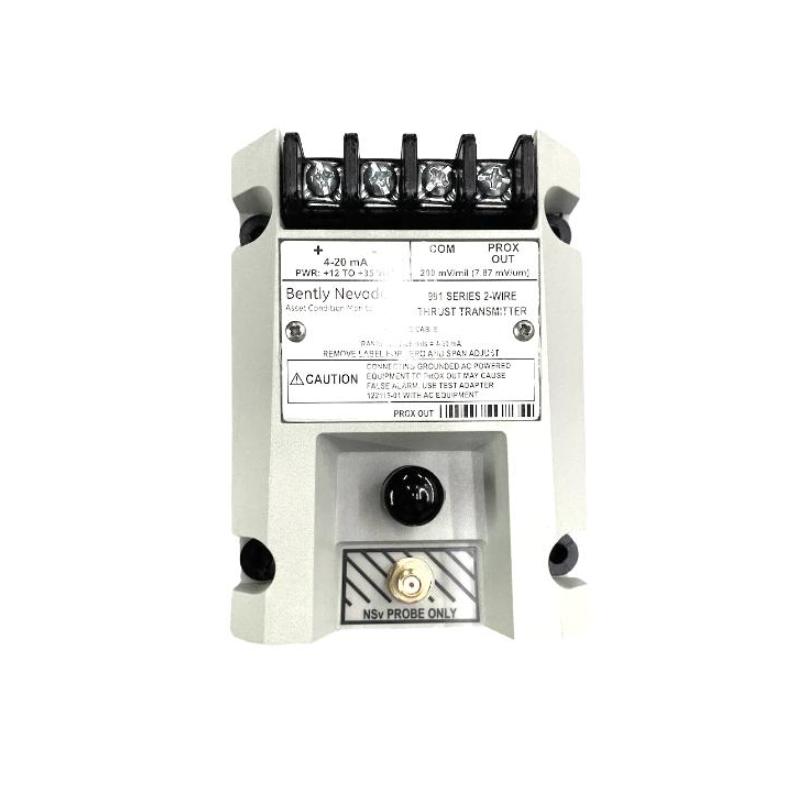

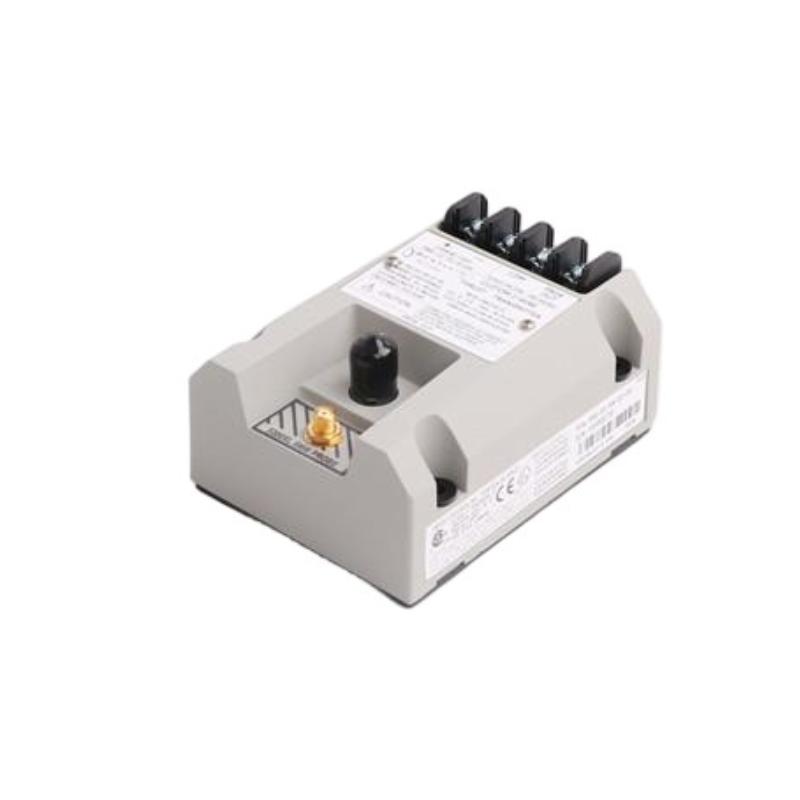

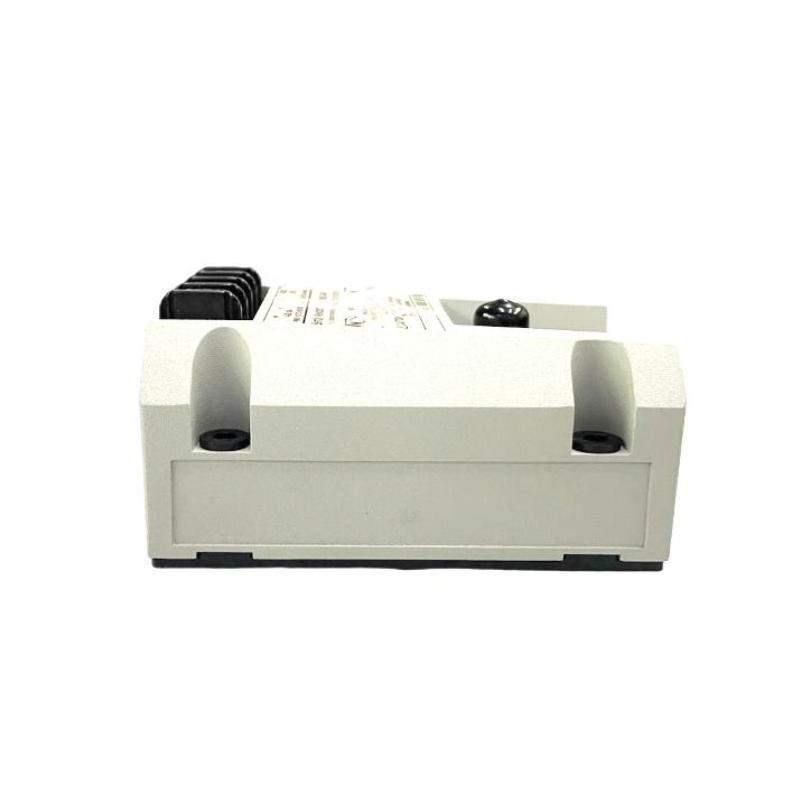

The Bently Nevada 991-06-70-01-05 Thrust Transmitter is a compact, two-wire, loop-powered transmitter engineered for continuous axial displacement (thrust) monitoring of rotating machinery. Designed primarily for OEM centrifugal compressors, pumps, motors, and fans, the 991 transmitter accepts input from a compatible 3300 NSv proximity probe system and converts shaft axial position into a standard 4–20 mA output for seamless integration with PLC, DCS, SCADA, and machinery control systems.
Unlike conventional vibration transmitters, the 991 series is specifically optimized for shaft thrust position measurement, allowing operators to monitor axial movement, identify excessive thrust bearing wear, and detect abnormal shaft movement before costly equipment failures occur. The integrated Proximitor® electronics eliminate the need for an external signal conditioner, reducing installation complexity while improving overall system reliability.
Configured with a 0.6 mm full-scale measurement range, 7-meter transducer system, 35 mm DIN rail mounting, and hazardous-area approvals, the 991-06-70-01-05 is well suited for demanding industrial environments requiring dependable shaft position monitoring.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 991-06-70-01-05 |
| Product Type | Thrust Transmitter |
| Measurement Type | Axial Displacement (Thrust Position) |
| Full Scale Range | 0–0.6 mm (0–24 mils) |
| Compatible Probe | 3300 NSv Proximity Probe |
| System Length | 7.0 m (23 ft) |
| Output Signal | 4–20 mA proportional axial position |
| Power Supply | +12 to +35 VDC |
| Loop Configuration | Two-wire loop powered |
| Mounting Method | 35 mm DIN rail clips |
| Signal Conditioning | Integrated Proximitor® electronics |
| Diagnostic Outputs | PROX OUT and COM terminals |
| Frequency Response | Suitable for axial position monitoring |
| Maximum Loop Resistance | 1000 Ω at 35 VDC |
| Accuracy | ±1.5% of full scale |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -51°C to +100°C |
| Hazardous Area Approvals | CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS Marine |
| Dimensions | Approx. 100 mm × 74 mm × 53 mm |
| Weight | Approx. 0.45 kg |
Typical Applications
The 991-06-70-01-05 is designed for continuous monitoring of shaft axial movement in critical rotating machinery.
| Industry | Typical Equipment |
|---|
| Oil & Gas | Centrifugal compressors, process pumps |
| Power Generation | Steam turbines, auxiliary turbines |
| Petrochemical | Compressors, expanders |
| Chemical Processing | High-speed rotating machinery |
| Manufacturing | Motors, fans, blowers |
| OEM Equipment | Compressor and pump packages |
Typical monitoring applications include:
-
Shaft thrust position monitoring
-
Axial displacement measurement
-
Thrust bearing protection
-
Machinery condition monitoring
-
Predictive maintenance
-
PLC and DCS integration
Product Advantages
Dedicated Axial Position Monitoring
Unlike standard vibration transmitters, the 991 transmitter is specifically designed to measure shaft axial displacement, providing accurate thrust position feedback that helps protect expensive thrust bearings and rotating assemblies.
Integrated Proximitor® Electronics
The integrated Proximitor® circuitry combines probe signal conditioning and transmitter electronics into one compact device, simplifying wiring and reducing installation costs.
7-Meter Transducer System
The 70 configuration supports a 7-meter proximity probe system, allowing flexible installation where the monitoring cabinet is located away from the machine.
DIN Rail Mounting
The 01 mounting option includes 35 mm DIN rail clips, making installation quick and convenient inside industrial control panels and OEM cabinets.
Industry-Standard 4–20 mA Output
The transmitter delivers a linear 4–20 mA output proportional to shaft axial position, enabling straightforward integration into existing automation and monitoring systems.
Hazardous-Area Certification
The 05 approval option includes certifications for hazardous industrial environments, including CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS marine approval, making it suitable for demanding applications.
Technical FAQs
1. What is the 991-06-70-01-05 used for?
It continuously monitors shaft axial displacement (thrust position) and transmits the measurement as a 4–20 mA signal.
2. Which probe is compatible with this transmitter?
It is designed for use with the Bently Nevada 3300 NSv proximity probe and matching extension cable.
3. What does the "06" option indicate?
The 06 configuration specifies a 0.6 mm (24 mil) full-scale axial displacement measurement range.
4. What does the "70" option represent?
It specifies a 7-meter (23 ft) transducer system length.
5. What does the "01" mounting option mean?
It indicates 35 mm DIN rail mounting clips for control cabinet installation.
6. What output signal does this transmitter provide?
It provides a 4–20 mA proportional axial position output suitable for industrial automation systems.
7. Does it require a separate Proximitor module?
No. The Proximitor® electronics are integrated within the transmitter housing.
8. What power supply is required?
The transmitter operates from a +12 to +35 VDC loop-powered supply.
9. What diagnostic outputs are available?
It provides PROX OUT and COM terminals for dynamic signal and gap voltage diagnostics.
10. Which machines commonly use this transmitter?
It is commonly installed on centrifugal compressors, steam turbines, pumps, motors, and other machinery where axial shaft movement must be continuously monitored.
