Extended-Reach Proximity Probe Housing for Critical Rotating Equipment

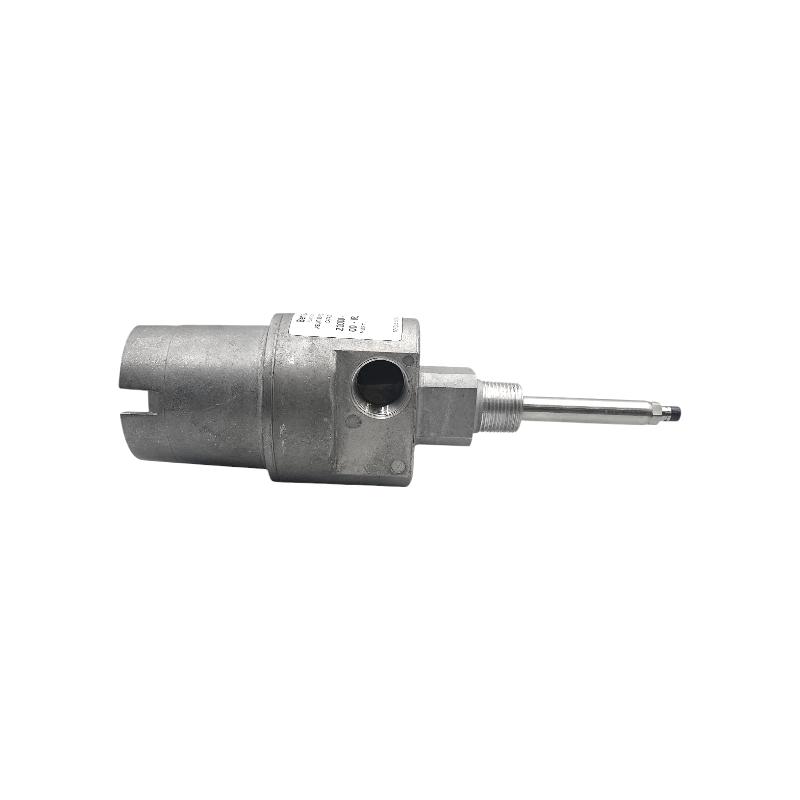

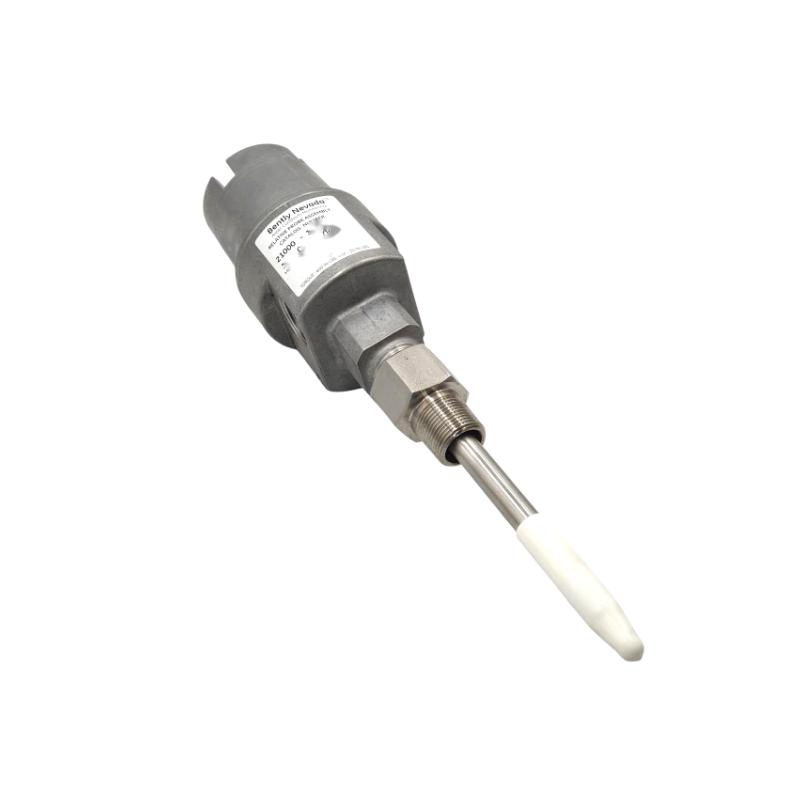

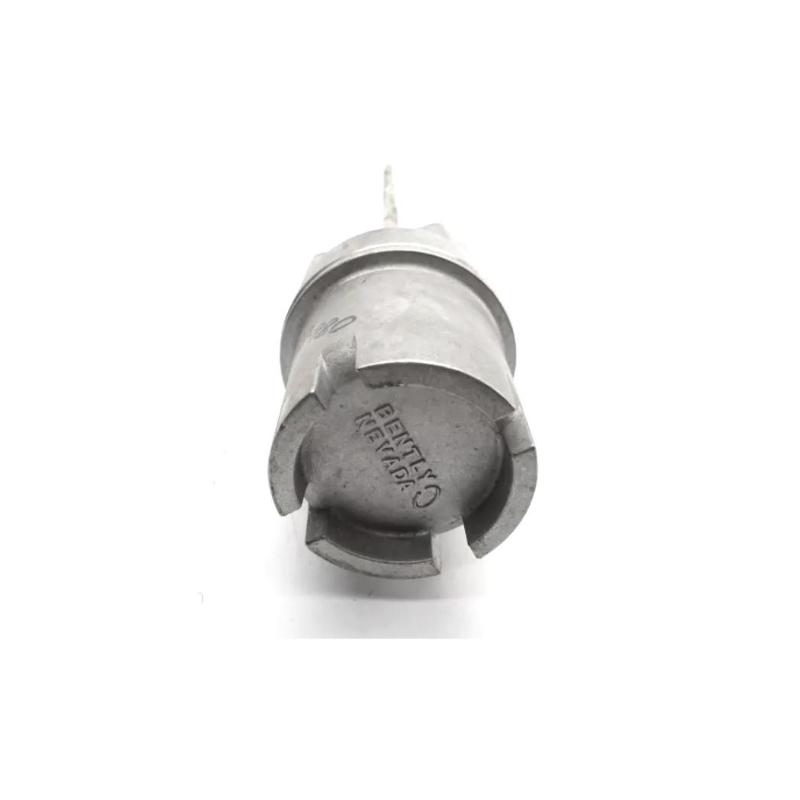

The Bently Nevada 21000-16-10-15-227-03-02 Proximity Probe Housing Assembly is a heavy-duty external mounting solution designed to provide secure installation and environmental protection for proximity probes used in machinery protection systems. As part of the trusted 21000 Proximity Probe Housing Assembly series, this model simplifies probe installation, adjustment, and maintenance while shielding the sensing assembly from moisture, oil, dust, and mechanical damage. It is widely deployed on turbines, compressors, pumps, and other rotating assets where reliable vibration and shaft position monitoring are essential for maximizing equipment availability and minimizing unplanned downtime.
This configuration includes a 3300 XL 8 mm reverse-mount proximity probe, a 1.0 m (39 in.) probe cable, a 1.5 in. (38 mm) standoff adapter, an 22.7 in. (577 mm) probe penetration, fitting option 03 with cable seal components, and a 3/4-14 NPT mounting thread. The extra-long probe penetration makes this assembly particularly suitable for deep bearing housings and machinery requiring extended probe reach.
Engineering Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-10-15-227-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 21000 |
| Housing Material | Cast Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Probe Included | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Probe Cable Length | 1.0 m (39 in.) |
| Standoff Adapter | 1.5 in. (38 mm) |
| Probe Penetration | 22.7 in. (577 mm) |
| Fitting Package | Option 03 – 3/4-14 NPT Plug, Reducer, Cable Seal Grip & Grommets |
| Mounting Thread | 3/4-14 NPT |
| Cover Style | Threaded Dome Cover |
| Environmental Sealing | O-Ring Sealed Construction |
| Typical System Compatibility | 3300 XL Proximity Transducer System |
| Dimensions | Overall dimensions depend on probe penetration configuration |
| Approximate Net Weight | 3.6 kg |
| Approximate Shipping Weight | 4.2 kg |
Common Applications
Designed for demanding industrial environments, the 21000-16-10-15-227-03-02 delivers dependable probe protection and accurate measurement in machinery protection systems.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Industrial pumps
-
Electric motors
-
High-speed gearboxes
-
Power generation equipment
-
Petrochemical process compressors
-
Offshore production platforms
-
Pipeline compressor stations
Its 22.7-inch penetration makes it especially valuable where probes must extend through deep bearing housings while maintaining excellent rigidity and measurement stability.
Technical FAQs
1. What is the purpose of this housing assembly?
It provides a protected enclosure for a reverse-mounted proximity probe while allowing accurate shaft vibration and position measurements in rotating machinery.
2. Which probe is supplied with this model?
This configuration includes a 3300 XL 8 mm reverse-mount proximity probe identified by ordering option 16.
3. What does option "10" indicate?
Option 10 specifies a 1.0-meter (39-inch) integral probe cable.
4. What does option "15" represent?
It designates a 1.5-inch (38 mm) standoff adapter that provides additional installation clearance.
5. What does option "227" specify?
Option 227 identifies a 22.7-inch (577 mm) probe penetration, allowing installation in equipment with exceptionally deep bearing housings.
6. What is included in fitting option "03"?
Option 03 includes a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with interchangeable grommets for multiple cable diameters.
7. Which mounting thread does this assembly use?
The housing features a 3/4-14 NPT mounting thread, a standard choice for industrial machinery installations.
8. What materials are used in the housing?
The body is manufactured from cast aluminum, while the probe sleeve is constructed from 304 stainless steel to provide durability and corrosion resistance.
9. Is this assembly suitable for continuous monitoring?
Yes. It is designed for permanent installation in machinery protection and condition monitoring systems operating around the clock.
10. Which industries commonly use this housing assembly?
It is widely used in power generation, oil & gas, petrochemical, mining, pulp and paper, and other industries operating critical rotating equipment.
